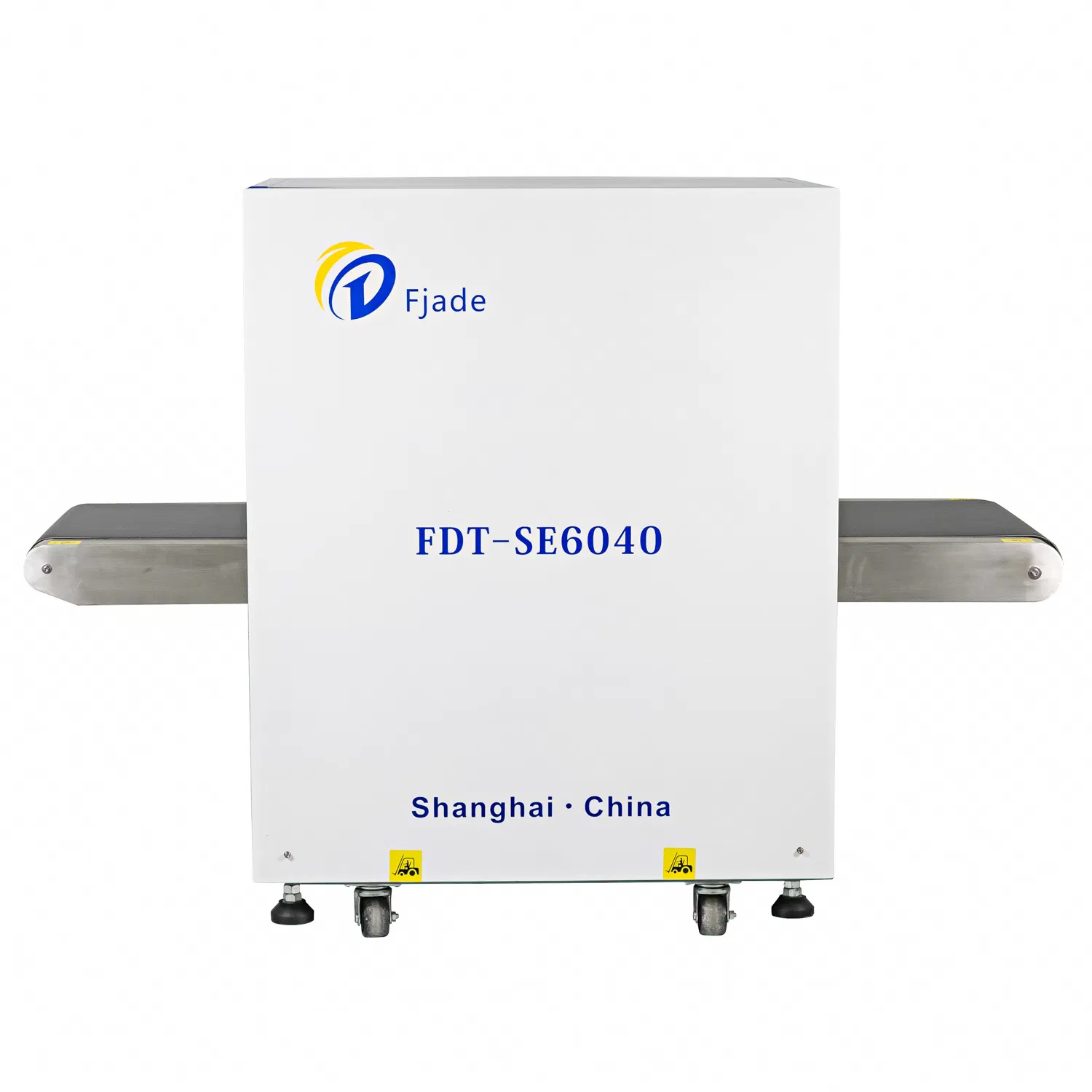

X-ray Baggage Scanner of Fdt-Se6040 Has Face Recognition Access System

1 / 1

X-ray Baggage Scanner of Fdt-Se6040 Has Face Recognition Access System

Customization:	Available
Portable:	Non Portable
Form:	Flatbed

Send Inquiry

Product Description

Basic Specifications

Model NO.

FDT-SE6040

Application

Security Check, Industrial

Type

Industrial High-definition X-ray Detector

Certification

CE, ISO, FCC

Alarm Form

Display Alarm

Appearence

Vertical

Product Type

Conveyor

Specification

1845*865*1313

Production Capacity

10000/Year

Product Description

FDT-SE6040 X-ray Baggage Scanner is widely used in public place security inspections for baggage, goods, and packages. It is ideal for government buildings, office buildings, hotels, courts, prisons, logistics points, public security checkpoints, schools, international large-scale events, sports competitions, exhibitions, high-speed rail stations, and customs ports.

Scanning Performance

Penetration: 43mm Steel Plate
Wire resolution: ≤40AWG
Penetration resolution: ≤32AWG
Spatial resolution: Horizontal Ф1.0mm / Vertical Ф1.0mm
Dose per Inspection: ≤3.0μGy
Noise Level: 55 dB

X-Ray Generator

Generation Direction: From bottom and side
Tube voltage: 100~160kV (Adjustable)
Tube current: 0.4~1.2 mA (Adjustable)
Cooling/Duty Cycle: Sealed oil / 100%
Generation angle: 80°
X-ray leakage: <0.1µGy/h

Image Processing & Intelligence

Color / Black & White Imaging
Organic / Inorganic Discrimination
Super & Edge Enhancement
Partial Enhancement & Grayscale Scanning
Image Restoration & Zoom function
High/Low Energy Penetration

Continuous Observation & Playback (50 images)
High Capacity Image Storage (>100,000 images)
One-key Shut-down
High Density Alarm
Drug and Explosive Powder Detection
Built-in Automatic Self-diagnosis

Major Project References

Category	Reference Cases
Conferences	Internet Conference; Import Expo; World Swimming Championships; UN Conference on Geographic Information
Transportation	High-speed railway stations; Bus stations; Passenger Stations
Public Institutions	People's Courts; Prison Facilities; Administrative Committees; Development Zones

Quality Certifications

ISO9001

OSHA18001

GB15208.1

ISO14001

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer of security detection systems. We focus on providing strong, durable, and high-quality equipment backed by considerate service.

What is the warranty and after-sales service?

We provide a one-year warranty (for non-human caused failures) and lifetime technical support. Free online one-on-one training is also available.

Do you offer OEM or ODM services?

OEM and ODM are highly welcome. We offer customized solutions to meet specific client requirements for various security projects.

What is the lead time after payment?

For items in stock, the lead time is usually 3-5 days. For production orders without stock, it typically takes 10-20 days depending on the project scale.

How do you handle quality control?

We control every production process strictly in accordance with ISO, CE, and FCC certifications to ensure the highest safety and performance standards.

What are the transportation and packaging options?

We offer ocean, air, and land transportation. Products are securely packed in professional wooden cases or boxes to prevent damage during transit.
