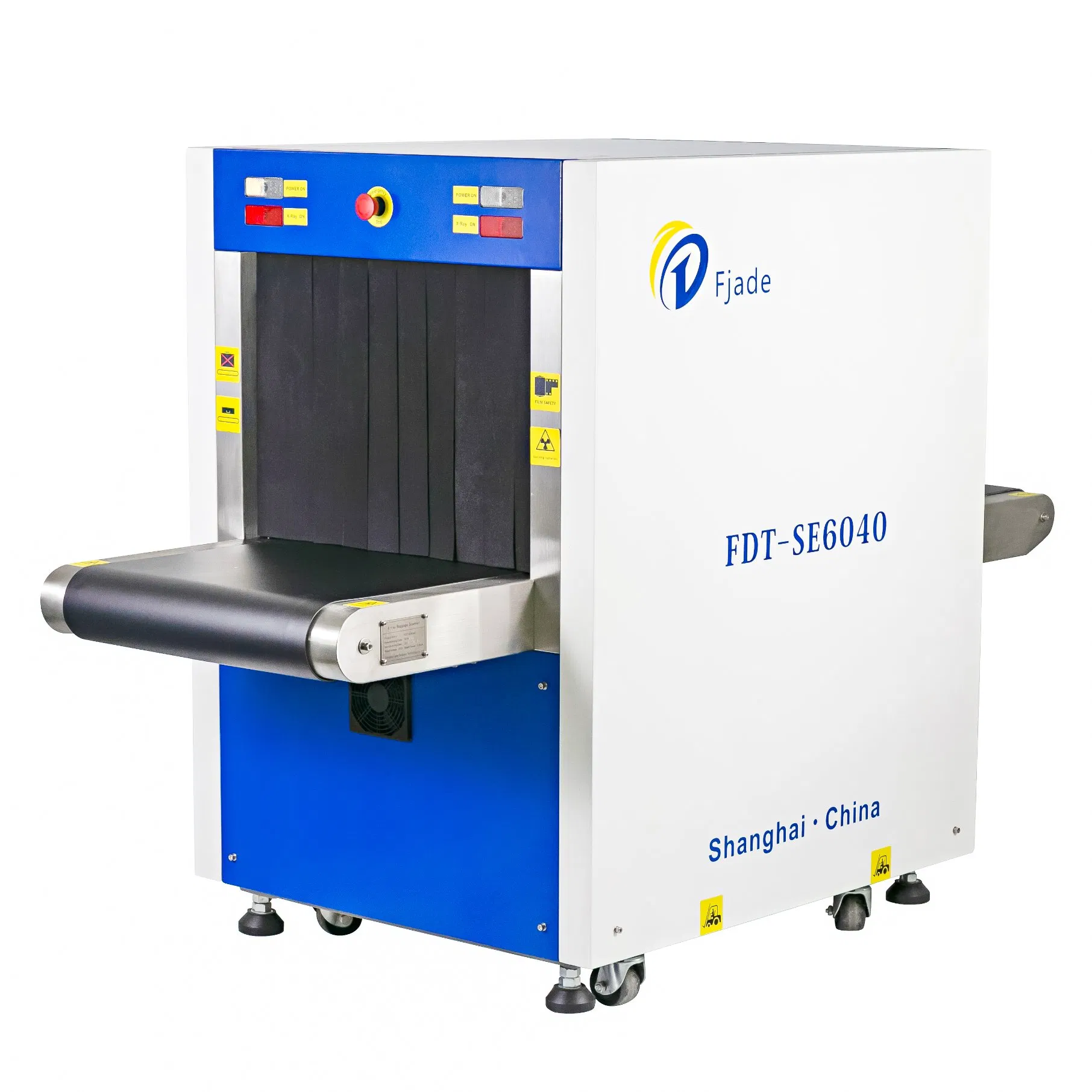

FDT-SE6040 X-ray Baggage Scanner is an advanced security solution designed for high-precision inspection. It is widely utilized in public safety hubs, including government buildings, hotels, transport terminals, and large-scale event venues to identify potential threats in baggage and cargo.
🛡️ Technical Performance
• Penetration: 43mm Steel Plate
• Wire Resolution: ≤40AWG
• Dose per Inspection: ≤3.0μGy
• Noise Level: 55 dB
⚡ X-Ray Generator
• Tube Voltage: 100~160kV (Adjustable)
• Tube Current: 0.4~1.2 mA (Adjustable)
• Cooling: Sealed Oil / 100% Duty Cycle
• Generation Angle: 80°
⚙️ Image Processing Functions
Color / Black & White Imaging
Organic / Inorganic Separation
Super & Edge Enhancement
High/Low Energy Penetration
Partial Enhancement & Grayscale
Image Restoration & Zoom In/Out
Playback (Last 50 images)
Storage (>100,000 pictures)
💡 Key Features
Industrial PLC Circuit Control
One-Key Remote Shut-down
High-Density Threat Alarm
Drug and Explosive Detection Assist
Built-in Automatic Self-Diagnosis
Radiation Protection (Eco-friendly)
Frequently Asked Questions
1. What are the primary applications for the FDT-SE6040?
It is ideal for high-security areas such as airports, railway stations, government offices, courts, prisons, and international exhibitions where baggage and parcel screening is required.
2. What is the penetration and resolution capability?
The system offers a penetration of 43mm steel plate and a wire resolution of up to 40AWG, ensuring high-definition imaging of scanned items.
3. Does it support explosive and narcotic detection?
Yes, the system includes built-in functions for drug and explosive powder detection assistance, as well as high-density material alarms.
4. Is the radiation level safe for operators?
Absolutely. The X-ray leakage is less than 0.1µGy/h, which is significantly lower than international safety standards, ensuring a safe environment for operators.
5. What kind of technical support is available?
We provide comprehensive lifetime technical support, including online video training, remote debugging, and maintenance guidance through various communication channels.
6. How long is the standard lead time for orders?
For units in stock, the lead time is typically 3-5 days. For custom production or bulk orders, it usually ranges between 10-20 days.
