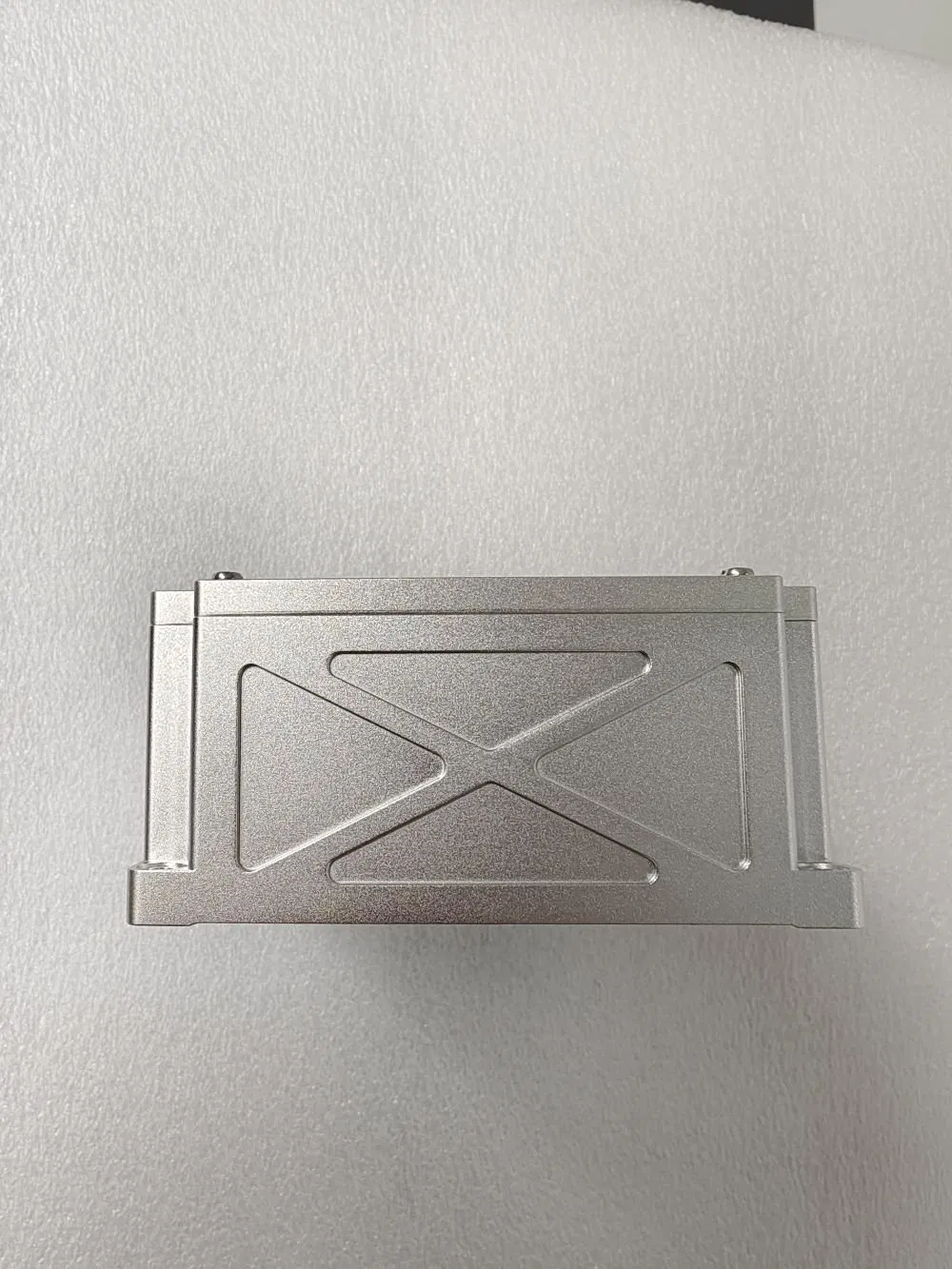

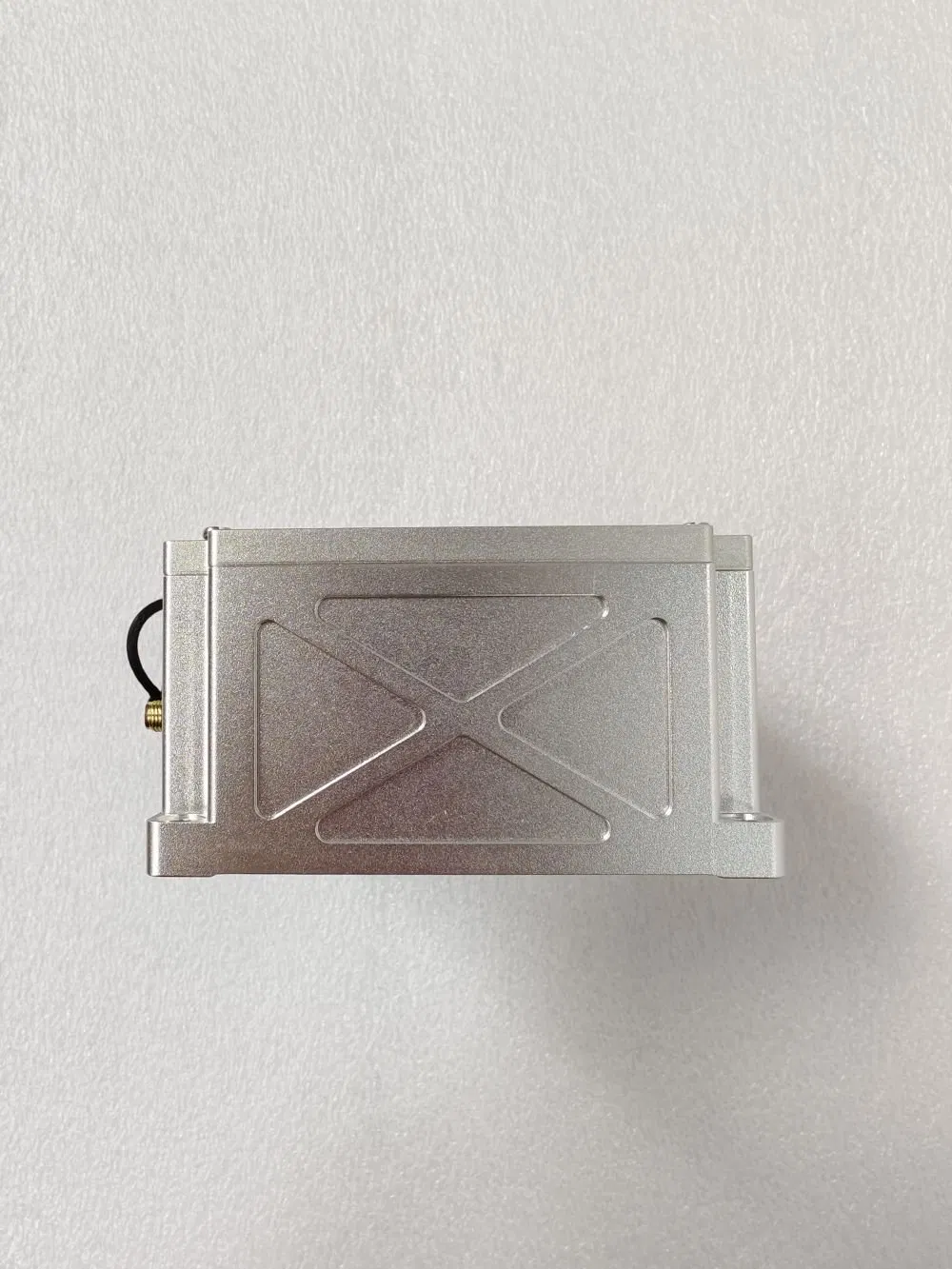

Long Service Life Fg-200m Dual-Antenna Inertial Navigation System with Exceptional Durability

Customization: Available
Type: Servo
Output Signal Type: Digital Output

Product Description

📋

Basic Information

Model NO. FG-200M
Measuring Shaft Quantities Double
Accuracy Grade 0.5G
IP Rating IP30
Certification ISO
Product Categories Inertial Sensor
Warm-up Time ≤5min
Origin China
🔍

Product Description

Dual-Antenna Inertial Navigation System

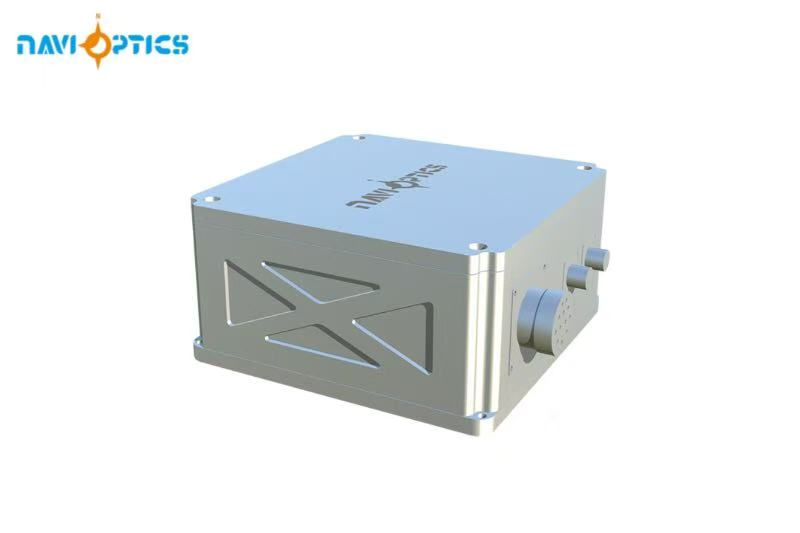

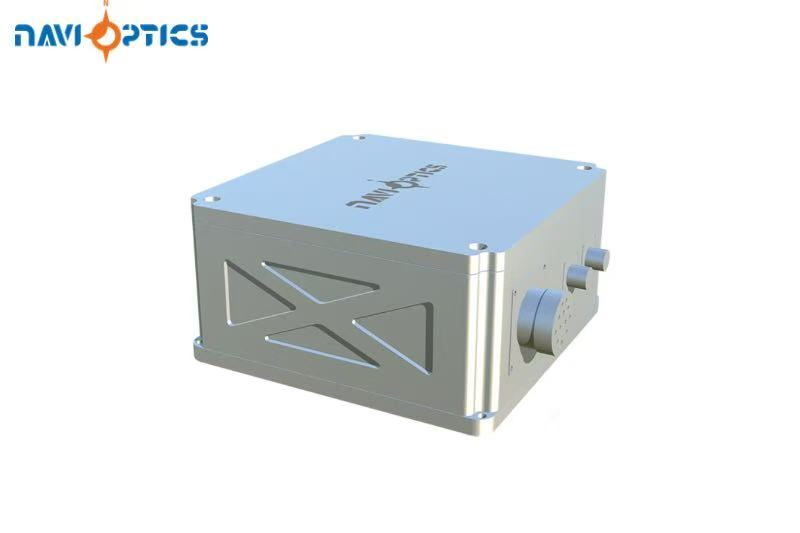

FG-200M Detail

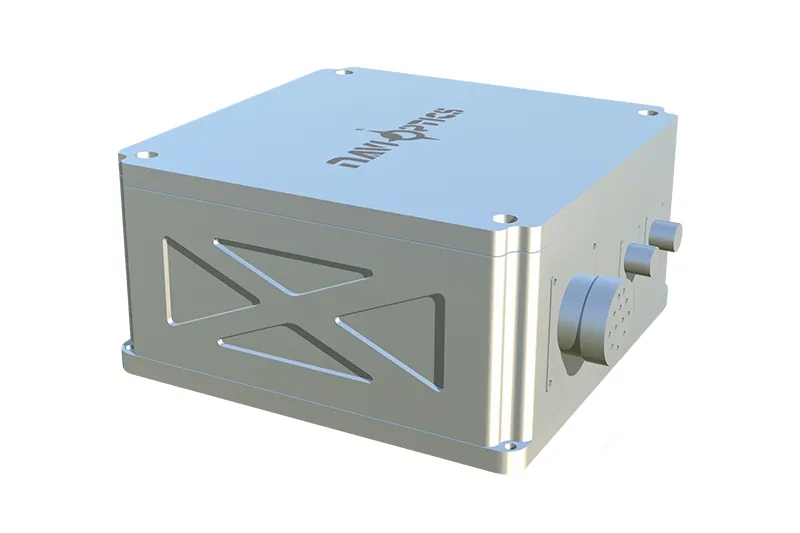

FG-200M Side View
Performance Specifications Parameters
Performance Warm-up Time ≤5min
Heading (1σ) 0.15°(2m baseline)
Roll/Pitch (1σ) 0.1°
Position (1σ) 5m(Single Point)
Velocity (1σ) 0.1m/s
Heading Drift (GNSS Outage) 0.15°@1min
Electrical Supply Voltage 9~28V
Power Consumption ≤10W
Interface RS422
Data Update Rate 100Hz(Configurable)
Physical Dimensions 115*100*54mm
Weight ≤1.5kg
🚀

Product Application

Our systems provide high-precision inertial navigation solutions suitable for surface or underwater operations. These sensors are designed to enhance perception through intelligent imaging and high-reliability motion sensing technology.

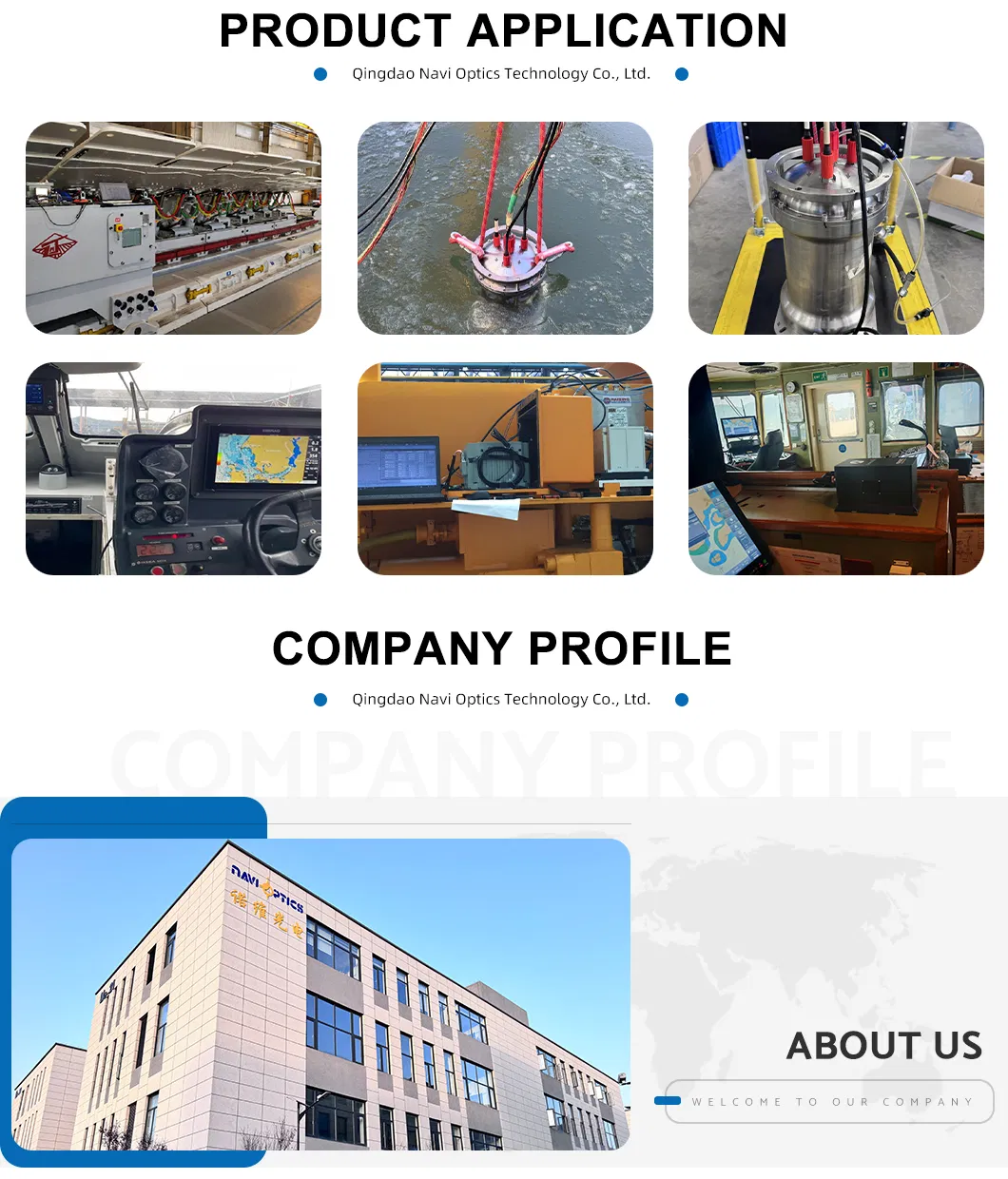

Application Scenario
🏭

Manufacturing Excellence

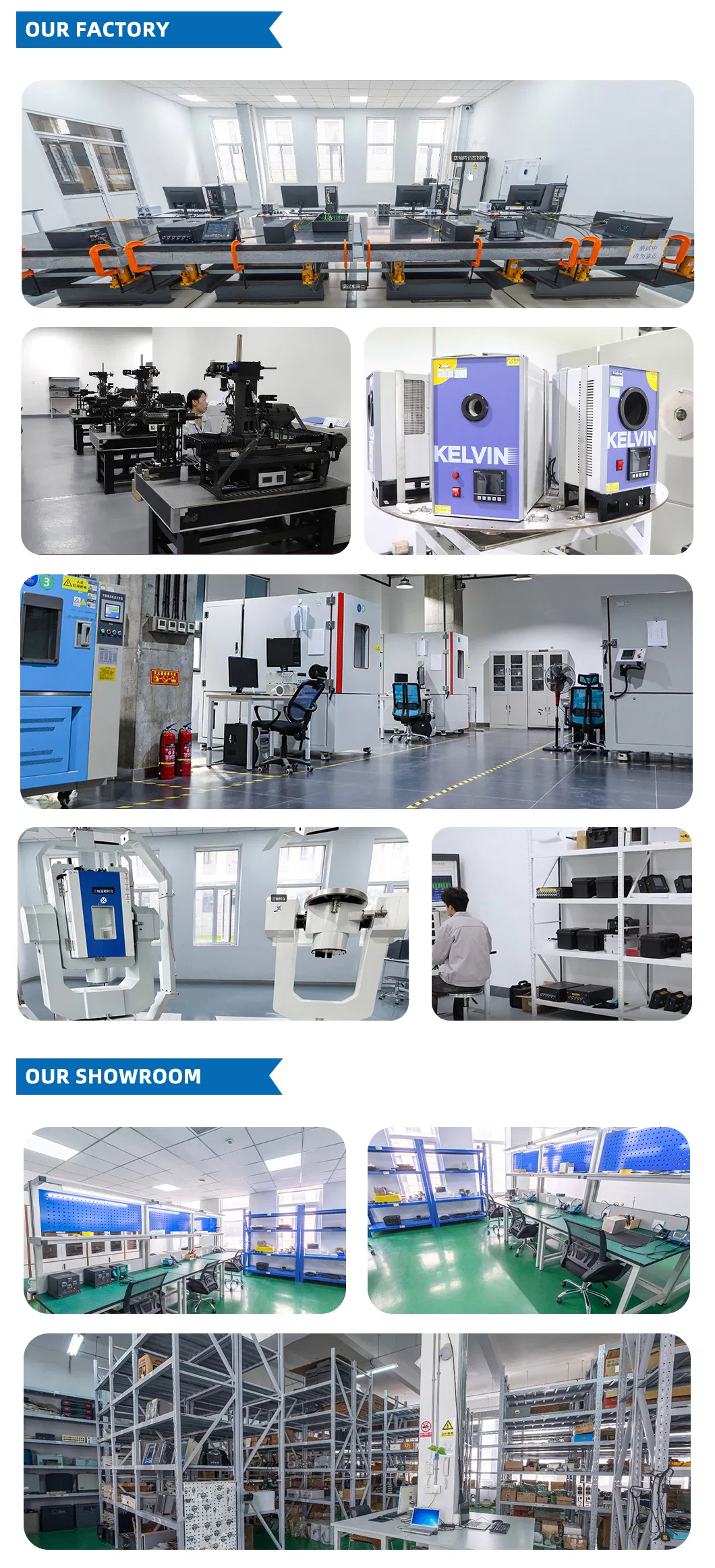

Factory View 1
Factory View 2

Frequently Asked Questions

01 What kind of certificates do you have for this product?
Currently, we have ISO, SGS, CCS, and MED certifications ensuring international quality standards.
02 Can we have an inspection by video to check the product?
Yes, we provide remote inspection services via video or other chatting software for your convenience.
03 Do you support third-party inspections at the factory?
Yes, we welcome third-party inspectors to our facility to verify product quality and specifications.
04 How is the product shipped?
We usually ship via air-express for fast delivery. Tracking numbers are provided immediately after dispatch.
05 What is the typical lead time for production?
Standard production capacity is approximately 100 units; specific lead times depend on current order volume.
06 Is technical support available for installation?
Yes, we provide efficient technical support and system integration guidance to ensure optimal performance.
