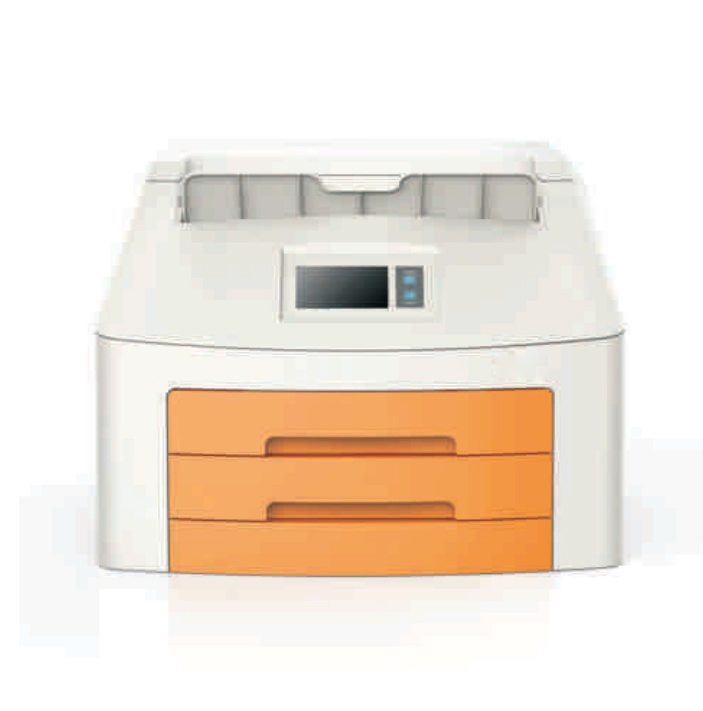

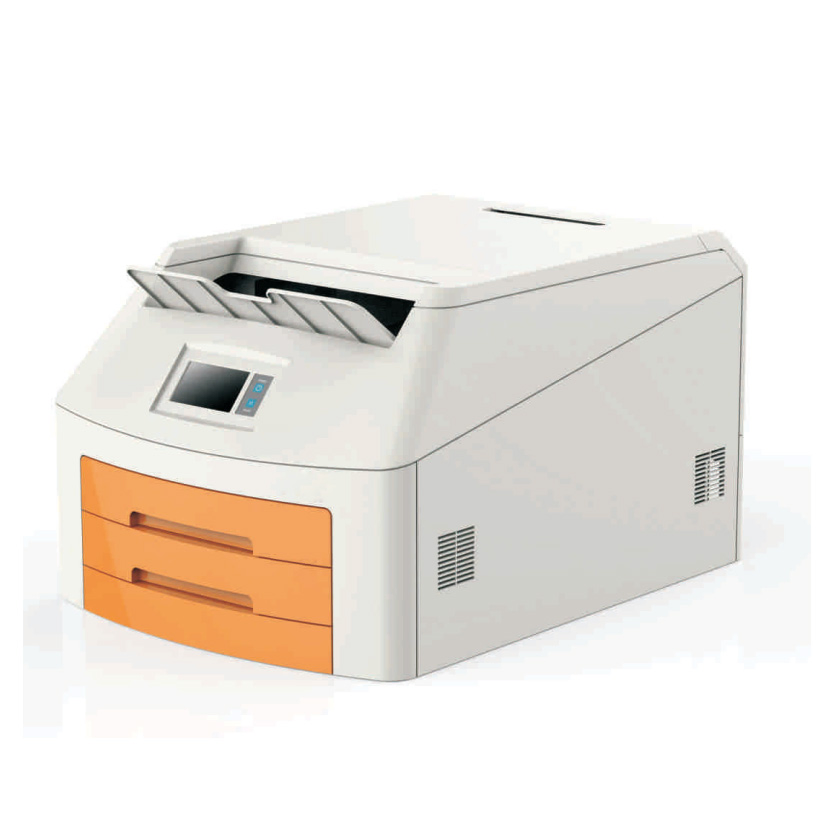

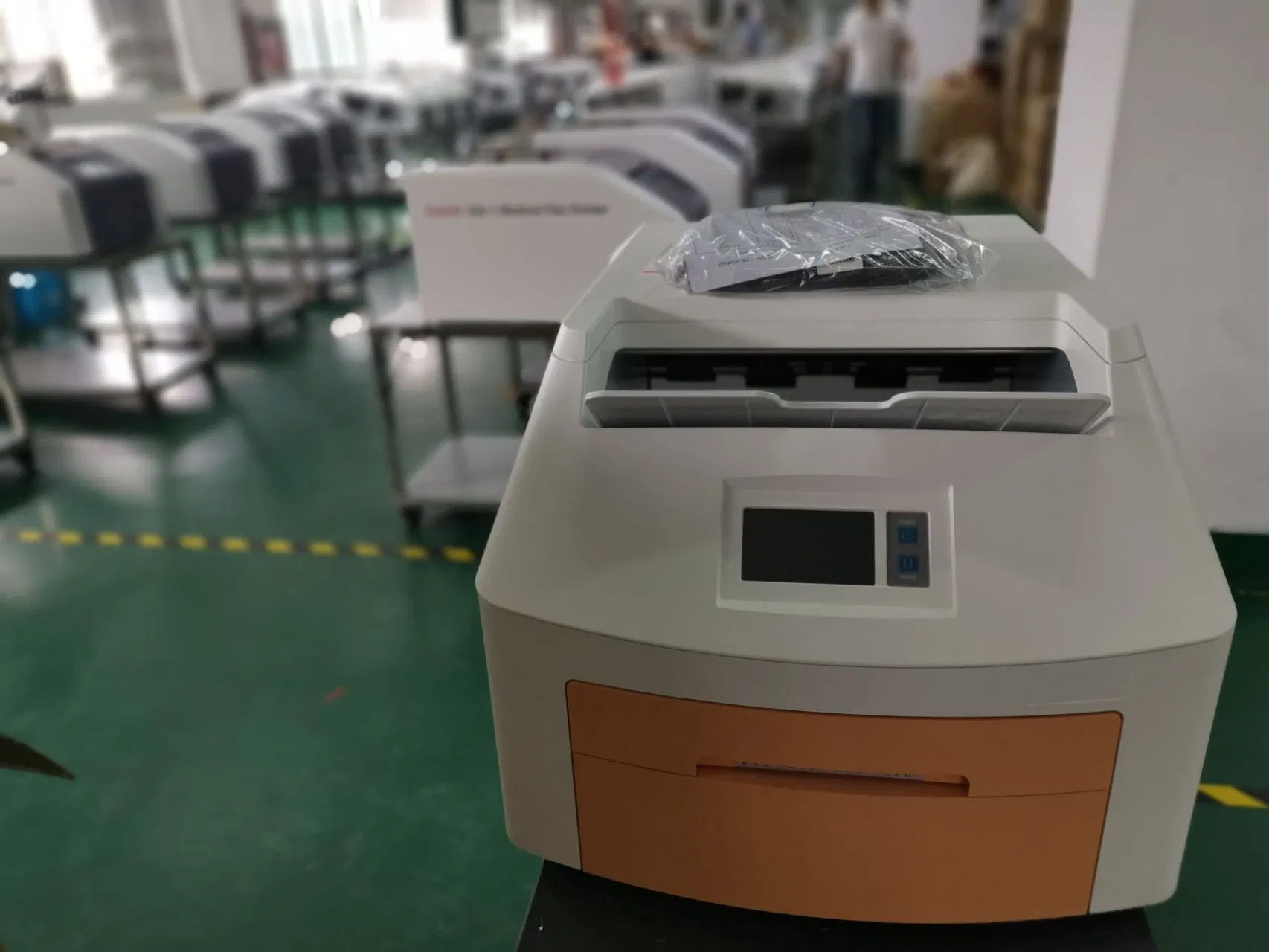

High-Performance Digital X-ray Thermal Imager for Medical Professionals
High-Performance Digital X-ray Thermal Imager for Medical Professionals
High-Performance Digital X-ray Thermal Imager for Medical Professionals
High-Performance Digital X-ray Thermal Imager for Medical Professionals
High-Performance Digital X-ray Thermal Imager for Medical Professionals
1 / 5
High-Performance Digital X-ray Thermal Imager for Medical Professionals
High-Performance Digital X-ray Thermal Imager for Medical Professionals
High-Performance Digital X-ray Thermal Imager for Medical Professionals
High-Performance Digital X-ray Thermal Imager for Medical Professionals
High-Performance Digital X-ray Thermal Imager for Medical Professionals

High-Performance Digital X-ray Thermal Imager for Medical Professionals

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: Ultrasound Machine
Send Inquiry

Product Description

📋 Basic Information
Model NO.
CK-460DY
Certification
CE, ISO13485
Product Name
X-ray Film Printer
Warranty
1 Year
Spatial Resolution
320dpi (12.6 Pixels/mm)
Transferring Method
Rubbing
Grayscale Resolution
14 Bits
Scale
Medium

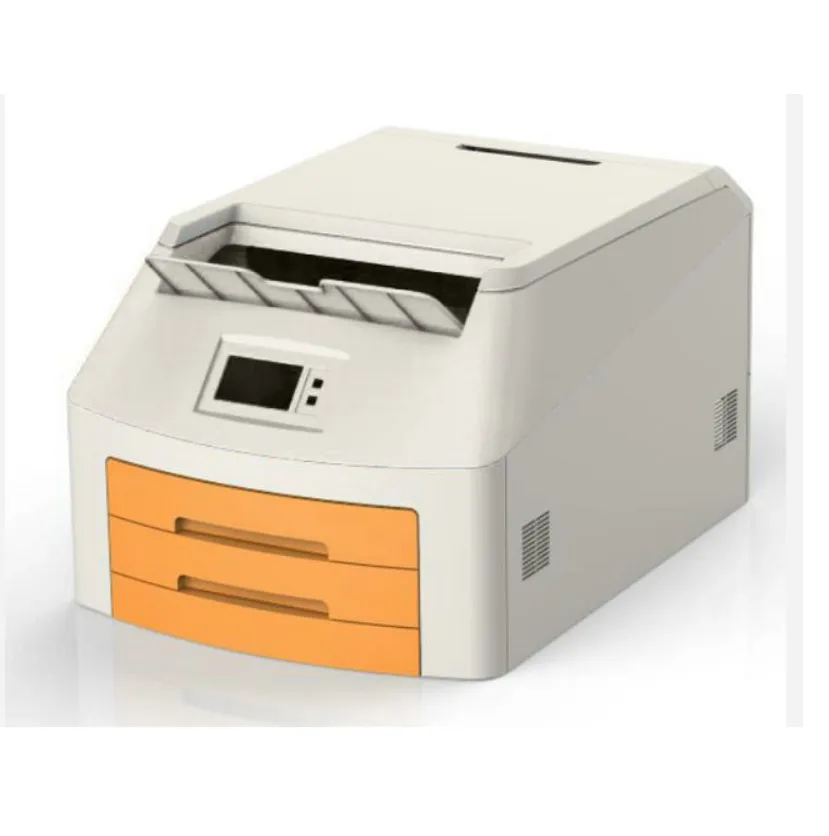

X-Ray Dry Film Printer
✨ Product Features
It is a thermo-graphic film processor designed to copy and send images through DICOM network protocol. It uses the latest direct dry thermal imaging technology which accommodates for a full range of modalities including CT, MRI, DR, CR, Digital Gastrointestinal, Nuclear Medicine, Mobile X-ray Imaging, and Dentistry, etc. It dedicates to precision in diagnosis with its outstanding image quality and offers affordable imaging catering to your needs.
📊 Technical Parameters
Print TechnologyDirect thermal (dry, daylight-load film)
Spatial Resolution320dpi (12.6 pixels/mm)
Grayscale Contrast Resolution14 bits
Film TrayOne supply tray, 100-sheet capacity total
Film Sizes8''×10'', 10''×12'', 11''×14'', 14''×17''
Applicable FilmMedical Dry Thermal Film (blue or clear base)
Interface10/100/1000 Base-T Ethernet (RJ-45)
Network ProtocolStandard DICOM 3.0 connection
Image QualityAutomatic calibration using built-in densitometer
Control PanelTouch Screen, Online Display, Alert, Fault and Active
Power Supply100-240VAC 50/60Hz 600W
Weight50Kg
Operating Temperature5ºC-35ºC
Base HoldingOptional
📸 Detailed Photos

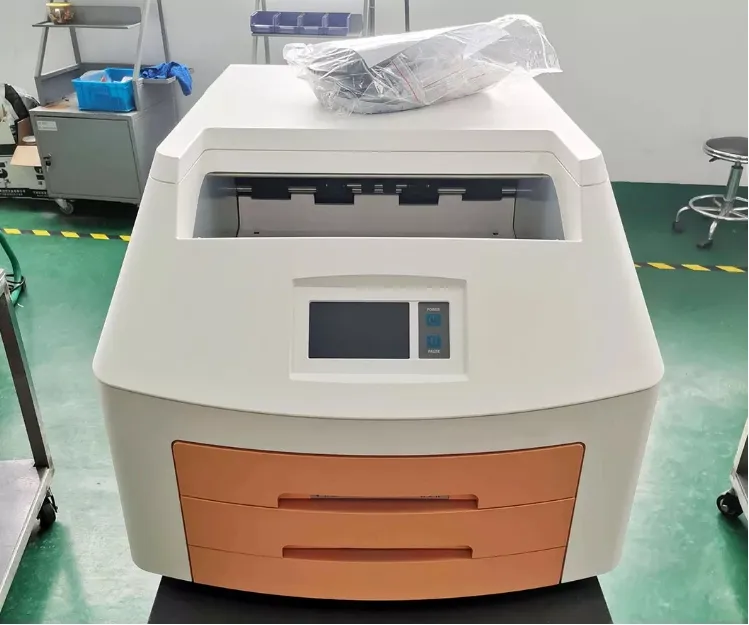

Detailed View 1
Detailed View 2
Detailed View 3
Detailed View 4

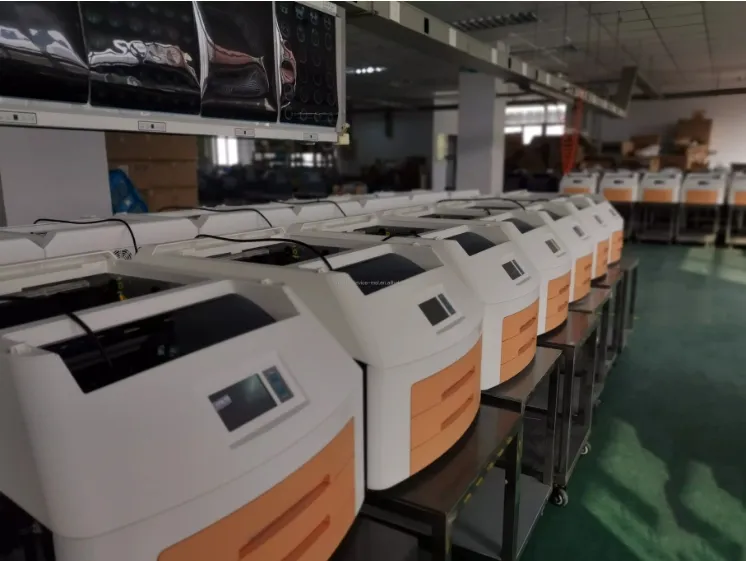

Detailed View 5

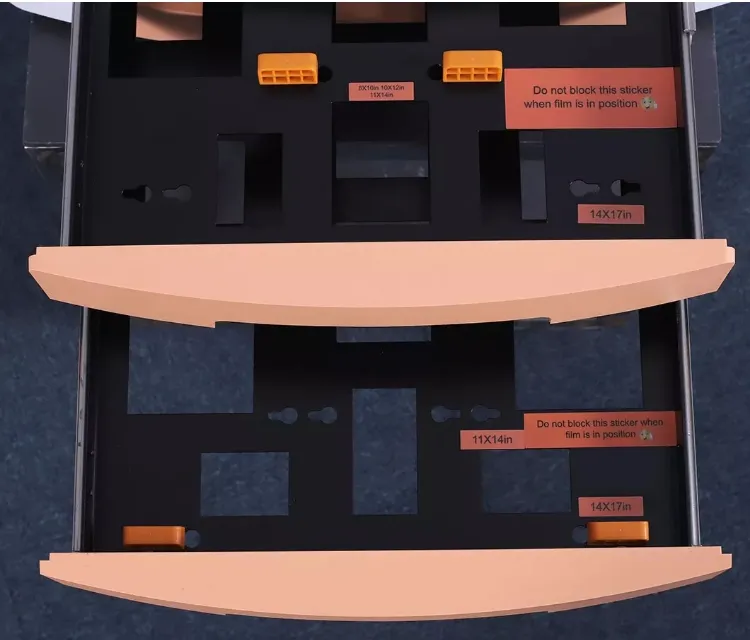

Detailed View 6
🏭 Facilities & Production
Production Facility 1
Production Facility 2
Quality Control
Workflow Process
Shipping Standard
❓ Frequently Asked Questions
What imaging technology does the CK-460DY use?
The printer utilizes direct dry thermal imaging technology, which is a daylight-load process requiring no liquid chemicals.
Which medical modalities are compatible with this printer?
It supports a full range of modalities including CT, MRI, DR, CR, Digital Gastrointestinal, Nuclear Medicine, Mobile X-ray, and Dentistry.
What are the supported film sizes?
The device is versatile and can handle multiple film sizes: 8x10 inch, 10x12 inch, 11x14 inch, and 14x17 inch.
Does it support the DICOM protocol?
Yes, it features a standard DICOM 3.0 connection for seamless integration into medical imaging networks via Ethernet.
How is the image quality maintained?
The printer features automatic calibration using a built-in densitometer to ensure consistent and precise grayscale quality.
What is the print resolution of this medical imager?
The spatial resolution is 320dpi (12.6 pixels/mm) with a grayscale contrast resolution of 14 bits for detailed diagnostic images.
