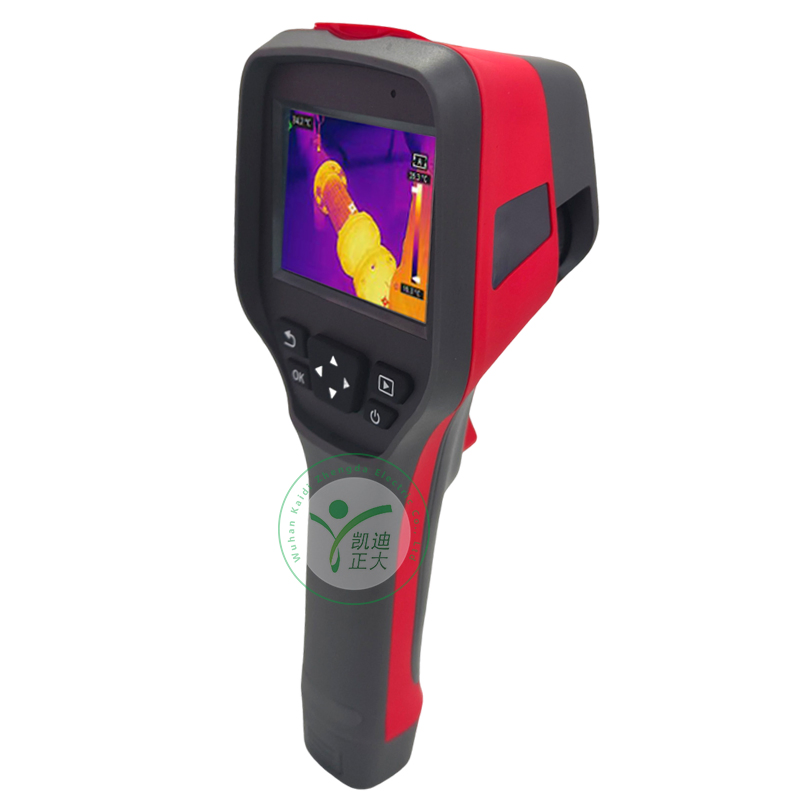

High Resolution Thermal Infrared Imager for Inspection Electrical/Mechanical Building and HVAC Applications
High Resolution Thermal Infrared Imager for Inspection Electrical/Mechanical Building and HVAC Applications
High Resolution Thermal Infrared Imager for Inspection Electrical/Mechanical Building and HVAC Applications
High Resolution Thermal Infrared Imager for Inspection Electrical/Mechanical Building and HVAC Applications
High Resolution Thermal Infrared Imager for Inspection Electrical/Mechanical Building and HVAC Applications
1 / 5
High Resolution Thermal Infrared Imager for Inspection Electrical/Mechanical Building and HVAC Applications
High Resolution Thermal Infrared Imager for Inspection Electrical/Mechanical Building and HVAC Applications
High Resolution Thermal Infrared Imager for Inspection Electrical/Mechanical Building and HVAC Applications
High Resolution Thermal Infrared Imager for Inspection Electrical/Mechanical Building and HVAC Applications
High Resolution Thermal Infrared Imager for Inspection Electrical/Mechanical Building and HVAC Applications

High Resolution Thermal Infrared Imager for Inspection Electrical/Mechanical Building and HVAC Applications

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

📋

Overview

Model NO.
M305
Type
Electric Testing Machine
Operate Method
Manual
Product Name
Handheld Thermal Camera
Detector Resolution
384X288
Pixel Size
12μm
Thermal Sensitivity
35mk
Frame Rate
30Hz
📦

Packaging & Delivery

Package Size
30.00cm * 28.00cm * 14.00cm
Gross Weight
3.000kg
🔍

Key Features

M305 Thermal Imager
High Resolution Core Built-in 12 μm 384×288 core with 35mK thermal sensitivity for high-definition imagery.
Dual Camera System Features a 500W visible light camera alongside the infrared sensor.
Smart Interactive Mode visualization of temperature with 3-point display and customizable area measurement.
Automated Alarms Supports full-frame high/low temperature alarms to prevent accidents.
Robust Design IP54 protection level with 2-meter drop resistance for industrial environments.
Laser Localization Integrated laser indicator to quickly lock onto targets.
⚙️

Product Parameters

Detector typeUncooled vanadium oxide Detector resolution8-14μm
Infrared Response384x288 Pixel size12μm
Thermal sensitivity35mK Frame rate30Hz
Focal length6.2mm Field of view43.7°x31.9°
Temperature range-20ºC~150ºC, 100ºC~550ºC Accuracy±2% or ±2ºC
Display3.5-inch touch screen (480x640)
Image namingQR code/Manual/Auto Memory32GB MicroSD
🖼️

Product Gallery

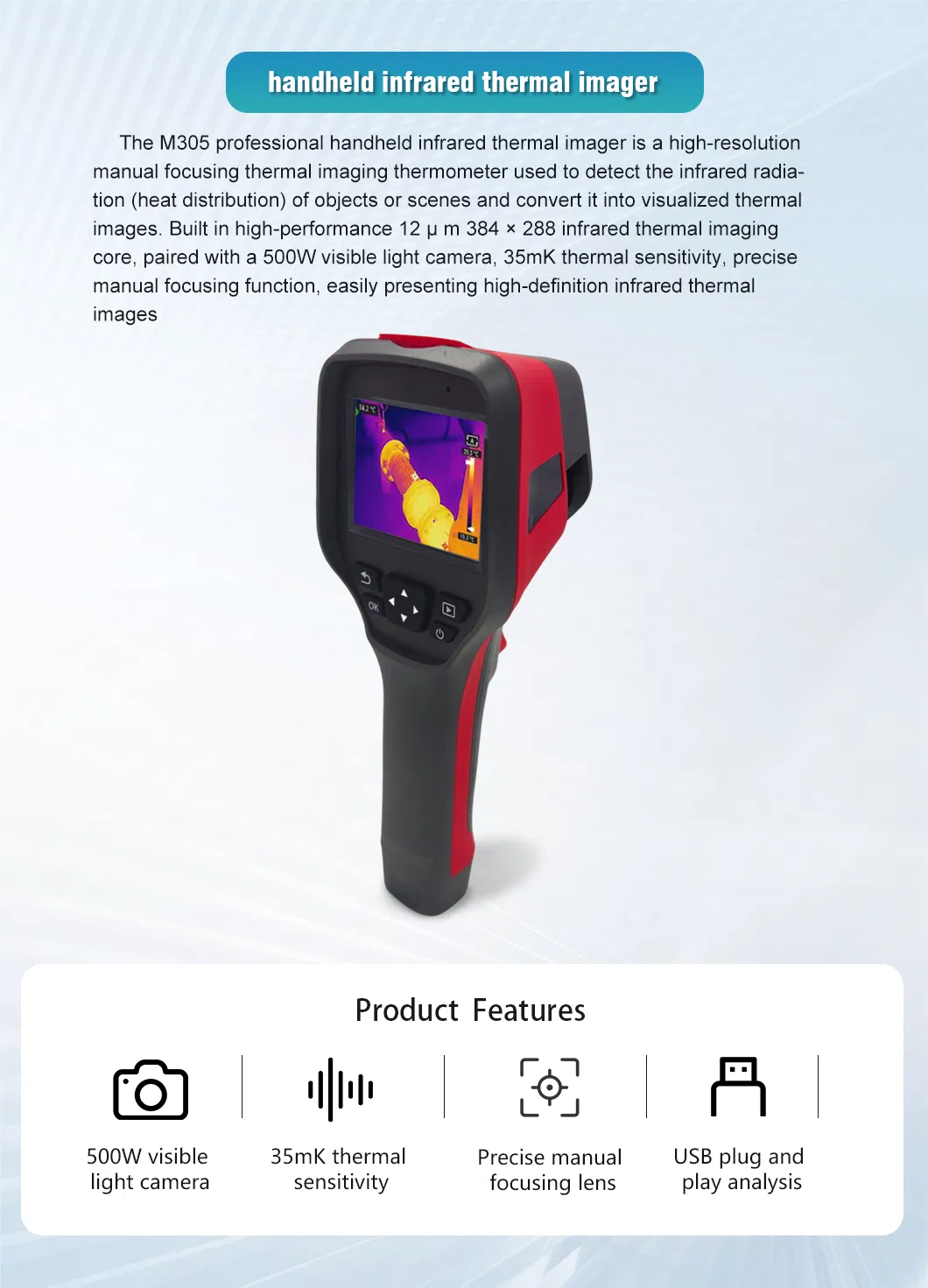

Product View 1

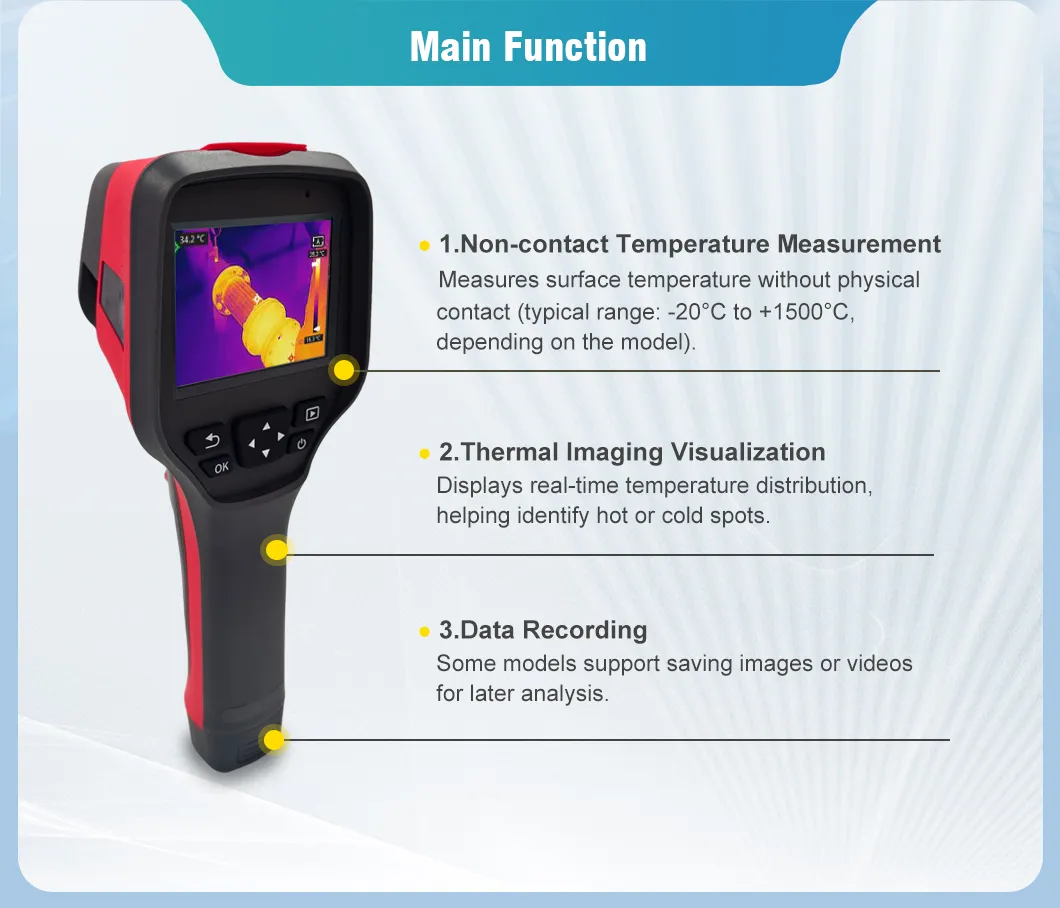

Product View 2

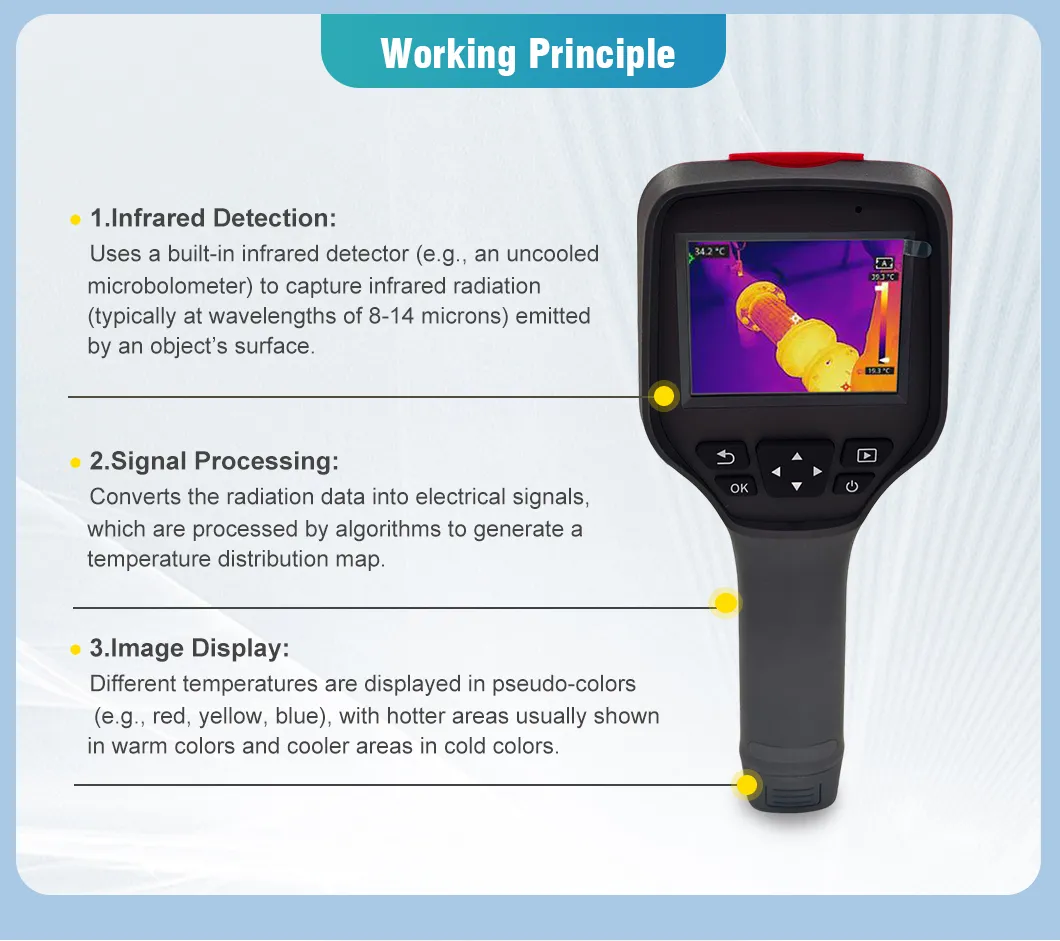

Product View 3

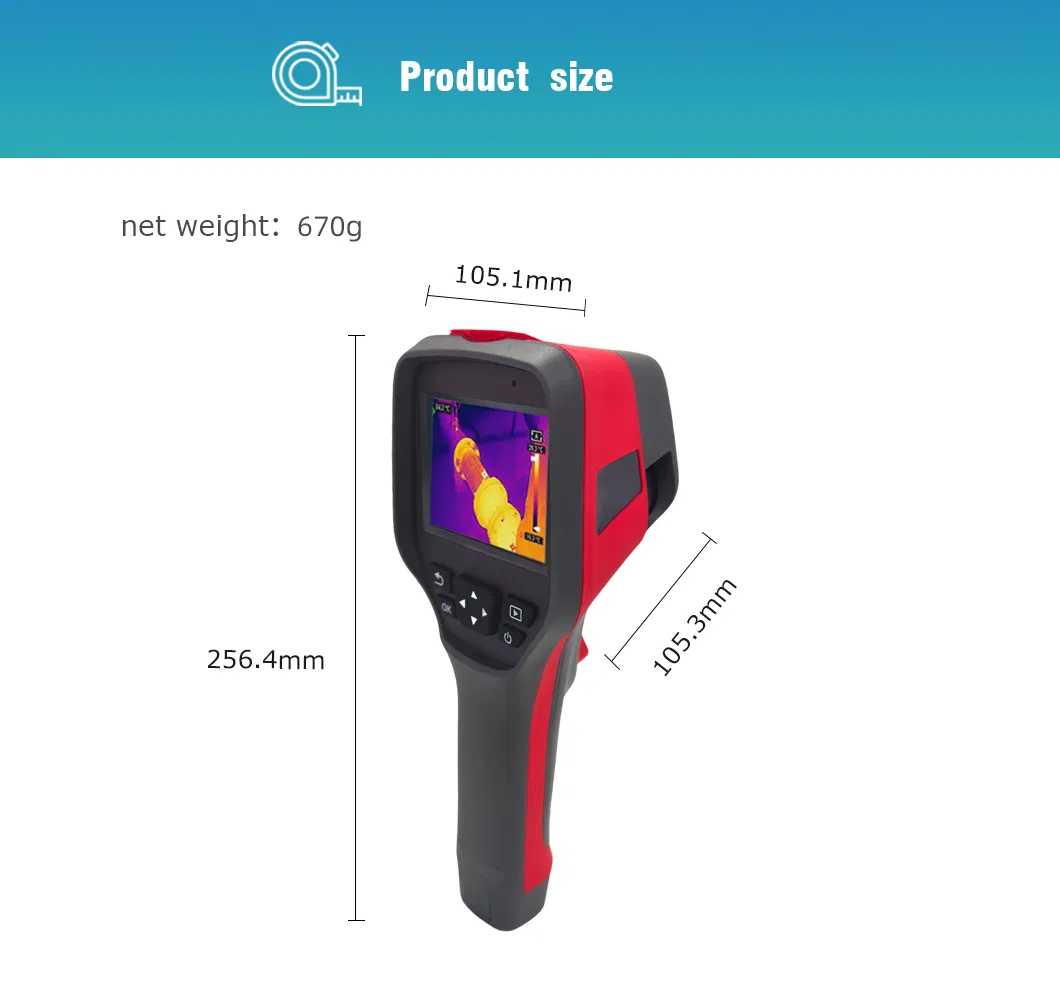

Product View 4

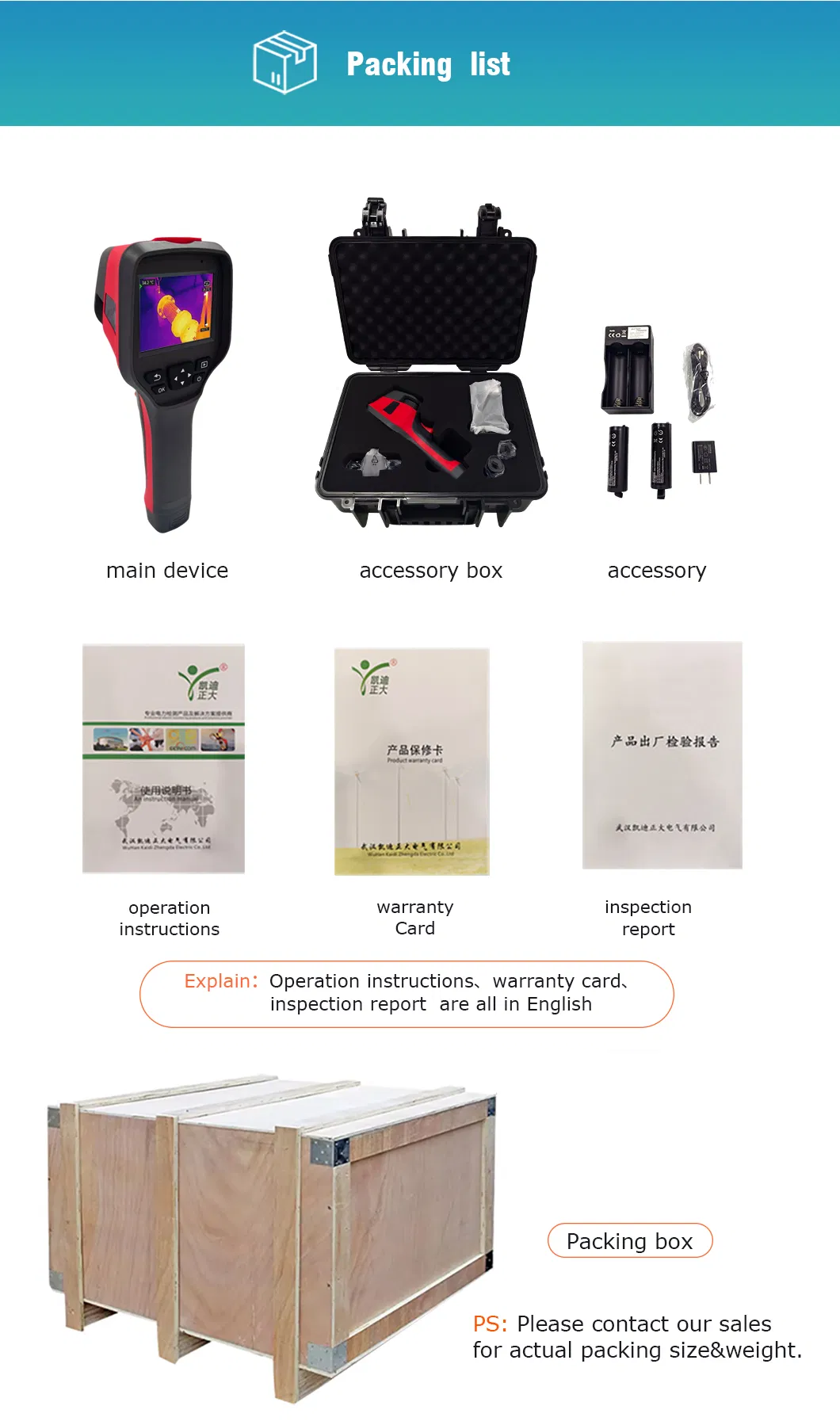

Product View 5
🏭

Professional Production

Production 1
Production 2
Production 3
Production 4
Production 5
❓

Frequently Asked Questions

What is the resolution of the M305 thermal imager?
The M305 features a high-performance infrared thermal imaging core with a resolution of 384x288 pixels and 12μm pixel size.
How accurate is the temperature measurement?
The device offers a measurement accuracy of ±2% or ±2ºC within its specified temperature range.
What is the protection level of this handheld camera?
It is designed for industrial use with an IP54 protection level and is tested for 2-meter drop resistance.
Does it support data storage and export?
Yes, it supports storage on a 32GB MicroSD card. Images are saved in JPG format with temperature data, and video is captured in H.264 format.
How long can the battery last on a single charge?
The removable and rechargeable lithium battery provides approximately 4 hours of continuous working time.
What are the main application areas?
It is ideal for product development, house inspections, equipment maintenance, power grid inspections, and HVAC electrical maintenance.
