Basic Information
Application
Entertainment / Industrial
Kind
Infrared Thermography

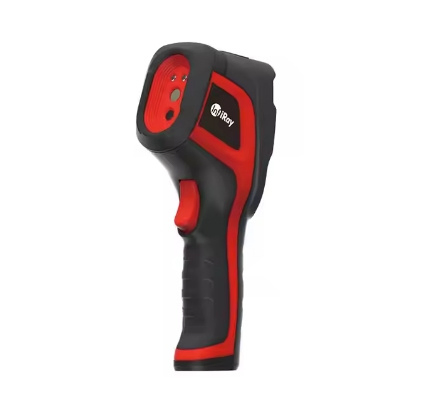

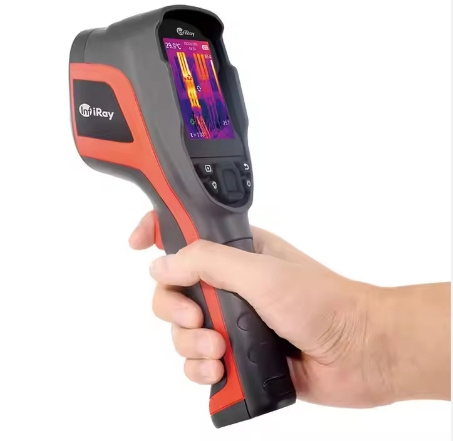

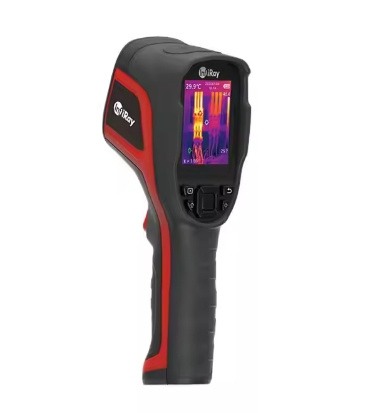

Product Description
🔘 Image+: Enhanced Clarity
12μm 256×192 infrared detector with low power consumption. 40mK professional-grade high sensitivity to capture smaller temperature differences. Brand new Matrix IV image algorithm based on AI.
🔘 Feature+: Professional Performance

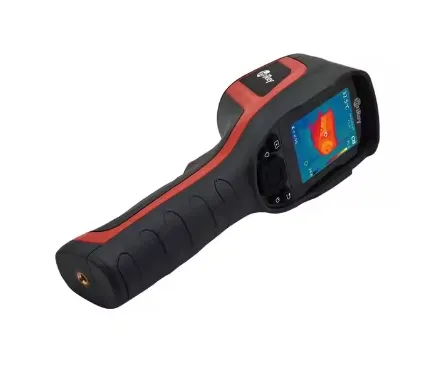

Based on newly developed CPU with 6S quick startup. Sunlight-readable 500nit screen. 4 image modes and 7 color palettes.
🔘 Software+: Complete Analysis
Secondary analysis software for PC and real-time heat map transmission applications for mobile devices (iOS/Android).
🔘 Performance+: Rugged Design
IP54 waterproof and dustproof. 2m drop protection. 15-hour extended battery life. Built-in 32GB memory card.
Specification Table
| Mode |

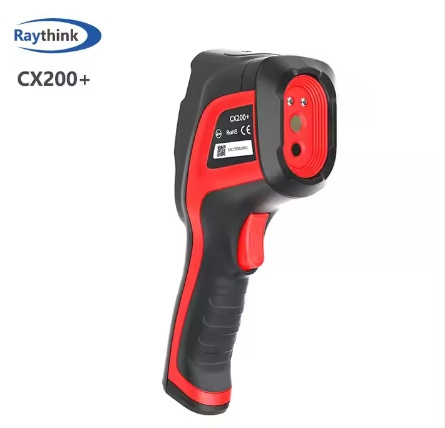

CX200 SE+ |
CX200+ |

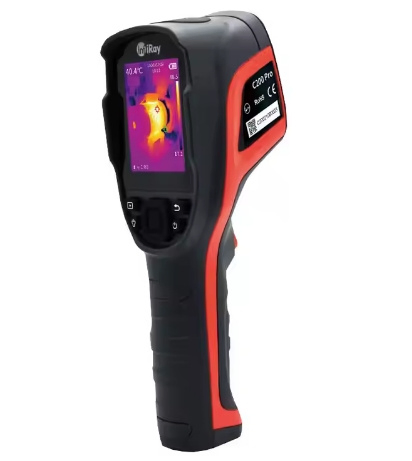

CX200 Pro+ |
| Infrared Resolution | 256×192 |
| Pixel Size | 12μm |
| Therma Sensitivity (NETD) | <40mK (25℃, F1.0) |
| Frame Rate | 25Hz |
| FOV | 56°×42° |
| Measurement Range | -20℃ to +400℃ | -20℃ to +550℃ |
| Visible Light Camera | / | 2 megapixels |
| Image Mode | Infrared | Infrared, Visible, PIP, Fusion |
| Communication | USB | USB, WIFI |
| Battery Life | About 9h | About 11h | About 15h |
| Protection Rating | IP54 |
Packing & Delivery
Standard Packing List: Infrared camera, USB cable, 32GB SD card, Quick start guide, Storage bag.

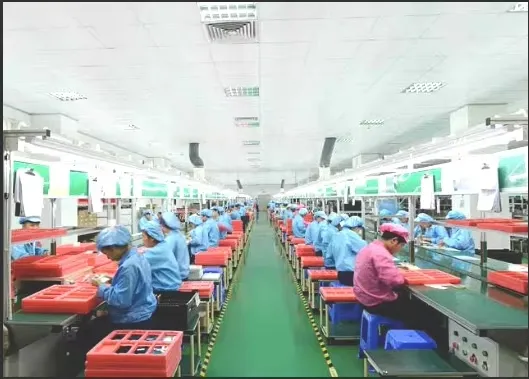

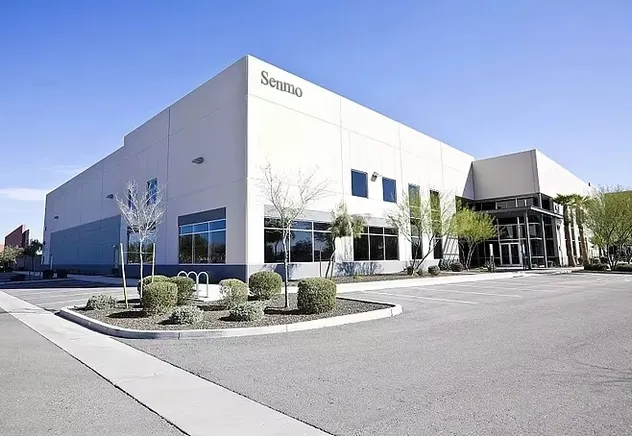

Manufacturing & Quality Control
With nearly 10 years of industry experience in research, development, and production of optical instruments such as thermal imaging, night vision, telescopes, and laser rangefinders. High-quality products undergo strict quality inspection before leaving the factory to ensure reliability and performance.
Frequently Asked Questions
What is the thermal sensitivity of the CX200 series?
The CX200 series features a professional-grade thermal sensitivity (NETD) of less than 40mK, allowing it to detect extremely small temperature differences.
How long does the battery last on a single charge?
Battery life varies by model: the CX200 SE+ lasts about 9 hours, the CX200+ lasts about 11 hours, and the CX200 Pro+ offers up to 15 hours of continuous operation.
Can I analyze the thermal data on a computer or mobile phone?
Yes, all models support PC-based infrared analysis software via USB. The CX200+ and Pro+ models also support WiFi connection for iOS and Android mobile app analysis.
Is the device durable enough for industrial environments?
The device is built with a rugged TPU material, rated IP54 for dust and water resistance, and is tested to withstand a 2-meter drop.
What is the maximum temperature the device can measure?
The CX200+ and CX200 Pro+ models can measure temperatures ranging from -20°C up to +550°C, suitable for most industrial and maintenance applications.
What payment and delivery terms are accepted?
We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. Accepted payment methods include T/T, L/C, Credit Card, and PayPal in multiple currencies.
