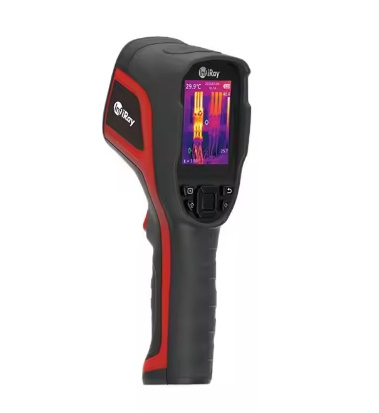

Technology Power Maintenance Equipment Inspection PRO Handheld Infrared Thermal Imaging Camera

1 / 5

Technology Power Maintenance Equipment Inspection PRO Handheld Infrared Thermal Imaging Camera

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model:CX200 / Cx200 PRO+

Application:Entertainment / Industrial Inspection

Detector Resolution:256*192

Spectral Band:8-14μm

Thermal Sensitivity:40mk

FOV:56°X42°

Focus Mode:Focus-Free

Structure:Monocular Handheld

Product Features

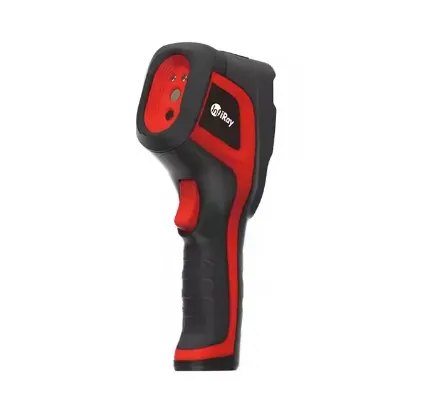

Image+: Superior Visual Clarity Distinguish smaller temperature differences with a 12μm 256×192 infrared detector. Features 40mK professional-grade sensitivity and the Matrix IV AI image algorithm.

Feature+: Professional Industrial Control Powered by a newly developed CPU with a rapid 6S startup duration and smooth operational response for all industrial scenarios.

Software+: Comprehensive Analysis Includes complete secondary analysis software for PC and mobile apps for real-time heat map transmission and analysis.

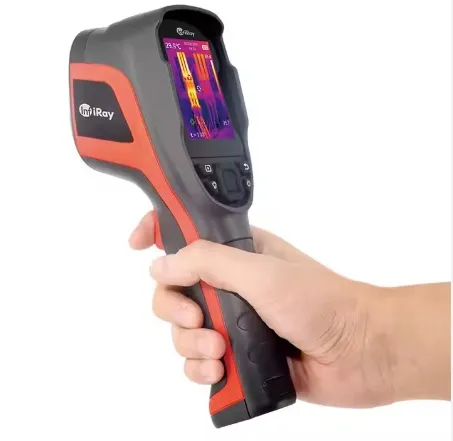

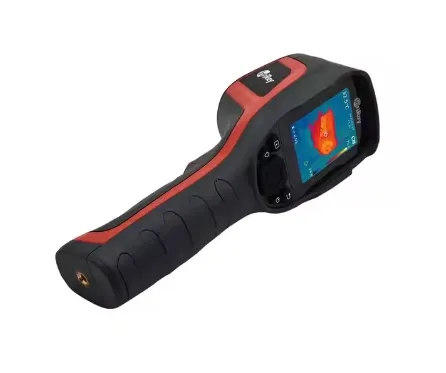

Performance+: Rugged and Reliable Built with wear-resistant TPU material, IP54 waterproof/dustproof rating, 2m drop protection, and an impressive 15-hour battery life.

Technical Specifications

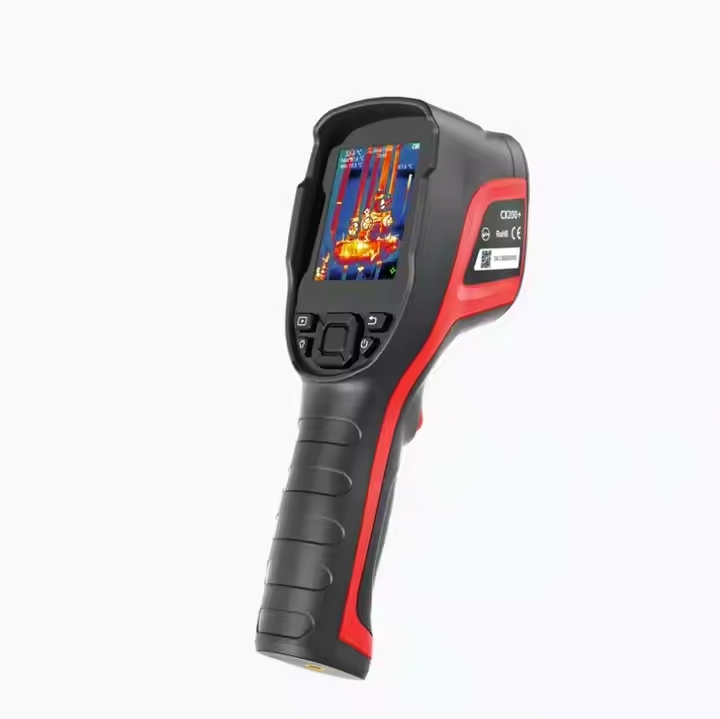

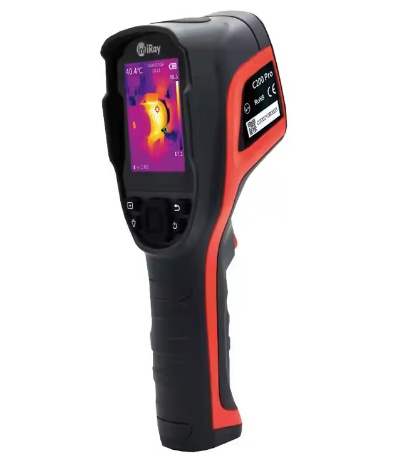

Mode	CX200 SE+	CX200+	CX200 Pro+
Detector Type	Uncooled infrared detector (256×192, 12μm)
Thermal Sensitivity	<40mK (25℃, F1.0)
Frame Rate	25Hz
FOV / IFOV	56°×42° / 3.75mrad
Measurement Range	-20℃ to +400℃	-20℃ to +550℃
Visible Light Camera	None	2 Megapixels
Image Mode	Infrared	Infrared, Visible light, PIP, Dual-spectrum fusion
Battery Life	~9h	~11h	~15h
Protection Rating	IP54, 2m Drop Resistance

Packing & Delivery

Standard components include the infrared camera, USB cable, 32GB SD card, quick start guide, and a dedicated storage bag.

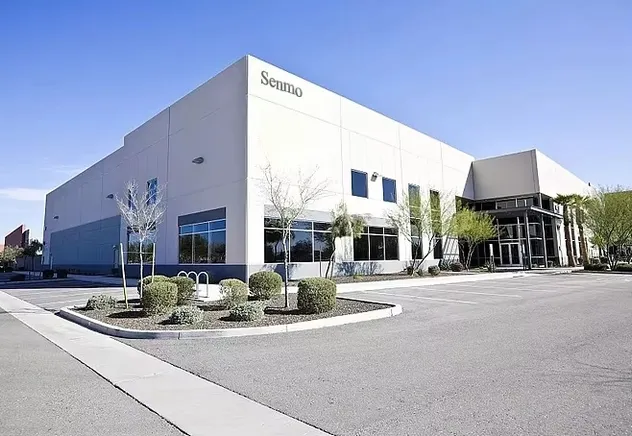

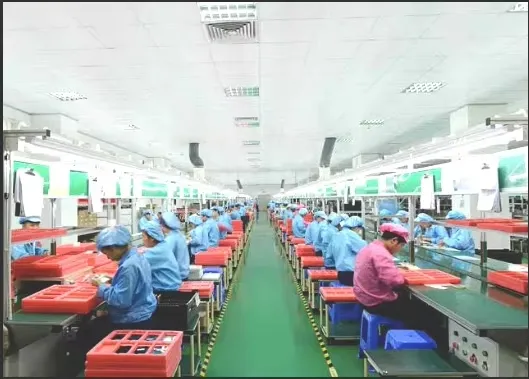

Capabilities & Quality

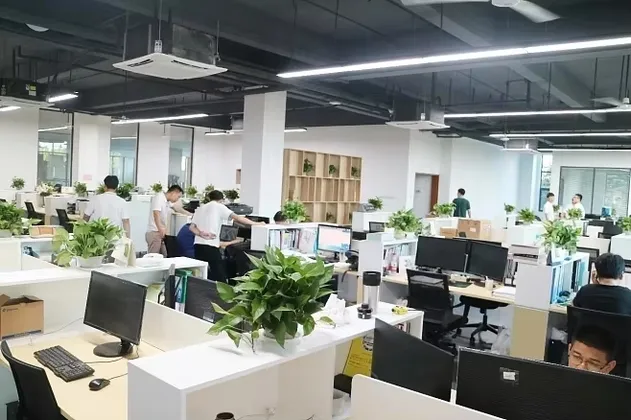

With nearly 10 years of industry experience in research, development, and production, we specialize in optical instruments including thermal imaging, night vision, and laser rangefinders. Every product undergoes strict quality inspection before leaving the factory. We offer high-quality, professional solutions and can adapt or improve products according to specific technical requirements.

Frequently Asked Questions

1. What categories of optical instruments are available?

We provide a wide range of products including thermal imaging cameras, night vision devices, thermal imaging telescopes, binoculars, and hunting optics.

2. How is product quality guaranteed?

Quality is managed through a rigorous process: always providing a pre-production sample before mass production and conducting a final inspection before every shipment.

3. Why should I choose these products over other suppliers?

Our products stand out due to their high professional-grade sensitivity (40mK), robust AI-based image algorithms, competitive pricing, and attentive after-sales service.

4. What delivery terms are supported for international orders?

We accept a broad range of delivery terms including FOB, CFR, CIF, EXW, DDP, DDU, and Express Delivery to suit different logistical needs.

5. Which payment methods and currencies are accepted?

We support payments via T/T, L/C, Credit Card, PayPal, and Western Union. Accepted currencies include USD, EUR, JPY, GBP, CNY, and several others.

6. Can the products be customized for specific industrial needs?

Yes, we can produce or improve products according to your specific requirements, catering to various industrial control and maintenance scenarios.
