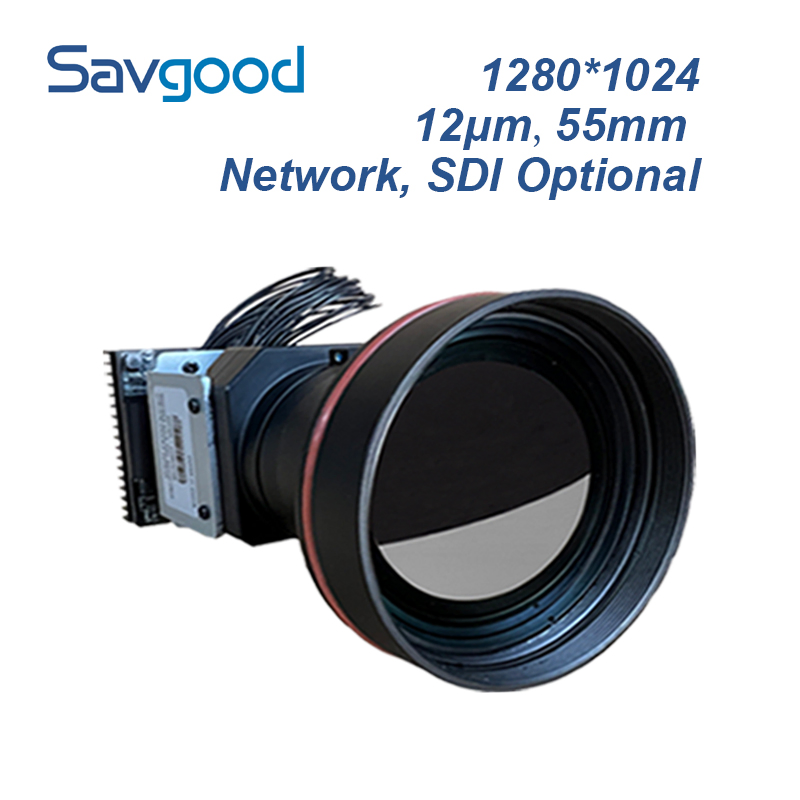

Savgood Alarm 1280*1024 Open Sdk Real-Time Uncooled Infrared 55mm Network Thermal Camera
Savgood Alarm 1280*1024 Open Sdk Real-Time Uncooled Infrared 55mm Network Thermal Camera
Savgood Alarm 1280*1024 Open Sdk Real-Time Uncooled Infrared 55mm Network Thermal Camera
Savgood Alarm 1280*1024 Open Sdk Real-Time Uncooled Infrared 55mm Network Thermal Camera
Savgood Alarm 1280*1024 Open Sdk Real-Time Uncooled Infrared 55mm Network Thermal Camera
1 / 5
Savgood Alarm 1280*1024 Open Sdk Real-Time Uncooled Infrared 55mm Network Thermal Camera
Savgood Alarm 1280*1024 Open Sdk Real-Time Uncooled Infrared 55mm Network Thermal Camera
Savgood Alarm 1280*1024 Open Sdk Real-Time Uncooled Infrared 55mm Network Thermal Camera
Savgood Alarm 1280*1024 Open Sdk Real-Time Uncooled Infrared 55mm Network Thermal Camera
Savgood Alarm 1280*1024 Open Sdk Real-Time Uncooled Infrared 55mm Network Thermal Camera

Savgood Alarm 1280*1024 Open Sdk Real-Time Uncooled Infrared 55mm Network Thermal Camera

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
SG-TCM12N2-55
Type
IP Camera
Sensor
Uncooled Vox Microbolometer
Resolution
1280*1024 (Megapixel)
Lens
55mm Athermalized
Output
Ethernet Output (SDI Optional)
Compression
H.265/H.264h/H.264
Netd
≤50mk@25℃
Weight
366g
HS Code
9031900090
Product Description

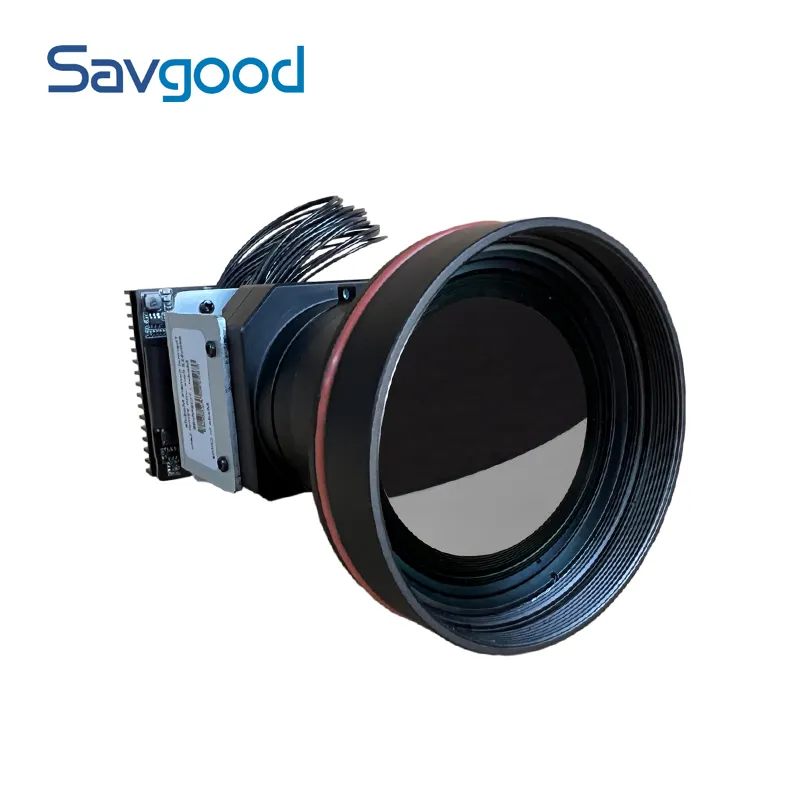

Network Thermal Camera Module
Model: SG-TCM12N2-55

1280x1024 Thermal Network Camera Module with 55mm Athermalized Lens

Key Features
  • 1280x1024 resolution, high sensitivity sensor
  • 12um pixel pitch
  • 55mm athermalized lens
  • Support various IVS functions (Tripwire, Intrusion, Abandon Detection)
  • Support Fire Detection and EIS function
  • Support HD-SDI and Ethernet dual output
Technical Parameters
Model SG-TCM12N2-75 SG-TCM12N2-55 SG-TCM12N2-35
Sensor Image Sensor Uncooled VOx microbolometer
Resolution 1280 x 1024
Pixel Size 12μm
NETD ≤50mK@25ºC, F#1.0
Lens Focal Length 75mm Athermalized 55mm Athermalized 35mm Athermalized
FOV 11.7°x9.4° 15.9°x12.7° 24.8°x19.9°
Digital Zoom 4x 4x 4x
Video Compression H.265/H.264/H.264H
Intelligence IVS functions Tripwire, Cross Fence, Intrusion, Loitering Detection
Interface Ethernet 4PIN Ethernet port, 10M/100M self-adaption
HD-SDI 1ch 3G-SDI
Physical Weight Approx. 1.1kg Approx. 366g Approx. 435g
Dimensions & Performance

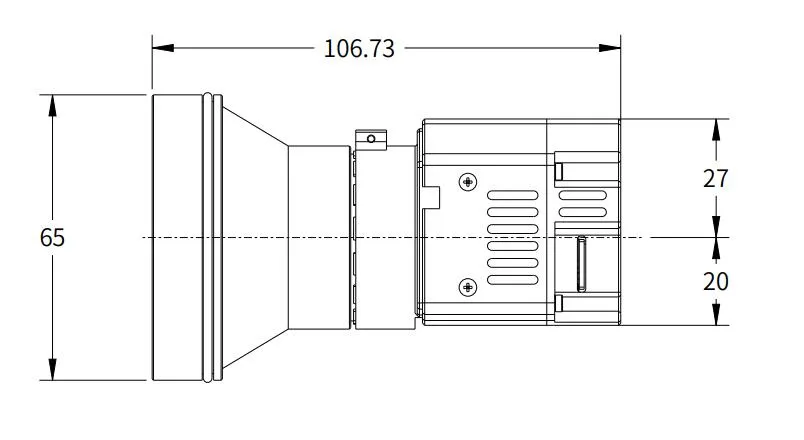

Dimensions Guide 1

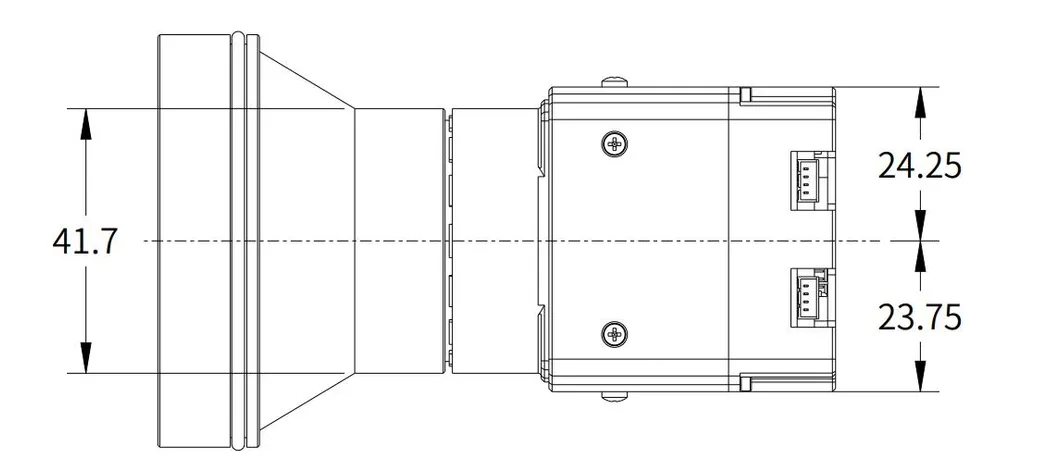

Dimensions Guide 2
IVS & Application Solutions

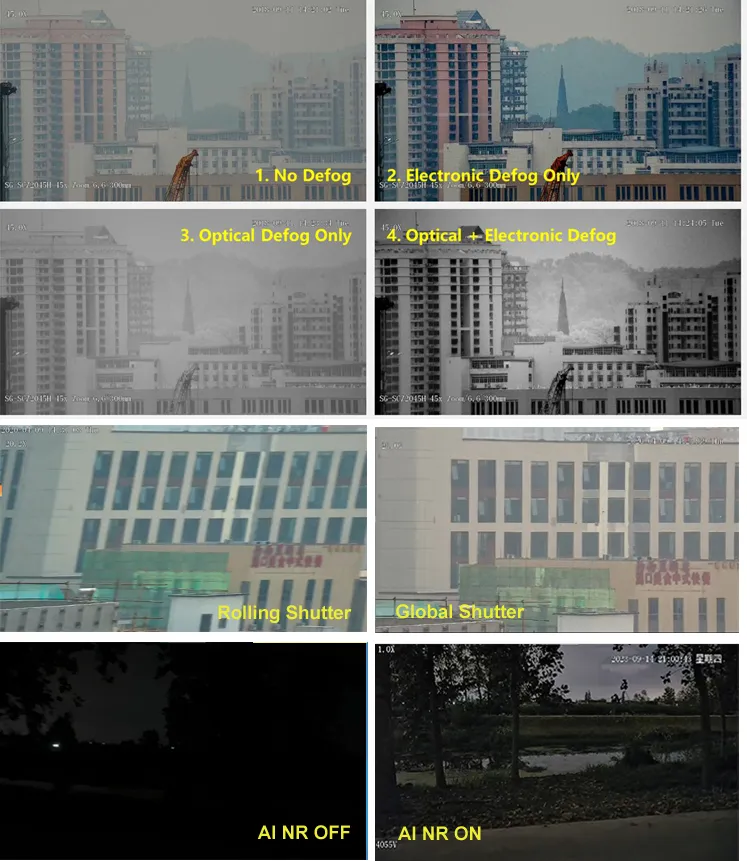

IVS Intelligence

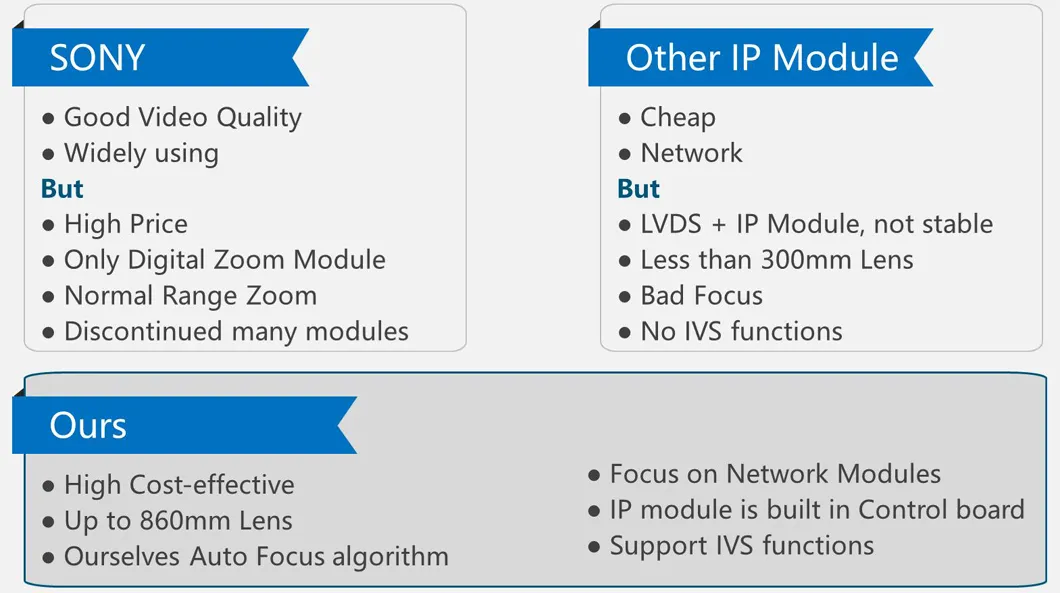

Comparison vs Others
Application Solution
Packaging & Shipping

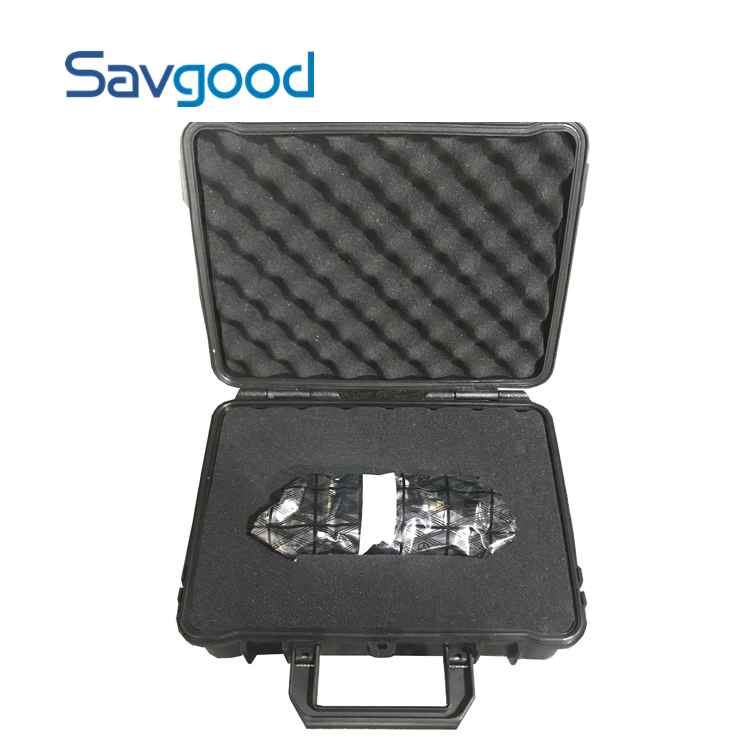

Packaging Detail
Facility and Production

Package Size: 26.00cm * 16.00cm * 18.00cm

Gross Weight: 2.000kg

Shipping Methods: DHL, FedEx, TNT, UPS, EMS, Bulk orders By Air or By Sea.

Frequently Asked Questions
What is the maximum resolution of this thermal module?
The SG-TCM12N2 series offers a high resolution of 1280 x 1024 pixels, providing superior thermal imaging clarity.
Does the camera support intelligent video surveillance (IVS)?
Yes, it supports multiple IVS functions including Tripwire, Intrusion detection, Cross Fence detection, and Loitering detection.
What type of lens is used in the SG-TCM12N2-55?
This model uses a 55mm Athermalized lens, which maintains focus across a wide range of operating temperatures.
Can this module be used for fire safety applications?
Absolutely. The module includes built-in support for fire detection and smart alarms, making it suitable for early warning systems.
What interfaces are available for video output?
The module provides dual output capabilities, supporting both 4PIN Ethernet for network streaming and a 1ch 3G-SDI interface for high-definition video.
What is the pixel pitch of the sensor?
The camera uses a cutting-edge sensor with a 12μm pixel pitch, ensuring high sensitivity and detailed thermal performance.
