Intelligent Fg-800A Fiber Optic Type Inertial Navigation System with Competitive Price
Intelligent Fg-800A Fiber Optic Type Inertial Navigation System with Competitive Price
Intelligent Fg-800A Fiber Optic Type Inertial Navigation System with Competitive Price
Intelligent Fg-800A Fiber Optic Type Inertial Navigation System with Competitive Price
Intelligent Fg-800A Fiber Optic Type Inertial Navigation System with Competitive Price
1 / 5
Intelligent Fg-800A Fiber Optic Type Inertial Navigation System with Competitive Price
Intelligent Fg-800A Fiber Optic Type Inertial Navigation System with Competitive Price
Intelligent Fg-800A Fiber Optic Type Inertial Navigation System with Competitive Price
Intelligent Fg-800A Fiber Optic Type Inertial Navigation System with Competitive Price
Intelligent Fg-800A Fiber Optic Type Inertial Navigation System with Competitive Price

Intelligent Fg-800A Fiber Optic Type Inertial Navigation System with Competitive Price

Customization: Available
Type: Servo
Output Signal Type: Digital Output
Send Inquiry

Product Description

📋
Basic Information
Model NO.
FG-800A
Measuring Shaft
Double
Accuracy Grade
0.5G
IP Rating
IP30
Certification
ISO
Product Categories
Inertial Sensor
Transport Package
Carton
Specification
171×308×172 mm
🚀
Product Description

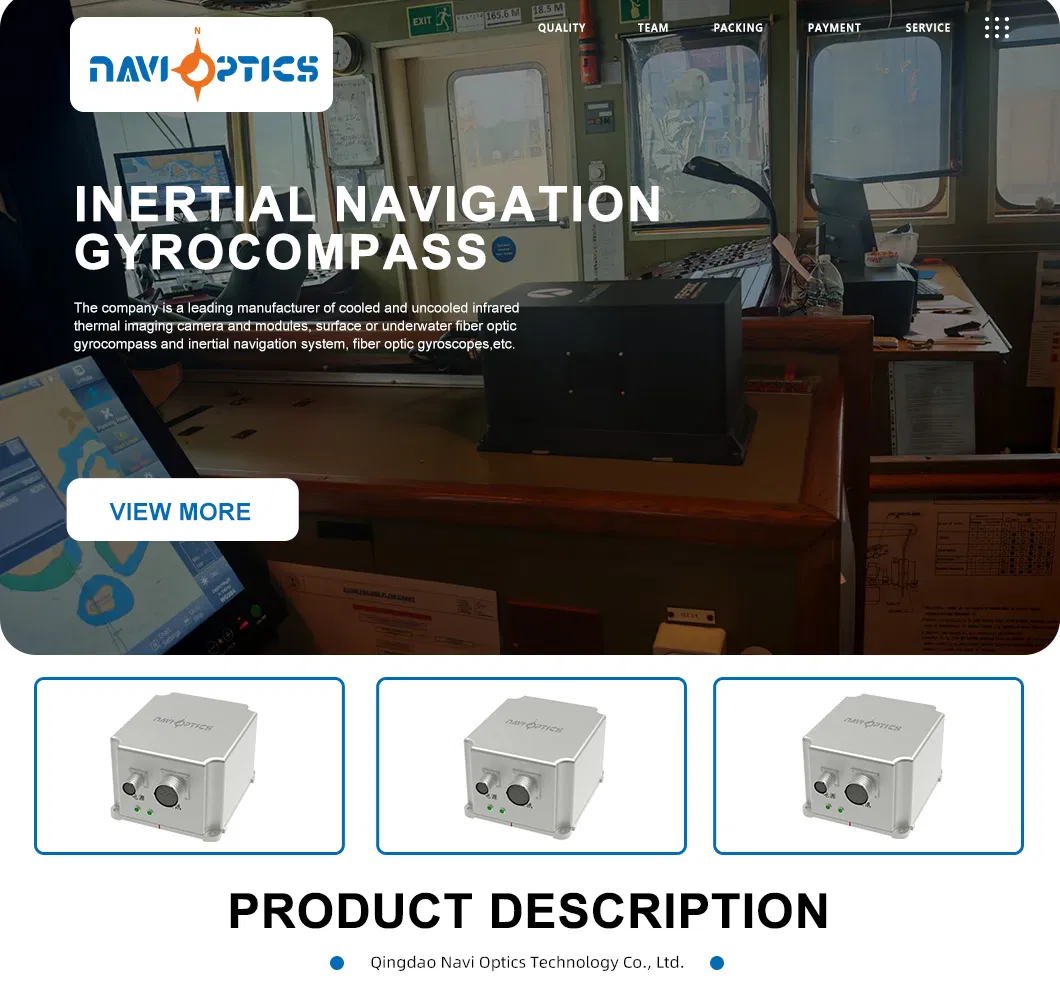

Fiber Optic Type Inertial Navigation System

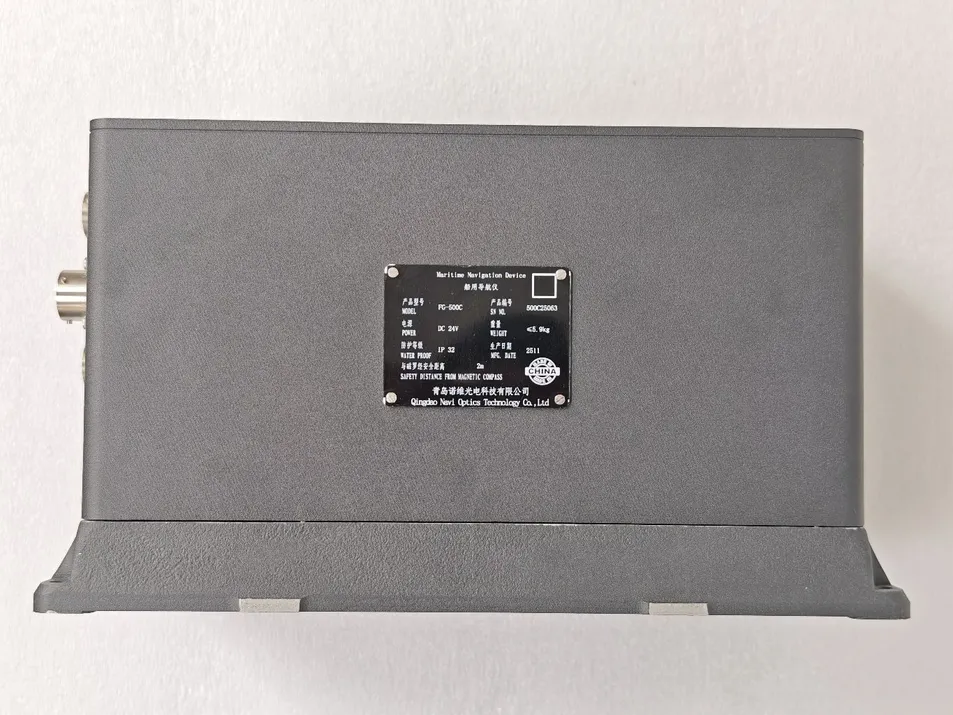

FG-800A Detail 1
FG-800A Detail 2
FG-800A Detail 3

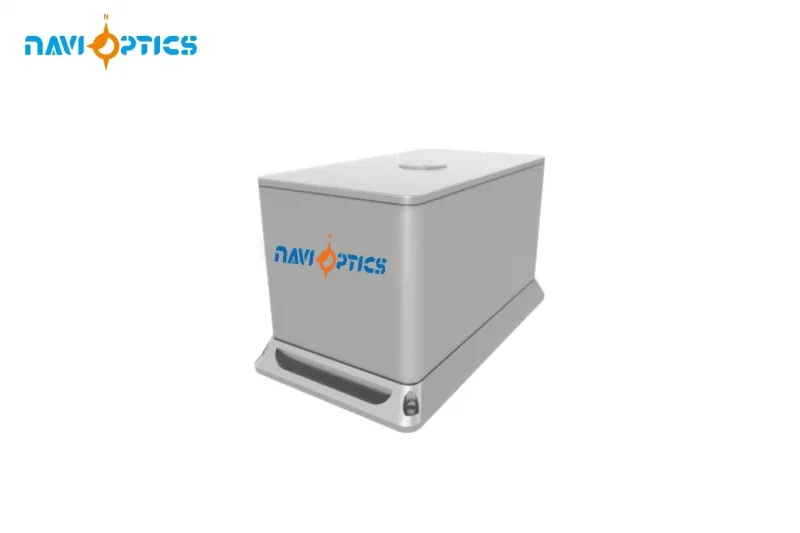

FG-800A Detail 4
Category Parameter Specification
PerformancesSettling Time10min
Attitude0.01 deg, 1σ
Heading accuracy0.05° , 1σ autonomous
Heading accuracy (GPS)0.02 °, with GPS aiding
Heave5cm or 5%
Measuring RangesRotation rate±400deg/s
Acceleration±20g
Operating EnvTemperature-40℃~+70℃
Vibration0.04g2/hz @ 20~2000hz
Shock30g @ 6ms (maintain accuracy)
ElectricalPower supply18~36VDC
Consumption≤15W
PhysicalSize171×308×172 mm
Weight≤6.8kg
Water proofIP 66
🛠️
Product Application
Product Application
Our technology focuses on high-precision navigation solutions, including cooled and uncooled infrared thermal imaging modules, underwater fiber optic gyrocompasses, and inertial navigation systems. We strive to enhance human perception through best-in-class intelligent imaging solutions. With strong technical backup and professional production lines, we provide reliable fiber optic gyro compasses which are perfect for marine and industrial vessels.
🏭
Factory Exhibition

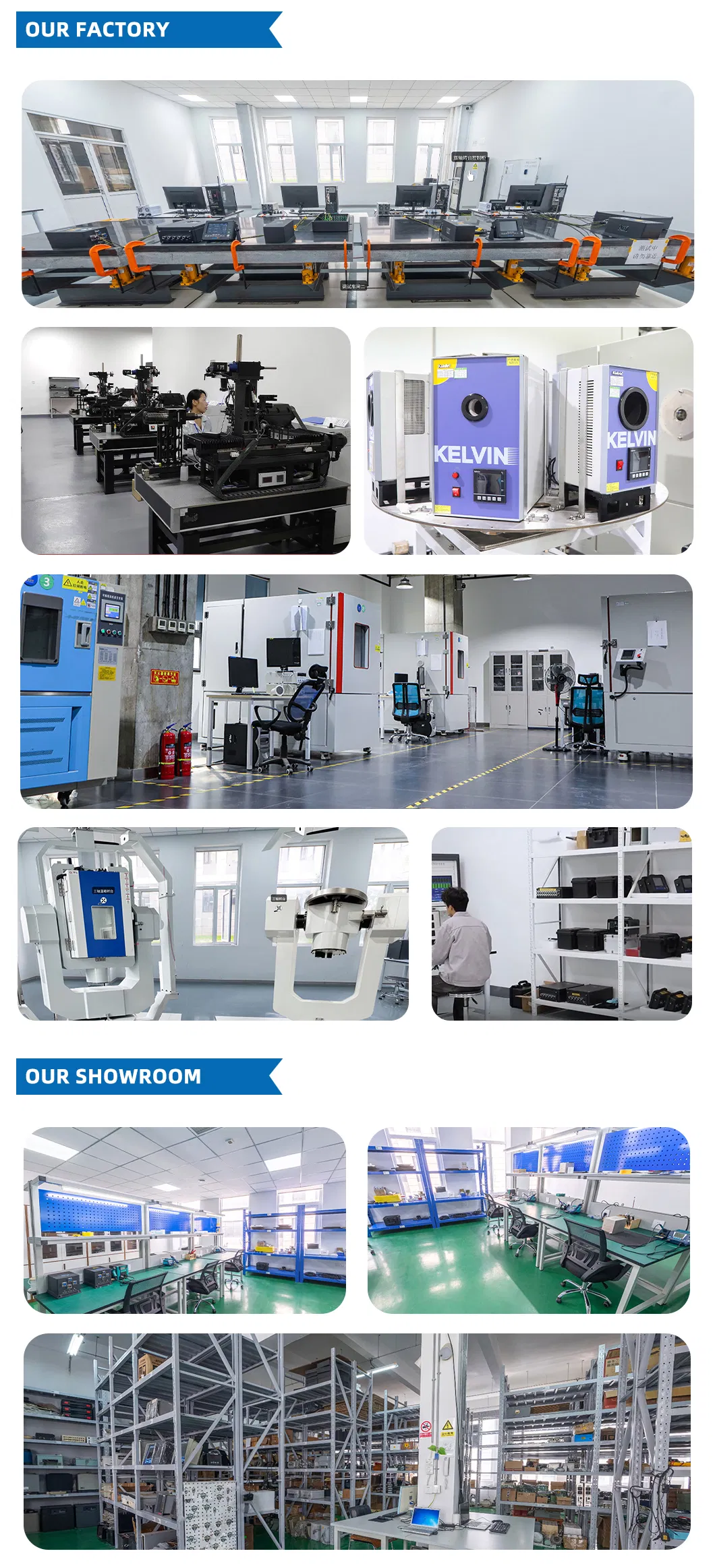

Factory Facility 1
Factory Facility 2
❓
Frequently Asked Questions
What kind of certificates do you have for this product?
Currently, we hold ISO, SGS, CCS, and MED certifications as a professional manufacturer.
Can we perform a remote inspection of the product?
Yes, we support inspections via video calls or other communication software to verify your products.
Do you support third-party inspections at your factory?
Absolutely. We welcome third-party inspectors to our facility to verify product quality and specifications.
How is your customer service structured?
We prioritize rapid response and aim for long-term partnerships, treating every client with dedicated technical support.
What are the standard shipping methods?
We typically ship products via international air-express and provide tracking numbers immediately upon dispatch.
What is the warranty period for the FG-800A?
The system comes with a standard three-year warranty ensuring long-term reliability for your operations.
