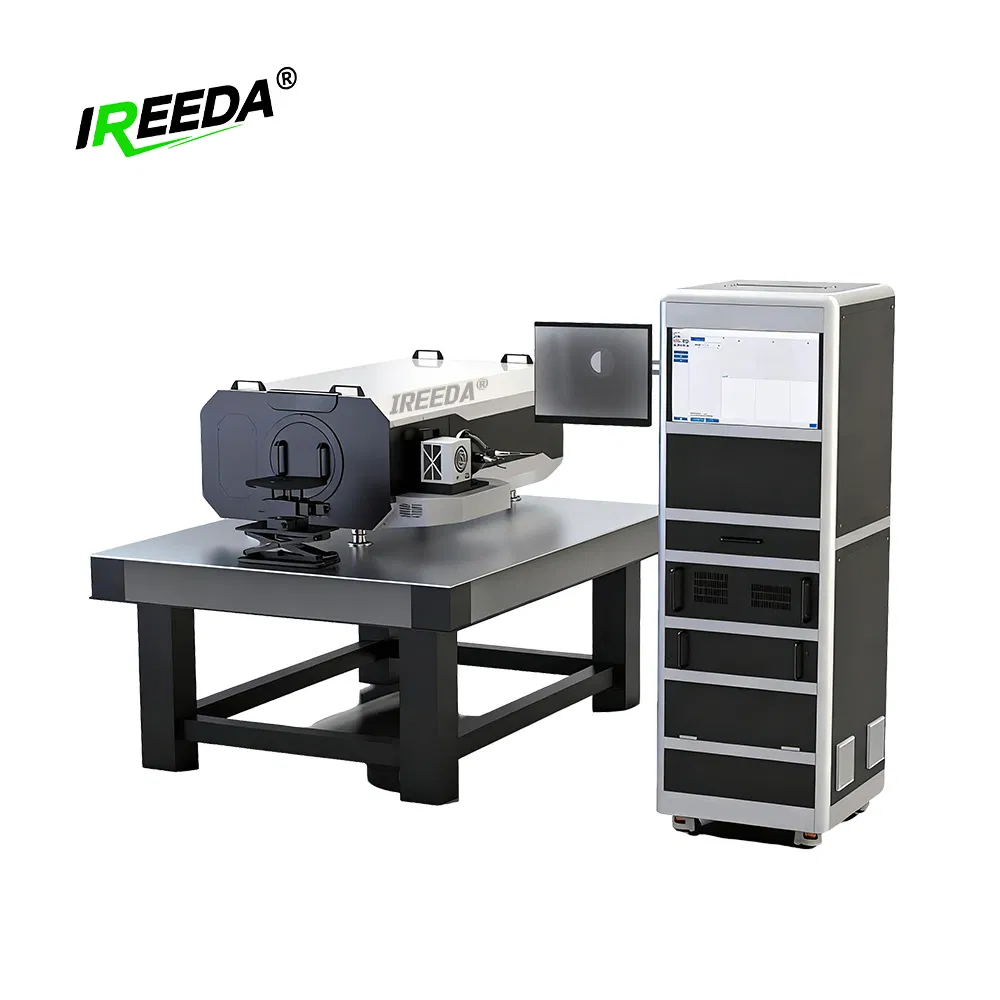

Ireeda Optical Performance Test System Infrared Thermal Imager IR-Ets
Ireeda Optical Performance Test System Infrared Thermal Imager IR-Ets
Ireeda Optical Performance Test System Infrared Thermal Imager IR-Ets
Ireeda Optical Performance Test System Infrared Thermal Imager IR-Ets
Ireeda Optical Performance Test System Infrared Thermal Imager IR-Ets
1 / 5
Ireeda Optical Performance Test System Infrared Thermal Imager IR-Ets
Ireeda Optical Performance Test System Infrared Thermal Imager IR-Ets
Ireeda Optical Performance Test System Infrared Thermal Imager IR-Ets
Ireeda Optical Performance Test System Infrared Thermal Imager IR-Ets
Ireeda Optical Performance Test System Infrared Thermal Imager IR-Ets

Ireeda Optical Performance Test System Infrared Thermal Imager IR-Ets

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

ⓘ

Technical Specifications

Model NO.
DA IR-ETS
Collimator Focal Length
500mm / 1600mm
FOV
≥3°
Optical System Type
Off-Axis Newtonian Reflective
Coating
Metal Aluminum Film + Protective Film
Spectral Range
0.4-14μm
Target Position
8 / 12
Control Method
Digital Electric
Infrared Targets
Four-Bar, Knife-Edge, Hole, Aberration, Edge, Cross
Adjustment Type
Lifting, Horizontal, Tilting, Traversing
Load Capacity
≥20kg
Production Capacity
1000 PCS/Month
📷

Product Overview

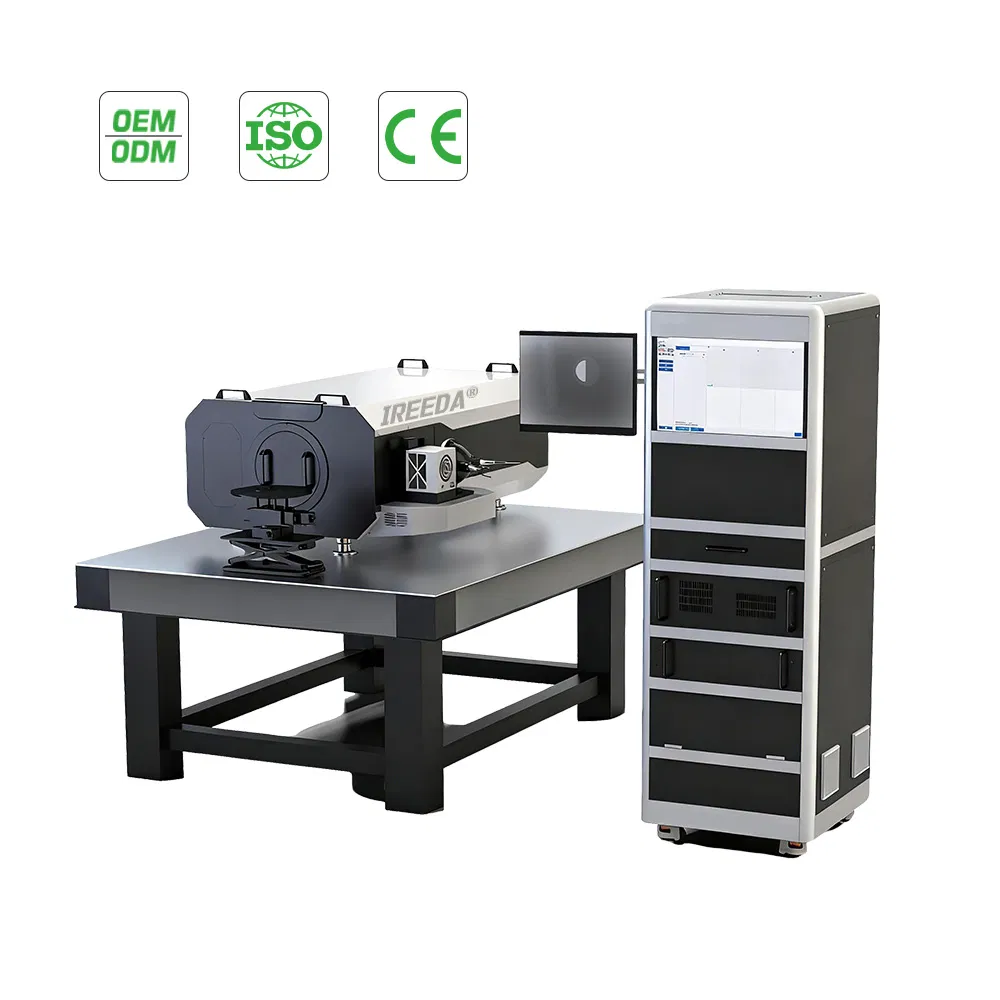

Optical Performance Test System
📊

Collimator Parameters

Collimator System Specifications
Model Variant ZYP-0510LX ZYP-1630LX ZYP-2030LX
Focal Length 500mm 1600mm 2000mm
Aperture 100mm 300mm
Field of View (FOV) ≥3° ≥1° ≥0.8°
Optical Type Off-axis Newtonian reflective
Wavefront RMS better than 1/15λ @ 632.8nm
Temp. Range (25℃ Ambient) 0℃ - 125℃ (Absolute) / -25℃ - 100℃ (Differential)
Resolution 0.001℃
Emissivity 0.98 ± 0.02
Heating/Cooling Rate 15℃/min (Heating) / 10℃/min (Cooling)
📋

Detailed Visuals

Detailed View 1
Detailed View 2
Detailed View 3
Detailed View 4
Detailed View 5
Detailed View 6
❓

Frequently Asked Questions

What is the applicable spectral range for this system?
The system covers a wide spectral range from 0.4μm to 14μm, making it suitable for various optical and infrared testing applications.
What type of optical system is utilized?
It uses an Off-Axis Newtonian Reflective system, which ensures high precision and avoids central obscuration.
What is the temperature resolution of the thermal unit?
The system provides an ultra-fine temperature resolution of 0.001℃, ensuring extreme accuracy for thermal imaging tests.
How many target positions are available?
The system supports either 8 or 12 target positions, allowing for multiple test patterns like four-bar, cross, and knife-edge.
What is the maximum load capacity for the adjustment unit?
The adjustment system is robust and can handle a load capacity of ≥20kg, supporting heavy-duty optical equipment.
What are the heating and cooling rates for the blackbody?
The system features an average heating rate of 15℃/min and an average cooling rate of 10℃/min for efficient testing cycles.
