Product Description

🔍 Product Overview
Handheld Thermal Imager

The KDRS638E is a high-performance handheld thermal camera featuring an uncooled vanadium oxide detector with a native resolution of 640×512, expandable to 1280×1024 through super-resolution technology. Designed for professional electrical testing and building inspections, it offers exceptional thermal sensitivity and versatile imaging modes.

⚙ Technical Specifications
Model KDRS638E
Detector Type Uncooled Vanadium Oxide
Resolution 640×512 (Super Resolution: 1280×1024)
Thermal Sensitivity <25mK
Spectral Range 7.5-14μm
Pixel Pitch 12μm
Frame Rate 25Hz
Temperature Range -20°C to 150°C, 100°C to 650°C (Optional to 1500°C)
Accuracy ±2% or ±2°C
Display 5.5-inch touchscreen (1920x1080)
📸 Advanced Features
  • Multiple Image Modes: Infrared, Dual-Light Fusion, Visible Light, Picture-in-Picture, and Detail Enhancement.
  • Intelligent Focus: Supports Manual, One-Touch Auto Focus, and Laser-Assisted Focus.
  • Dynamic Analysis: Up to 25 movable points, lines, and areas for real-time temperature tracking.
  • Voice Command: Built-in voice assistant for fast, hands-free operation.
  • Connectivity: Integrated Wi-Fi, Bluetooth, and USB 3.0 for seamless data transfer.
📱 Product Display

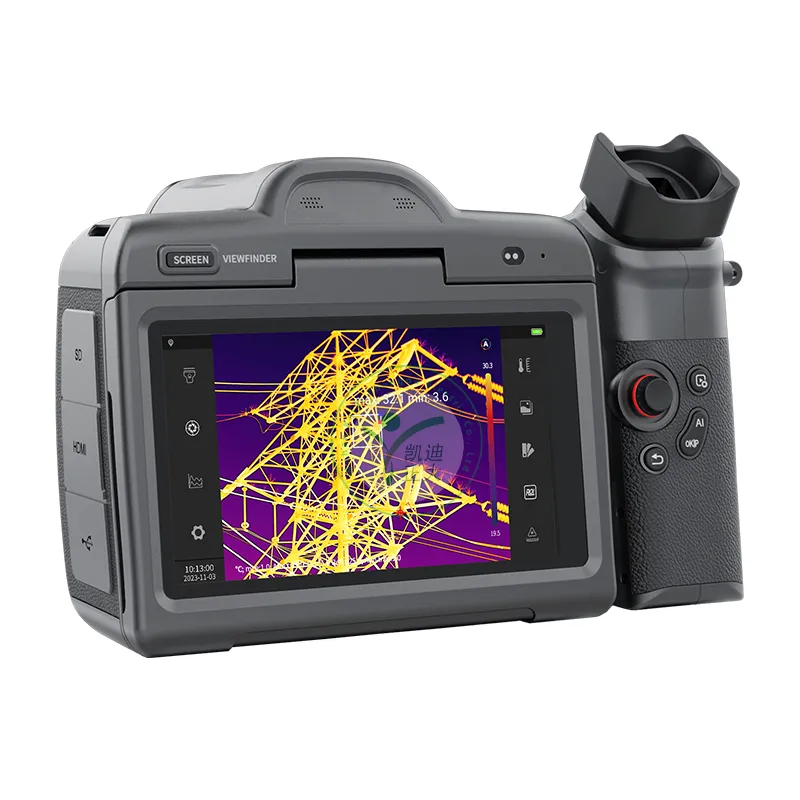

Thermal Imager View 1

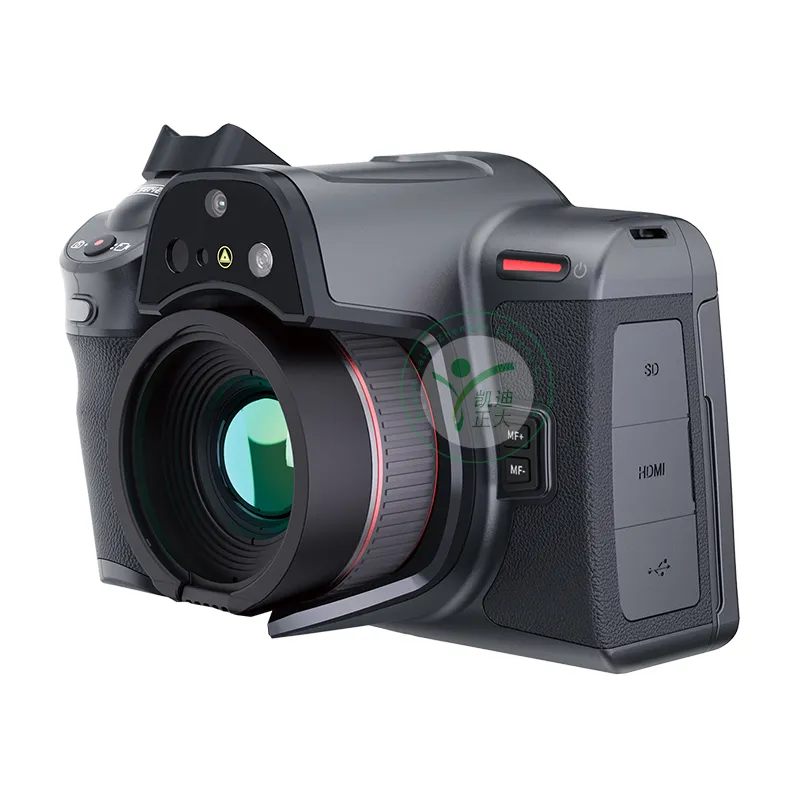

Thermal Imager View 2
📦 Packaging Information
Package Size 33.00cm * 33.00cm * 13.00cm
Gross Weight 3.000kg
Standard Accessories Thermal imager, 3x Lithium batteries, Charging cradle, HDMI cable, SD card, Carrying case, Calibration certificate.
🏭 Manufacturing & Quality Control
Manufacturing 1

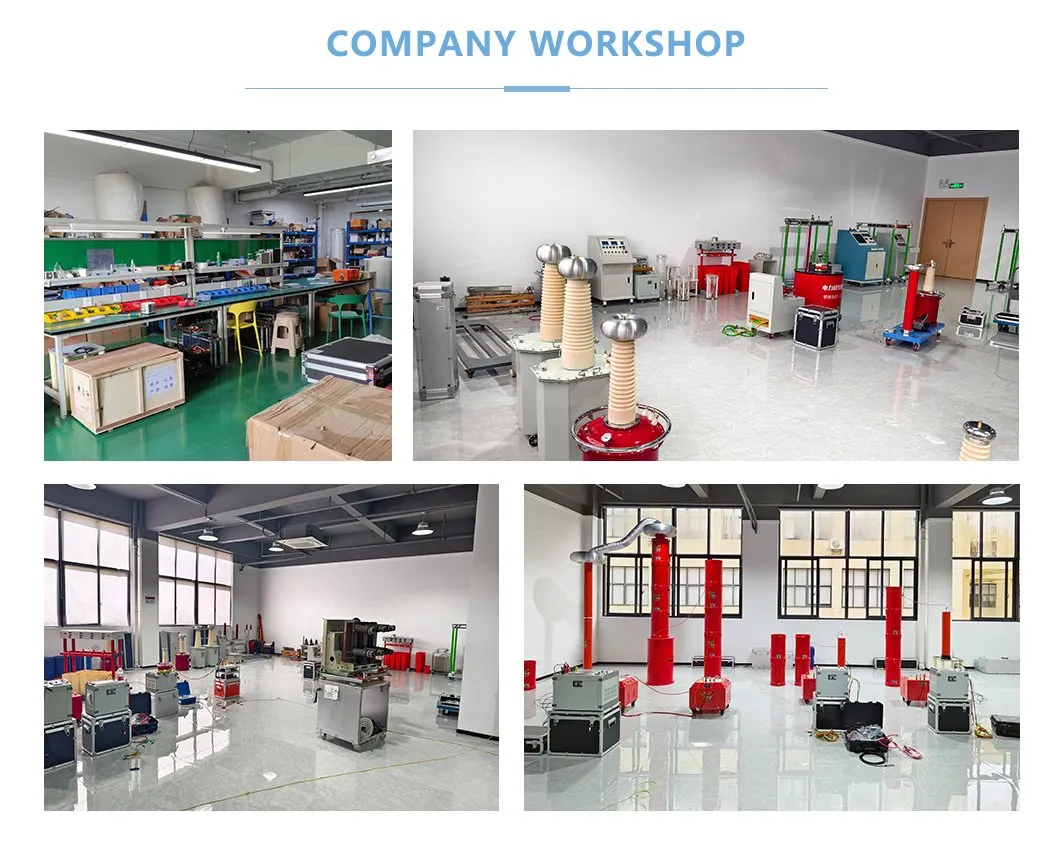

Manufacturing 2
Testing Facility
Quality Control
Production Line
❓ Frequently Asked Questions
What is the advantage of Super Resolution on the KDRS638E?
The Super Resolution feature enhances the native 640×512 detector resolution to 1280×1024, providing four times the pixel data for much clearer images and more precise temperature analysis of small components.
What is the thermal sensitivity (<25mK) significance?
Thermal sensitivity, or NETD, defines the smallest temperature difference the camera can detect. A value of <25mK means the device is extremely sensitive, allowing it to capture subtle heat variations that standard cameras might miss.
Can the device record radiometric video?
Yes, it supports full-radiometric infrared video recording (.irv format) at up to 25Hz, allowing you to perform temperature analysis on every pixel during video playback.
What lens options are available for this model?
The device supports interchangeable lenses, including standard, super-telephoto, wide-angle, and macro lenses to suit various inspection distances and target sizes.
How long does the battery last and is it replaceable?
The 9000mAh lithium battery provides over 3 hours of continuous operation. It is field-replaceable and supports fast charging, reaching 90% capacity in approximately 1.5 to 2 hours.
Is the device suitable for harsh industrial environments?
Yes, the KDRS638E is rated IP54 for dust and water resistance and is built to withstand shocks of 25g and vibrations of 2.5g, making it durable for field use.
