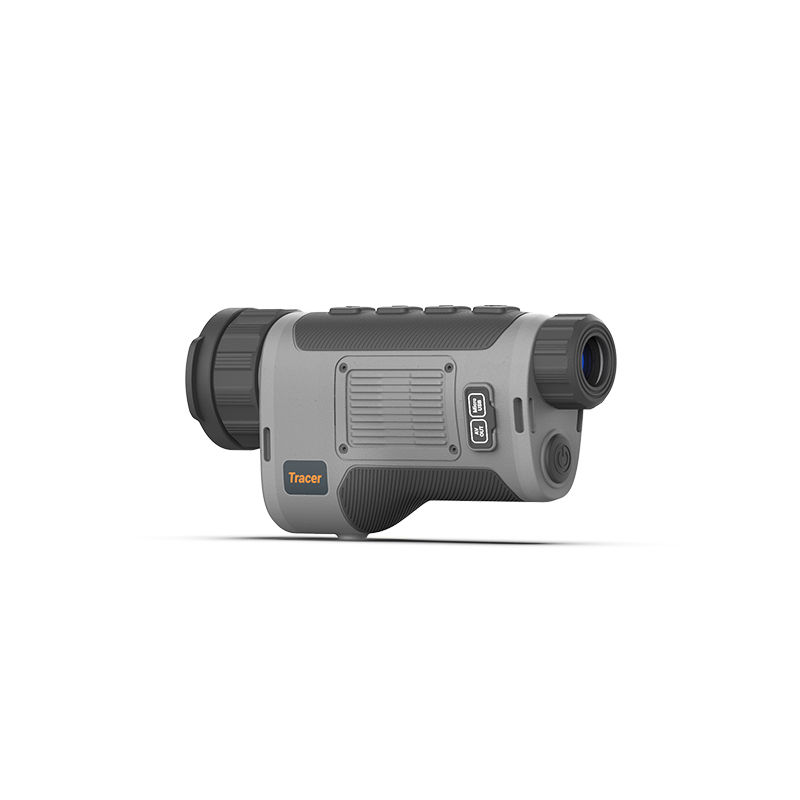

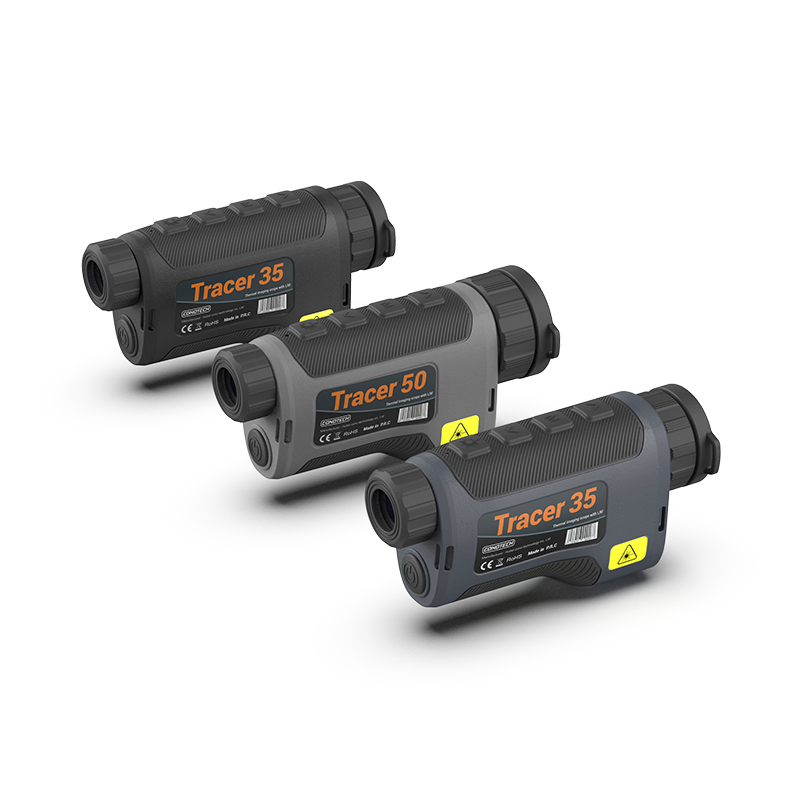

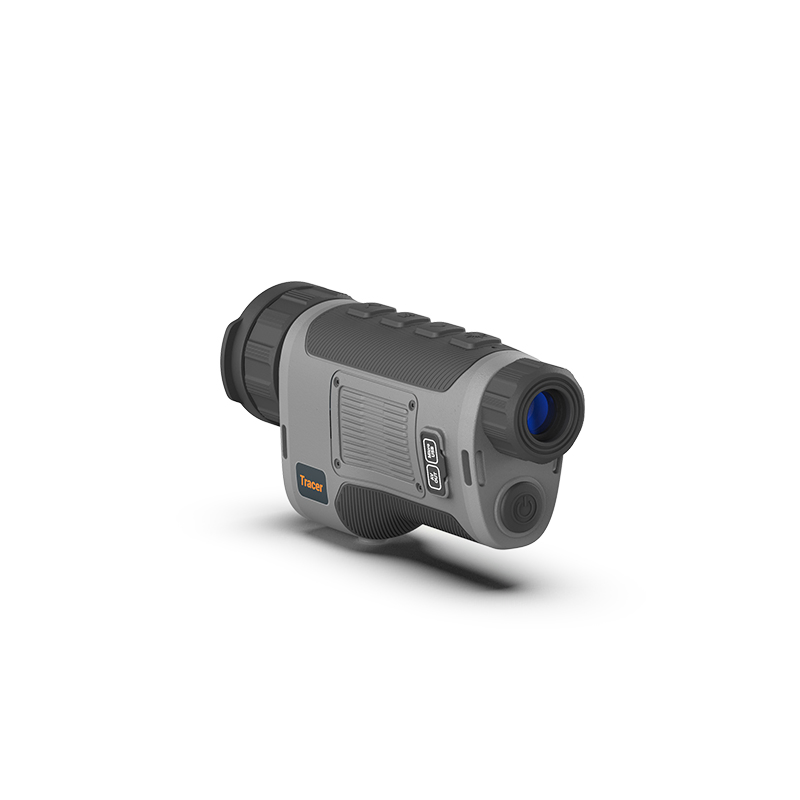

Long Range Observation IR Night Vision Thermal Imaging Civil Handheld Monoculars
Long Range Observation IR Night Vision Thermal Imaging Civil Handheld Monoculars
Long Range Observation IR Night Vision Thermal Imaging Civil Handheld Monoculars
1 / 3
Long Range Observation IR Night Vision Thermal Imaging Civil Handheld Monoculars
Long Range Observation IR Night Vision Thermal Imaging Civil Handheld Monoculars
Long Range Observation IR Night Vision Thermal Imaging Civil Handheld Monoculars

Long Range Observation IR Night Vision Thermal Imaging Civil Handheld Monoculars

Customization: Available
Application: Entertainment
Style: Handheld
Send Inquiry

Product Description

01 Basic Information
Model NO.
Tracer
Structure
Monocular
Kind
Thermal Imaging Night Vision
Principle
Infrared Night Vision
Material
Metal
Weight
< 2kg (incl. battery)
Resolution
384*288
Electronic Focus
35mm/50mm
Display
1024*768 OLED
Battery Life
8+ Hours
Range Finder
1000m
IP Rating
IP67
02 Product Overview

Long Range Observation IR Night Vision Thermal Imaging Civil Handheld Monoculars

Thermal Imaging Monocular

Tracer LRF thermal imagers are equipped with a built-in laser rangefinder with a range of up to 1000 m and measurement accuracy of ± 1 m. High sensitive thermal image Vox sensor with NETD 35mK allows you to detect targets by cutting through snow, dust, smoke, fog, haze, and other atmospheric obscurants.

Main Applications: Border Security, Law Enforcement, Patrol, Mission/Target Search, Hunting, and Search & Rescue operations.

03 Key Features
  • 1024×768 OLED display for superior viewing comfort
  • Extended battery performance exceeding 8 hours
  • Mobile-friendly APP support for Remote Control and Streaming
  • User-friendly UI with quick-access menu for easy operation
  • Multiple Color Palettes for optimal vision in diverse environmental conditions
  • Smooth digital zoom and integrated precision laser rangefinder
  • Built-in Wi-Fi connectivity and on-board video recording function

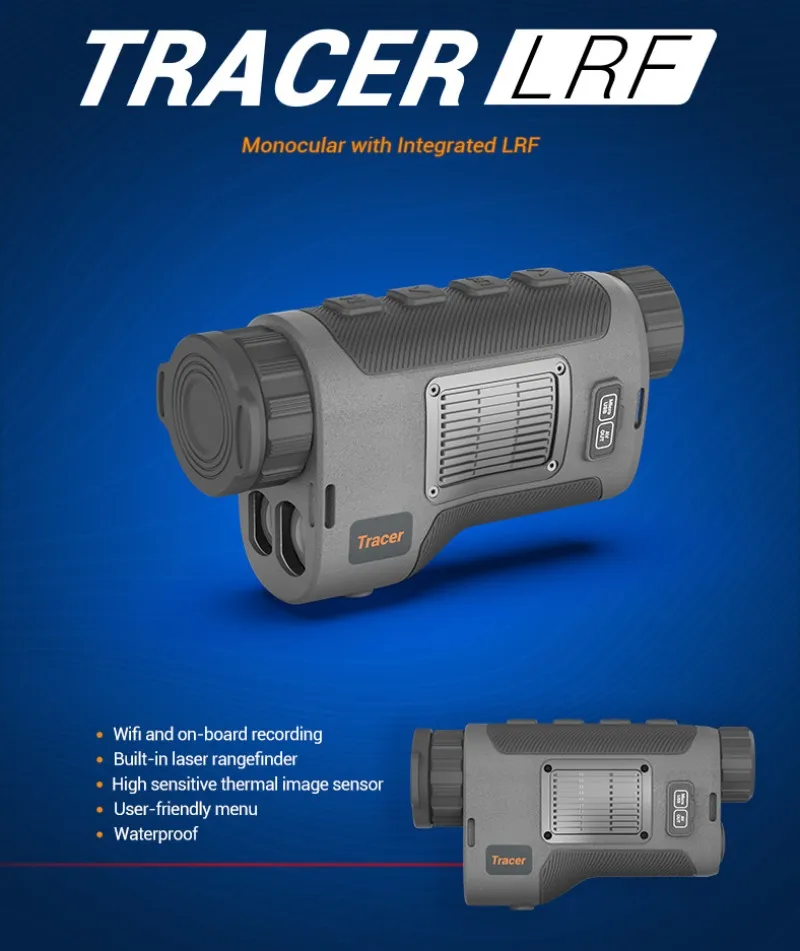

Tracer Detail 1

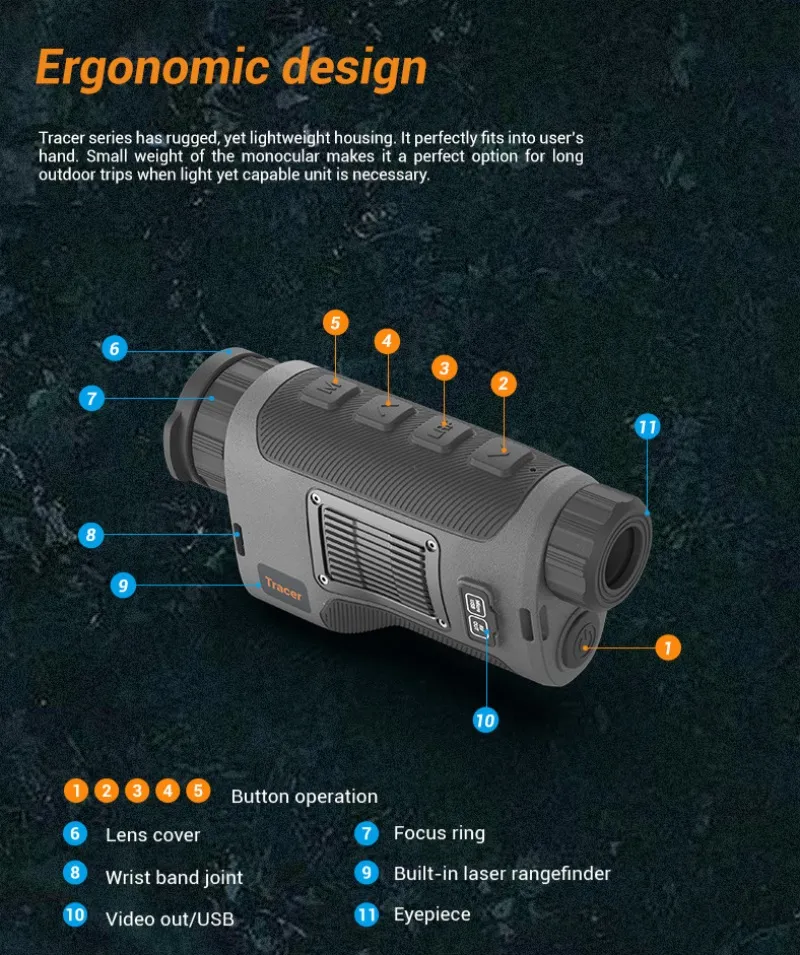

Tracer Detail 2

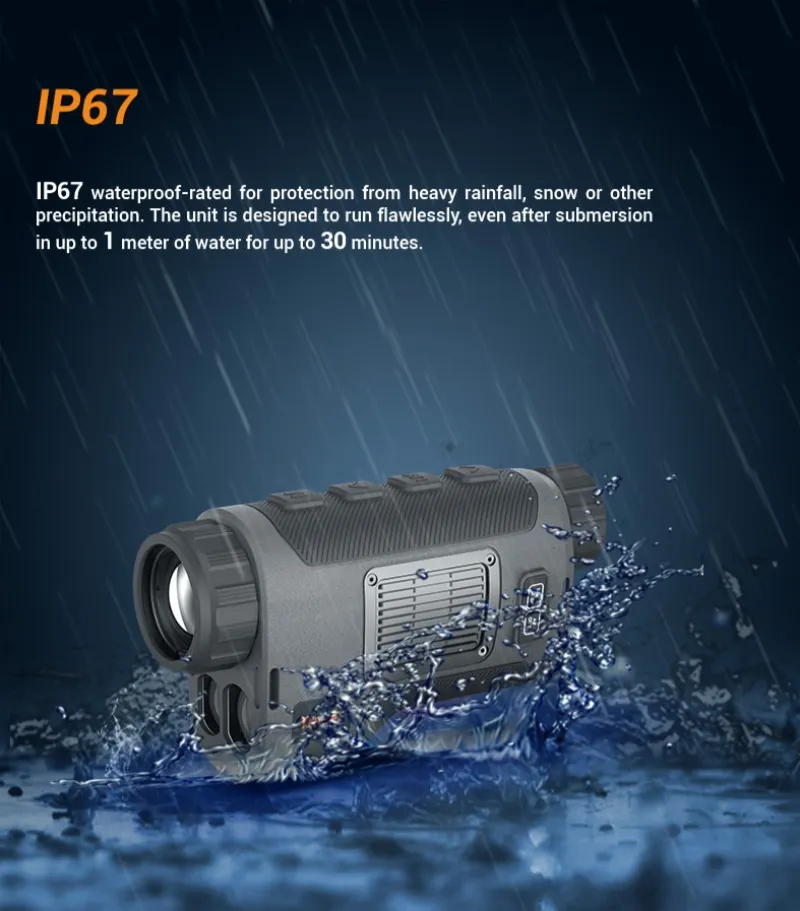

Tracer Detail 3

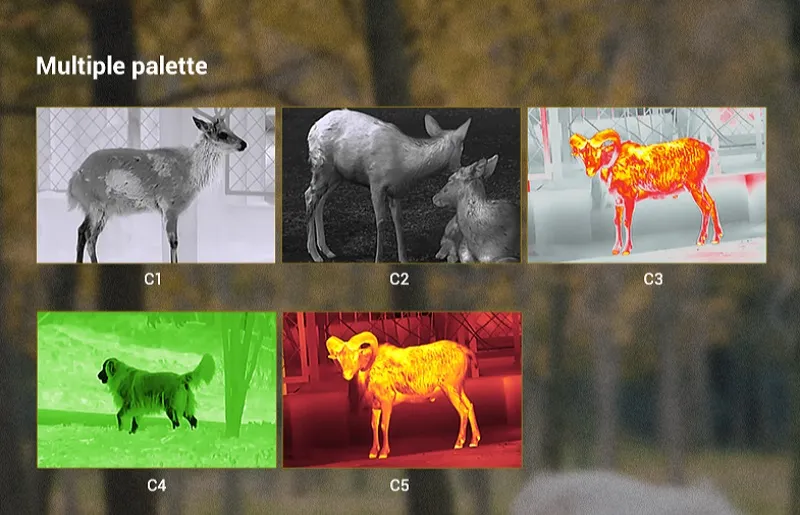

Tracer Detail 4
04 Technical Specifications
Parameter TracerLRF 35 TracerLRF 50
Detector
TypeUncooled Vox
Resolution384×288
NETDLess than 35mk
Optical Characteristics
Objective Lens35mm50mm
Magnification2.7x3.9x
FOV10.6°×8.0°7.4°×5.6°
Display & Functions
Display Resolution1024×768 OLED
Digital ZoomSmooth digital zoom
Start up timeLess than 5 seconds
Laser Rangefinder
Measuring Range5-1000m
Accuracy±1m
Usage Scenario 1

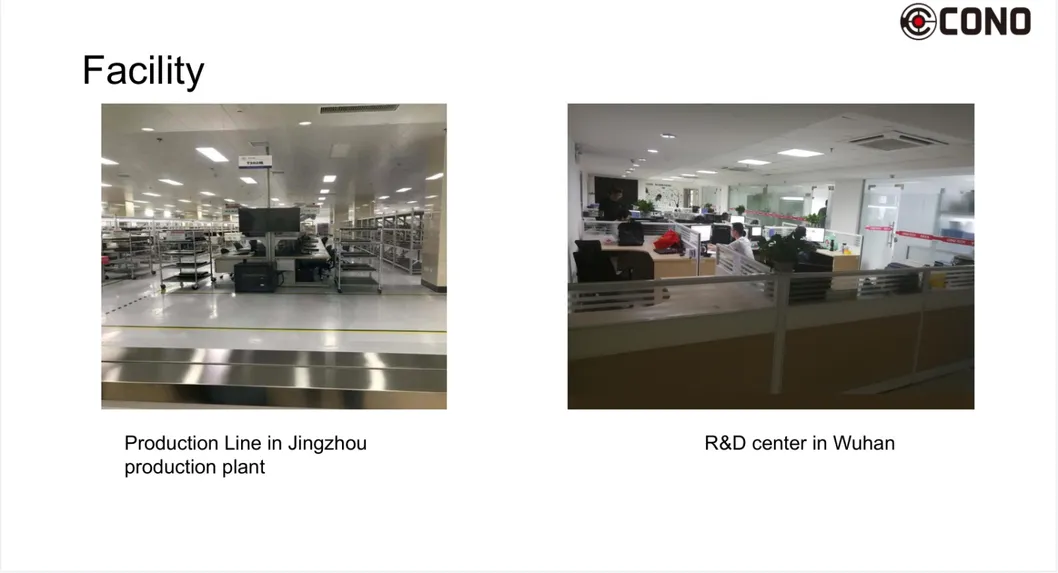

Usage Scenario 2

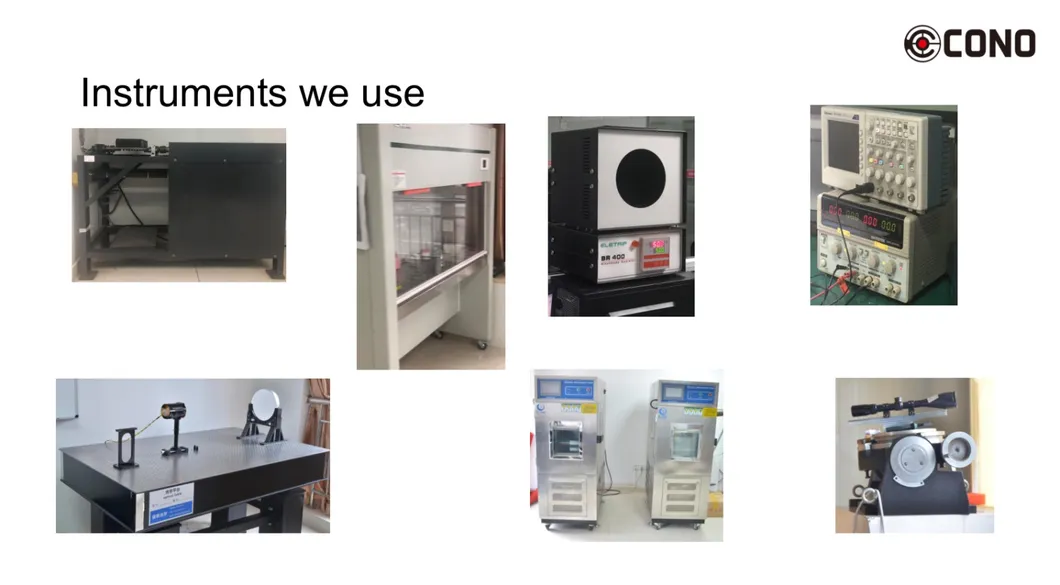

Usage Scenario 3
Usage Scenario 4
Usage Scenario 5
05 Frequently Asked Questions
What is your minimum order quantity (MOQ)?
To facilitate our initial cooperation, we accept orders starting from a single set.
Is sample testing available before placing a bulk order?
Yes, we highly recommend ordering a sample to evaluate the quality. Please contact our team for specific sample pricing.
What are your standard delivery timelines?
For standard orders, the delivery date is approximately 3-15 working days following the receipt of payment.
Do your thermal imaging products come with a warranty?
Absolutely. All our thermal devices are covered by a 24-month comprehensive warranty.
What payment methods do you support?
We provide flexible payment options including T/T bank transfer, Western Union, and PayPal.
How are the products typically packaged for shipping?
We usually secure products in high-quality carton boxes. Custom packaging solutions are also available upon specific request.
