Overview
| Model NO. | DA-T Series |
| Application | Customized |
| Style | Handheld |
| Structure | Monocular |
| Kind | Thermal Imaging Night Vision |
| Working Band | 8-14um |
| Resolution | 384*288/640*512(12um) |
| Monitor Type | OLED (1024*768) |
| Laser Rangefinder | 1.3km |
| Waterproof | IP67 |
Product Description

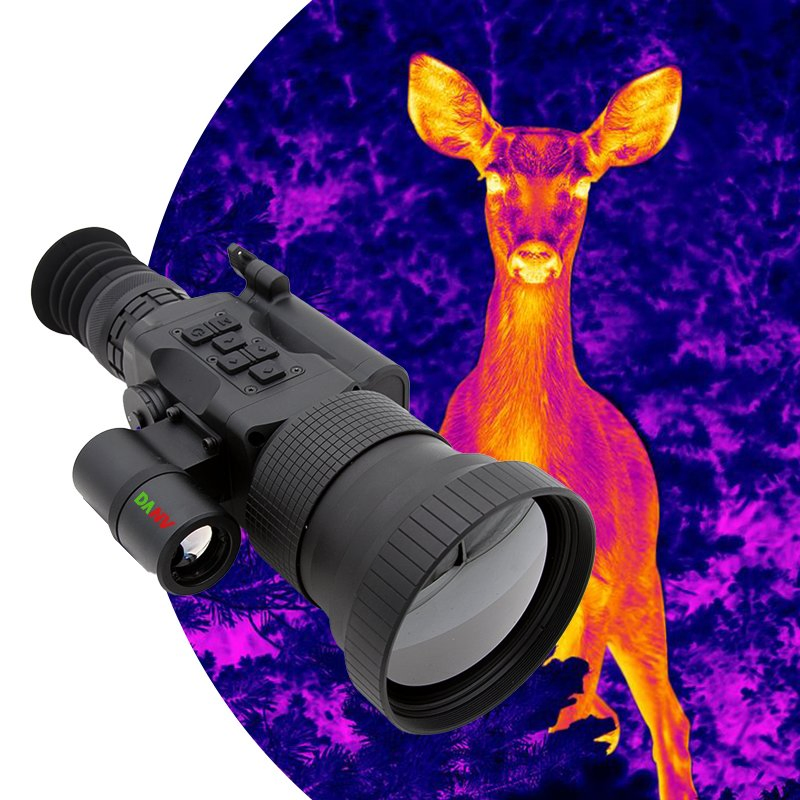

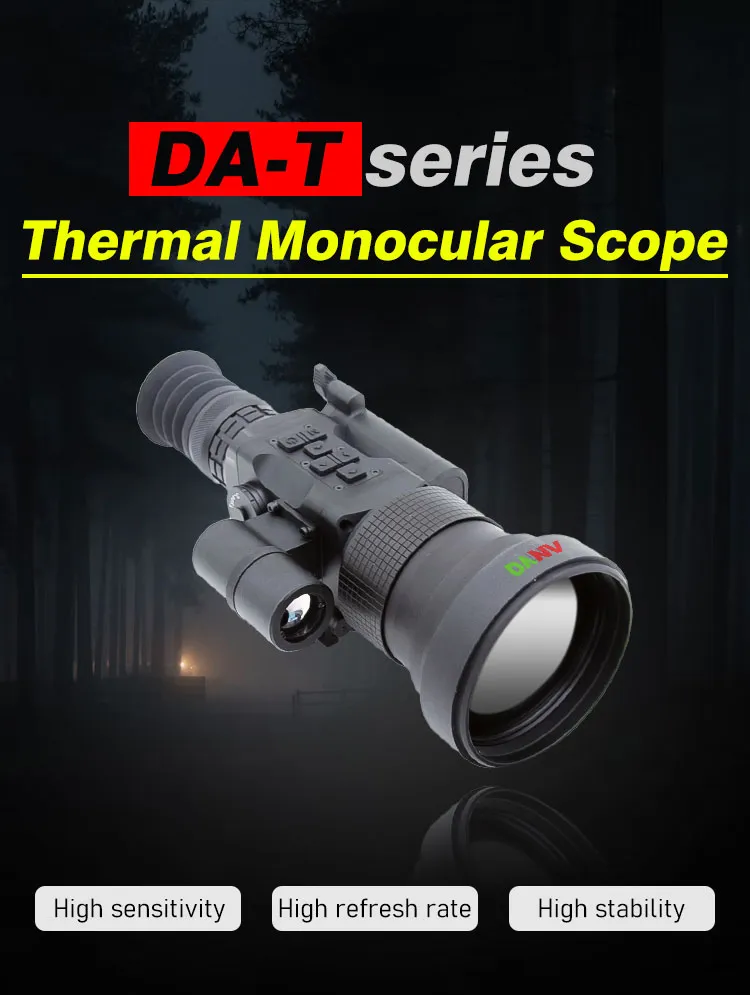

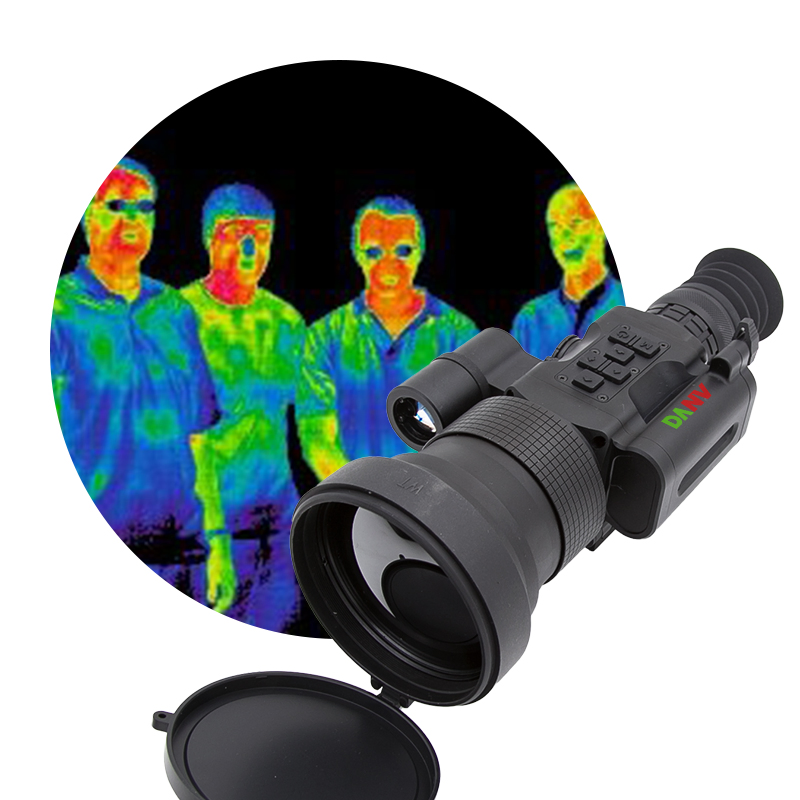

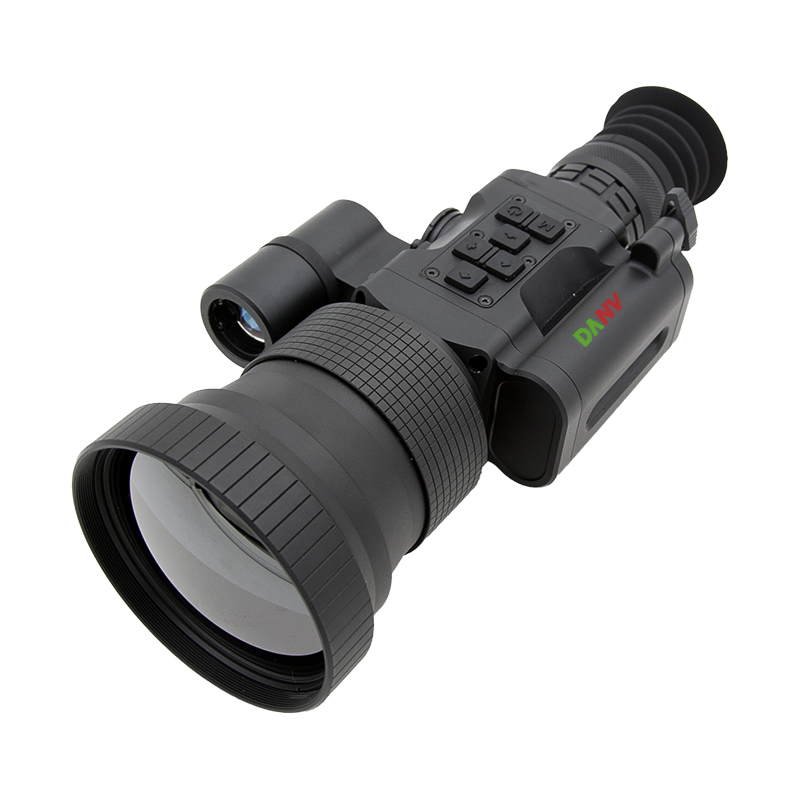

DA-T series thermal monocular scope is a lightweight, small-volume, low-power multifunctional searching thermal monocular scope. It features a 1.3km laser rangefinder and WIFI function. Utilizing a 12μm vanadium oxide detector and advanced non-blocking film technology, the DA-T series provides high sensitivity, high refresh rate, and exceptional stability. It is designed for full-scene imaging and observation 24 hours a day.

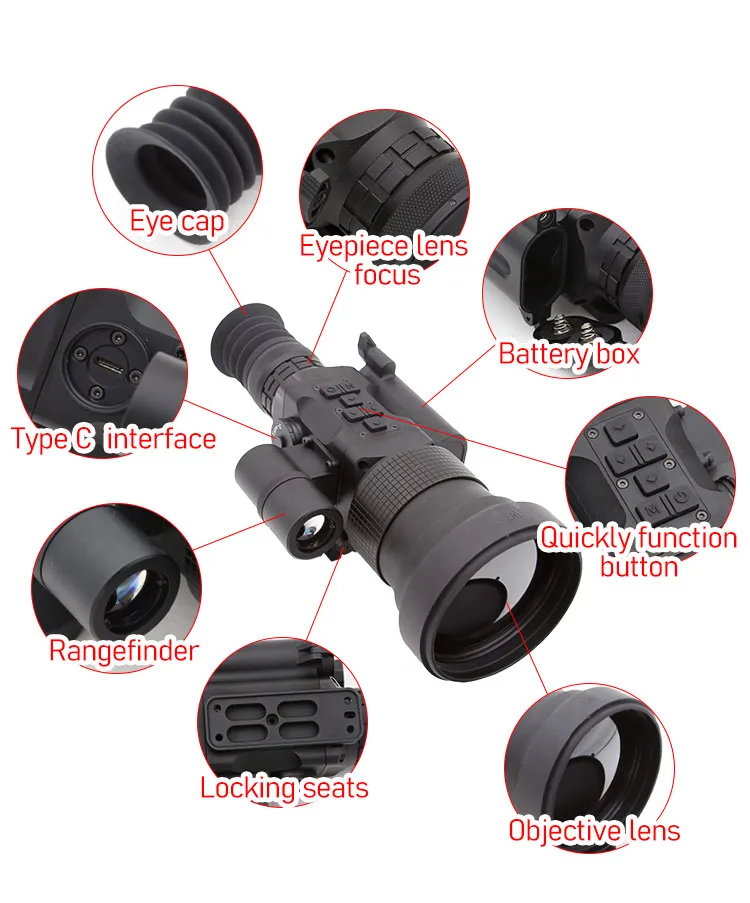

Product Features

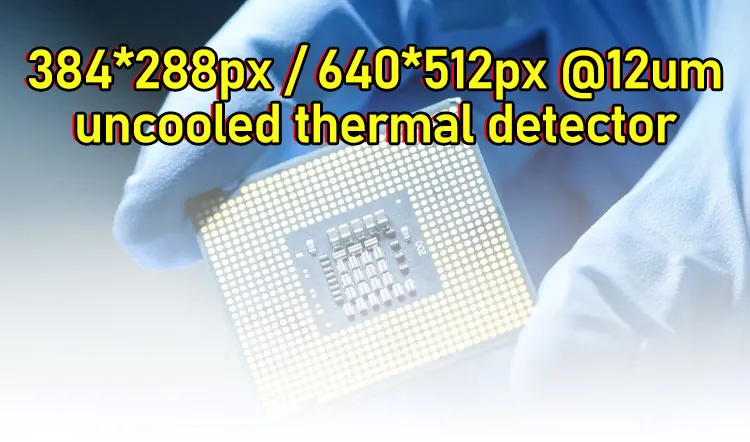

✓384*288px or 640*512px @12um high resolution infrared detector
✓35mm, 50mm, 75mm objective lens specification (optional)

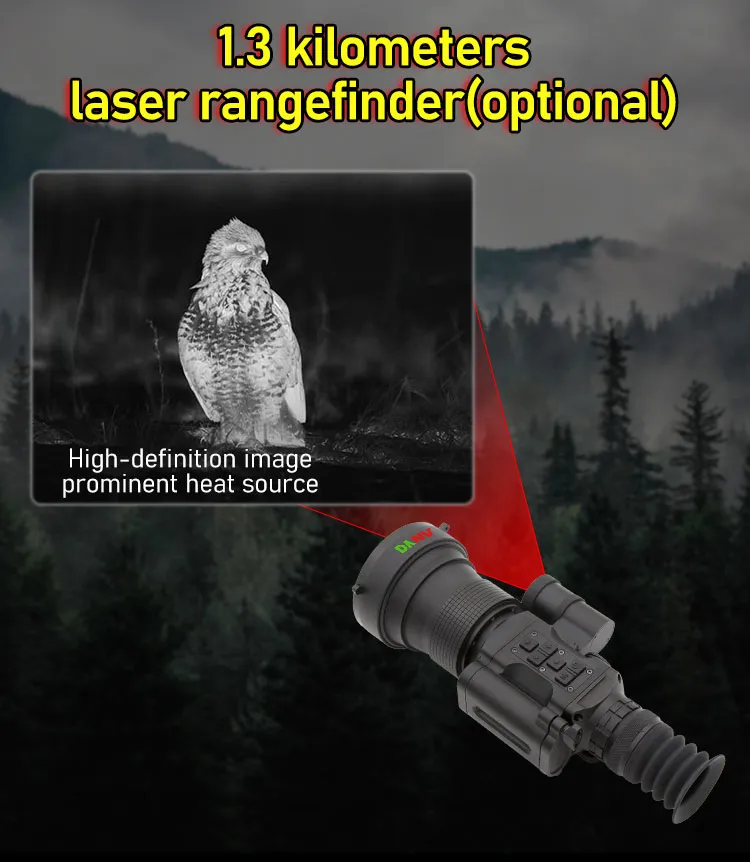

✓1.3 kilometers laser rangefinder (optional)

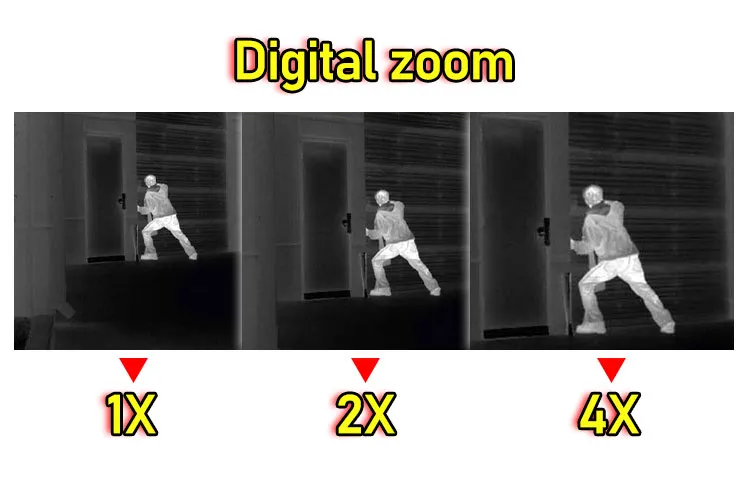

✓1x, 2x, 4x digital zoom for precise viewing
✓IP67 waterproof and dustproof rating
✓Supporting a variety of reticle displays
✓1200G strong impact resistance durability
✓8 hours continuous working time with low power consumption

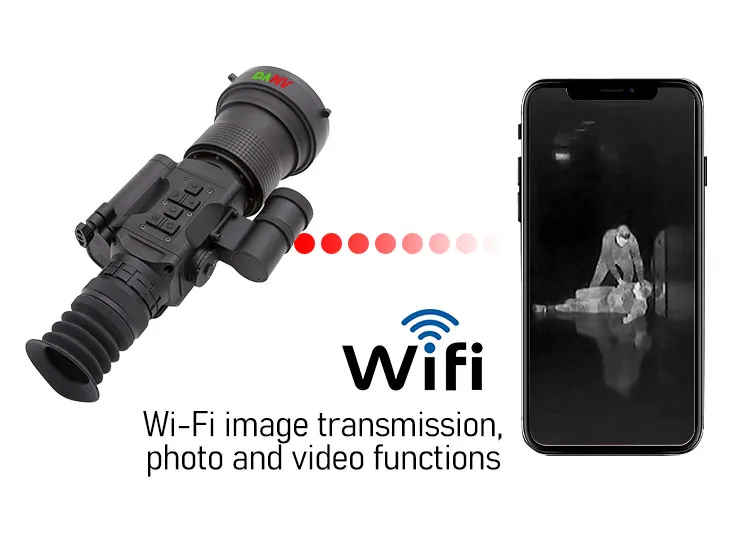

✓Wi-Fi image transmission, photo, and video functions
Professional Manufacturing

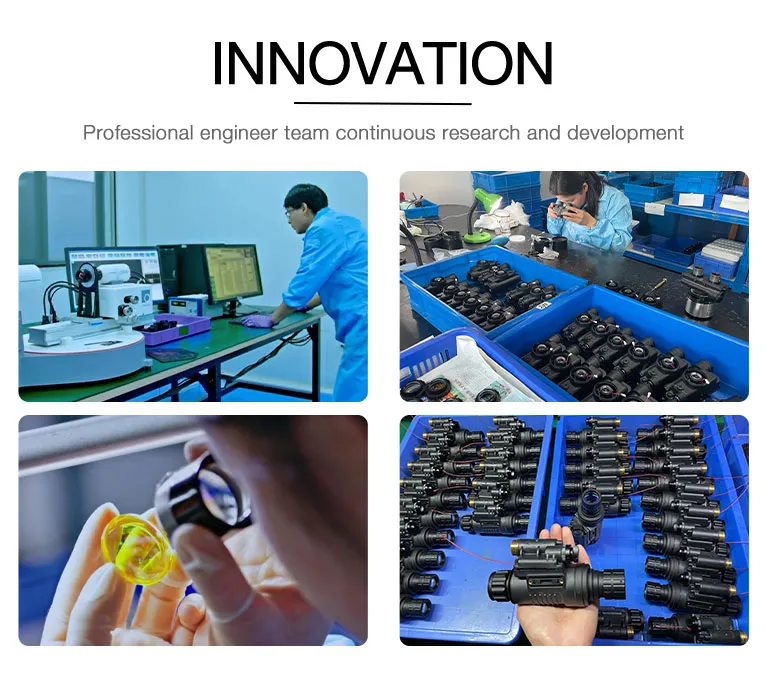

We are a leading manufacturer and developer specialized in high-performance optical solutions. With professional research & R&D teams, we provide advanced solutions in Gen2+/Gen3 Night Vision Devices and Thermal Imaging technology. Our facility integrates precision engineering and innovation to redefine nighttime vision capabilities.
Our 3500+ square meter workshop is equipped with state-of-the-art production lines. With a production capacity of 2000 pcs and a team of over 300 skilled workers and engineers, we guarantee top-tier quality for every device. We regularly participate in international exhibitions to showcase our latest innovations in precision measurement and thermal imaging.
Product Parameters
| Specification Item |
Details |
| Detector Type | Un-cooled Vanadium Oxide |
| Working Band | 8~14μm |
| Resolution | 384×288 / 640×512 (12μm) |
| MRTD | ≤50mK |
| Display Resolution | 1024×768 OLED |
| Objective Focal Length | 35mm, 50mm, 75mm (F1.0) |
| Recognition Distance | 1.5km (Human-sized target) |

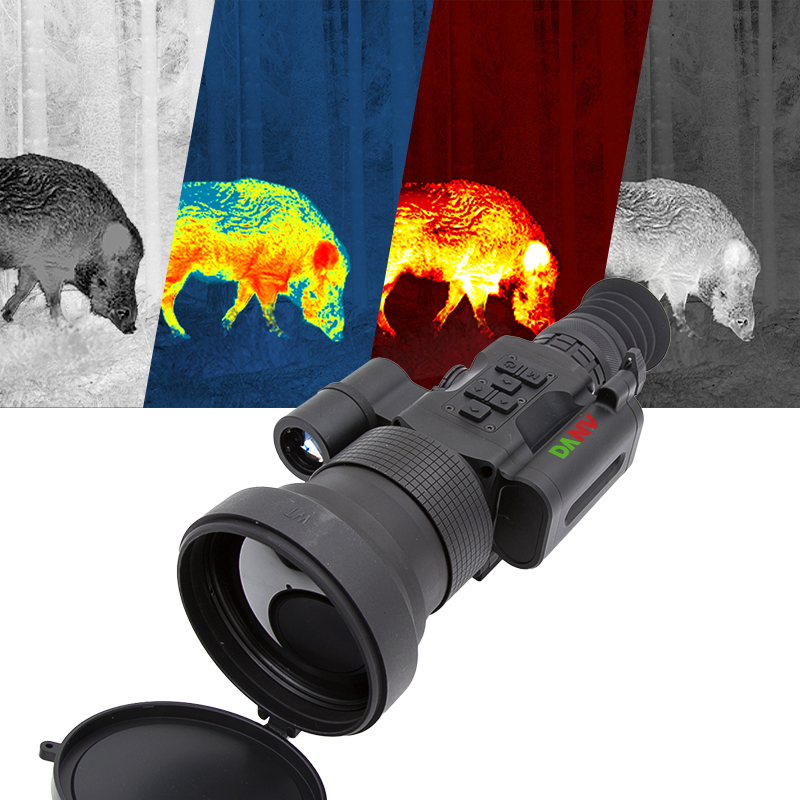

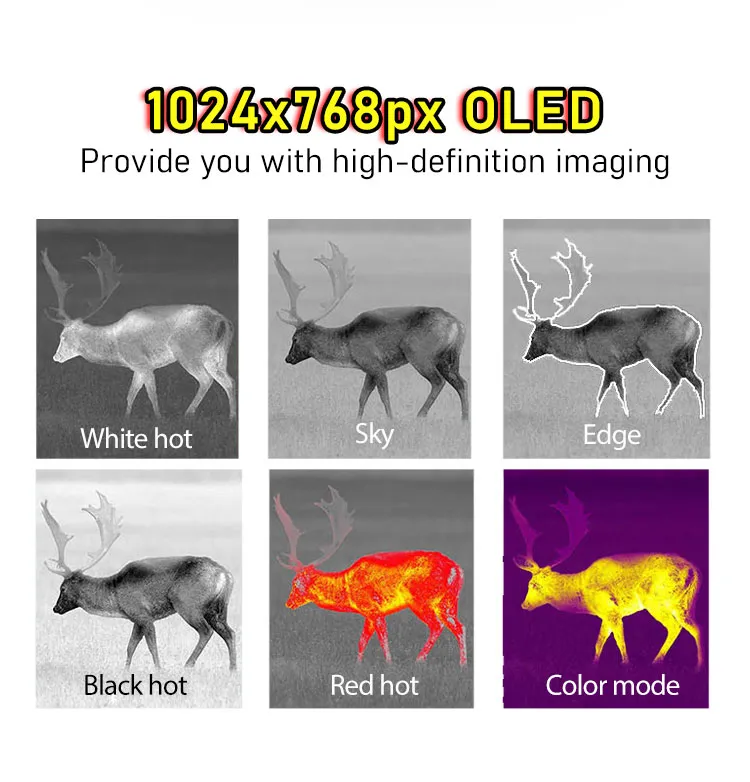

| Image Modes | White thermal, Black thermal, Red thermal, False color, Stroke |
| Electronic Zoom | 1x / 2x / 4x |
| Operating Temperature | -40ºC ~ +55ºC |
| Impact Resistance | 1200G |

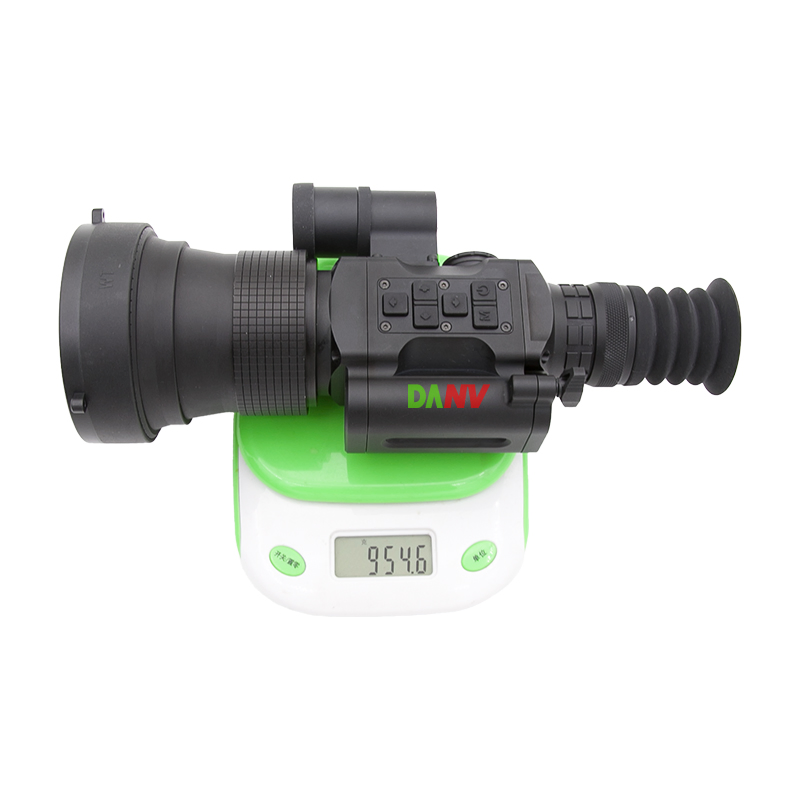

| Weight | ≤1.2kg |
Frequently Asked Questions
Q: Are you a manufacturer or a trader?
A: We are a professional manufacturer specialized in night vision, thermal vision, and other photoelectric products.
Q: What specific products can you provide?
A: We provide high-quality night vision products, infrared thermal imaging devices, Gen2+/Gen3 image intensifier tubes, and core optoelectronic accessories.
Q: What is the typical lead time for orders?
A: For small quantities, we usually ship within 3-5 days. For large volume orders, please contact us for a specific timeline based on the season.
Q: What shipping methods are available?
A: We primarily use express delivery such as DHL, EMS, UPS, and FEDEX. Other requirements can be accommodated upon request.
Q: Do you accept OEM or ODM service?
A: Yes, we definitely provide OEM and ODM services based on order quantity and specific requirements.
Q: How long is the warranty period?
A: Most of our products come with a standard one-year warranty.
