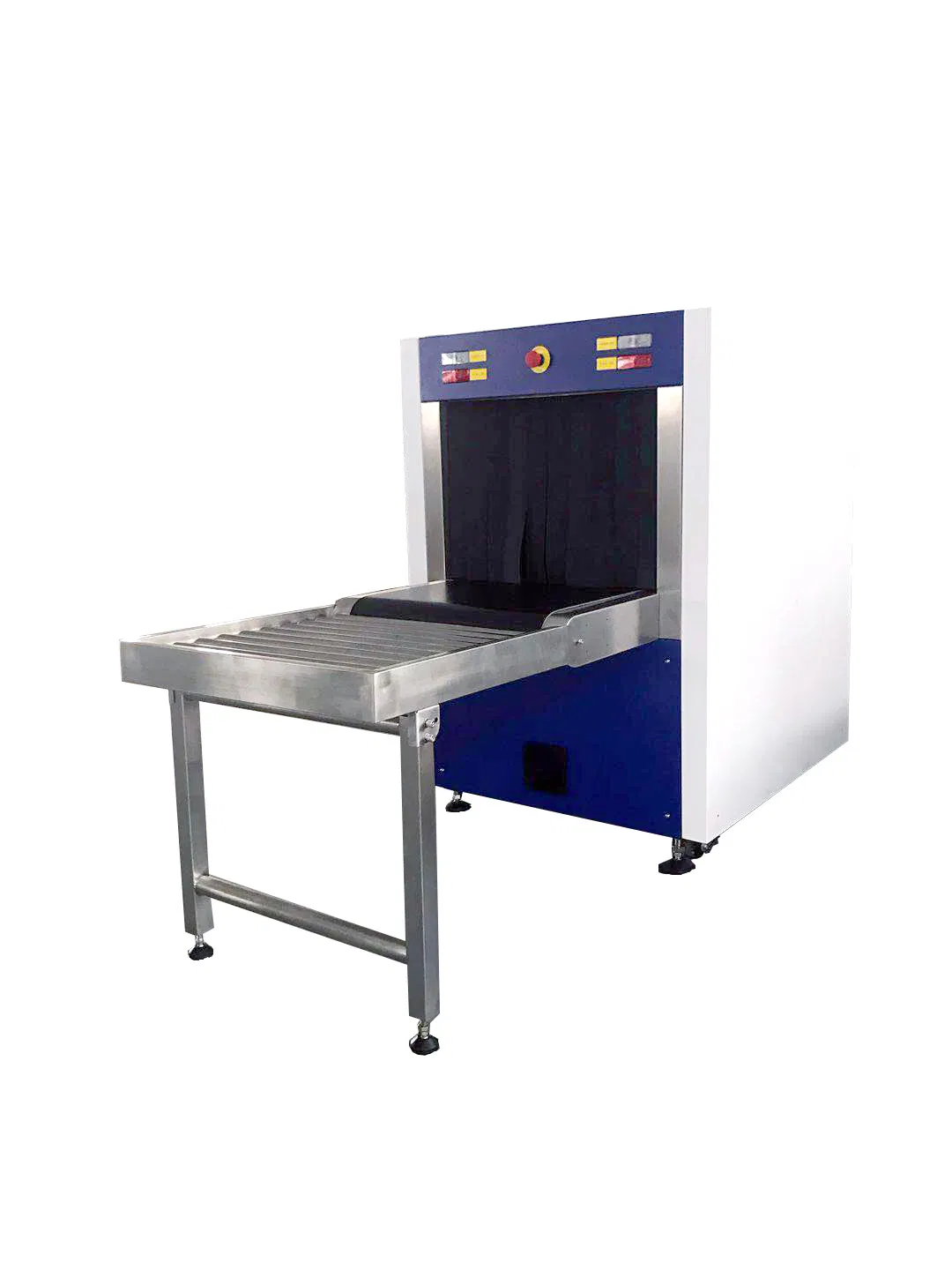

OEM Acceptable X Ray Baggage Scanner for Security Inspection Suitable for Airports

Customization: Available
After-sales Service: 12 Months
Warranty: 12 Months

Product Description

Basic Specifications

Model NO.
FDT-SE6040
Form
Flatbed
Application
Security Check, Industrial
Type
Industrial High-definition X-ray Detector
Certification
CE, ISO, FCC/RoHS
Alarm Form
Display Alarm
Product Type
Conveyor
Specification
1845*865*1313 mm

X-ray Security Inspection Equipment

FDT-SE6040 X-ray Baggage Scanner is widely used for public security inspection of baggage, goods, and packages. This advanced system is suitable for high-security environments including government buildings, hotels, courts, prisons, logistics points, public security checkpoints, schools, international large-scale events, exhibition centers, and transportation hubs like high-speed rail stations and ports.

Detection Capabilities

  • Penetration: 43mm Steel Plate
  • Wire Resolution: ≤40AWG
  • Penetration Resolution: ≤32AWG
  • Spatial Resolution: Horizontal/Vertical Ф1.0mm
  • Dose per Inspection: ≤3.0μGy
  • Noise Level: 55 dB

X-Ray Generator

  • Generation Direction: Bottom/Side
  • Tube Voltage: 100~160kV (Adjustable)
  • Tube Current: 0.4~1.2 mA (Adjustable)
  • Cooling/Duty Cycle: Sealed Oil / 100%
  • Generation Angle: 80°
  • X-ray Leakage: <0.1µGy/h

Core Configuration

  • International Brand Electrical Components
  • Industrial PLC Circuit Control
  • Capacitance Integral Analog Conversion
  • Stable Industrial Computer System
  • Ergonomic Reading System
  • Advanced Radiation Protection System

Advanced Image Processing

  • Color / Black & White Imaging
  • Organic / Inorganic Discrimination
  • Super & Edge Enhancement
  • Partial Enhancement & Zooming
  • Grayscale Scanning & Restoration
  • High / Low Energy Penetration
  • Image Playback (Last 50)
  • Large Storage (>100,000 images)
  • One-key Shut-down
  • High Density Alarm
  • Drug and Explosive Powder Detection
  • Automatic Self-diagnosis

Standard Certifications

ISO9001 | OSHA18001 | GB15208.1-2005 | ISO14001

Frequently Asked Questions

1. Are you a professional manufacturer?
Yes, we are a professional manufacturer of security detection systems. We focus on durable, high-quality products and provide comprehensive service for all our detection equipment.
2. What security product series do you offer?
We provide multiple series including X-Ray Baggage Scanners, Body Scanners, Walk Through Metal Detectors, Under Vehicle Surveillance Systems, Explosive & Narcotics Detectors, and Nuclear Radiation Detectors.
3. How long is the warranty period?
We provide a 1-year free warranty for failures caused by non-human factors and offer lifetime technical support. Paid warranty extensions are also available with no upper limit on years.
4. What is your after-sales service policy?
Our service includes online video technical analysis, 24-hour telephone support, installation guidance, and on-site maintenance/debugging services as per client requirements.
5. What is the typical lead time for an order?
For items in stock, the lead time is 3-5 days. For custom production or non-stock items, it typically takes 10-20 days depending on the project scale.
6. How is quality control managed?
Every production process is controlled in strict accordance with ISO, CE, and FCC certifications to ensure the highest reliability and safety standards.
