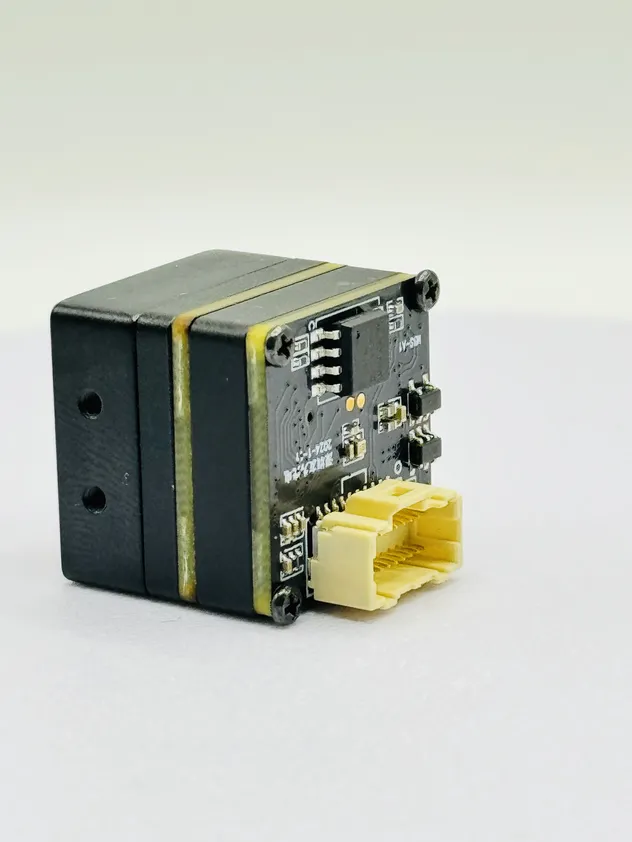

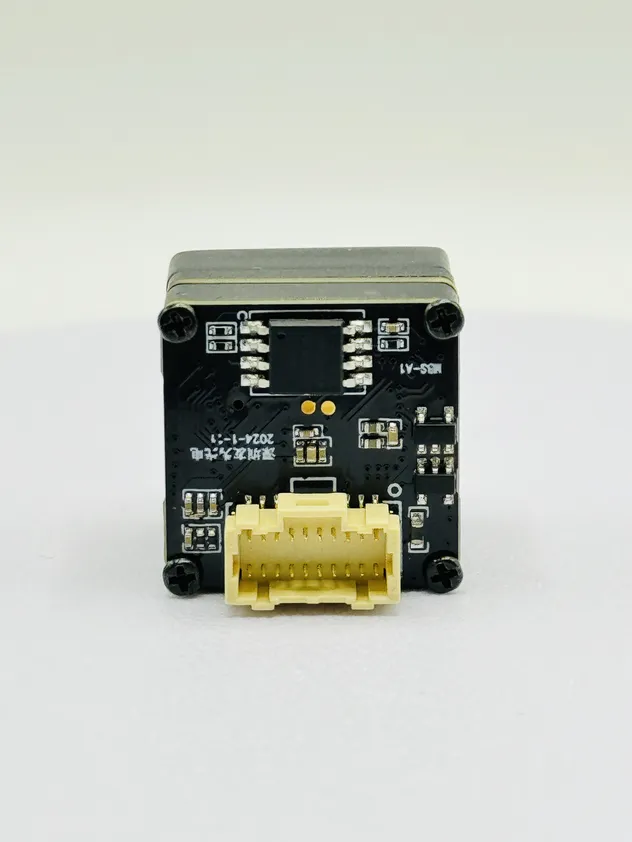

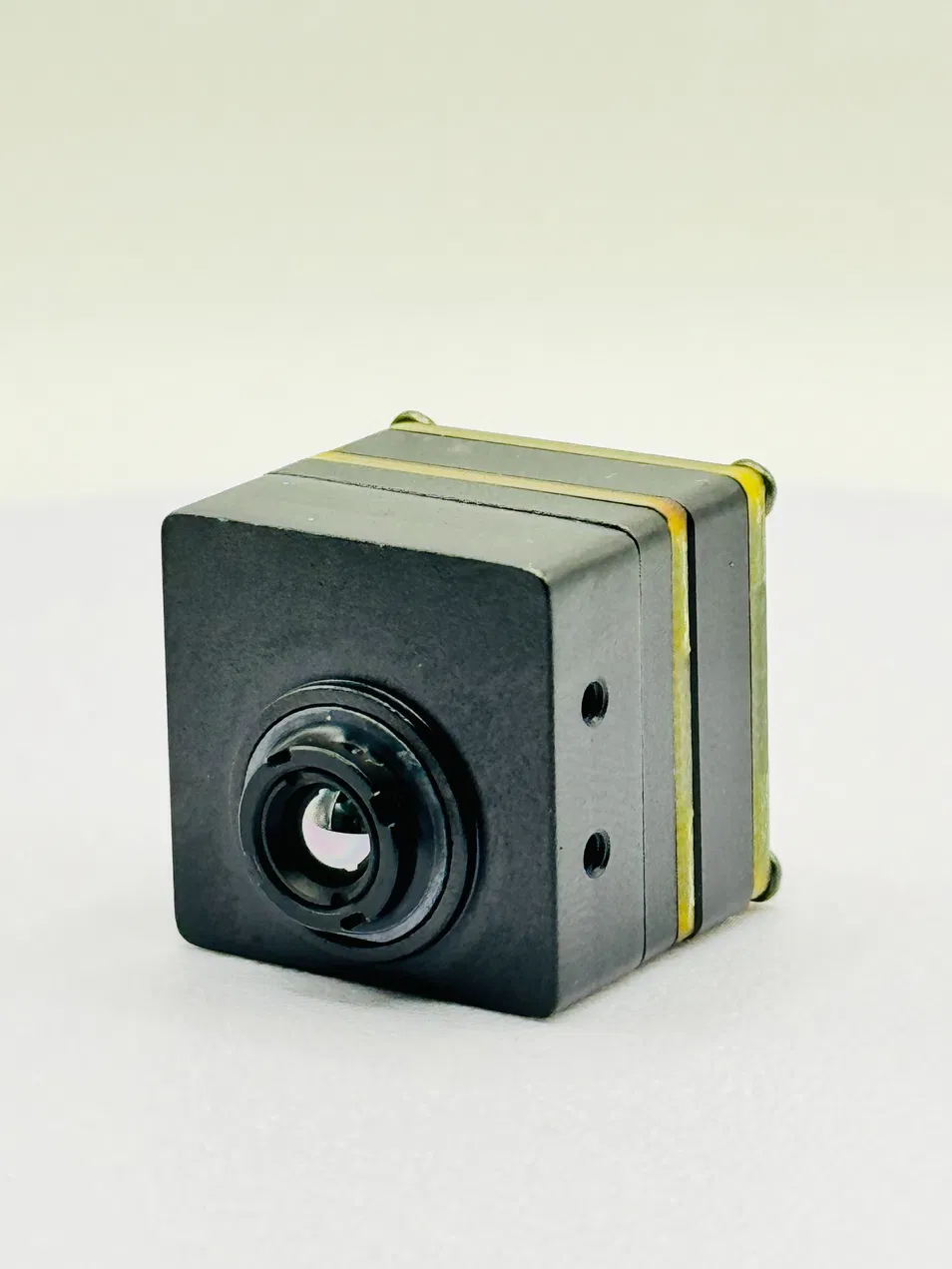

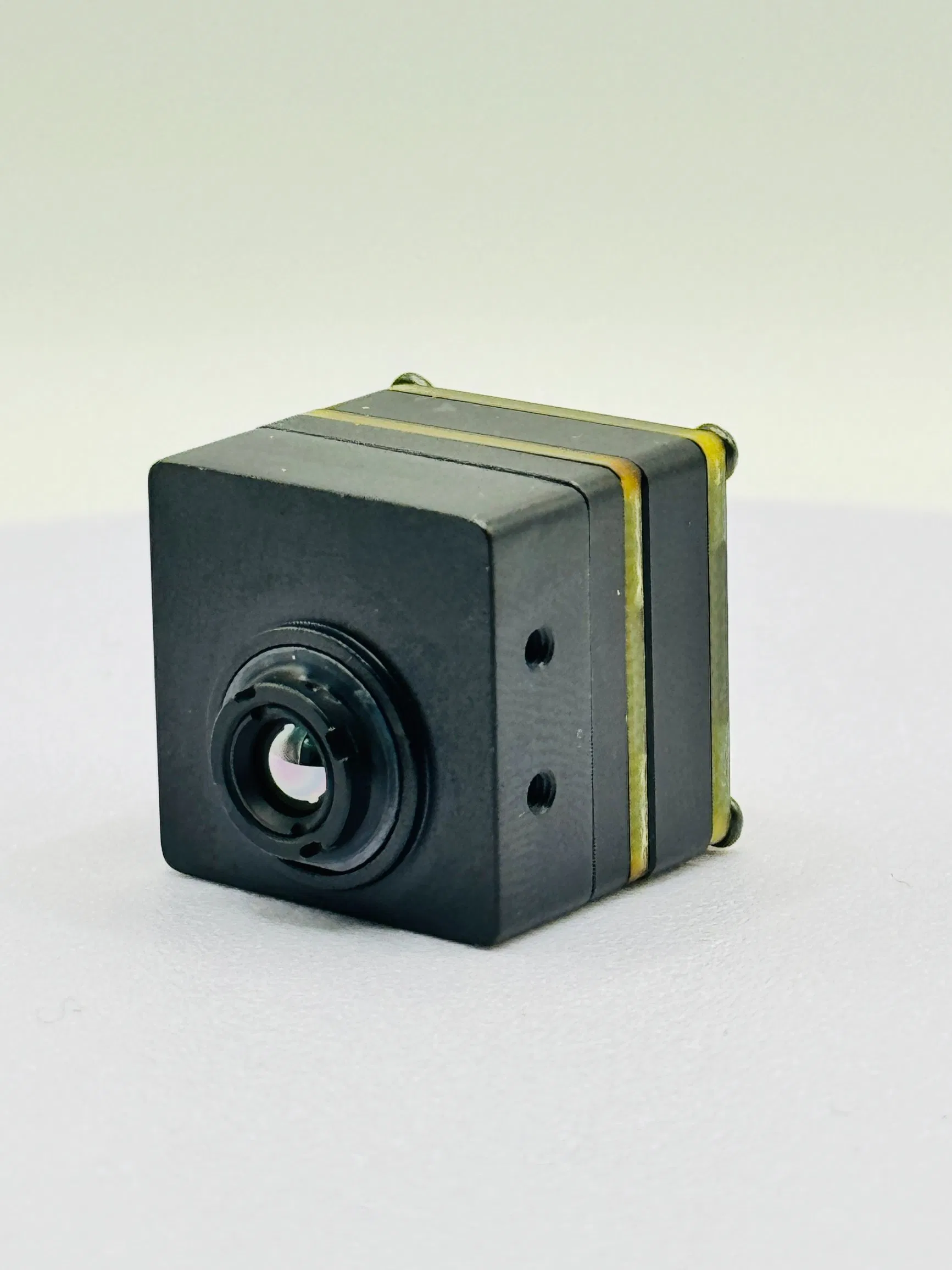

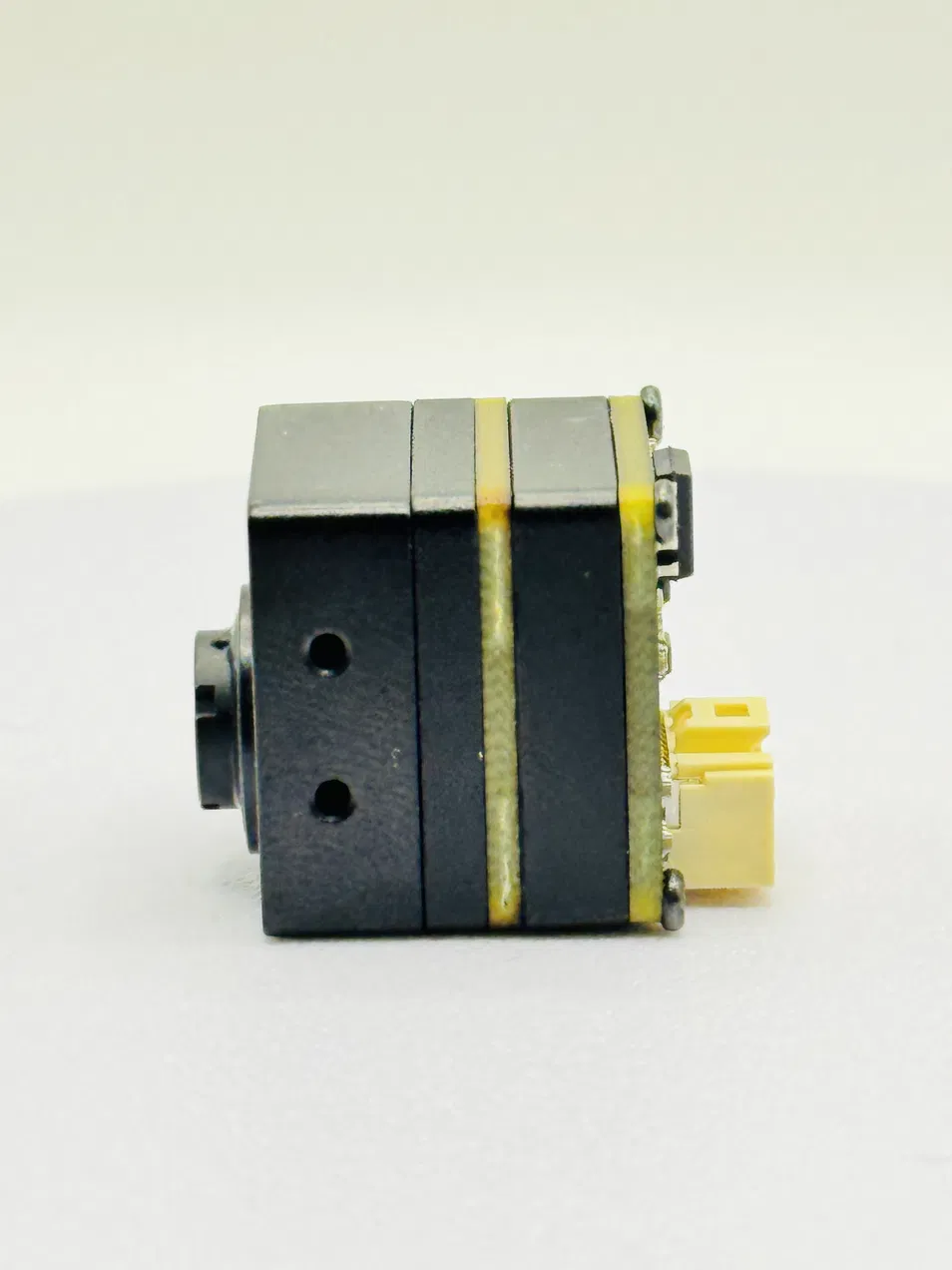

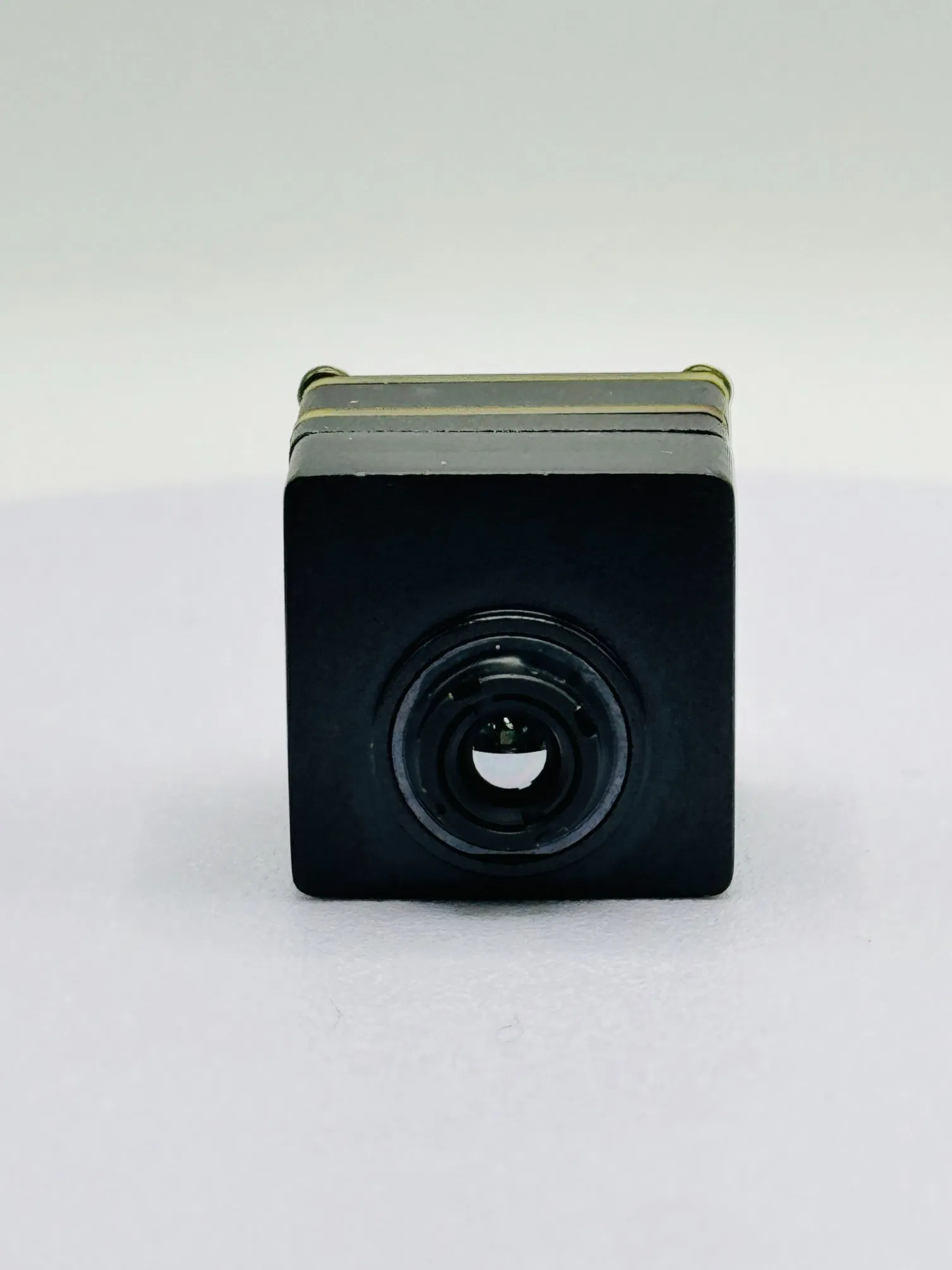

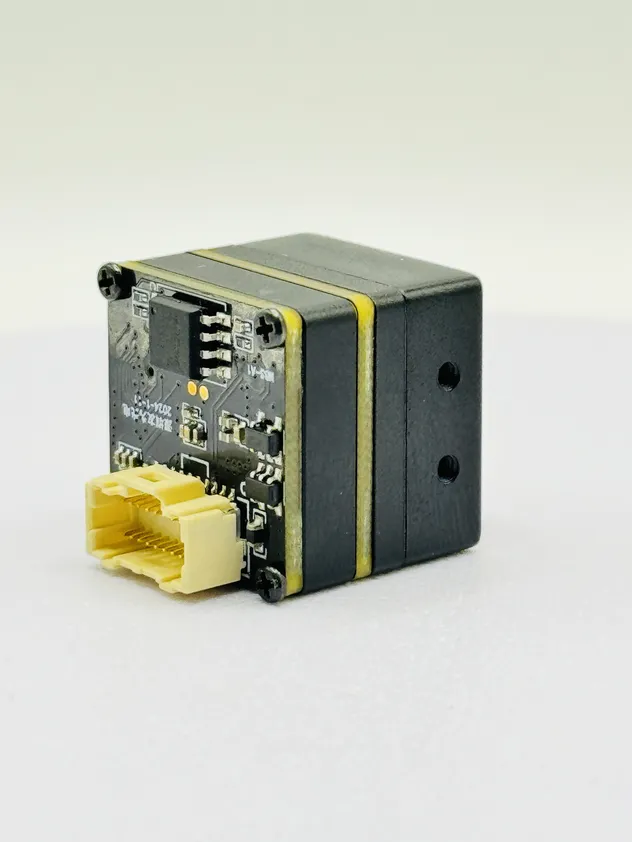

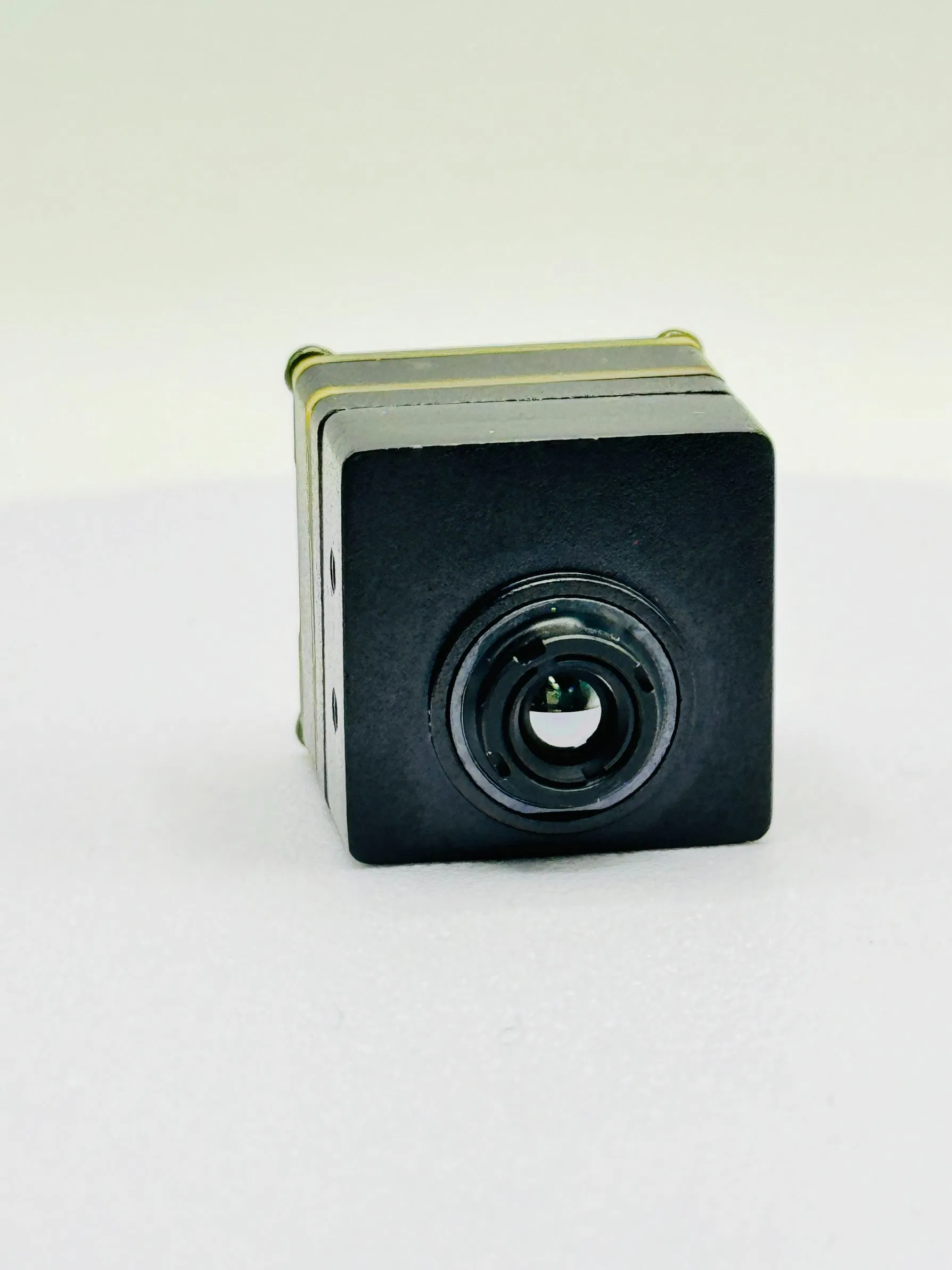

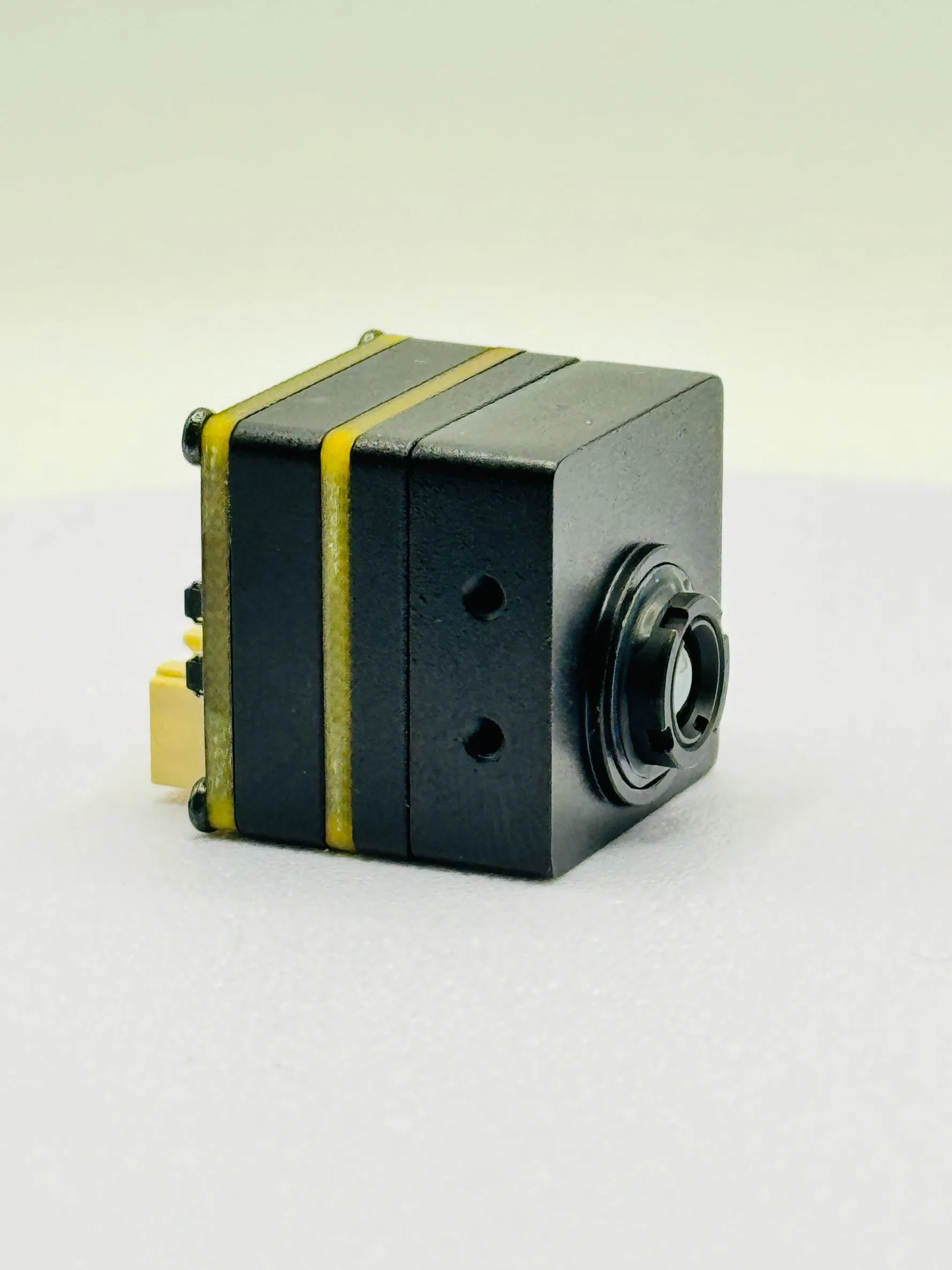

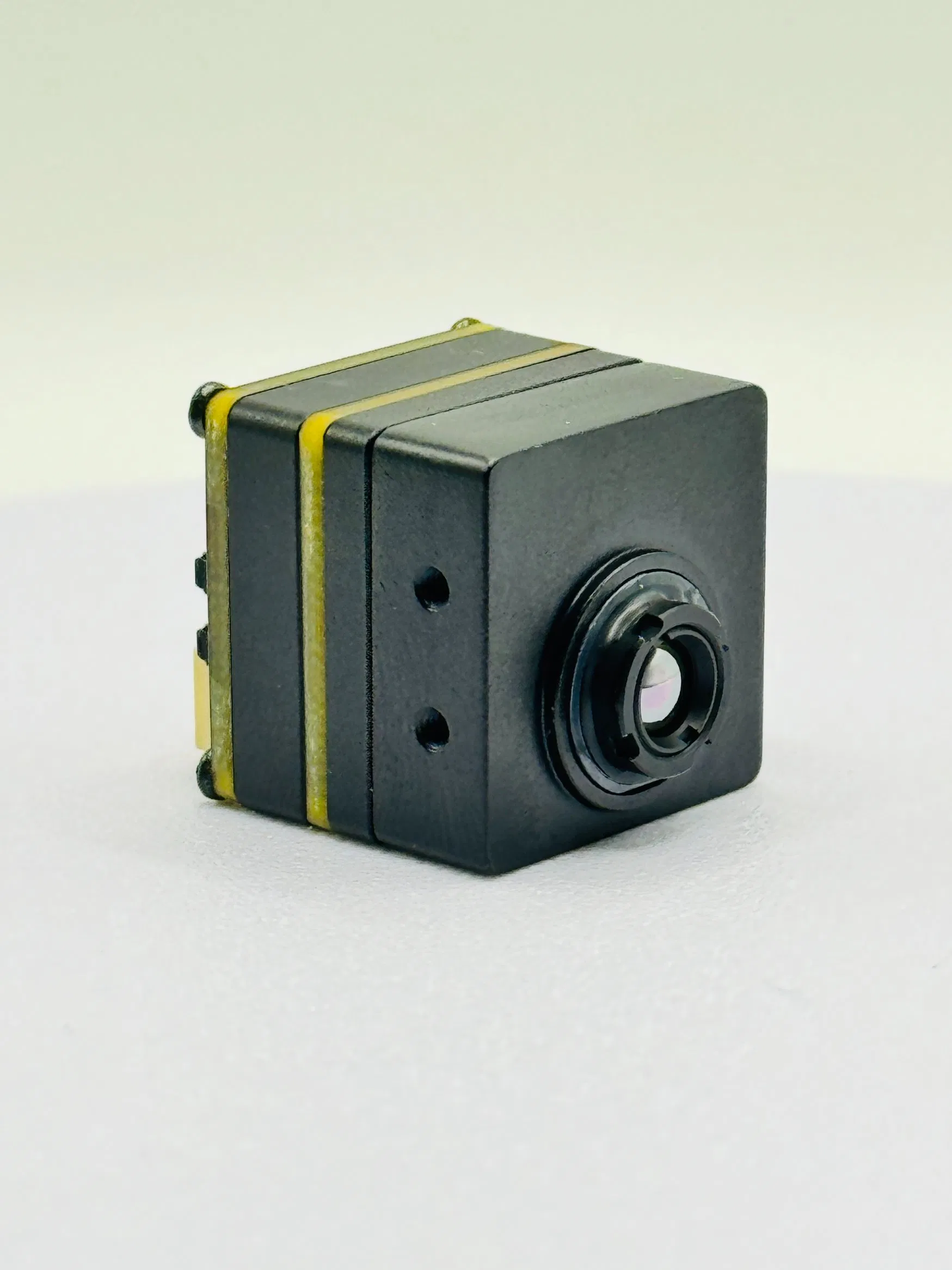

The VuePro Series is a compact long-wave (8~14μm, LWIR) micro thermal imaging module designed for unmanned systems. It converts an object's own thermal radiation into clear visual imagery and accurate temperature data. Available in three resolutions—640×512, 384×288, and 256×192—the series offers multiple lens options from 4mm to 55mm for flexible field-of-view adjustment.
Its robust, lightweight design and low power consumption make it ideal for integration into UAVs, UGVs, robots, and portable platforms. This module delivers stable 50Hz CVBS video output with zero ripple, ensuring reliable real-time imaging.
| Parameter | Value / Specification |
|---|---|
| Model | VUE256 |
| Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Array |
| Resolution | 256×192, 384×288, 640×512 |
| Wavelength Range | 8 ~ 14μm |
| Pixel Pitch | 12μm |
| NETD | ≤50 m k @ F1.0 25℃ |
| Frame Rate | 50Hz |
| Video Output | CVBS |
| Input Voltage | 5-12V |
| Power Consumption | 430mW |
| Operating Temp | -40℃~+80℃ |
| Weight | 22g |

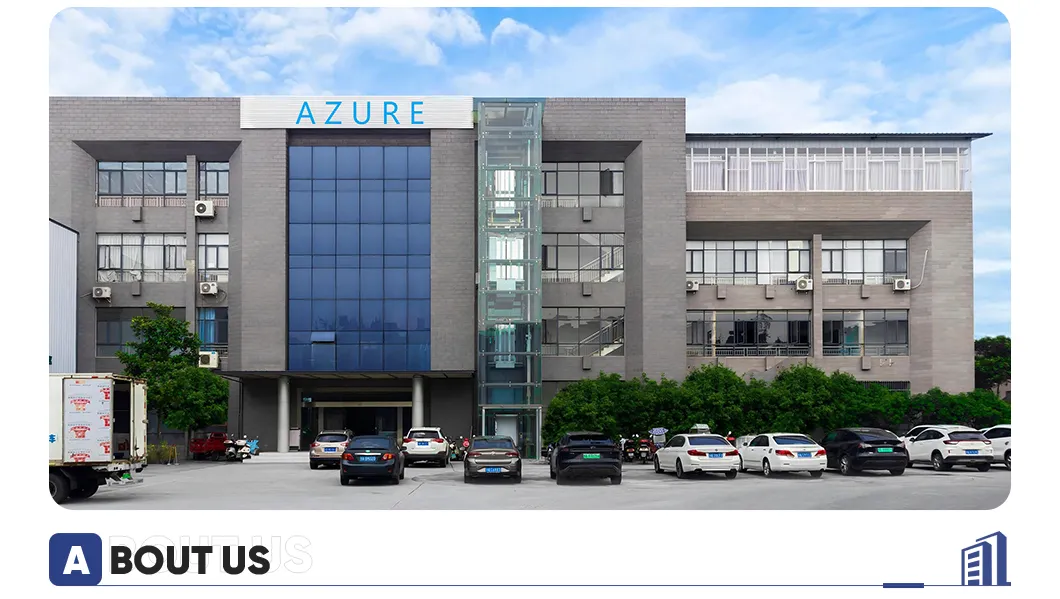

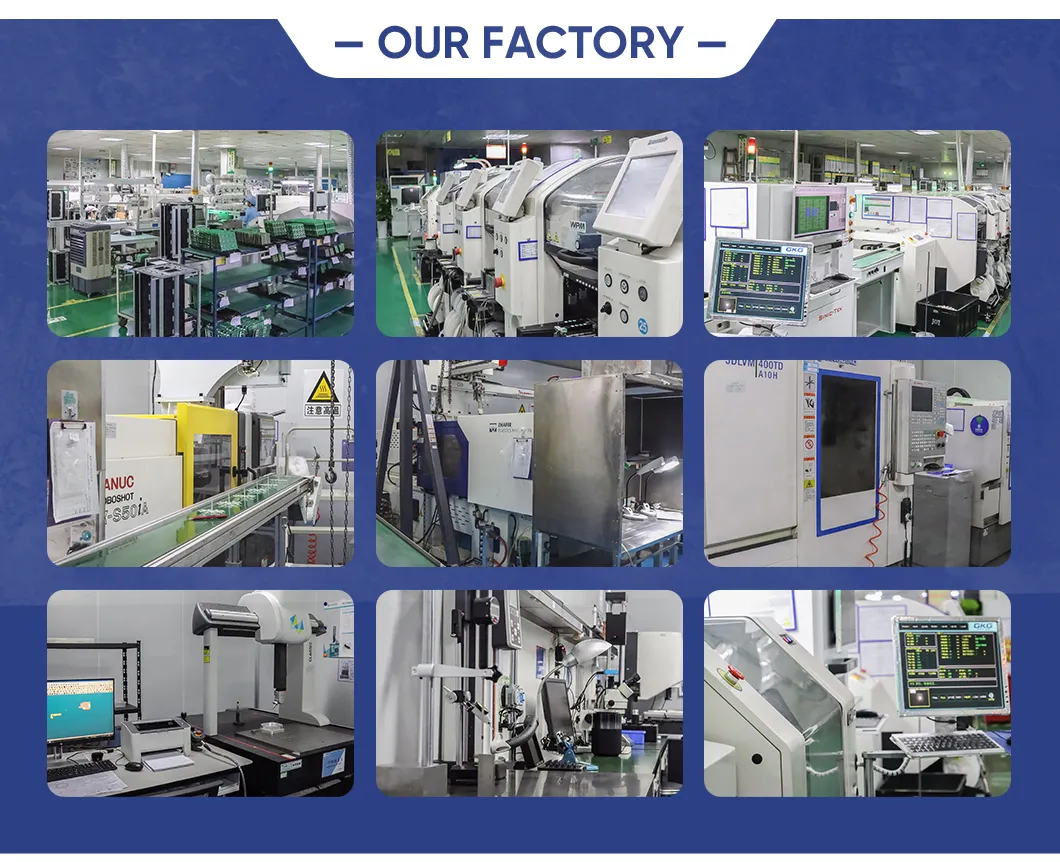

We are a professional team specializing in thermal imagers and laser rangefinders, backed by large-scale factories that combine R&D and production. We provide high-quality, competitively priced, and reliable photonic measurement products and customized solutions.
Our main products include infrared thermal imagers, low-light thermal imaging modules, UAV positioning systems, and laser distance modules, widely used in industrial inspections, security monitoring, and engineering projects. We offer LOGO/OEM/ODM services to meet various market needs.
