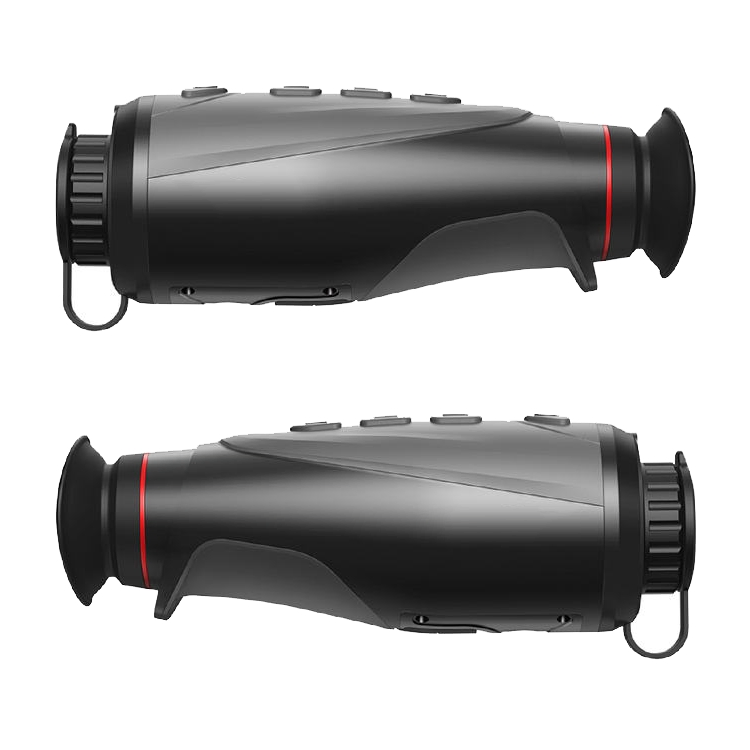

Thermal Imaging Monocular Affo Series Al19 Handheld Multi-Function Monocular Night Vision Thermal Vision

Customization: Available
Application: Civil
Style: Handheld

Product Description

📊 Basic Information
Model NO.
Al19
Structure
Monocular
Kind
Thermal Imaging Night Vision
Operation Principle
Infrared Night Vision
Shell Material
Alloy
Resolution
384 × 288
Pixel Pitch
12 μm
NETD
≤40mk
Frame Rate
50Hz
Objective Lens
19mm
Field of View
13.8° × 8.7°
Detection Range
980m

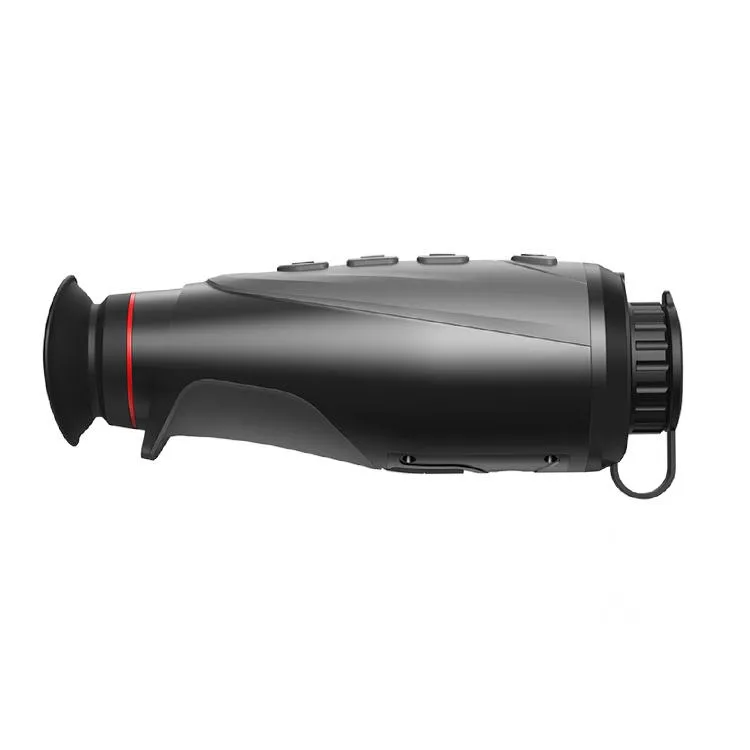

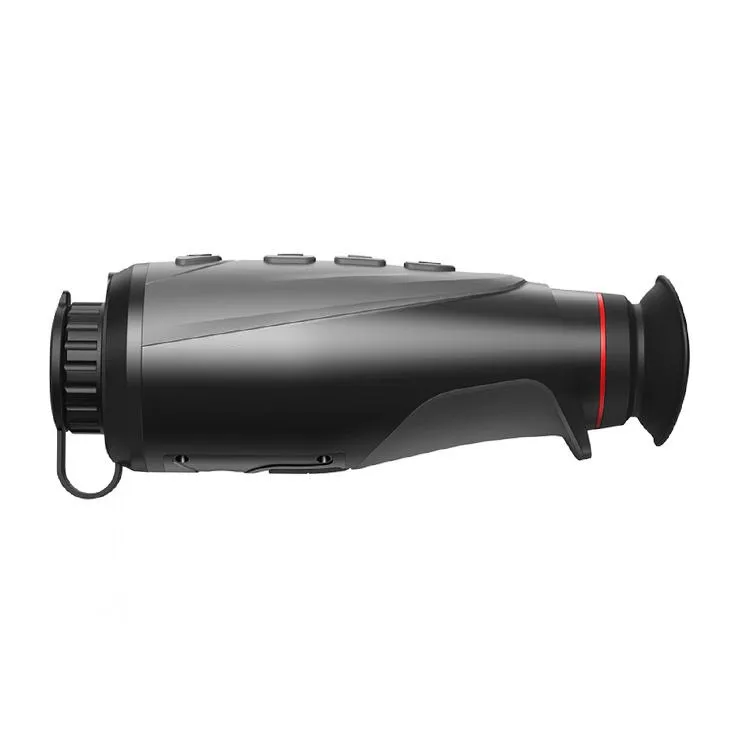

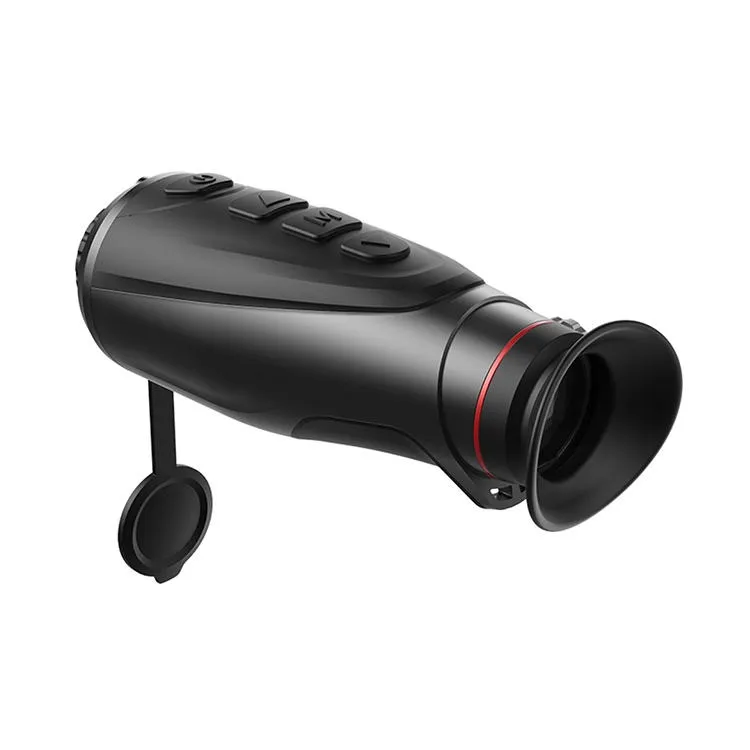

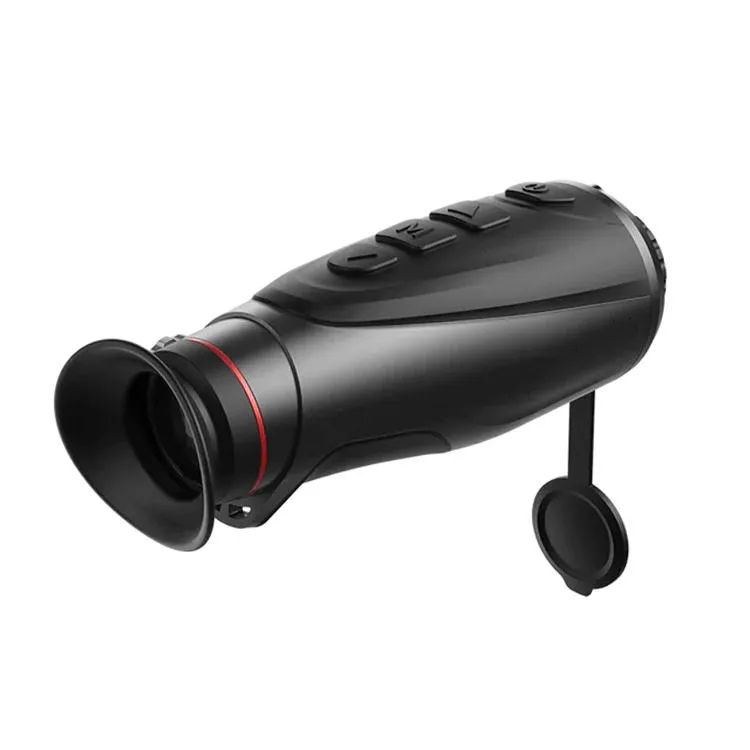

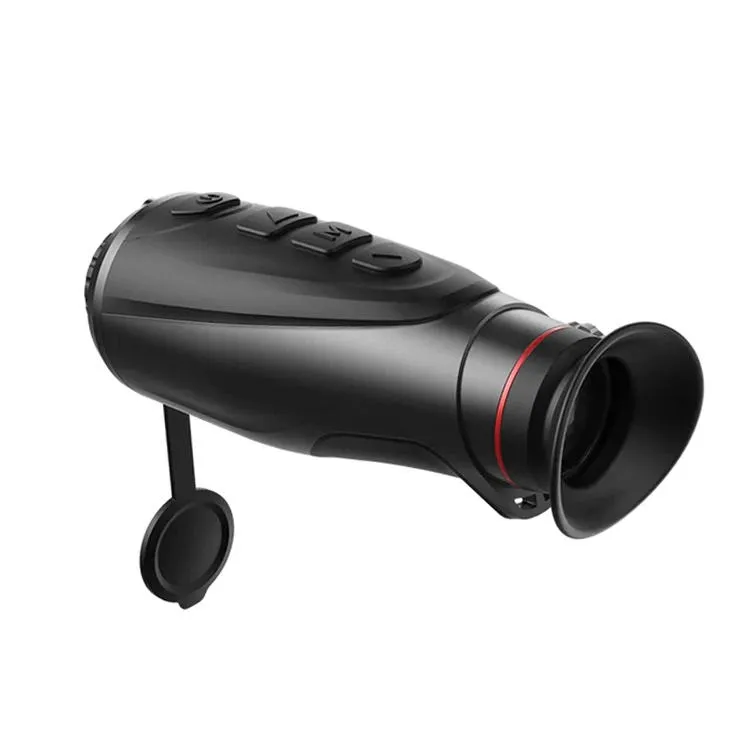

📷 Product Display
📝 Detailed Specifications
Parameter AP09 AP13 AL19 AL25
Resolution256 × 192256 × 192384 × 288384 × 288
Pixel Pitch (μm)12121212
NETD (mk)≤40≤40≤40≤40
Frame Rate (Hz)25255050
Objective Lens (mm)9131925
Field of View (°)19.4 × 12.213.5 × 8.413.8 × 8.710.5 × 6.6
Magnification (x)1.32.02.02.5
Detection Range (m)4606709801300
Display Resolution640 × 400640 × 400640 × 400640 × 400
Battery Life (h)9.59.57.57.5
Protection RatingIP67IP67IP67IP67
Weight (g)<340<340<350<350
📦 Packing & Delivery
Packing and Delivery Details

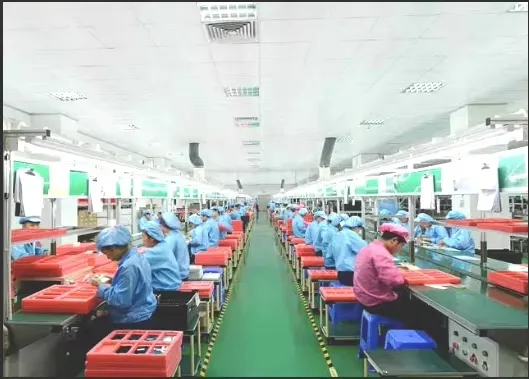

🏢 Professional Capability
With nearly 10 years of industry experience in research, development, and production of optical instruments such as thermal imaging, night vision, telescopes, and laser rangefinders, we provide high-quality and affordable products. All items undergo strict quality inspection before leaving the factory. We offer customization (OEM/ODM/OBM) to meet specific requirements and solve professional observation challenges.
❓ Frequently Asked Questions
What is the detection range of the AL19 model?
The AL19 thermal monocular has a detection range of approximately 980 meters for a standard 1.7m x 0.5m target.
How long does the battery last on a single charge?
The built-in Li-ion battery provides up to 7.5 hours of continuous operation at 22°C. It can also be powered externally via a 5V Type-C connection.
Is the device waterproof and durable?
Yes, the device features an alloy shell and has an IP67 ingress protection rating, making it highly resistant to dust and water immersion.
Does it support mobile app connectivity?
Yes, it supports Wi-Fi connectivity and can be used with the InfiRayoutdoor application for enhanced functionality and viewing.
What kind of thermal sensor does the AL19 use?
It utilizes a high-resolution 384 × 288 uncooled Vox sensor with a 12μm pixel pitch and a high frame rate of 50Hz for smooth imaging.
Can I use this device for video recording?
The device comes with 8GB of internal memory to store your thermal photos and recorded videos.
