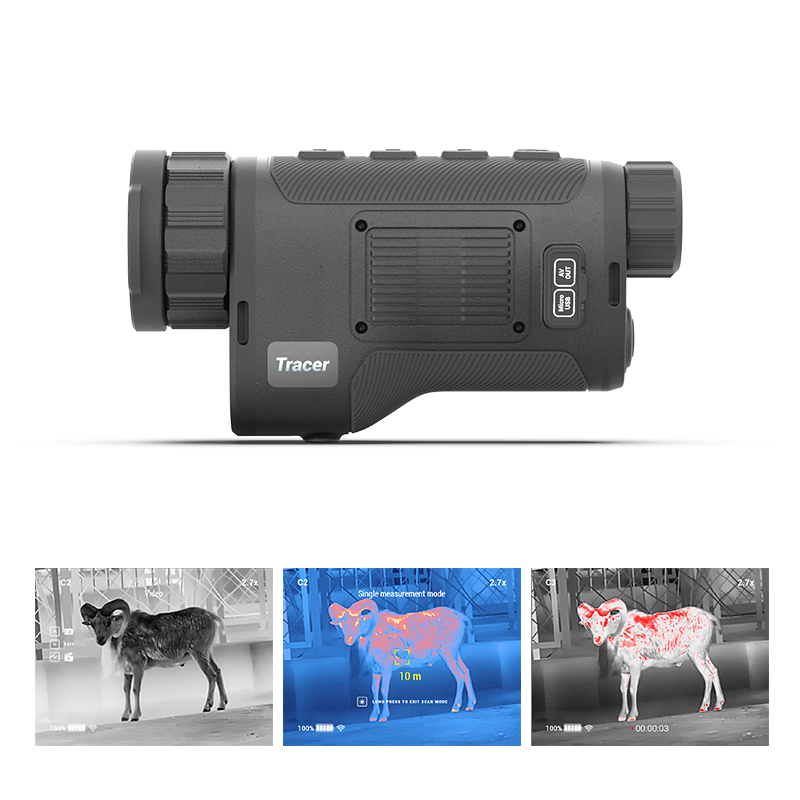

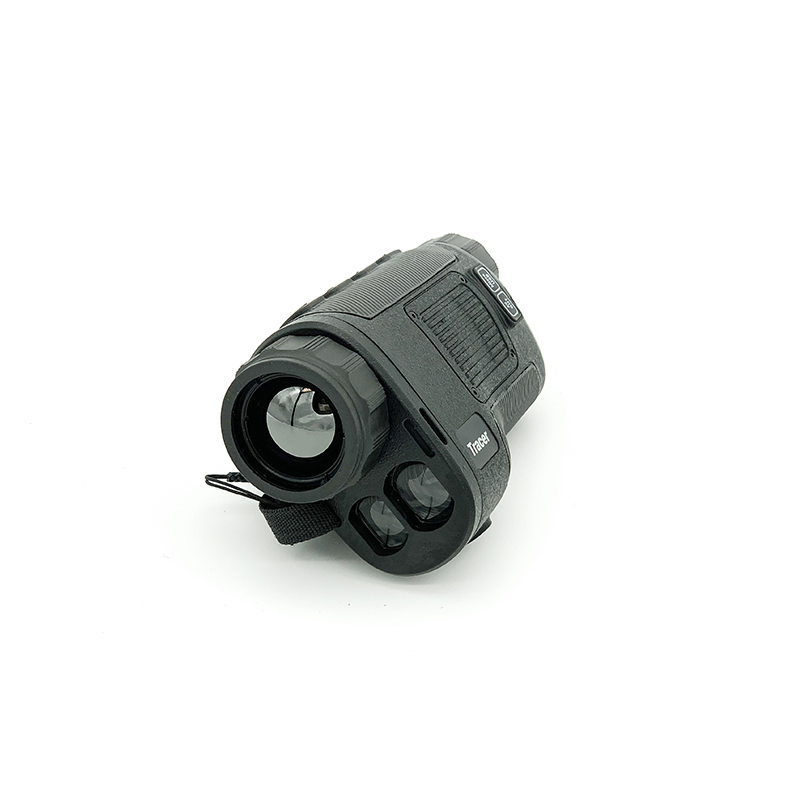

Thermal Monocular Handheld Night Vision Monocular Infrared Thermal Imaging Monocular
Thermal Monocular Handheld Night Vision Monocular Infrared Thermal Imaging Monocular
Thermal Monocular Handheld Night Vision Monocular Infrared Thermal Imaging Monocular
Thermal Monocular Handheld Night Vision Monocular Infrared Thermal Imaging Monocular
Thermal Monocular Handheld Night Vision Monocular Infrared Thermal Imaging Monocular
1 / 5
Thermal Monocular Handheld Night Vision Monocular Infrared Thermal Imaging Monocular
Thermal Monocular Handheld Night Vision Monocular Infrared Thermal Imaging Monocular
Thermal Monocular Handheld Night Vision Monocular Infrared Thermal Imaging Monocular
Thermal Monocular Handheld Night Vision Monocular Infrared Thermal Imaging Monocular
Thermal Monocular Handheld Night Vision Monocular Infrared Thermal Imaging Monocular

Thermal Monocular Handheld Night Vision Monocular Infrared Thermal Imaging Monocular

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Structure
Monocular
Kind
Thermal Imaging Night Vision
Operation Principle
Infrared Night Vision
Mode No
Tracer 35lrf/50lrf
Laser Rangefinder
Built-in
Detector
384X288, 17um
WiFi
Yes
Battery
Built-in Lithium Battery
Certificate
CE/RoHS
HS Code
903149
Production Capacity
5000PCS/Year
Product Description
Handheld scope night vision goggles for hunting produced by thermal imaging experts. Tracer series has rugged, yet lightweight housing. It perfectly fits into user's hand. Small weight of the monocular makes it a perfect option for long outdoor trips when light yet capable unit is necessary.

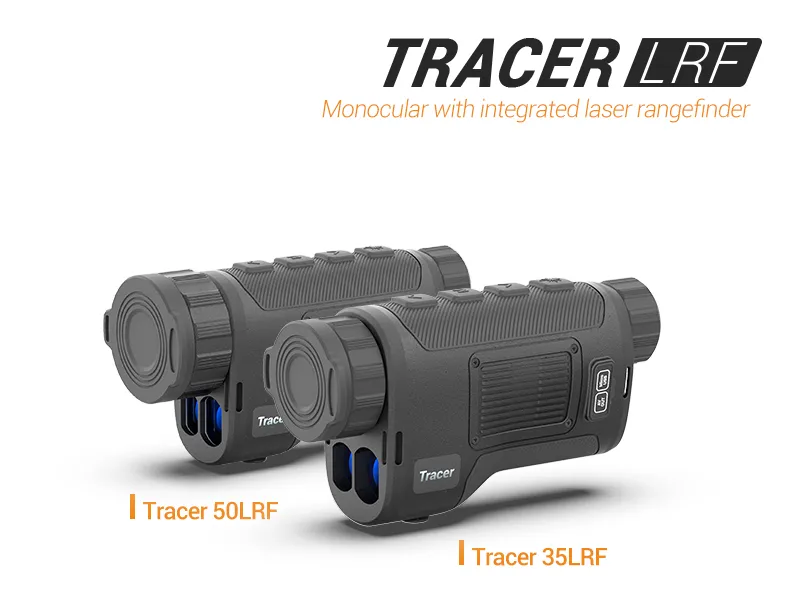

Thermal Monocular

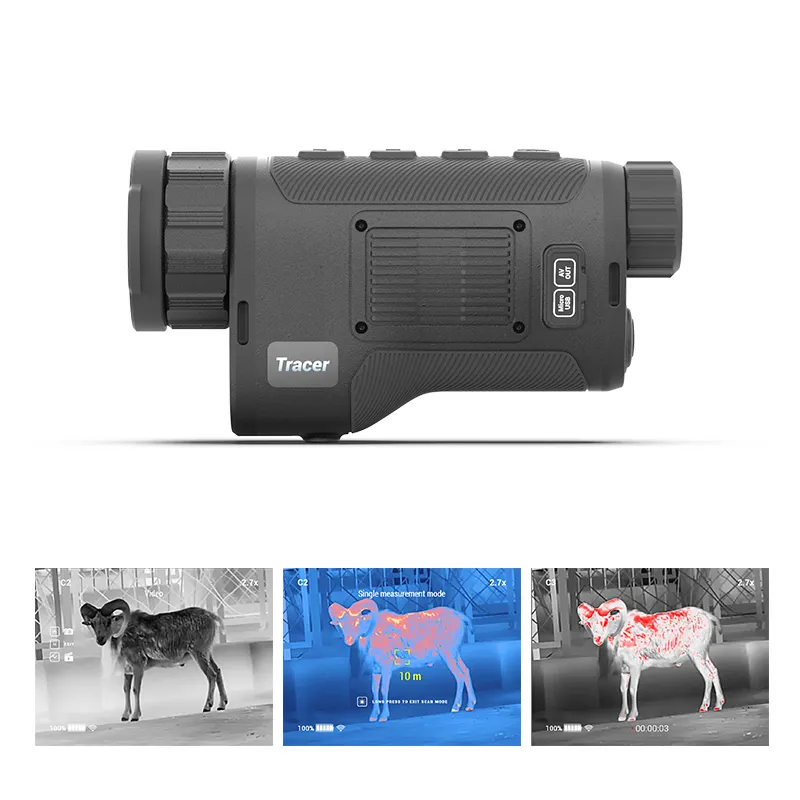

Handheld Night Vision Infrared Imaging Thermal Sensor Laser Rangefinder Monocular
Key Features
1
Built-in precise laser rangefinderIntegrated, precise laser rangefinder provides accurate rangefinding in Single measurement and Scan modes with ± 1m accuracy up to 1000m.
2

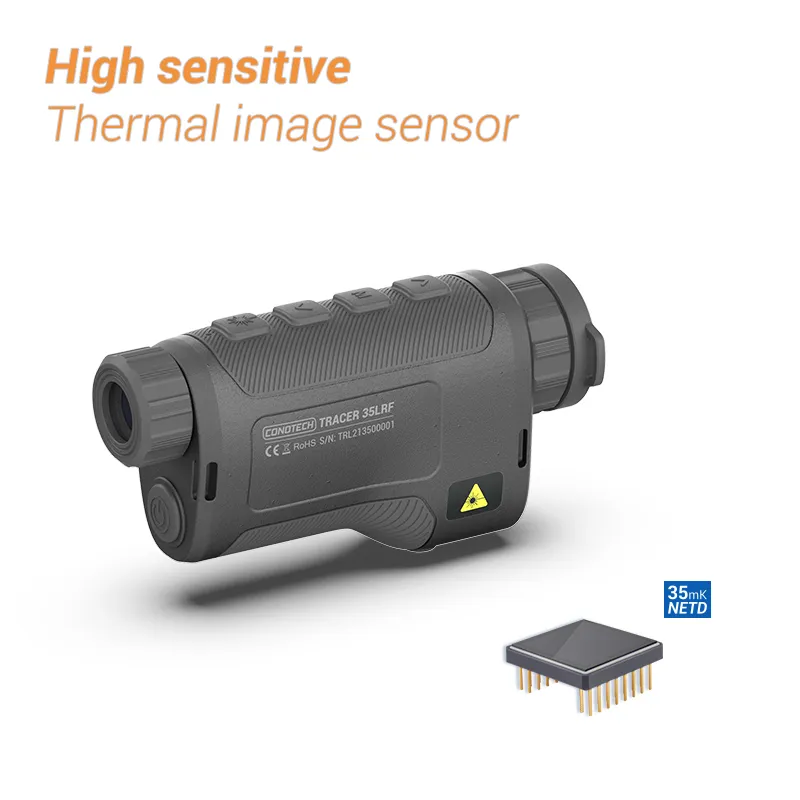

High sensitive thermal image sensor384x288 @ 17µm sensor with NETD 35mk ensures perfect details even in low thermal contrast conditions.
3

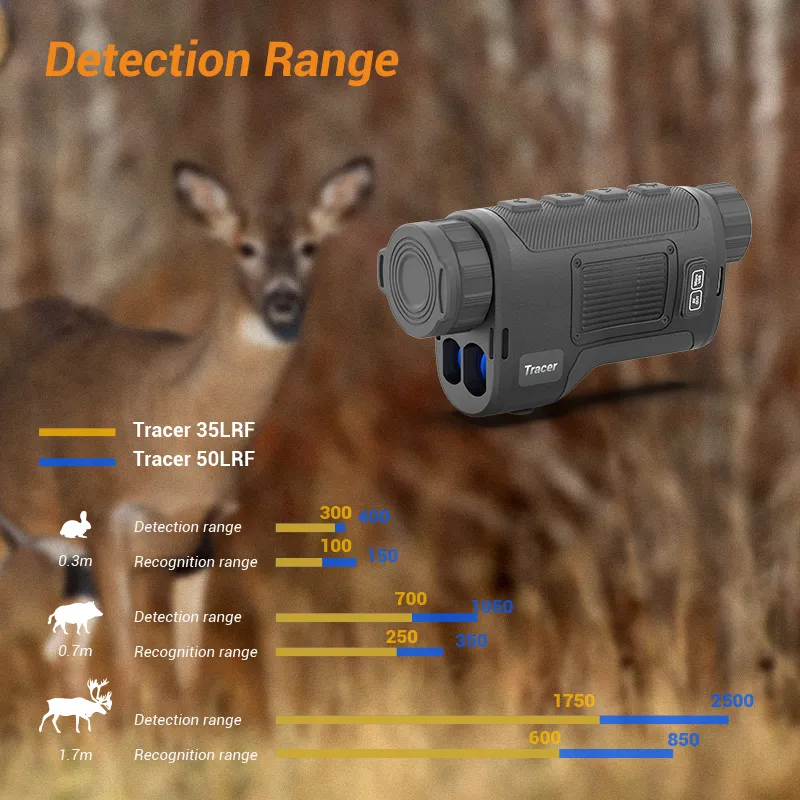

Detection range more than 1750 metersPowerful F35/1.1 or 50mm lens provides detection of a 1.7m tall object up to 1750m away in darkness.
4

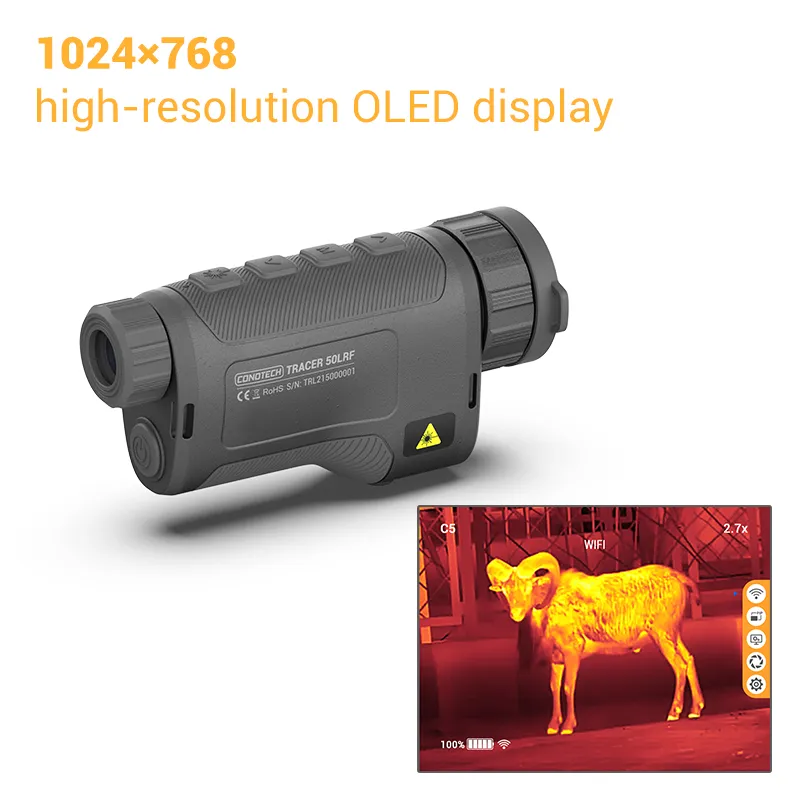

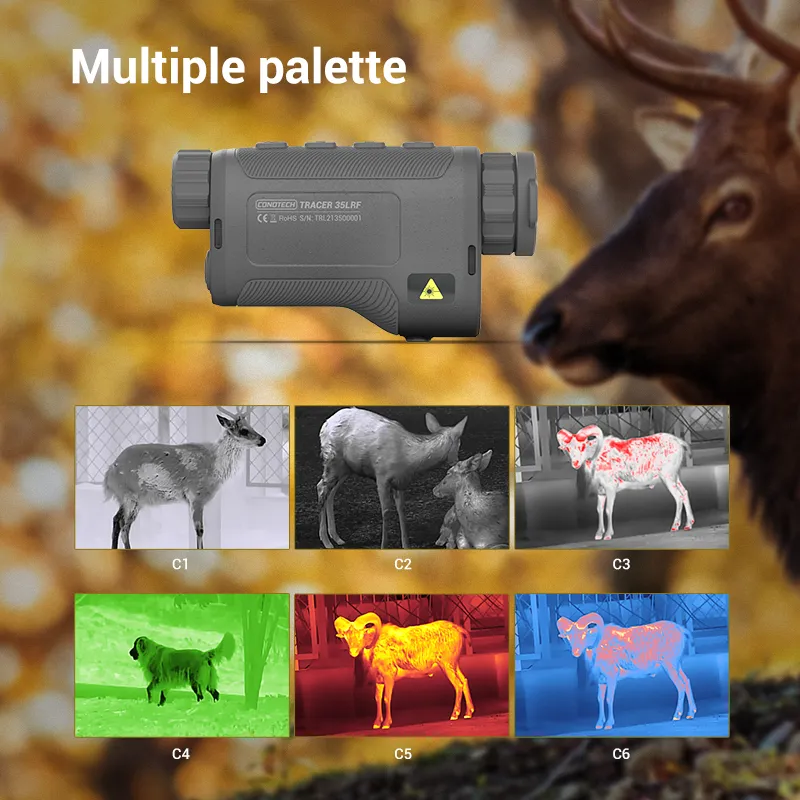

Multiple palette & OLED Display6-color palette and 1024x768 high-resolution OLED display for crisp, vivid field of view.
5

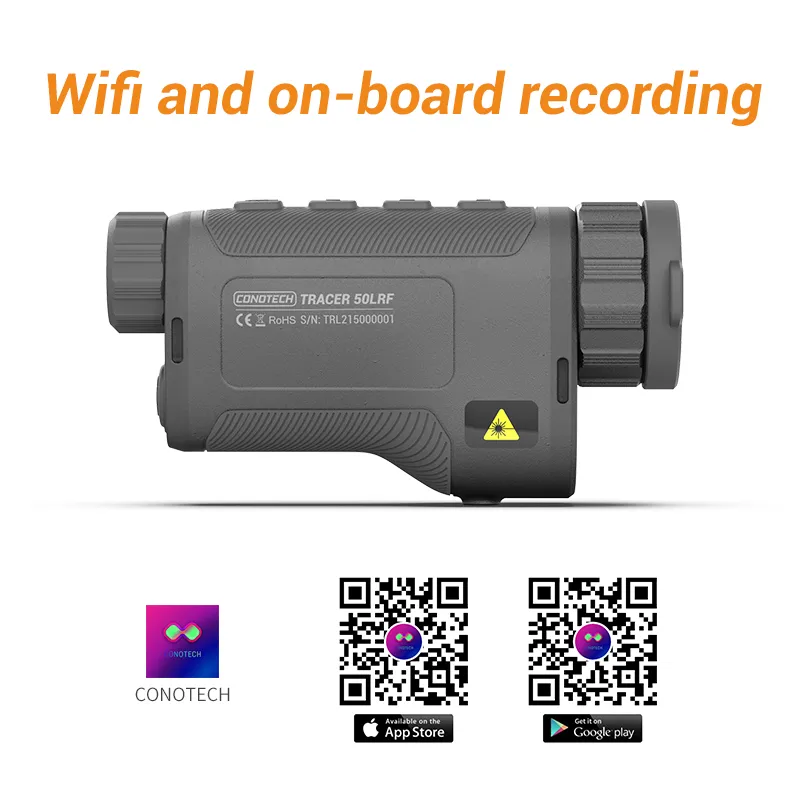

Wifi and on-board recordingBuilt-in Wifi for mobile connection and 32GB internal memory for recording photos and videos.
Thermal Feature 1 Thermal Feature 2 Thermal Feature 3
Specification
Model Tracer 35LRF Tracer 50LRF
Detector
TypeUncooled vox
Resolution / Pitch384x288 / 17µm
NETDLess than 35mk
Optical Characteristics
Objective lens35mm50mm
Magnification2.7x3.9x
FOV10.6°x8.0°7.4°x5.6°
Display & Power
Type / ResolutionOLED / 1024x768
Battery Life8h+ (Built-in Lithium)
Physical & Laser
Weight540g590g
Laser Measuring Range5-1000m (± 1m)
WaterproofIP67
Laser Rangefinder Detail Laser Performance Scanning Mode

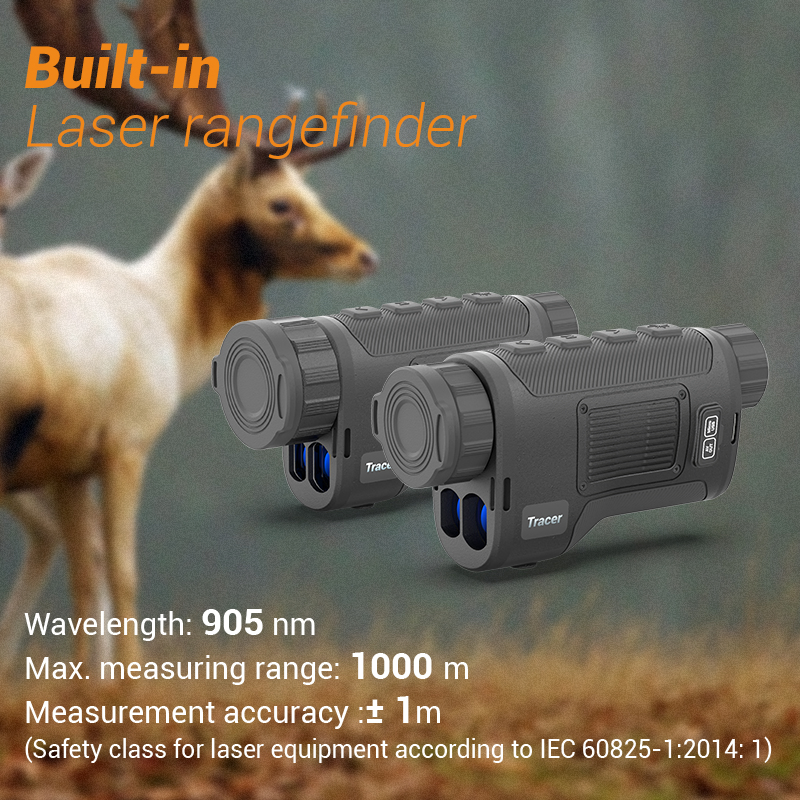

Built-In Precision Laser Rangefinder

Integrated precision laser rangefinder provides accurate rangefinding in two modes - Single Time Measurement and Scanning mode with ±1 m accuracy up to 1 km distance. Accurate distance readings help to quickly assess the size of territory, distance and relief.

FAQ
Q: What certificates do your thermal devices have?
A: Our products have passed CE, ROHS, ISO9001, and SGS certifications, and have applied design patents.
Q: Can I order a sample set to test the quality?
A: Yes, we recommend checking the sample before a bulk order. Please contact us for detailed sample pricing.
Q: What is the typical delivery lead time?
A: The delivery date is approximately 3-15 working days after receipt of payment, depending on stock and order size.
Q: How are the products packaged for shipping?
A: We usually use standard export carton boxes. Custom packaging according to specific requests is also available.
Q: What are the shipping methods for small and large orders?
A: Small packages are usually sent via DHL, UPS, TNT, or EMS. For high-volume orders, we provide Air or Sea freight options.
Q: What is the warranty period for these thermal monoculars?
A: We provide a standard warranty of 24 months for our thermal imaging devices.
