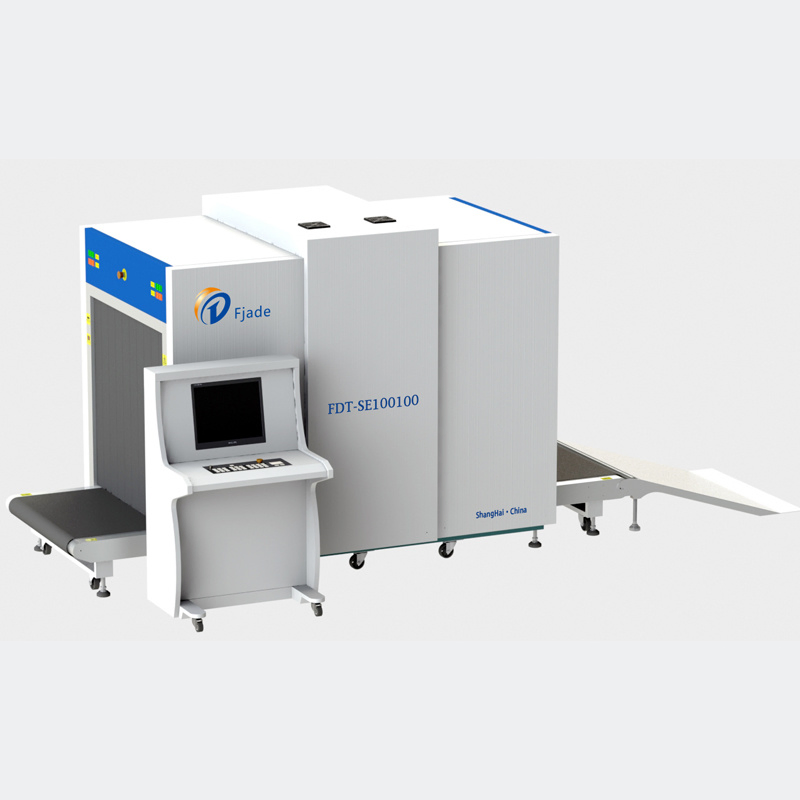

X Ray Baggage Scanner Fdt-Se100100 Has Dangerous Liquid Automatic Recognition
1 / 1
X Ray Baggage Scanner Fdt-Se100100 Has Dangerous Liquid Automatic Recognition

X Ray Baggage Scanner Fdt-Se100100 Has Dangerous Liquid Automatic Recognition

Customization: Available
Portable: Non Portable
Form: Flatbed
Send Inquiry

Product Description

Basic Information
Model NO.
FDT-SE100100
Application
Security Check, Industrial
Type
Industrial High-definition X-ray Detector
Certification
CE, ISO
Alarm Form
Display Alarm
Appearance
Vertical
Industry
Security Industry
Product Type
Conveyor
Specification
3000*1450*1950
HS Code
9022191010
X-ray Baggage Scanner FDT-SE100100

FDT X-ray baggage scanners operate based on the x-ray penetration principle. It is an essential security solution widely used in national research institutions, detection centers, courts, prisons, airports, subway and railway stations, docks, schools, embassies, tourist attractions, logistics, and major public events.

Technical Specifications

General Specs

  • Dimensions: 3328mm(L)×1315mm (W)×1768.5mm(H)
  • Tunnel size: 1010mm (W)×1010mm (H)
  • Conveyor speed: 0.20-0.22m/s
  • Conveyor height: 305mm
  • Weight: 815Kg
  • Power: AC220 V, 50Hz / 1.2KVA

X-Ray Generator

  • Penetration: 30mm - 34mm Steel Plate
  • Tube voltage: 140~160kV Adjustable
  • Tube current: 0.4~1.2mA Adjustable
  • Cooling/ duty cycle: Sealed oil / 100%
  • Wire resolution: 40AWG
  • Spatial resolution: Horizontal Ф1.0mm, Vertical Ф1.0mm
Image Processing & Functions
Color / BW Organic / Inorganic Super Enhancement Edge Enhancement Partial Enhancement Grayscale Scanning Image Restoration Zoom In/Out High/Low Energy Penetration Image Storage (>100,000 pics)
  • Advanced Control: Industrial PLC circuit control and industrial computer for long-term stability.
  • Safety: Radiation protection system designed to be close to natural background levels.
  • Alarms: High density alarm and drug/explosive powder detection capabilities.
  • Maintenance: Built-in automatic self-diagnosis and one-key shut-down.
Frequently Asked Questions
1. What is the supply capacity for large projects?
We have a large manufacturing base capable of handling various security solution projects according to client needs, with a production capacity of up to 1,000,000 units.
2. How long is the delivery time after payment?
For items in stock, the lead time is 3-5 days. If production is required, it typically takes 10-20 days.
3. What kind of after-sales technical support is provided?
We provide lifetime technical support, including online video calls for technical analysis and 24-hour guidance via telephone/messaging apps.
4. What is the warranty period for the X-ray scanner?
We offer a 1-year free warranty for non-human caused failures and provide paid maintenance options with no upper limit on years.
5. Does the equipment support OEM or ODM customization?
Yes, OEM and ODM are highly welcome. We can customize the security detection systems to meet specific requirements.
6. How is the quality control managed?
Every production process is strictly controlled in accordance with ISO, CE, and FCC certifications to ensure high quality and durability.
