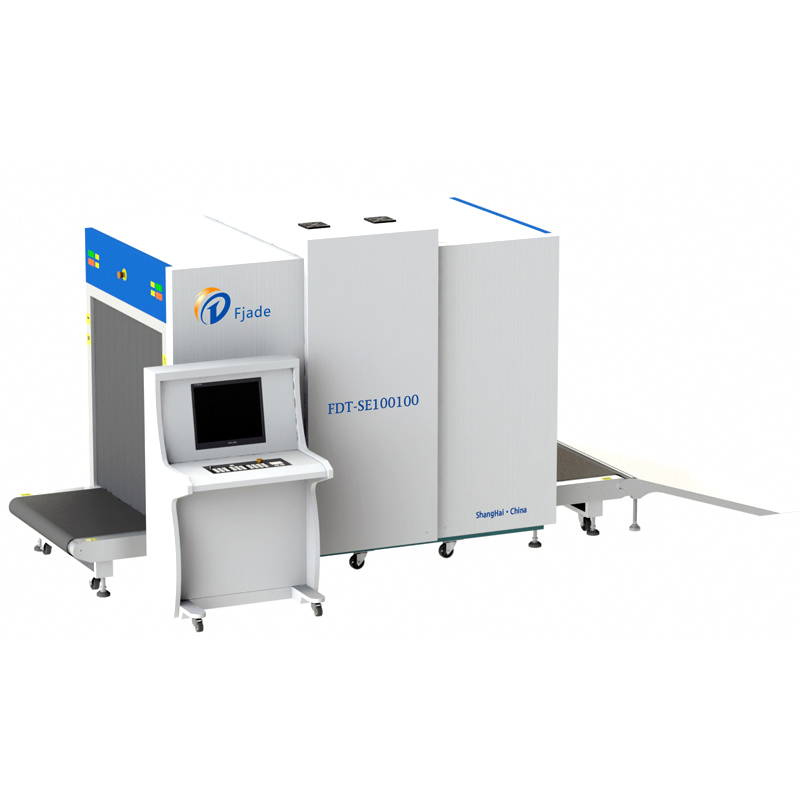

Latest X Ray Baggage Scanner Fdt-Se100100 with Energy Resolution

1 / 1

Latest X Ray Baggage Scanner Fdt-Se100100 with Energy Resolution

Customization:	Available
Portable:	Non Portable
Form:	Flatbed

Send Inquiry

Product Description

Basic Specifications

Model NO.

FDT-SE100100

Application

Security Check, Industrial

Type

Industrial High-definition X-ray Detector

Certification

CE, ISO

Customized

Available

Alarm Form

Display Alarm

Appearance

Vertical

Product Type

Conveyor

HS Code

9022191010

Product Overview

The FDT-SE100100 X-ray Baggage Scanner operates on the advanced X-ray penetration principle. This high-capacity system is designed for high-security environments, providing reliable detection for national research institutions, detection centers, courts, prisons, airports, subway stations, logistics hubs, and large-scale events.

Technical Specifications

General Performance

Dimensions: 3328mm(L)×1315mm(W)×1768.5mm(H)
Tunnel Size: 1010mm(W)×1010mm(H)
Conveyor Speed: 0.20-0.22m/s
Conveyor Height: 305mm
Weight: 815Kg
Power Consumption: 1.2KVA

Imaging Capabilities

Penetration: 30mm - 34mm Steel Plate
Wire Resolution: 40AWG
Penetration Resolution: 32AWG
Spatial Resolution: Horizontal/Vertical Ф1.0mm
Tube Voltage: 140~160kV (Adjustable)

System Configuration & Functions

Core Configuration

International brand electrical components
Industrial PLC circuit control
Industrial computer for long-term stability
Radiation protection system (close to natural background)
Ergonomic reading interface

Image Processing

Color / Black & White Imaging
Organic / Inorganic Separation
Super & Edge Enhancement
High/Low Energy Penetration
Image Storage (>100,000 images)
Drug and Explosive Powder Detection

Reference Projects

Category	Application Examples
Conferences	International Internet Conferences, Import Expos, World Swimming Championships, UN Geographic Information Conferences.
Transportation	High-speed railway stations, Bus terminals, and Passenger stations.
Public Institutions	People's Courts, Administrative Committees, Prisons, and Development Zones.

Frequently Asked Questions (FAQ)

1. Are you a professional manufacturer of security systems?

Yes, we are a professional manufacturer specializing in security detection systems, focusing on durable quality and comprehensive service.

2. What types of security products do you offer?

Our range includes X-Ray Baggage Scanners, Body Scanners, Walk-Through Metal Detectors, Explosive & Narcotics Detectors, and Under Vehicle Surveillance Systems.

3. What is the Minimum Order Quantity (MOQ)?

MOQ varies by item. We are available to provide single pieces for sample testing and evaluation.

4. What is the warranty period and after-sales support?

We provide a one-year free warranty for non-human caused failures and lifetime technical support, including online training and maintenance services.

5. How long is the typical delivery time after payment?

Items in stock typically require 3-5 days. For custom production or non-stock items, the lead time is generally 10-20 days.

6. How is quality control managed during production?

Every production process is strictly controlled in accordance with ISO, CE, and FCC certification standards to ensure high reliability.
