X-ray Baggage Scanner of Fdt-Se100100 Can Identify Dangerous Liquid

1 / 1

X-ray Baggage Scanner of Fdt-Se100100 Can Identify Dangerous Liquid

Customization:	Available
Portable:	Non Portable
Form:	Flatbed

Send Inquiry

Product Description

Basic Information

Model NO.

FDT-SE100100

Application

Security Check, Industrial

Type

Industrial High-definition X-ray Detector

Certification

CE, ISO

Appearance

Vertical

Product Type

Conveyor

HS Code

9022191010

Capacity

1,000,000 Units

Product Description

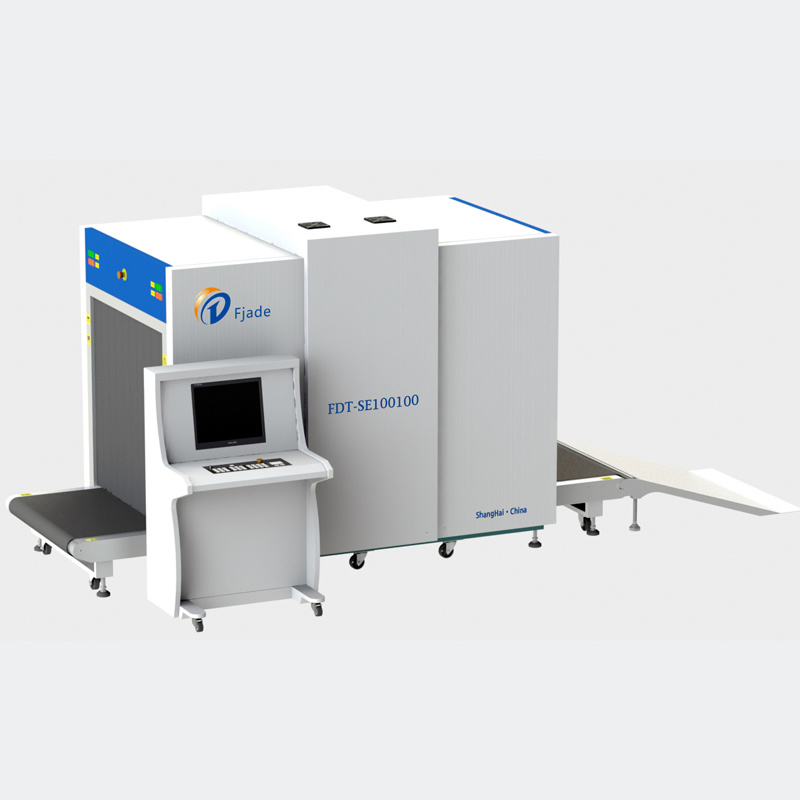

X-ray Baggage Scanner FDT-SE100100

These X-ray baggage scanners operate based on the x-ray penetration principle. It is widely utilized in security frameworks including research institutions, detection centers, courts, prisons, airports, subway and railway stations, docks, schools, embassies, tourist attractions, logistics, and major public events.

📏General Specifications

• Dimensions: 3328mm(L)×1315mm (W)×1768.5mm(H)
• Tunnel size: 1010mm (W)×1010mm (H)
• Conveyor speed: 0.20-0.22m/s
• Conveyor height: 305mm
• Weight: 815Kg

⚡X-Ray Generator

• Generation direction: Up-Bottom
• Tube voltage: 140~160kV Adjustable
• Tube current: 0.4~1.2mA Adjustable
• Cooling/ duty cycle: Sealed oil / 100%
• Generation angle: 80°

🔍Performance

• Penetration: 30mm - 34mm Steel Plate
• Wire resolution: 40AWG
• Penetration resolution: 32AWG
• Spatial resolution: Horizontal & Vertical Ф1.0mm

Image Processing Functions

✔ Color / Black & White Imaging

✔ Organic / Inorganic Separation

✔ Super & Edge Enhancement

✔ Partial Enhancement & Zooming

✔ High / Low Energy Penetration

✔ Image Storage (>100,000 pictures)

✔ 50-Image Playback System

✔ Grayscale Scanning & Restoration

Advanced System Features

🔹 One-key Shutdown System

🔹 High Density Alarm

🔹 Drug and Explosive Powder Detection

🔹 Built-in Automatic Self-diagnosis

🔹 Industrial PLC Circuit Control

🔹 Ergonomic Reading System

🔹 Radiation Protection System

Project Experience

Sector	Reference Projects
Conferences & Expos	Internet Conference; Import Expo; World Swimming Championships; UN Conference on Geographic Information
Transportation	High-speed railway stations; Bus stations; Passenger Stations
Public Institutions	People's Courts; Development Zone Administrative Committees; Prisons

Frequently Asked Questions

1. Are you a manufacturer of these security systems?

Yes, we are a professional manufacturer of security detection systems, focusing on durable quality and comprehensive technical support.

2. What types of security products are available?

We offer multiple series including X-Ray Baggage Scanners, Body Scanners, Walk Through Metal Detectors, Under Vehicle Surveillance, and Explosive/Narcotics Detectors.

3. What is the standard warranty and after-sales service?

We provide a one-year warranty for non-human failure and lifetime technical support. After-sales options include online video guidance and telephone technical analysis.

4. What is the lead time for equipment delivery?

In-stock items typically require 3-5 days. For custom production or non-stock items, the lead time ranges from 10-20 days depending on requirements.

5. How is the equipment packaged and transported?

Units are secured in professional wooden boxes. We support Ocean freight, Air freight, and Land transportation based on customer needs.

6. Do you support customized OEM/ODM projects?

Yes, OEM and ODM projects are highly welcome. We can customize solutions to handle various security requirements for specific site needs.
