X-ray Baggage Scanner Has Researched Low Radiation Impaction

Customization: Available
Portable: Non Portable
Form: Flatbed

Product Description

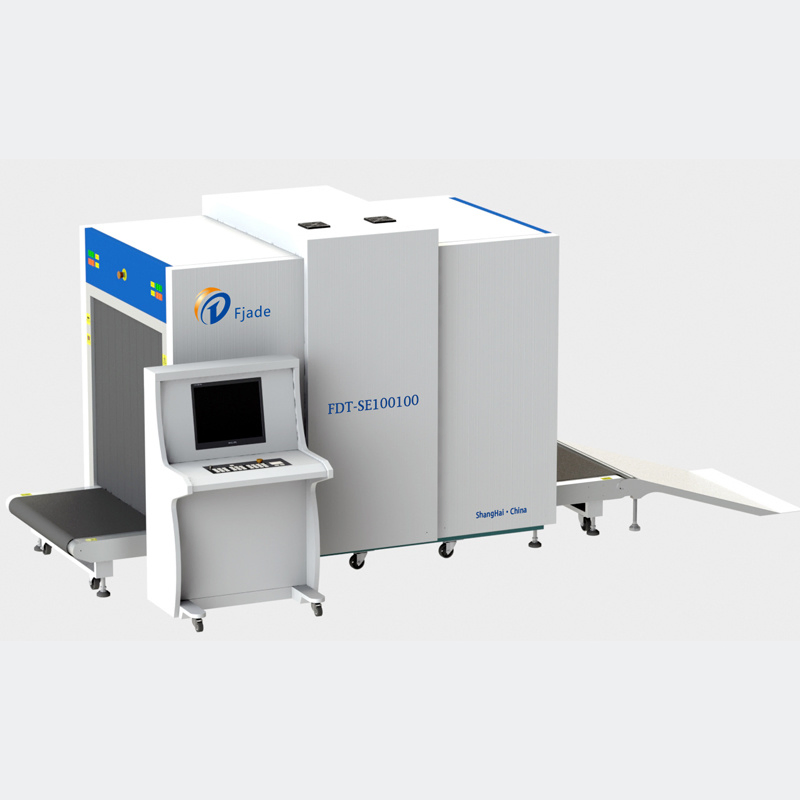

X-ray Baggage Scanner FDT-SE100100
Basic Info.
Model NO.
FDT-SE100100
Application
Security Check, Industrial
Type
Industrial High-definition X-ray Detector
Certification
CE, ISO
Customized
Available
Alarm Form
Display Alarm
Appearance
Vertical
Product Type
Conveyor
Specification
3000*1450*1950
HS Code
9022191010
Product Description
FDT X-ray baggage scanners operate based on the x-ray penetration principle. Widely used in national security, which covers the national research institutions, detection centers, courts, prisons, procuratorates, Army, airports, subway and railway stations, docks, schools, embassies, tourist attraction, logistics, big events etc.
General Specifications
Dimensions: 3328mm(L)×1315mm (W)×1768.5mm(H)
Tunnel size: 1010mm (W)×1010mm (H)
Conveyor speed: 0.20-0.22m/s
Conveyor height: 305mm
Weight: 815Kg
Storage temp/humidity: -40 ºC ± 3 ºC ~ +60 ºC ± 2 ºC / 5% ~ 95% (no condensation)
Operating temp/humidity: 0 ºC ± 3 ºC ~ + 40 ºC ± 2 ºC / 5% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 1.2KVA
Basic Specifications
  • Penetration: 30mm - 34mm Steel Plate
  • Wire resolution: 40AWG
  • Penetration resolution: 32AWG
  • Spatial resolution: Horizontal Ф1.0mm, Vertical Ф1.0mm
X-Ray Generator
  • Generation direction: Up-Bottom
  • Tube voltage: 140~160kV Adjustable
  • Tube current: 0.4~1.2mA Adjustable
  • Cooling/duty cycle: Sealed oil / 100%
  • Generation angle: 80°
System Configuration
  • International brand electrical components
  • Industrial PLC circuit control
  • Capacitance integral analog conversion
  • Industrial computer for long-term stability
  • Ergonomic reading system
  • Radiation protection system
Image Processing Functions
  • Color / black & white
  • Organic / inorganic imaging
  • Super & Edge enhancement
  • Partial enhancement & Grayscale scanning
  • Image restoration & Zoom function
  • High/low energy penetration
  • Image storage (>100,000 pictures)
  • One key shut-down & High density alarm
  • Drug and explosive powder detection
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer of security detection systems. We focus on providing strong, durable, and high-quality equipment alongside satisfactory technical service.
What series of security products do you offer?
We offer multiple series including X-Ray Baggage Scanners, Body Scanners, Walk Through Metal Detectors, Under Vehicle Surveillance Systems, and Explosive/Narcotics Detectors.
What is the warranty period and after-sales service?
We provide a one-year free warranty and lifetime technical support. After-sales services include online installation guidance, video call technical analysis, and maintenance services.
What is your supply capacity and delivery time?
With our own large-scale manufacturing base, we can handle various project needs. Standard lead time is 3-5 days for stock items and 10-20 days for production items.
How do you ensure quality control?
We control every production process strictly in accordance with ISO, CE, and FCC certifications to ensure the reliability of every machine.
Do you accept OEM or ODM orders?
Yes, OEM and ODM projects are highly welcome. We can customize specifications and features according to specific client requirements.
