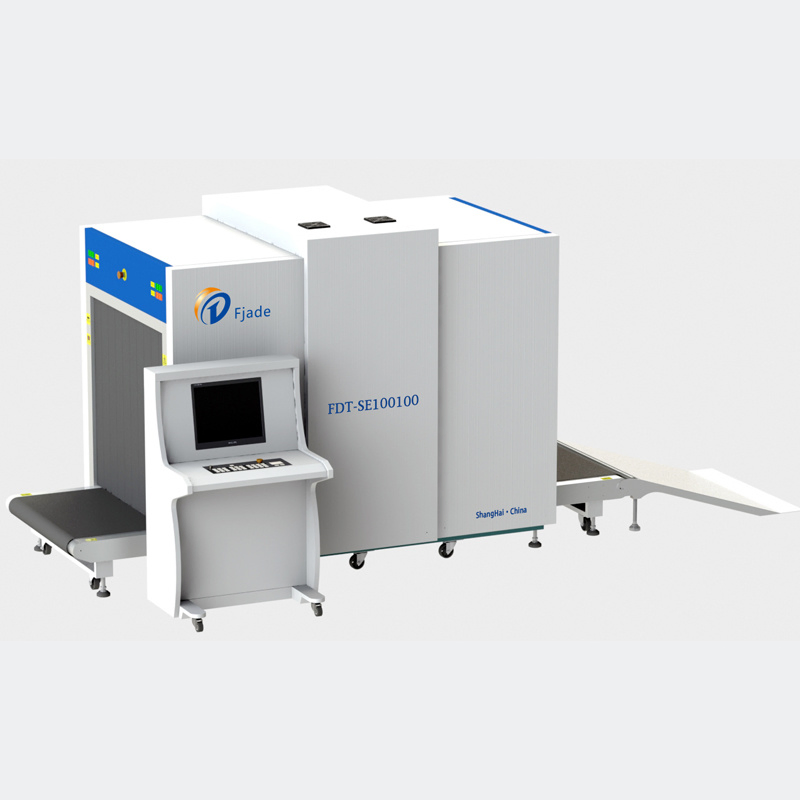

X-ray Baggage Scanner Has Security System to Scan Goods

Customization:	Available
Portable:	Non Portable
Form:	Flatbed

Send Inquiry

Product Description

Basic Info

Model NO.

FDT-SE100100

Application

Security Check, Industrial

Type

Industrial X-ray Detector

Certification

CE, ISO

Alarm Form

Display Alarm

Appearance

Vertical

Tunnel Size

1010mm x 1010mm

HS Code

9022191010

Product Description

X-ray Baggage Scanner FDT-SE100100 operates based on the X-ray penetration principle. It is an essential security solution designed for high-traffic environments and rigorous inspection requirements. This system is widely utilized in national security sectors, including research institutions, detection centers, courts, prisons, airports, subway stations, docks, and logistics hubs.

General Specifications

Dimensions: 3328mm(L) × 1315mm(W) × 1768.5mm(H)
Tunnel Size: 1010mm(W) × 1010mm(H)
Conveyor Speed: 0.20-0.22m/s
Conveyor Height: 305mm
Unit Weight: 815Kg
Power Supply: AC220V (-10% to +10%), 50Hz ± 3Hz
Power Consumption: 1.2KVA
Operating Humidity: 5% ~ 95% (no condensation)

Technical Performance

Steel Penetration: 30mm - 34mm Steel Plate
Wire Resolution: 40AWG
Penetration Resolution: 32AWG
Spatial Resolution: Horizontal Ф1.0mm / Vertical Ф1.0mm
Tube Voltage: 140~160kV (Adjustable)
Cooling Cycle: Sealed Oil / 100% Duty Cycle

Core Functions & Image Processing

Organic / Inorganic Imaging

Super Enhancement

Edge Enhancement

Partial Enhancement

High/Low Energy Penetration

Image Restoration & Zoom

Image Storage (>100k pics)

Density Alarm

Explosive & Drug Detection

System Configurations

Equipped with international brand electrical components, Industrial PLC circuit control, and capacitance integral analog conversion for crystal clear imaging. The radiation protection system ensures safety levels close to natural background radiation.

Project Reference

Industry	Reference Scenarios
Conference & Expo	International Internet Conferences, Import Expos, World Swimming Championships, United Nations Forums.
Transportation	High-speed Railway Stations, Bus Passenger Terminals, Public Transit Hubs.
Government & Law	People's Courts, Administrative Committees, Correctional Facilities and Prisons.

Frequently Asked Questions

Are you a professional manufacturer?

Yes, we are a professional manufacturer of security detection systems, focusing on high-quality, durable equipment and comprehensive technical support.

What is the warranty period for the X-ray scanner?

We provide a one-year free warranty for non-human caused failures and lifetime technical support. Extended paid warranty options are also available.

Do you provide installation and training services?

Yes, we offer installation services, online one-on-one training, and debugging maintenance to ensure the system works properly at the client's site.

How long is the delivery time after payment?

For items in stock, the lead time is usually 3-5 days. For custom or non-stock production, it typically takes 10-20 days depending on the requirements.

Can the equipment detect explosives and narcotics?

Yes, the system features built-in assisted detection functions for drug and explosive powders, along with high-density alarms for suspicious objects.

Is the radiation from the machine safe for operators?

Our machines feature a radiation protection system that maintains emission levels extremely close to natural background radiation, meeting ISO and CE safety standards.
