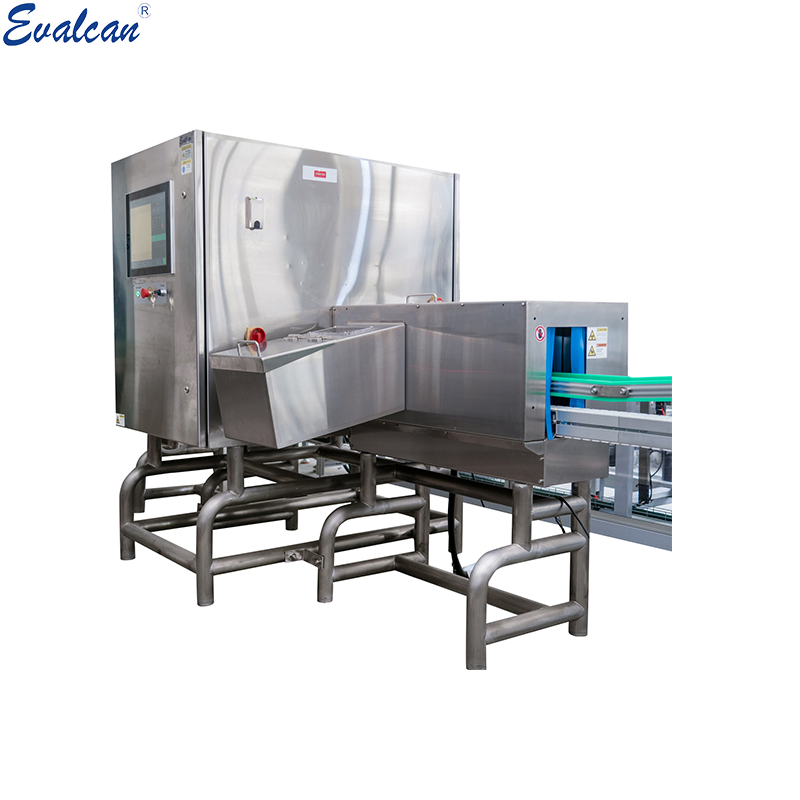

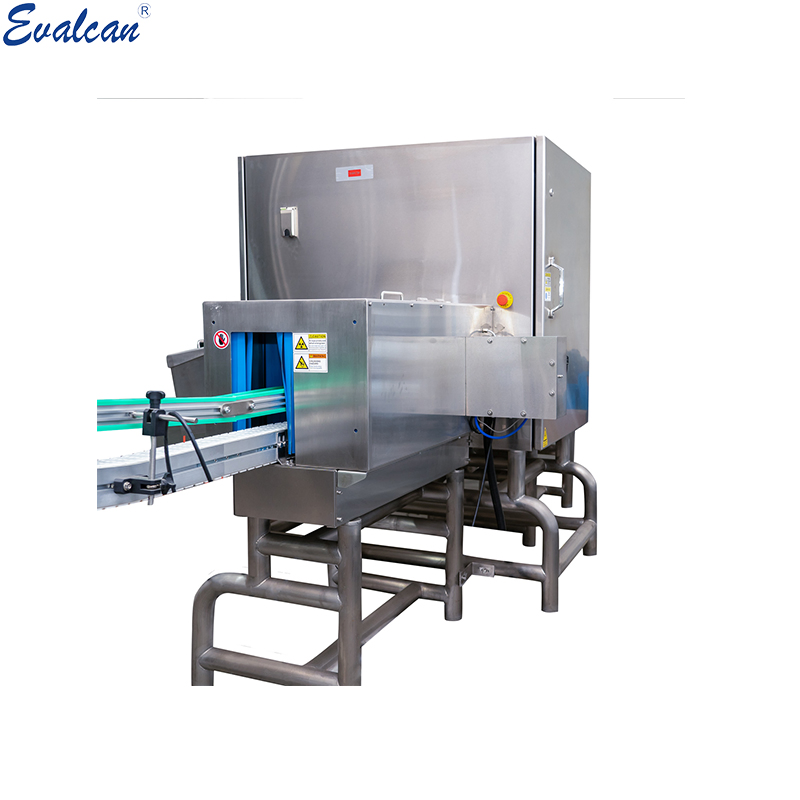

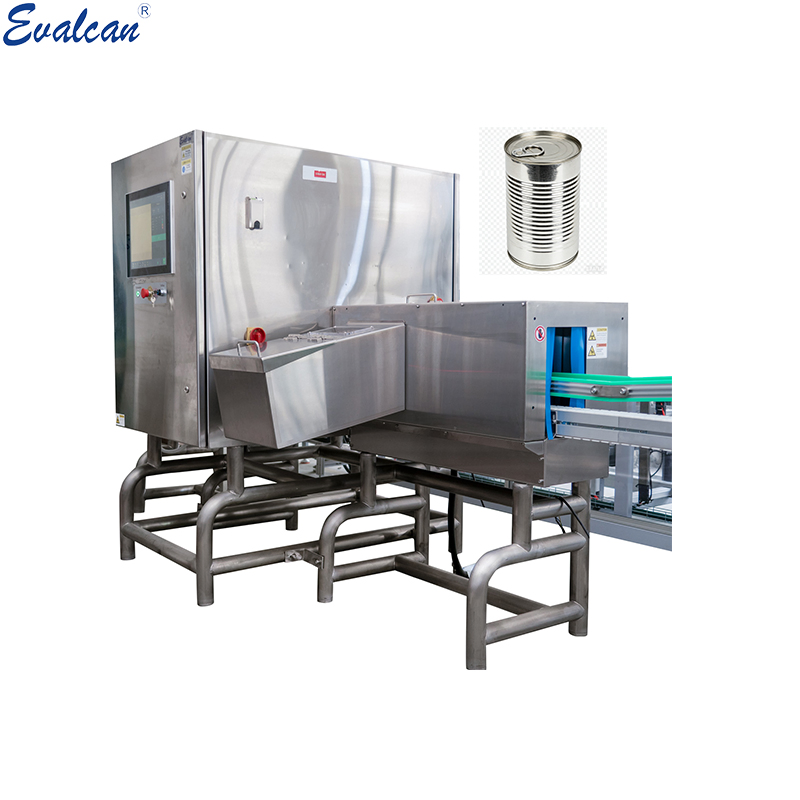

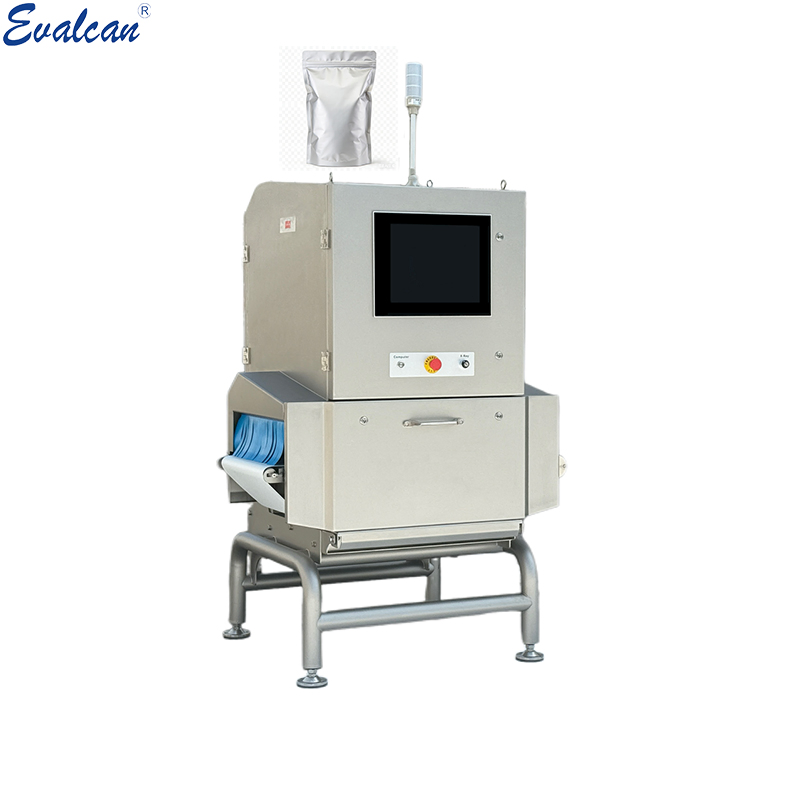

X-ray Inspection System for Foreign Object Detection

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

ℹ️

Overview & Basic Info

Model NO.
EX3016/4016/6016/6040
Condition
New
Customized
Customized
Alarm Form
Automatically Excluded
Package
Wooden Case
Origin
Zhejiang
🔍

Product Description

EX series X-ray foreign detector can detect metallic and hard non-metallic in metal and non-metallic packaging, and is suitable for various industries such as food, medicine, and chemical products.

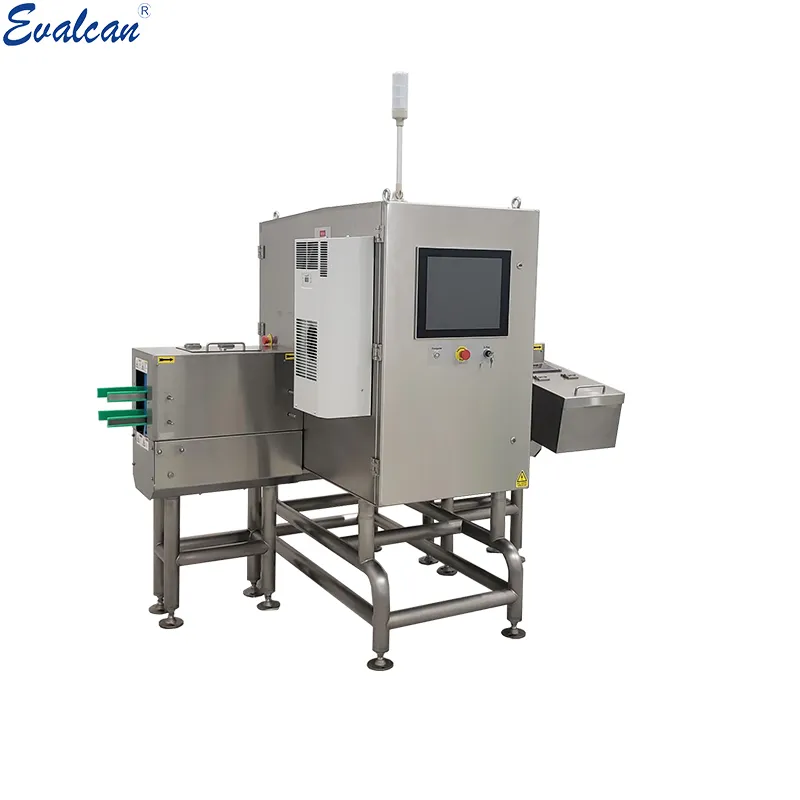

X-ray Inspection System
Key Features:
  • Leading global pan-AI algorithm
  • Long service lifetime, high precision and high stability
  • Excellent radiation safety protection
  • Easy user operation and intuitive interface
  • Perfect data traceability management
  • High waterproof rating (IP66 for detection channel)
  • Strong environmental adaptability for various production lines

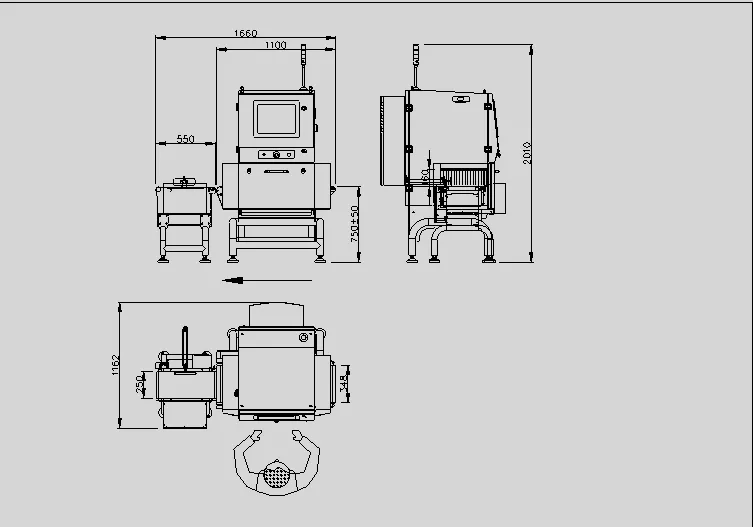

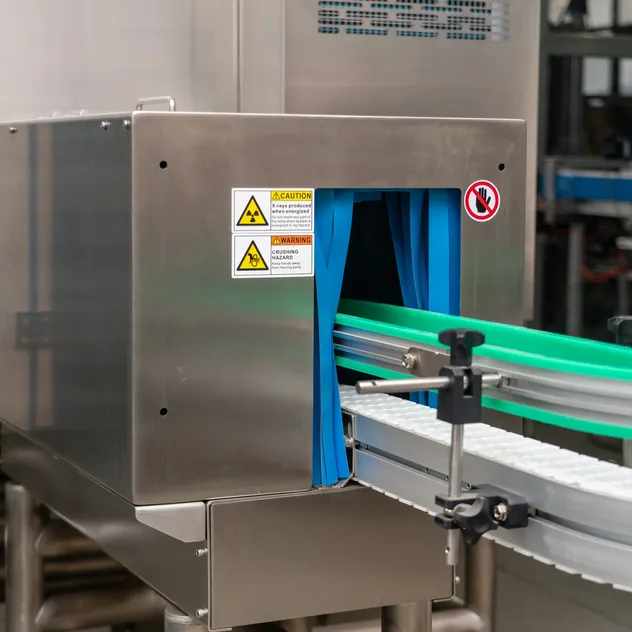

Right Elevation
Right Elevation

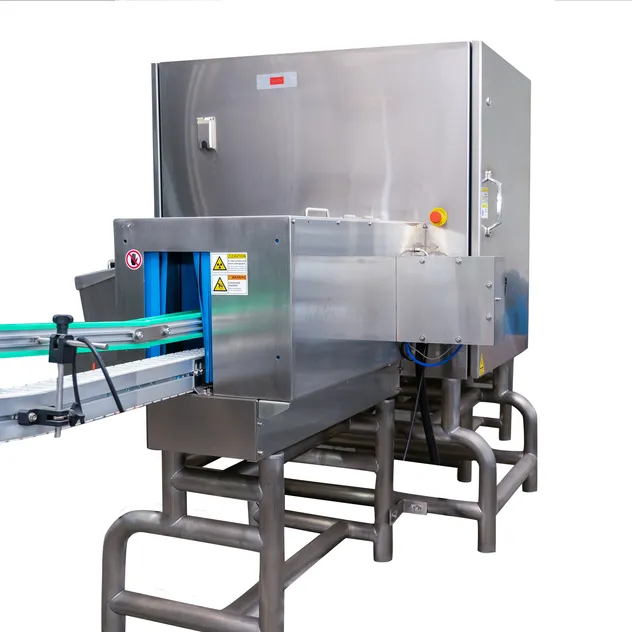

Left Elevation
Left Elevation

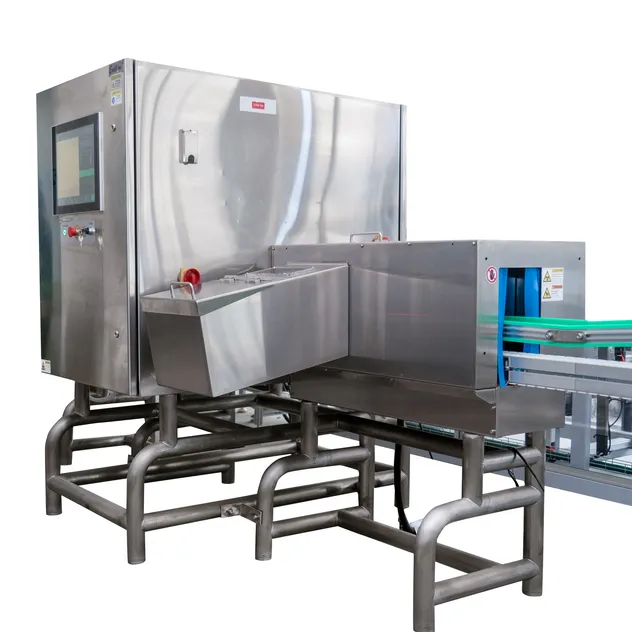

Front Elevation
Front Elevation
📊

Technical Specifications

Model EX3016 EX4016 EX6016 EX6040 EX1625
Channel size Width:300mm, Height:160mm Width:420mm, Height:160mm Width:420mm, Height:160mm Width:620mm, Height:400mm Width:150mm, Height:160mm
Source Power 210W 210W 210W 350W-480W 350W-480W
Speed (m/min) 10~60 10~60 10~60 10~40 10~60
Alarm Type Sound-light alarm Sound-light alarm Sound-light alarm Sound-light alarm Sound-light alarm
Max Weight (kg) 15 15 15 50 20
Waterproof Grade IP66 IP66 IP66 IP66 IP66
Detection Capabilities
🛠️

After Sales Service

  • Manuals and videos for machine installation, adjusting, and maintenance are provided.
  • Free packing solution consultation from our engineering team.
  • Methodical order tracking to guarantee high-quality, on-time delivery.
  • 24-hour online face-to-face communication for troubleshooting and support.
  • Technicians available for overseas service upon agreement.
  • One-year warranty for the machine (non-man-made broken parts replaced free of charge).
  • Independent dedicated team for comprehensive after-sale support.
🏢

Production & Packaging

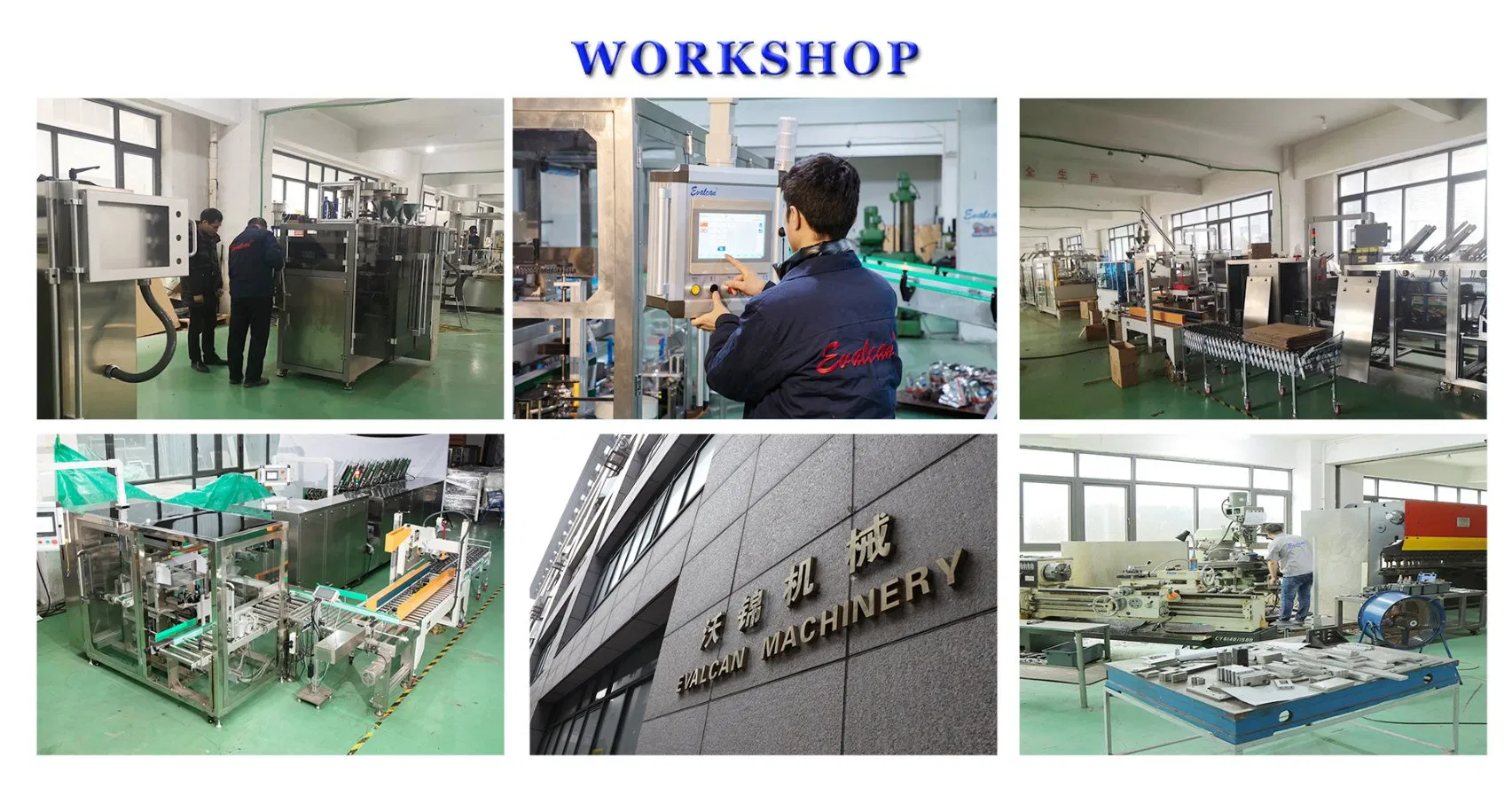

Factory View Production Line
📦

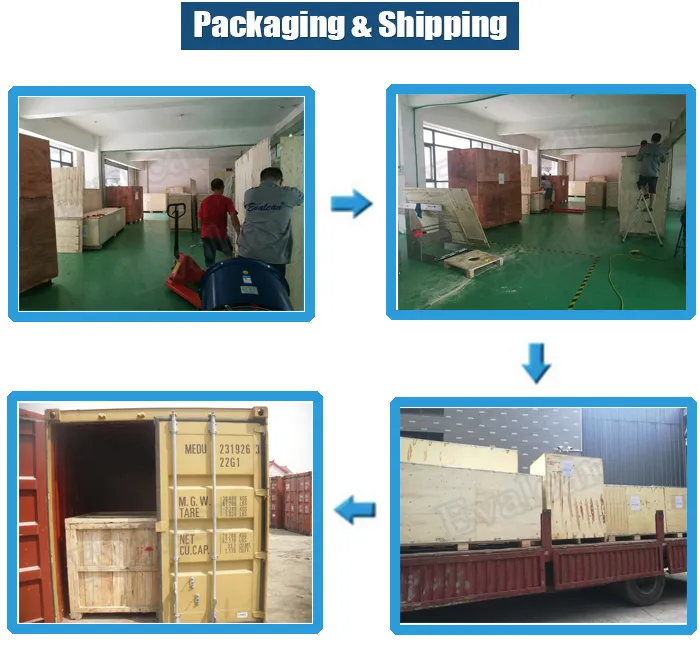

Packaging & Shipping

Packaging Detail

Frequently Asked Questions

Q1: How do I choose the right X-ray inspection machine for my product?
Please provide your product type, the dimensions of your packaging (length and width), the weight of each pack, and your specific detection requirements. This helps us recommend the most efficient model.
Q2: Do you provide support for international installation?
Yes. We provide detailed installation videos and manuals. Additionally, we offer 24-hour online technical support. On-site engineering services are also available for overseas locations upon request.
Q3: How is the quality of the machine verified before delivery?
Before shipping, we send photos and videos of the machine's testing process. Customers are also welcome to arrange third-party inspections or visit our site for quality checks.
Q4: What is the typical transaction and production process?
The process includes signing the contract, a 40% deposit, factory production, rigorous testing and detection, customer inspection (online or on-site), and balance payment before shipment.
Q5: Is delivery service included?
Yes, we provide delivery services. Once you inform us of your final destination, we will provide a shipping cost quote from our agent for your reference.
Q6: What is covered under the machine warranty?
We provide a one-year warranty. During this period, any parts that fail due to manufacturing defects (non-man-made) will be replaced free of charge.
