Product Overview

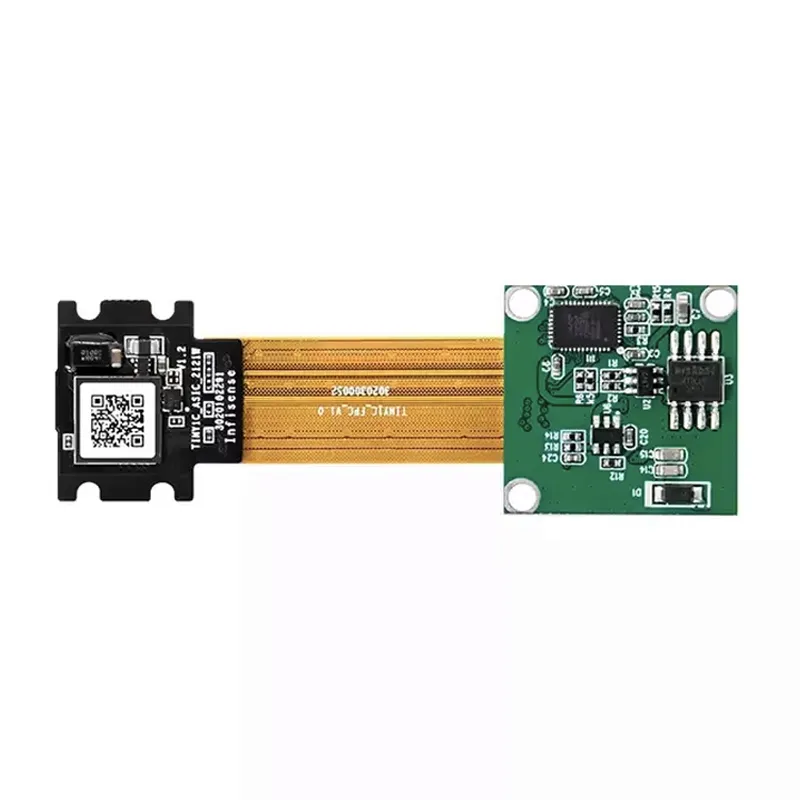

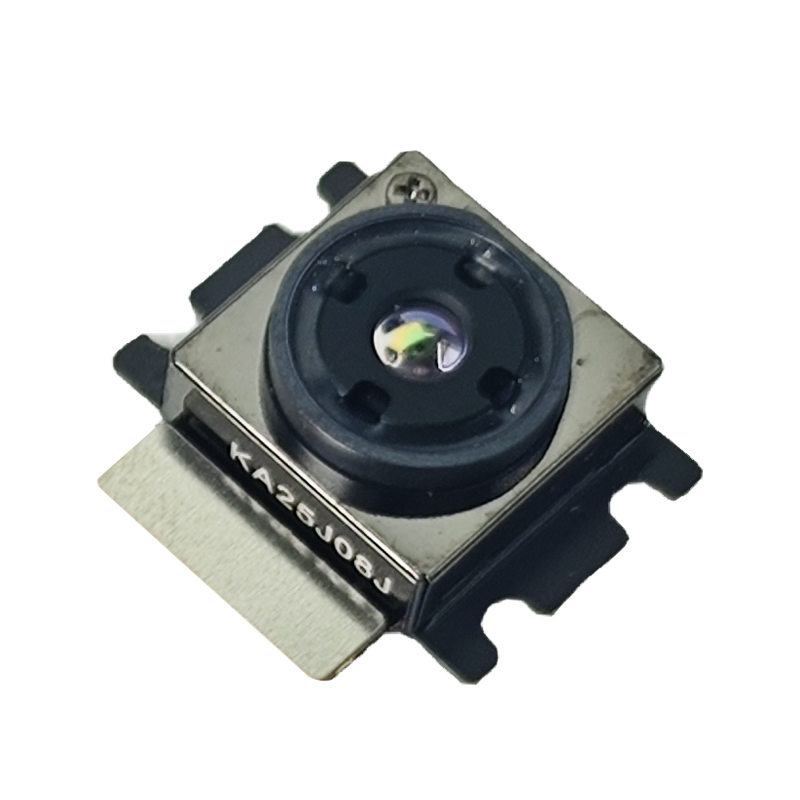

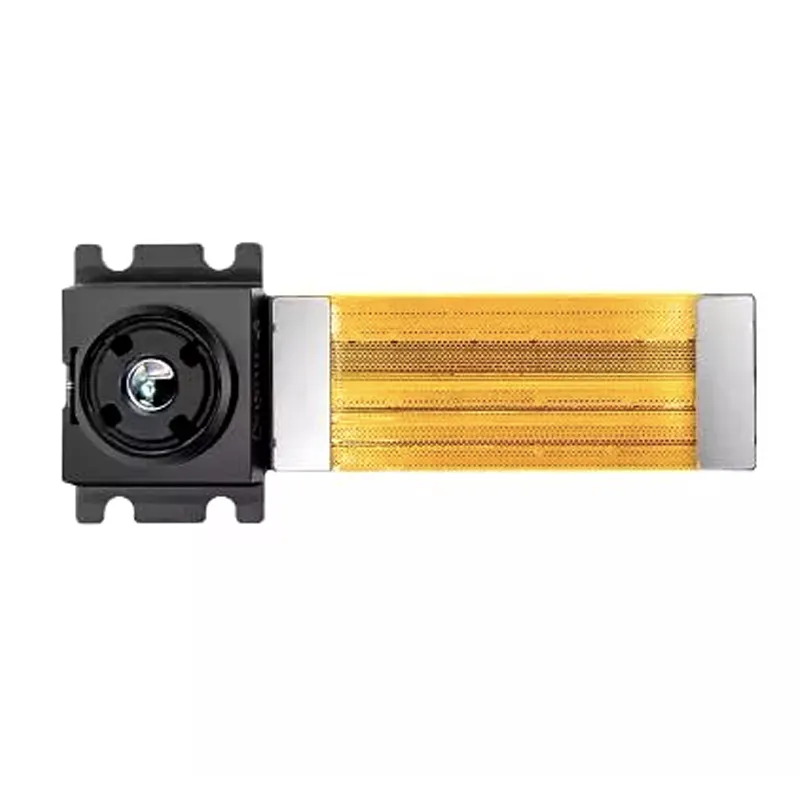

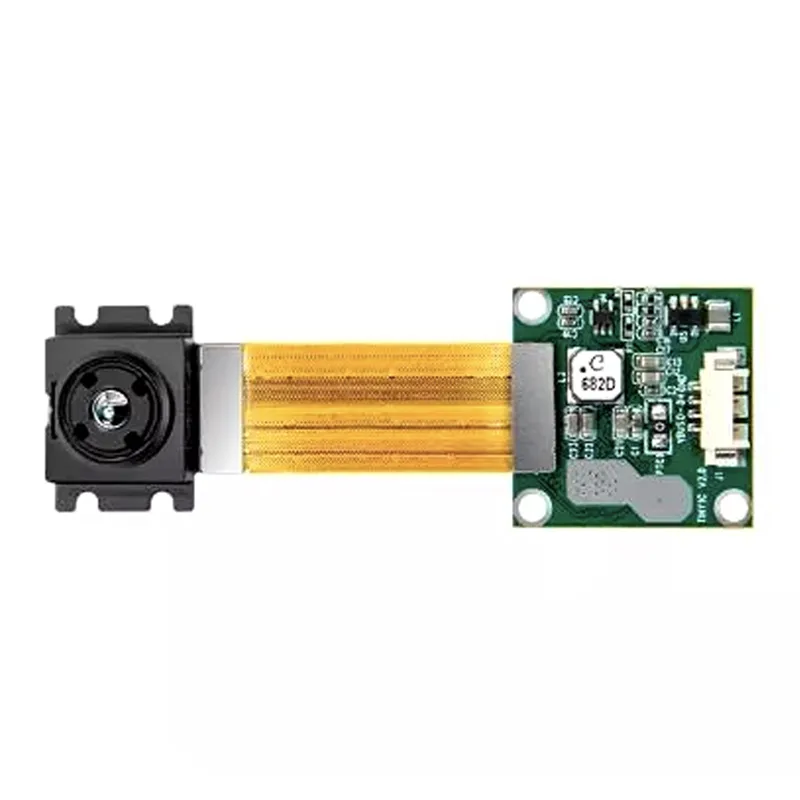

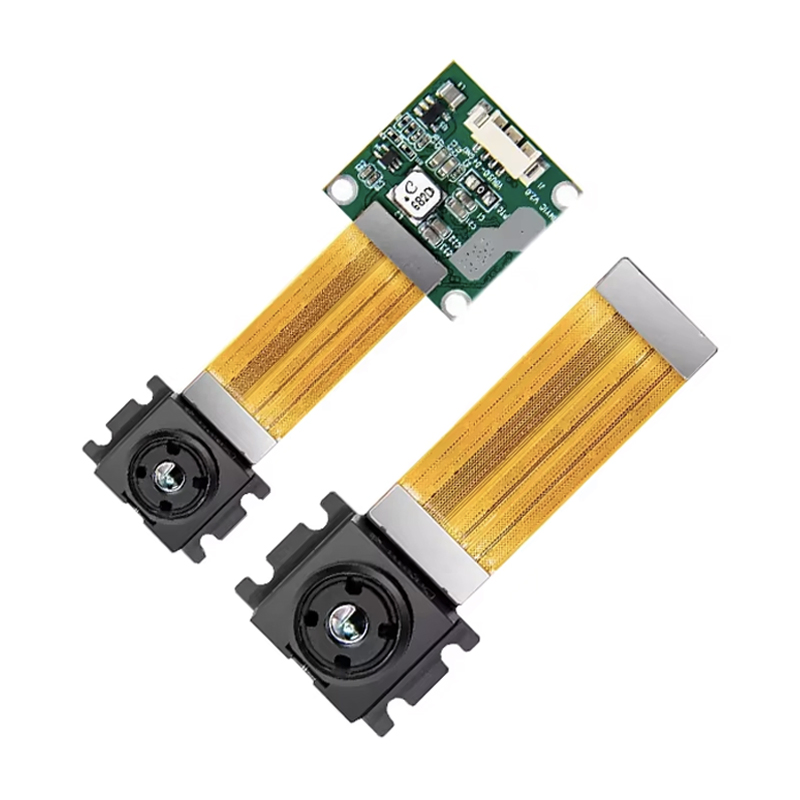

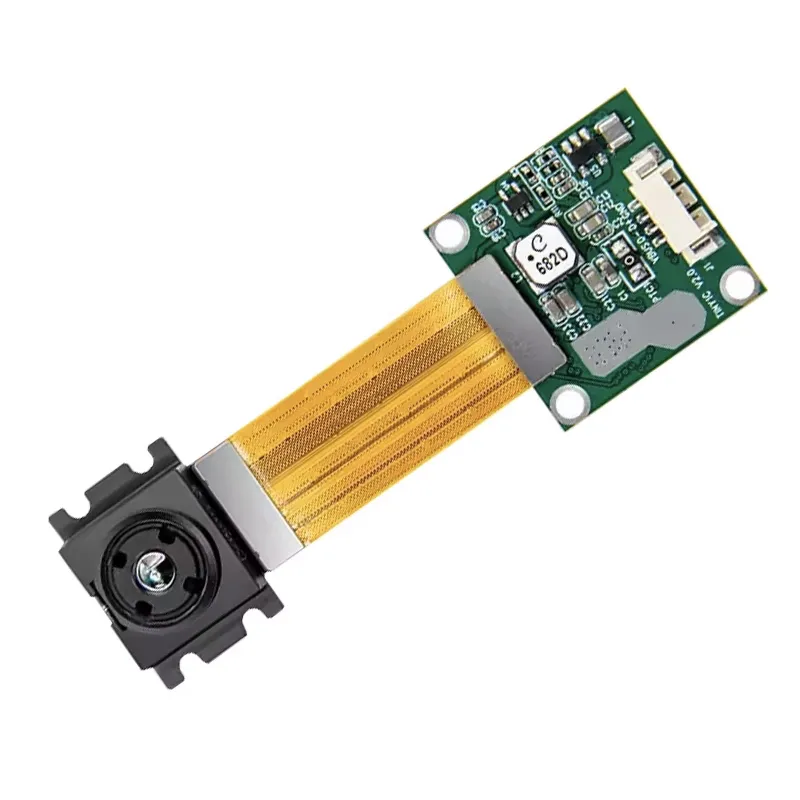

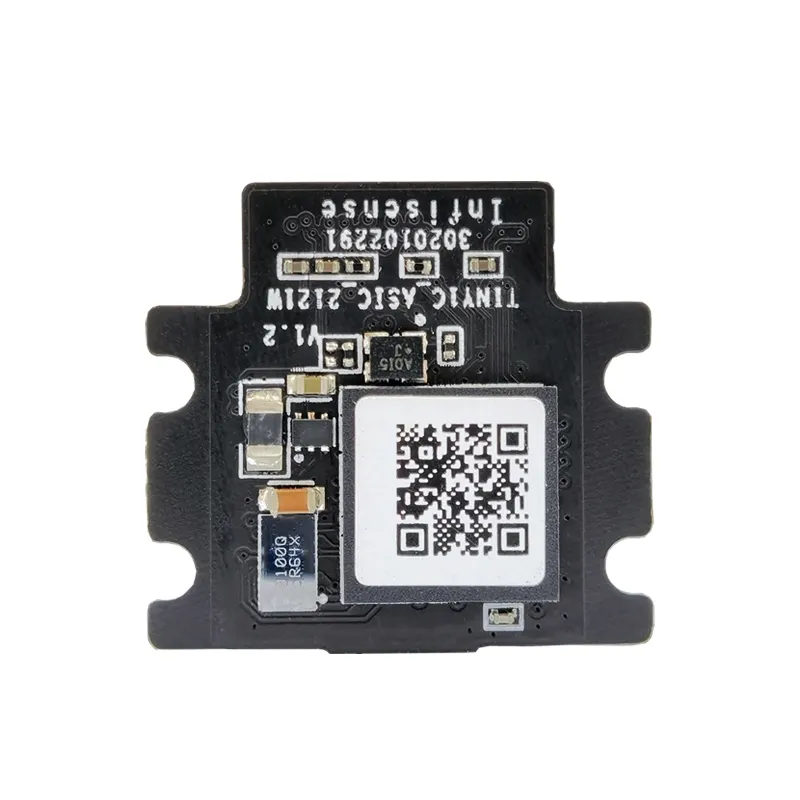

Tiny1C-USB Multifunctional Thermal Imaging Core Module
The Tiny1C-USB is a compact, high-performance uncooled thermal imaging core module designed for integration into a wide range of embedded and portable thermal vision applications. With its USB interface, miniature form factor, and advanced image processing capabilities, it offers a versatile solution for rapid deployment in industrial, security, automotive, and consumer electronics systems.
Measuring just 19 mm × 17.6 mm × 8 mm and weighing only 6 grams, the Tiny1C-USB delivers exceptional thermal sensitivity and reliable temperature measurement in an ultra-lightweight package. Powered by a standard 5V USB supply with low power consumption (≤0.8W), it is ideal for battery-operated and space-constrained devices.
Key Features
- High-Sensitivity Thermal Sensor: 256 × 192 pixel VOx detector with 12 µm pixel pitch and NETD ≤ 50 mK.
- Broad Spectral Range: Operates in the 8-14 µm LWIR band with dual modes covering -15°C to +550°C.
- Optimized Optics: 3.2 mm lens provides a wide 51.3° × 39.6° field of view, supporting detection up to 320m.
- Plug-and-Play Ready: Features a 4-pin, 1.25 mm pitch USB connector for power and data.
- Advanced Image Processing: Real-time NUC, digital zoom (1× to 8×), and multiple pseudo-color palettes.
- Developer-Friendly: Comprehensive SDKs available for Windows, Linux, Android, and RTOS platforms.

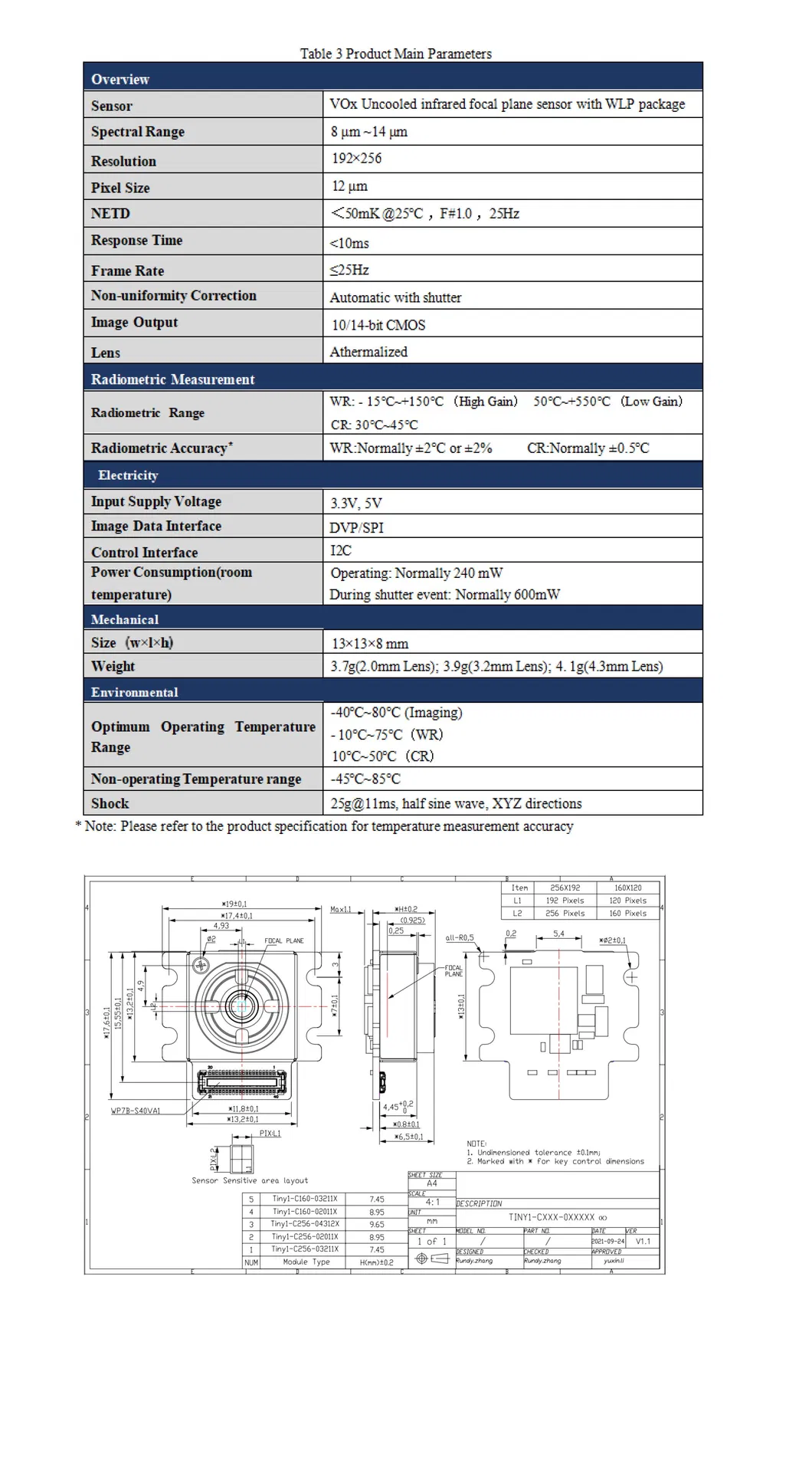

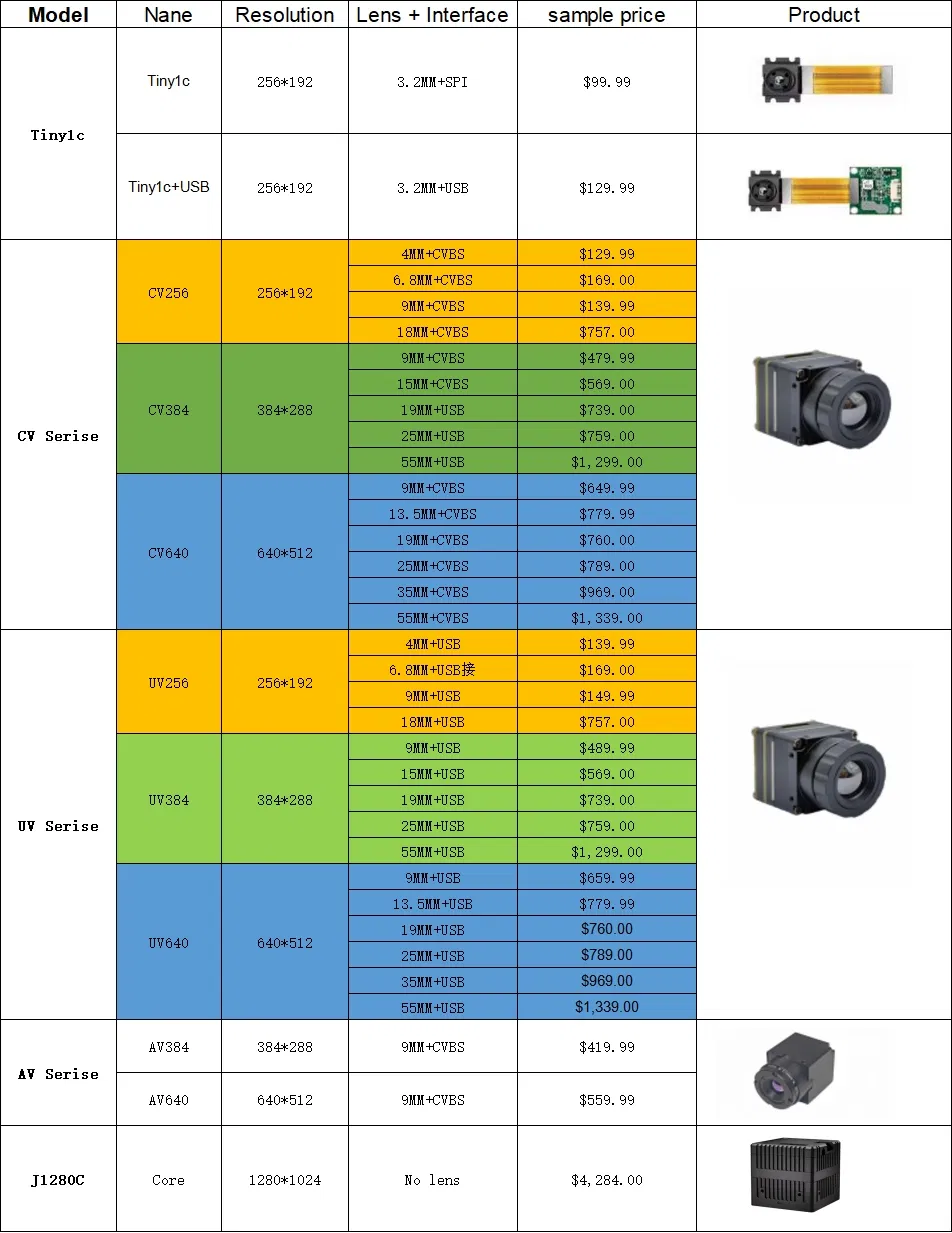

Quick Specifications
| Resolution |
Image Data Interface |
Size |
| 256X192 |
DVP/SPI/USB |
13x13x8 mm |
Frequently Asked Questions
What is the resolution and pixel pitch of the Tiny1C-USB?
The module features a high-sensitivity 256 × 192 pixel resolution with a 12 µm pixel pitch, ensuring crisp thermal imagery.
What is the temperature measurement range of this core?
It supports dual temperature measurement ranges: a standard range from -15°C to +150°C and an extended industrial range from +50°C to +550°C.
How far can this thermal camera detect objects?
With its 3.2mm lens, it can detect targets up to 320 meters away, recognize them up to 80 meters, and identify them within 40 meters.
Is it suitable for portable devices?
Yes, it is designed for portability, weighing only 6 grams and measuring 19mm x 17.6mm x 8mm, with a low power consumption of ≤0.8W.
Which platforms are supported for secondary development?
Comprehensive SDKs are available for a variety of platforms, including Windows, Linux, Android, and RTOS, facilitating seamless system integration.
Does the module support different color displays?
Yes, it includes multiple pseudo-color palettes such as White Hot and Black Hot for different observation requirements.
