| Model NO. | tiny 1 |
| Type | CCTV Camera |
| Sensor | CMOS (1/3 inch) |
| Resolution | 256*192 |
| Spectral Response | 8~14um |
| Pixel Pitch | 12um |
| NETD | ≤50mk (F/1.0 25Hz @25c°) |
| Frame Rate | 25Hz |
| Focal Length | 3.2mm |
| Field of View (FOV) | 51.3° * 39.6° |
| Features | Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC |
| Detection Distance | 320m |
| Certification | CE, FCC, CCC, RoHS, EMI/EMC, ISO9001: 2000 |

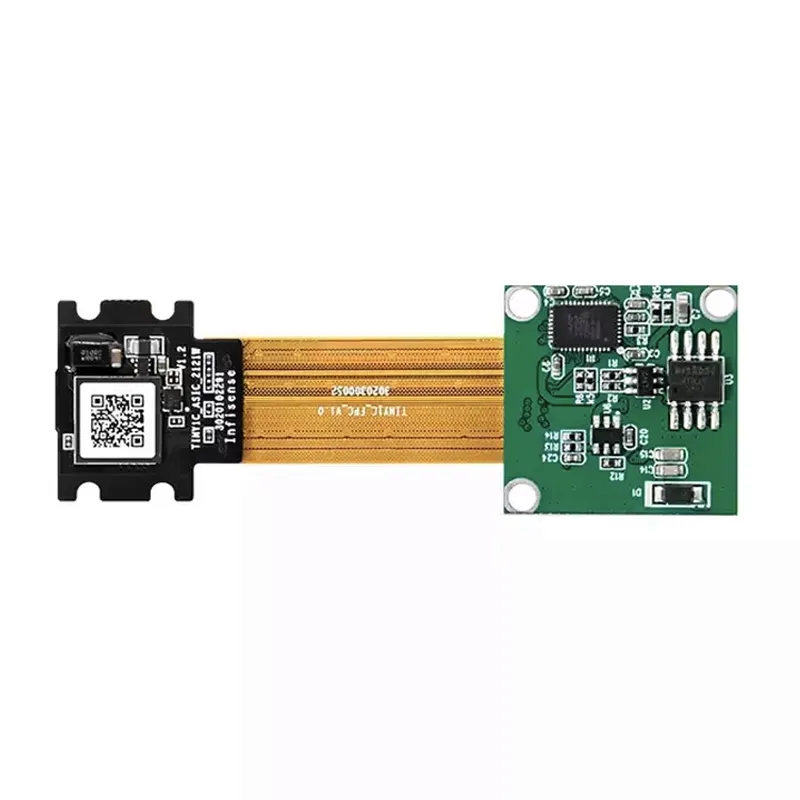

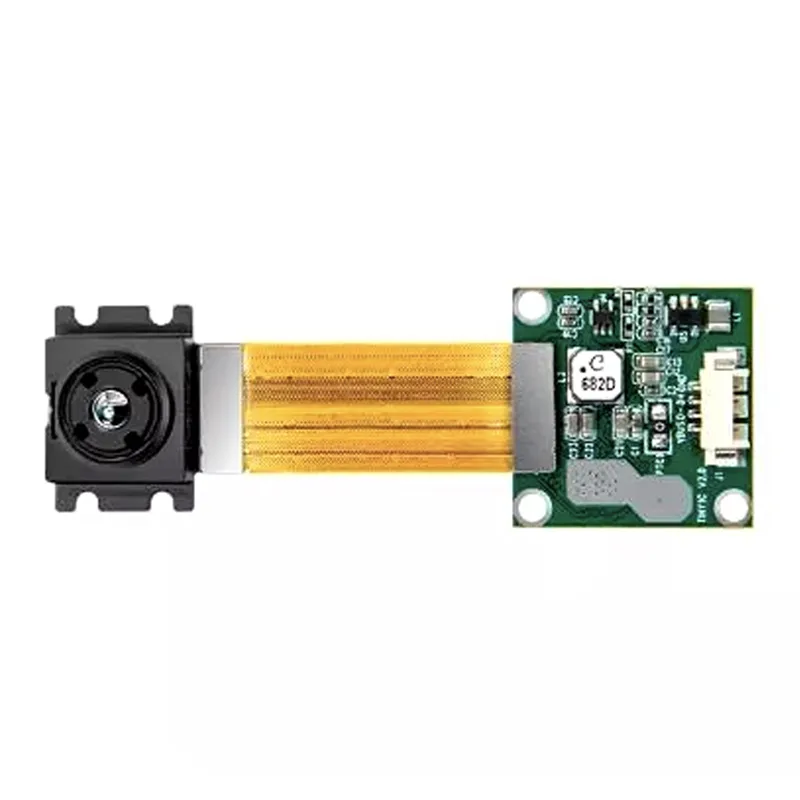

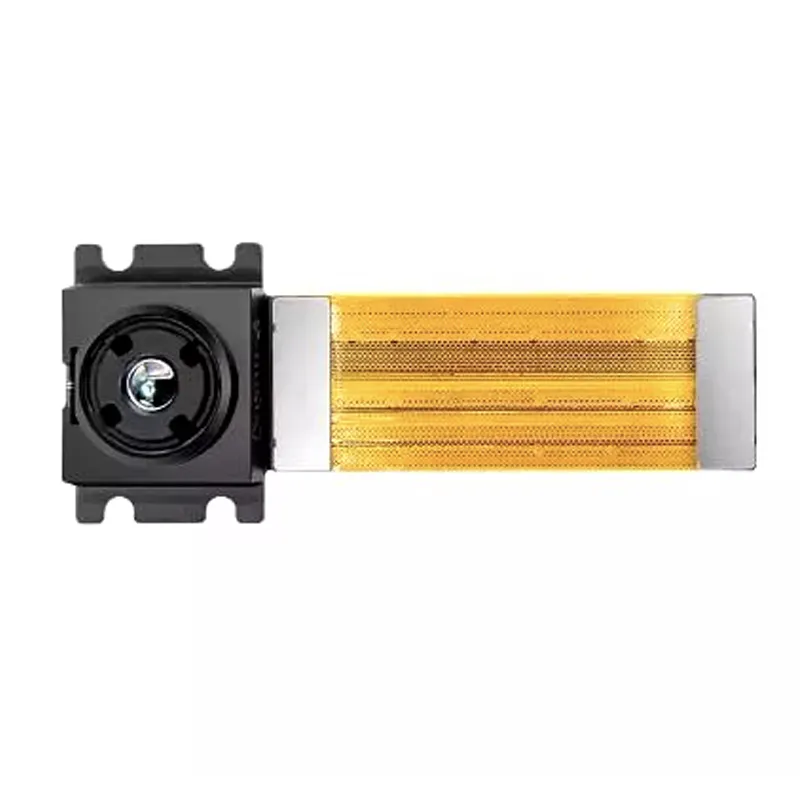

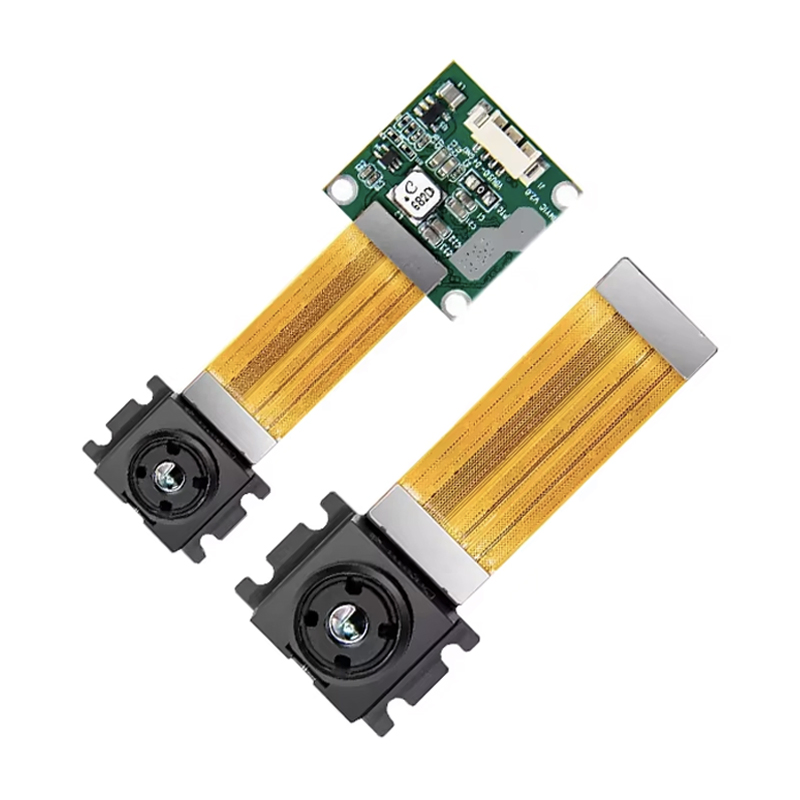

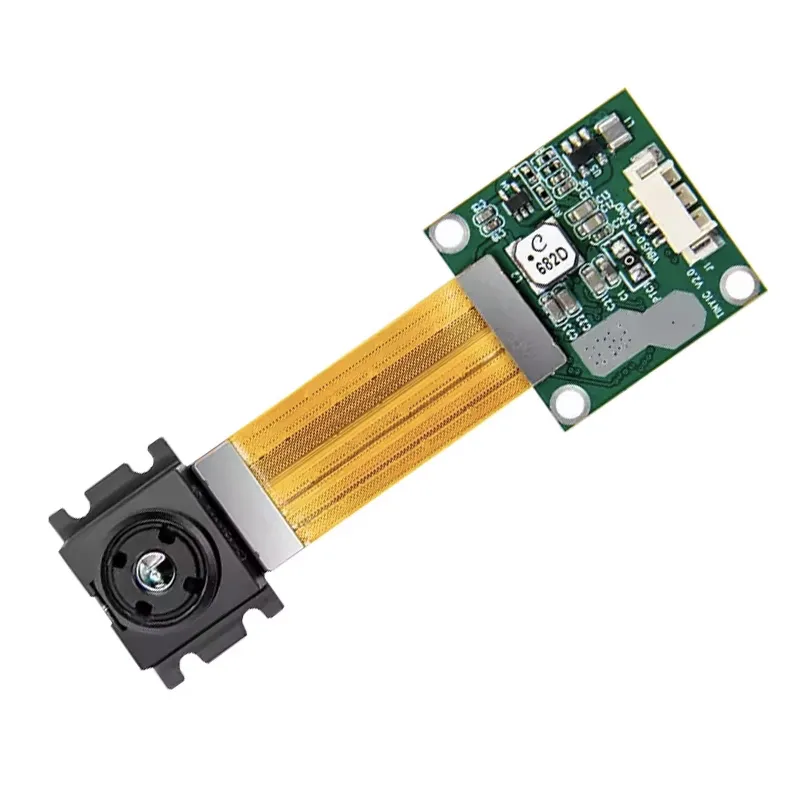

Tiny1C-USB Multifunctional Thermal Imaging Core Module
The Tiny1C-USB is a compact, high-performance uncooled thermal imaging core module designed for integration into a wide range of embedded and portable thermal vision applications. With its USB interface, miniature form factor, and advanced image processing capabilities, it offers developers and OEMs a versatile solution for rapid deployment in industrial, security, automotive, and consumer electronics systems.

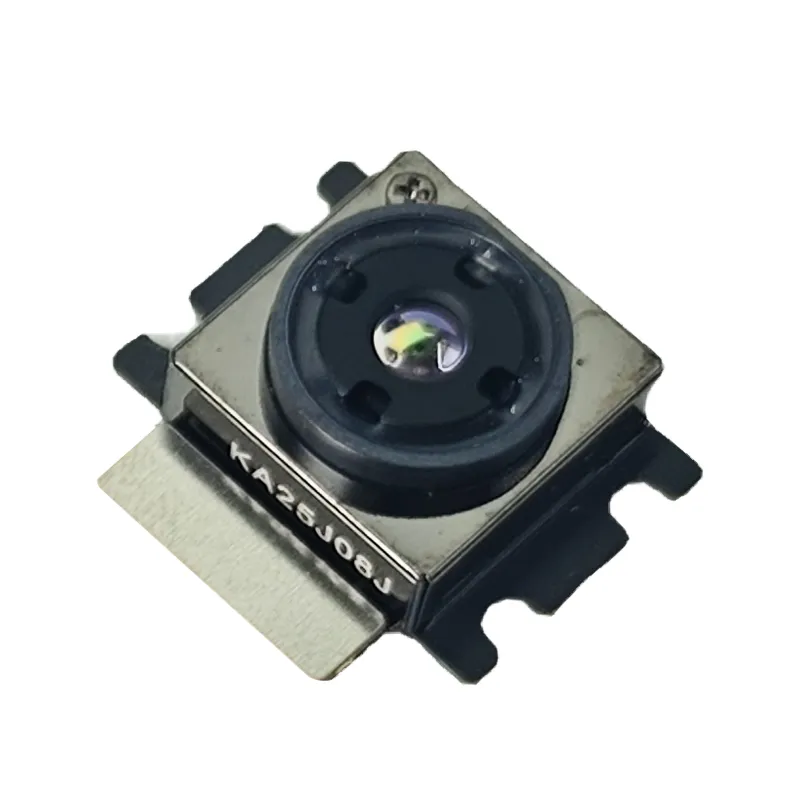

256 × 192 pixel VOx detector with 12 µm pixel pitch and NETD ≤ 50 mK ensures crisp images.
Range 1: -15°C to +150°C (High quality)
Range 2: +50°C to +550°C (Industrial use)
Accuracy: ±2°C or ±2%.
4-pin, 1.25 mm pitch USB connector for power delivery and data control.
Comprehensive SDKs available for Windows, Linux, Android, and RTOS platforms.
| Package Size | 10.00cm * 10.00cm * 6.00cm |
| Package Gross Weight | 0.180kg |
| Transport Package | Carton Box |
