| Model NO. | E310Plus | Standard | Celsius/Fahrenheit |
| Accuracy | ≥2°C | Usage | Industrial, Household |
| Display | Digital | Material | Radiation |
| Hygrometer Type | Infrared Detection | Detector Pixel | 256×192 |
| Weight | 450g (Unit) / 2000g (Total) | Wavelength | 8 - 14μm |
| Protection Level | IP65/IP67 | Display Screen | 2.8" TFT |
Product Brief Introduction

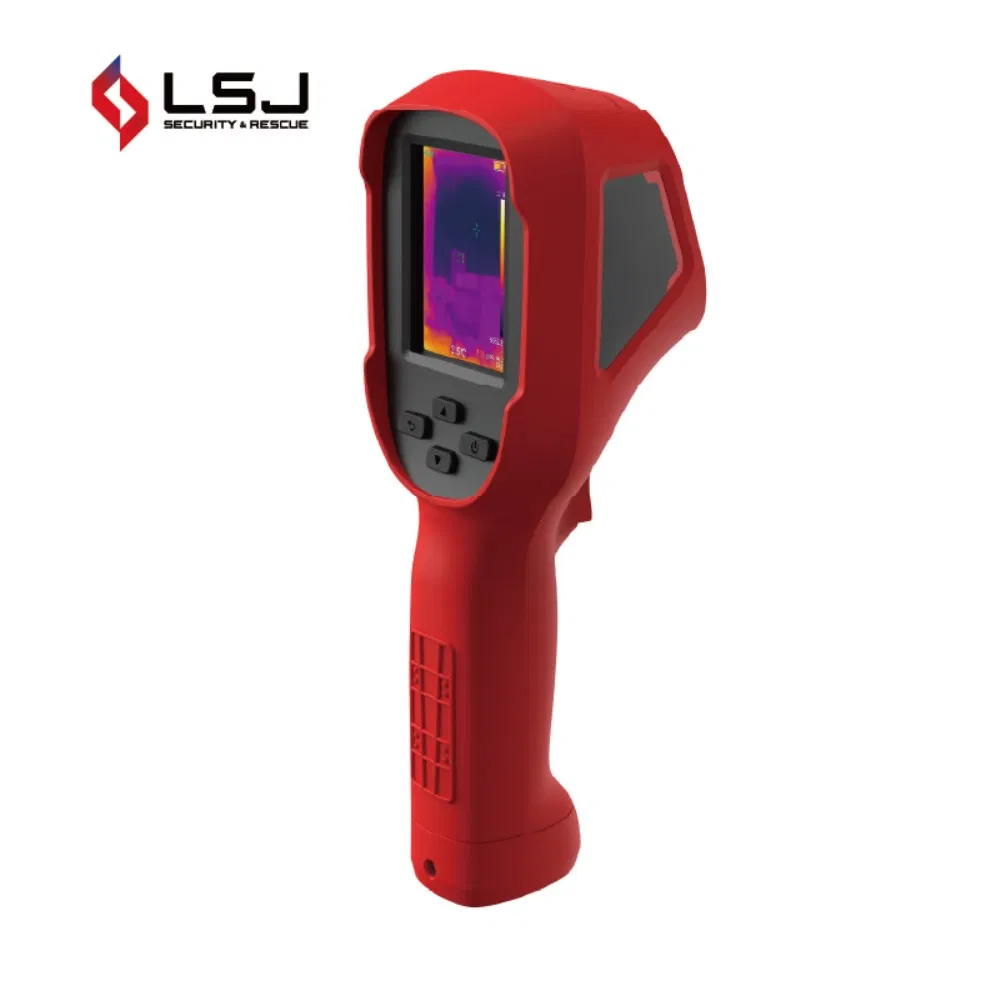

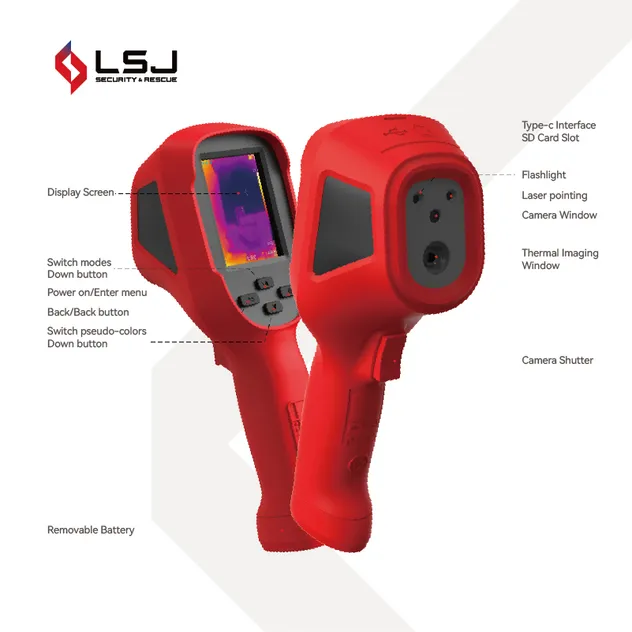

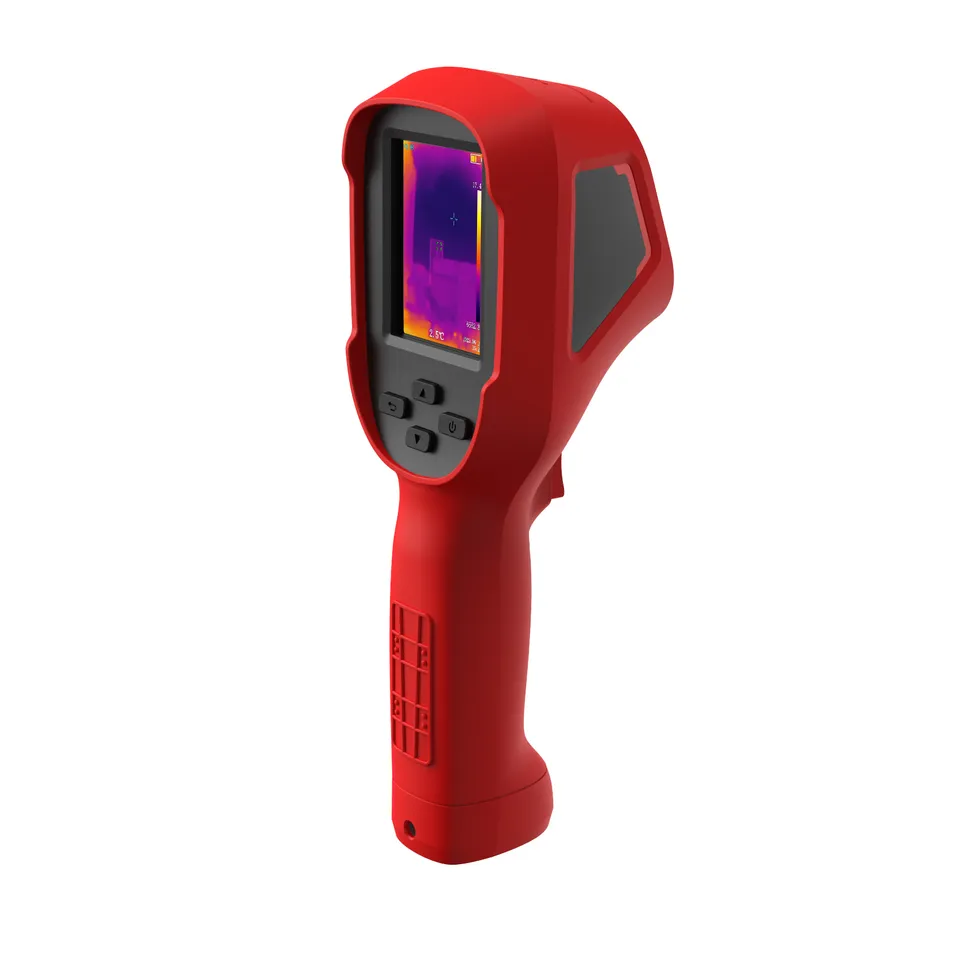

A compact, lightweight and portable infrared thermal imager, ready for instant use. It displays real-time temperature and thermal imaging, supports cold/hot spot tracking and multi-palette switching, with a wide temperature measurement range and high-precision performance. Featuring dual-mode HD imaging with high frame rate output, it delivers stable, reliable performance and high-definition imaging.

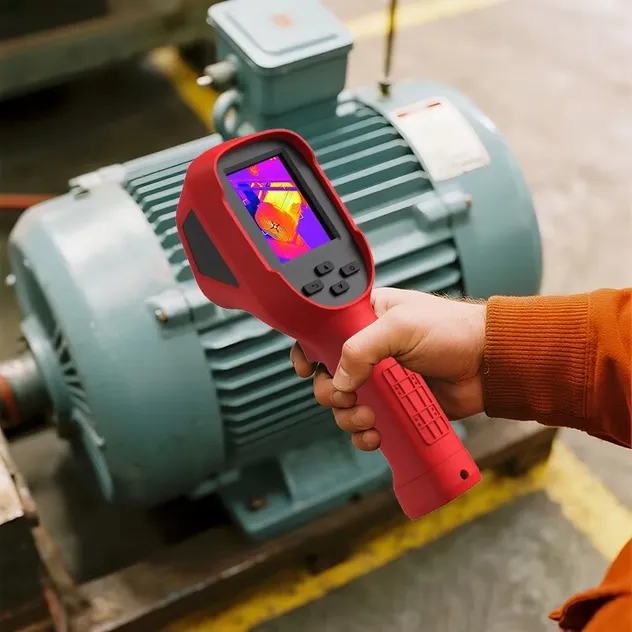

This infrared thermal imager is designed for professional inspection and search applications:
HD large screen: Full-view display, clearly showing thermal imaging and temperature data.
Accurate temperature tracking: Supports hot/cold tracking, precise measurement within wide range.
Dual-mode high quality: Infrared and visible light modes, clear and smooth imaging.

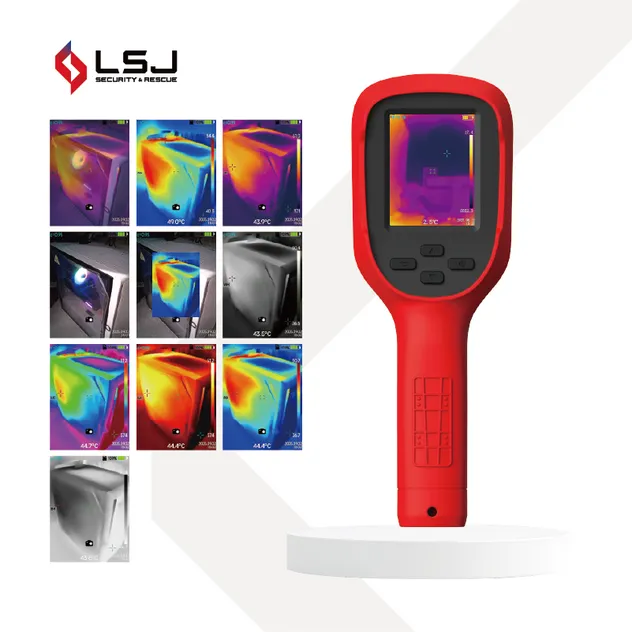

Versatile adjustments: Multi-language, palette and unit customization.
Easy storage & transmission: Large capacity, integrated transmission and charging.
| Performance Parameters | |
|---|---|
| Detector Pixel | 256×192 |
| Thermal Sensitivity (NETD) | 50mK |
| Sampling Frame Rate | 25Hz |
| Digital Zoom | 1X - 4X |
| Visible Light Resolution | 2 Million Pixels |

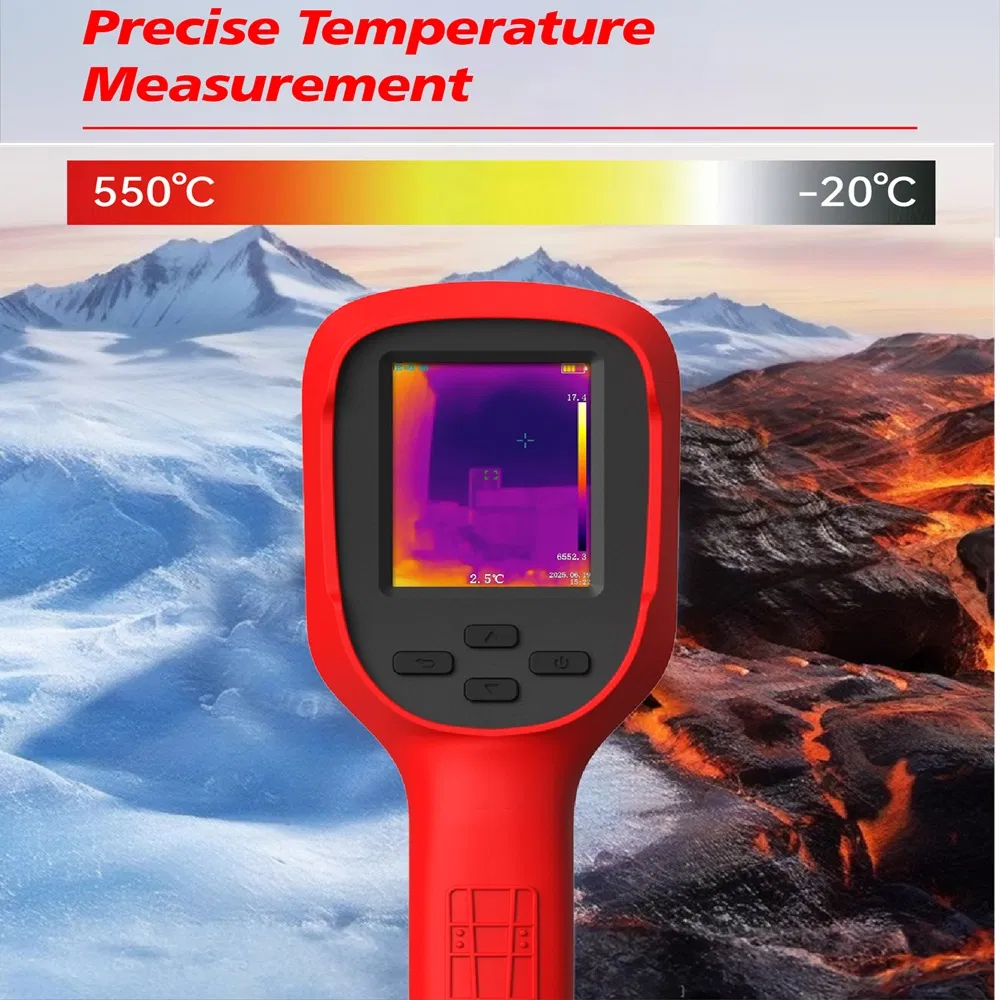

| Temp Range | -20°C - 550°C (Automatic switching) |
| Temp Accuracy | ±2°C or ±2% |
| Alarm Function | LED flashing, screen alarm |
| Display Resolution | 640×480 (2.8" TFT) |
| Operating Time | >5 Hours |
We are committed to providing comprehensive and reliable after-sales service:
Established in 2010, our company has grown into a global solution provider for firefighting and emergency rescue equipment. With over 16 years of innovation, we specialize in advanced instruments such as Radar Life Detectors, Infrared Thermal Imagers, and Radiation Monitors.
We focus on custom products, offering tailored solutions based on tender specifications or OEM/ODM services. Our technological excellence ensures reliable, high-performance solutions tailored to industry needs.
