| Model NO. | E310 Plus |
| Standard | Celsius/Fahrenheit |
| Accuracy | ≥2°C |
| Usage | Industrial, Household |
| Display | Digital |
| Detector Pixel | 256×192 |
| Protection Level | IP65/IP67 |
| Display Screen | 2.8" TFT |
| Temp Range | -20°C - 550°C |
| Wavelength | 8 - 14μm |
| Origin | China |
| Package Size | 30cm * 27cm * 15cm |

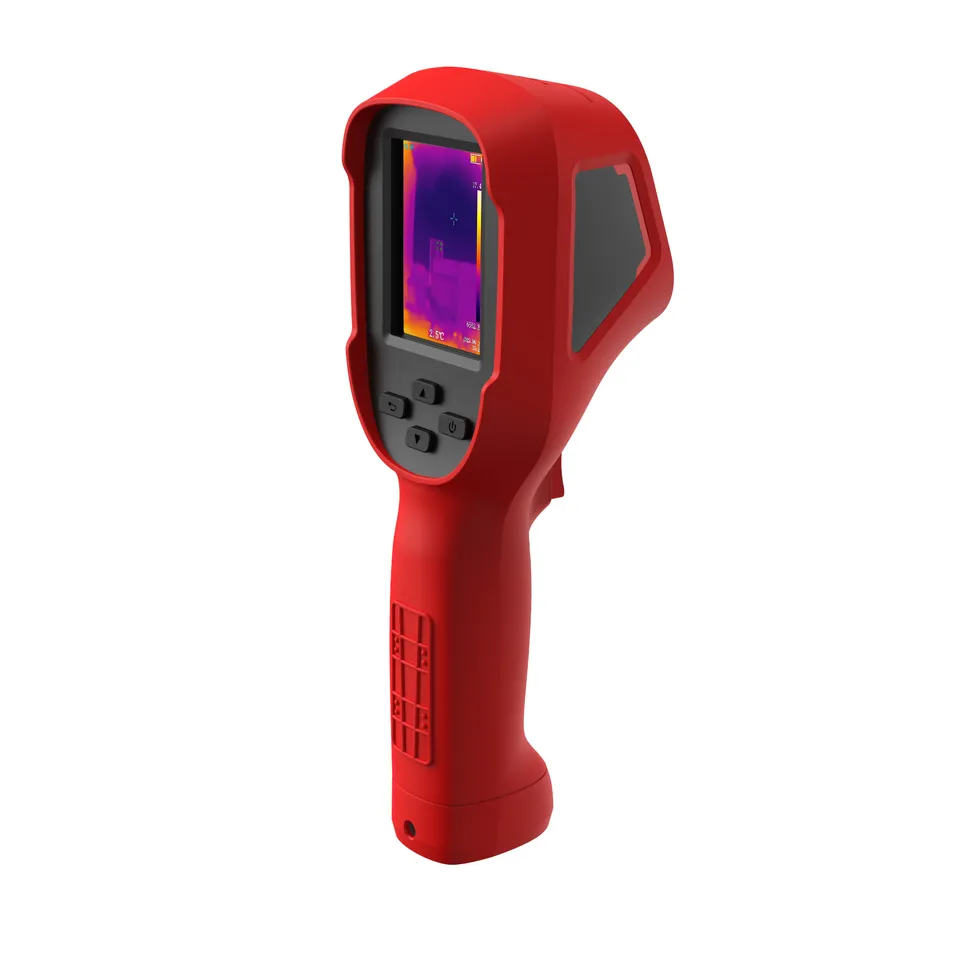

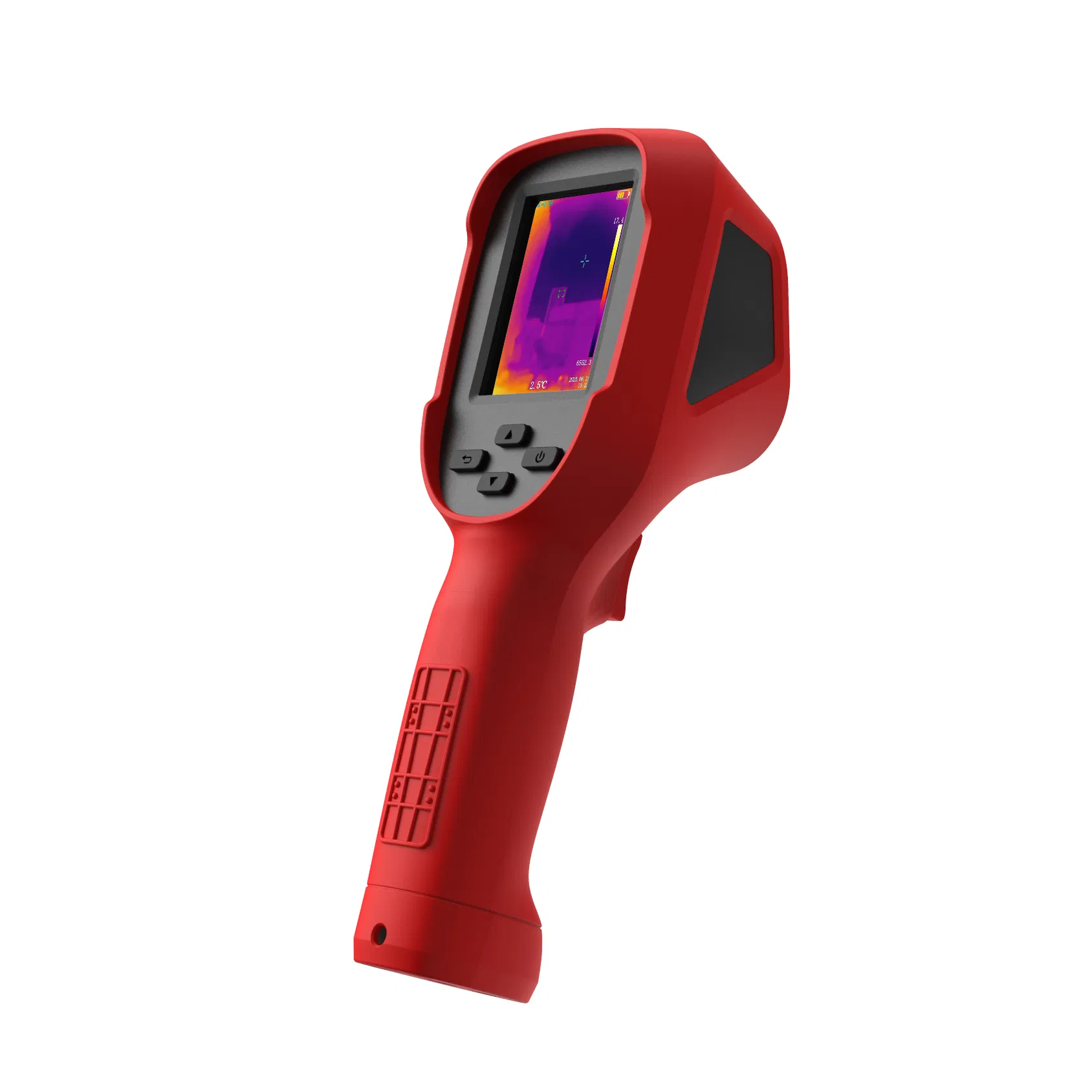

Portable Infrared Thermal Imager

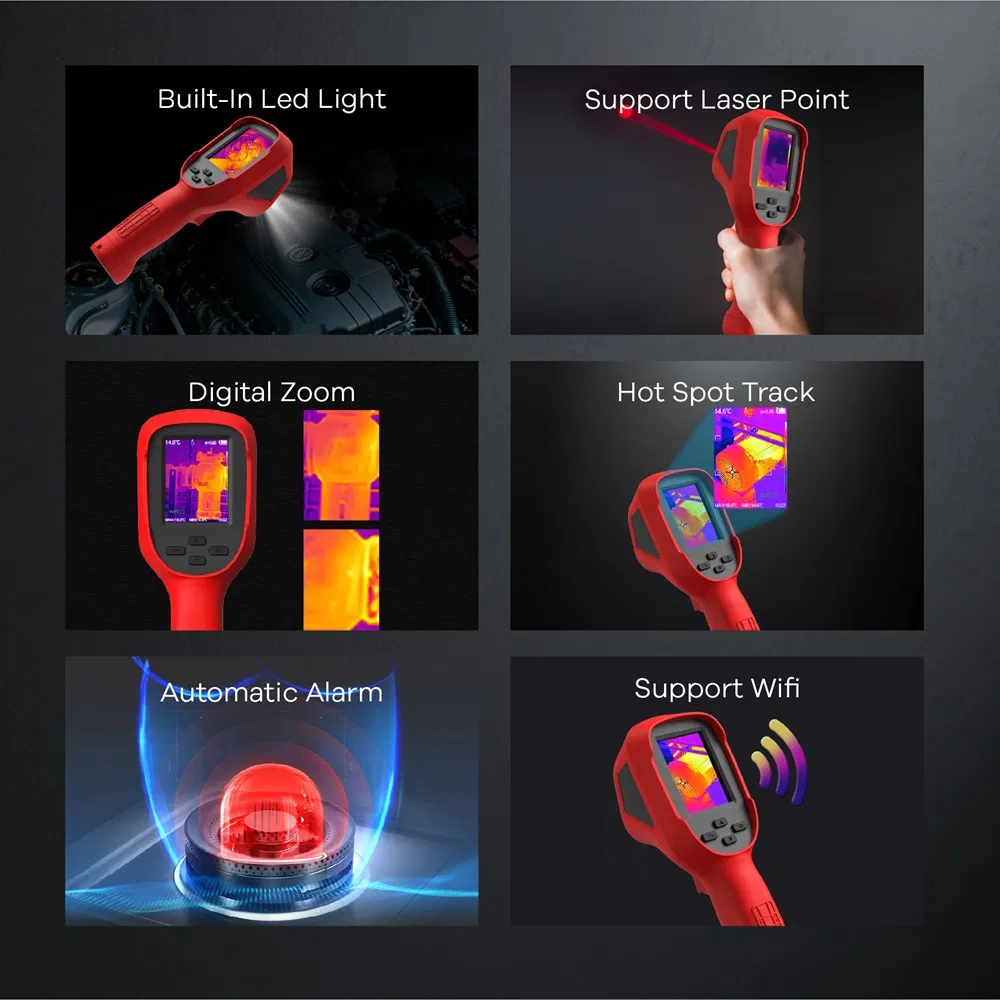

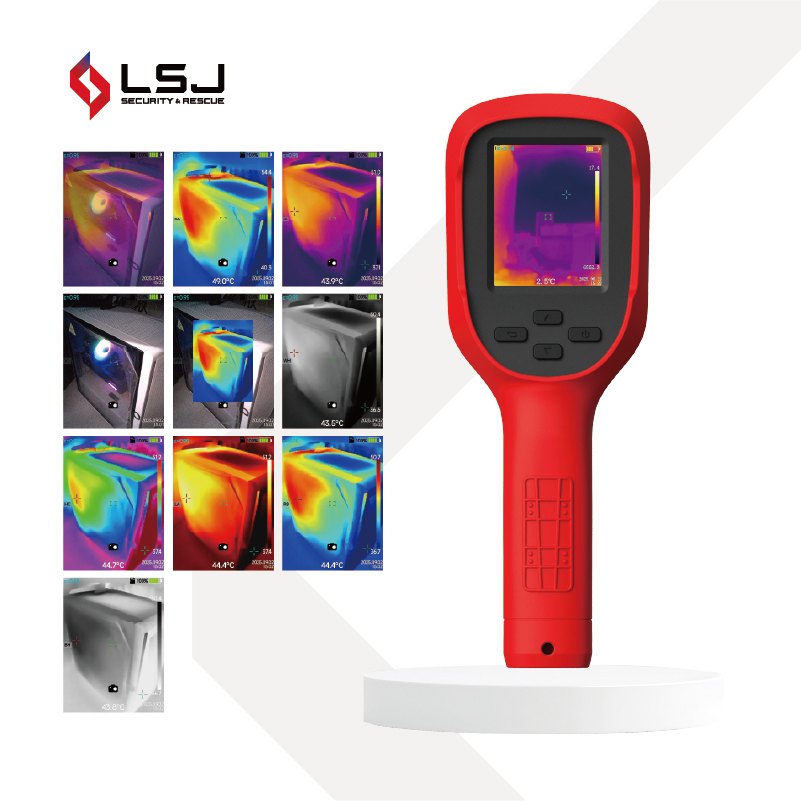

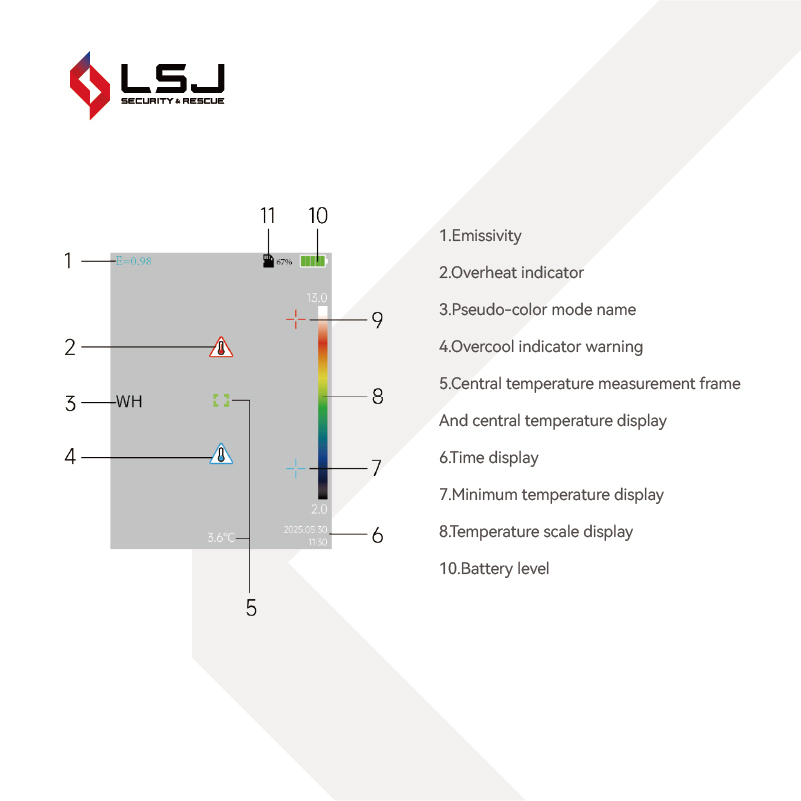

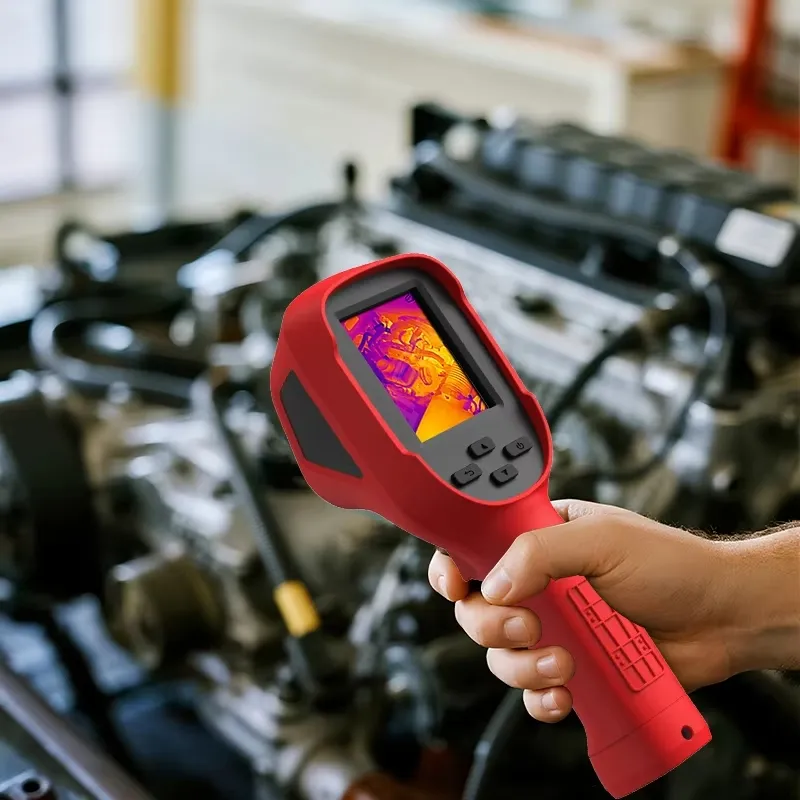

A compact, lightweight and portable infrared thermal imager, ready for instant use. It displays real-time temperature and thermal imaging, supports cold/hot spot tracking and multi-palette switching, with a wide temperature measurement range and high-precision performance. Delivering stable, reliable performance and high-definition imaging, it is widely used in warehouse inspection, smoke search, earthquake rescue, and industrial testing.

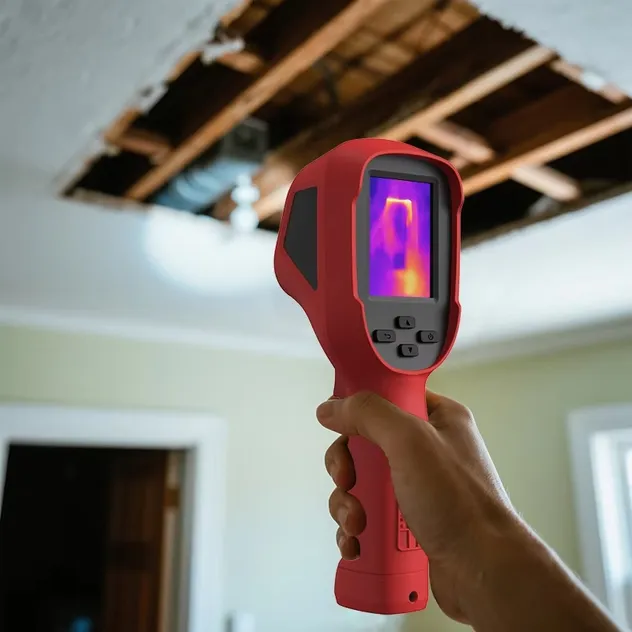

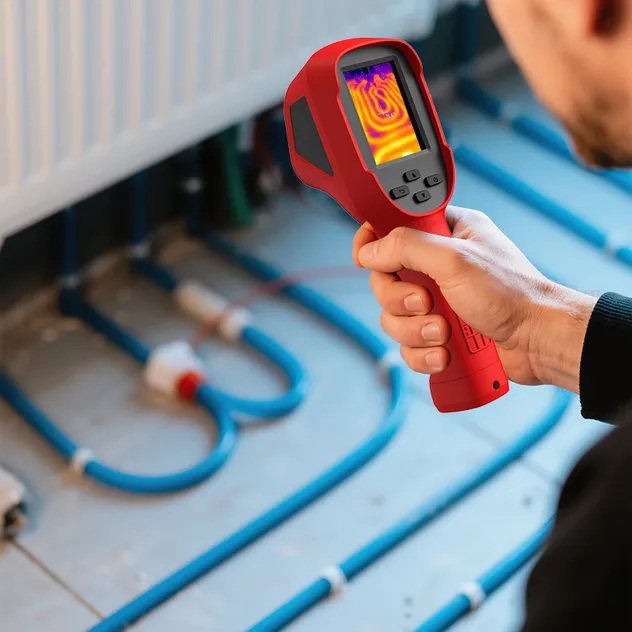

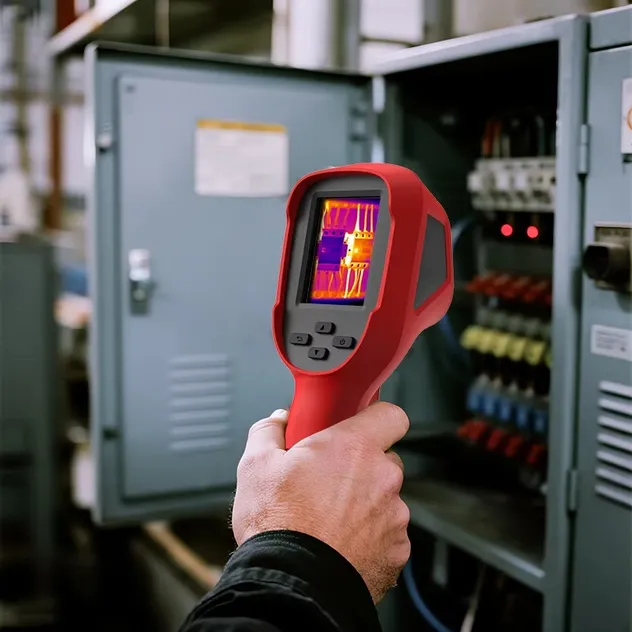

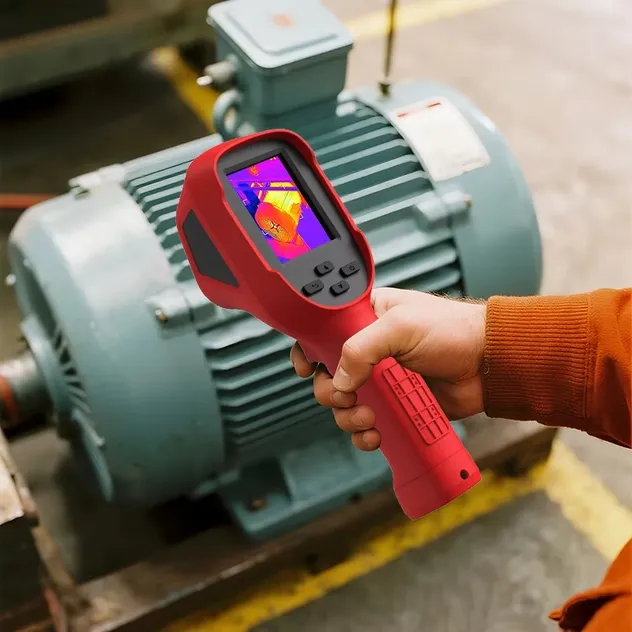

This infrared thermal imager is designed for professional inspection and search applications. It is essential for search and rescue operations, such as locating victims in earthquake debris or smoke-filled environments. In industrial settings, it assists in equipment inspection and electrical fault detection. Suitable for building maintenance, pipeline checks, and outdoor night patrols, providing clear thermal imaging in complex environments.
| Detector | |
| Detector Pixel | 256×192 |
| Operating Wavelength | 8 - 14μm |
| NETD (Thermal Sensitivity) | 50mK |
| Image Processing | |
| Sampling Frame Rate | 25Hz |
| Digital Zoom | 1X - 4X digital zoom |
| Visible Light | 2 million pixels |
| Temperature Measurement | |
| Dynamic Range | -20°C - 550°C, automatic range switching |
| Accuracy | ±2°C (within 100°C) or ±2% (above 100°C) |
| Display & Power | |
| Display Screen | 2.8" TFT-LCD (640×480 resolution) |
| Operating Time | >5 hours (Rechargeable lithium-ion) |
| Physical Characteristics | |
| Main Unit Weight | 450g (±20g) |
| Protection Level | IP65/IP67 |
