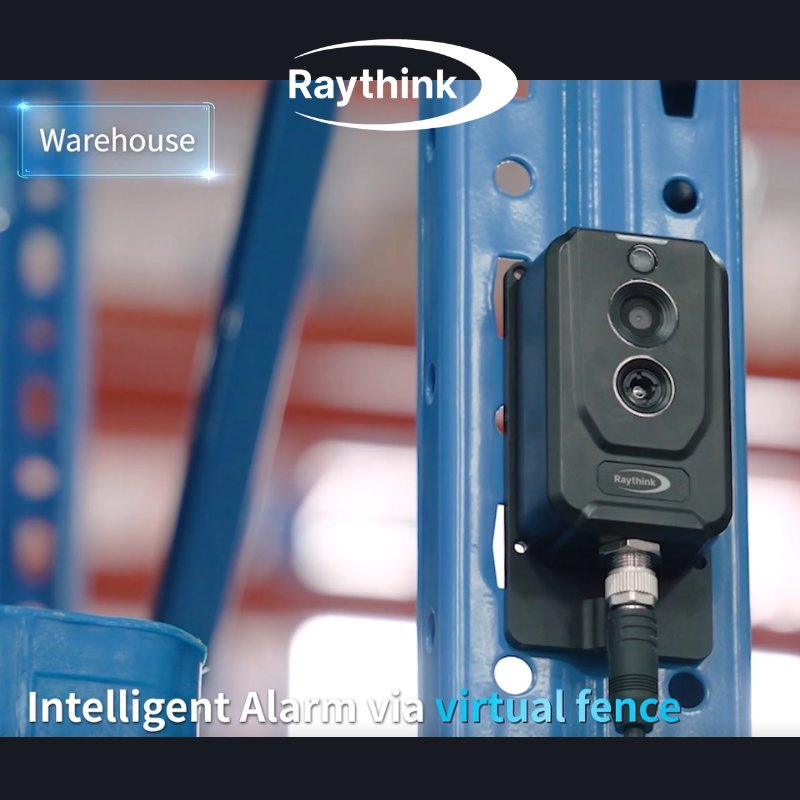

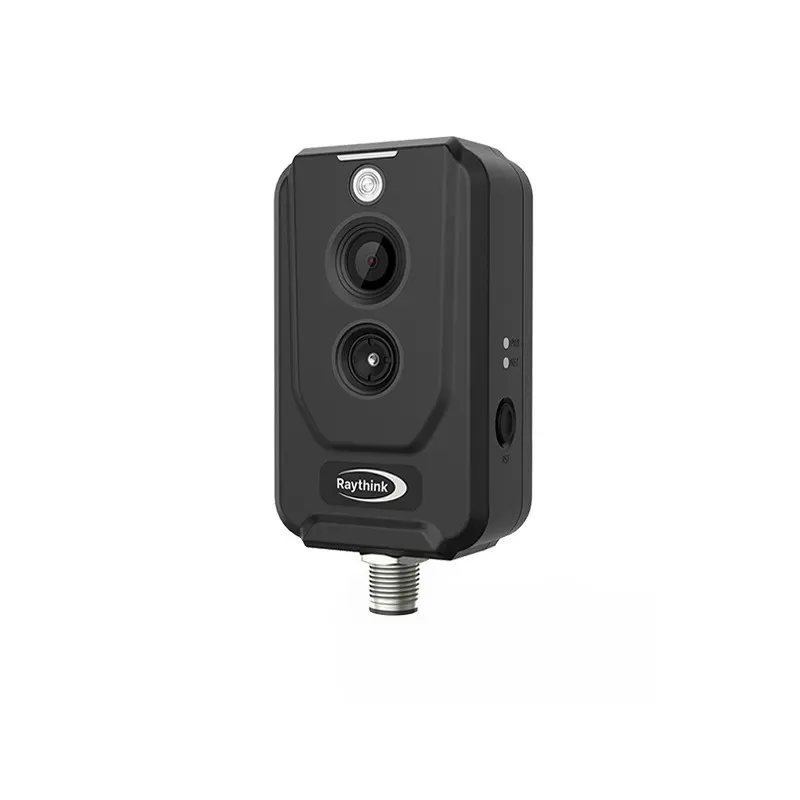

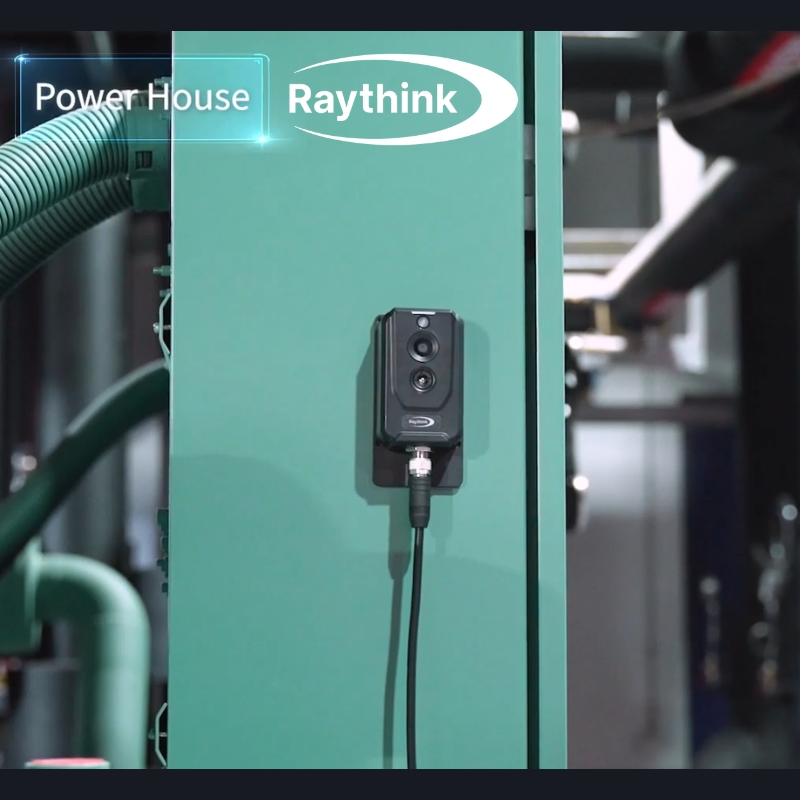

TN220 is developed based on the 256×192 WLP infrared module, providing users with high-quality images. It features a compact design with POE power supply support and flexible mounting options, including magnetic installation, ensuring simple and convenient wiring. This device offers a visualized temperature monitoring solution for confined spaces and close-distance applications in fields such as electricity, renewable energy, and industrial manufacturing.
| Model NO. | TN220 | Detector Type | Vox Uncooled Fpa Detector |
| Spectral Band | 7.5~14μm | NETD | ≤40mk(@25°C, F#1.0, 25Hz) |
| Resolution | 256×192 | Frame Rate | 1-25Hz, Adjustable |
| Pixel Pitch | 12μm | Focus Mode | Athermalized Prime Lenses |

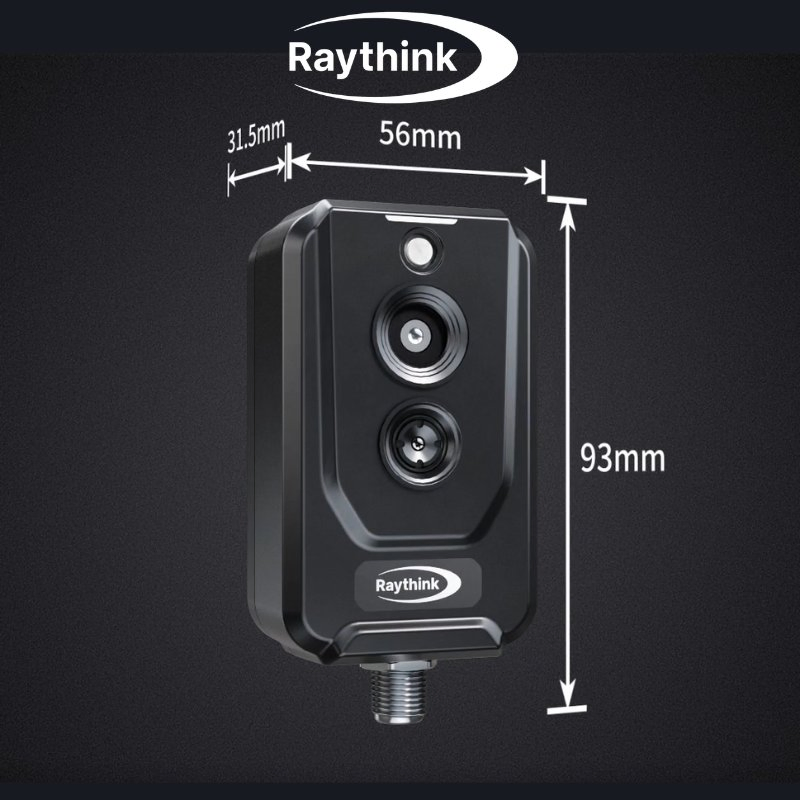

| Visible Light Resolution | 1600×1200 | Dimensions | 93mm× 56mm× 31.5mm |
| Thermal Imaging Parameters | |
| Detector Type | VOx Uncooled FPA Detector |
| Spectral Band | 7.5~14μm |
| NETD | ≤40mK(@25°C, F#1.0,25Hz) |
| Resolution | 256×192 |
| Focal Length | 3.2mm |
| Palette | 20 palettes available (black-hot/white-hot/rainbow, etc.) |
| Dual-Spectral Parameters | |
| Visible Light Resolution | 1600×1200 |
| Dual-Spectrum Fusion | Supported |
| Temperature Measurement | |
| Measurement Range | -20°C~+150°C, 0°C~550°C |
| Measurement Accuracy | ±2°C or ±2% |
| Analysis Tools | Global, point (12), line (12), area (12) |
| Interface & Physical | |
| Power Supply | DC 10~30V 1A / POE (802.3af) |
| Network Interface | RJ45, 100M adaptive |
| Ingress Protection | IP67 |
| Weight | 152g |
