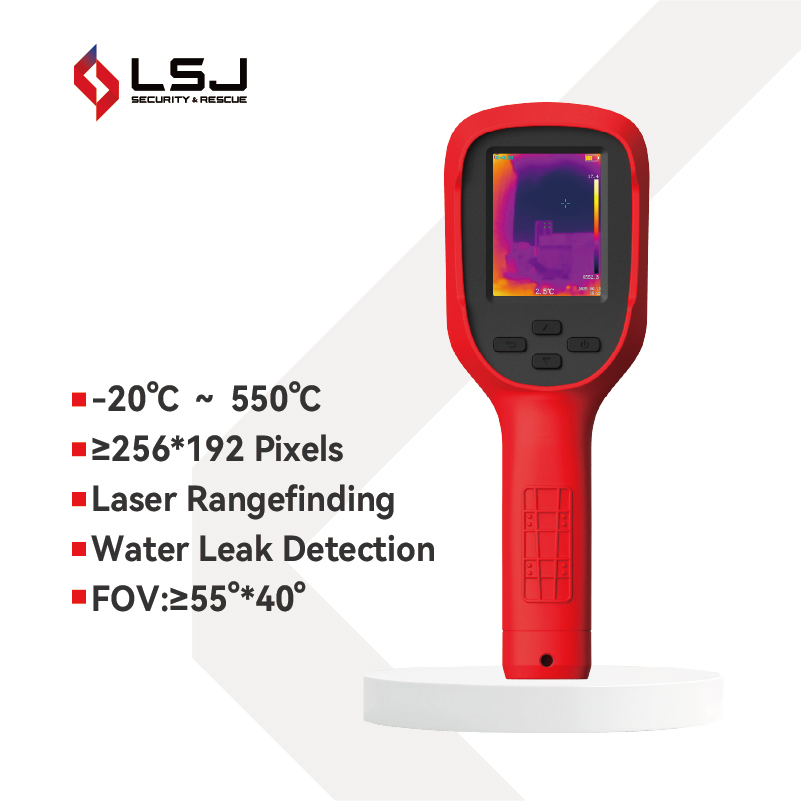

Thermal Imaging Camera with Digital Zoom for Industrial Equipment Monitoring

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
E310 Plus
Standard
Celsius/Fahrenheit
Accuracy
≥2°C
Usage
Industrial, Household
Display
Digital 2.8" TFT
Detector Pixel
256×192
Wavelength
8 - 14μm
Temp Range
-20°C - 550°C
Protection
IP65/IP67
Weight
450g (Main Unit)
📋 Product Description

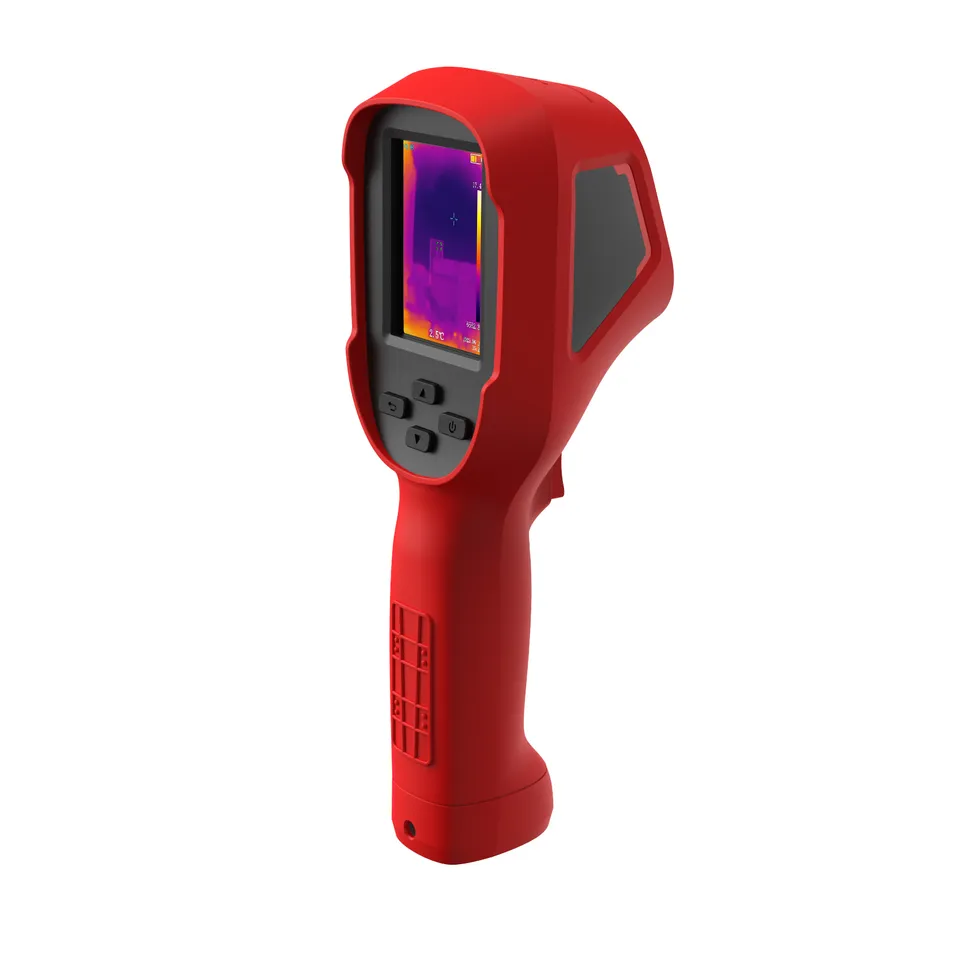

Thermal Imaging Camera

Product Brief Introduction:

A compact, lightweight and portable infrared thermal imager, ready for instant use. It displays real-time temperature and thermal imaging, supports cold/hot spot tracking and multi-palette switching, with a wide temperature measurement range and high-precision performance. Featuring dual-mode HD imaging with high frame rate output, it delivers stable, reliable performance and high-definition imaging. Widely used in warehouse inspection, smoke search, earthquake rescue, night search, tunnel collapse and industrial testing.

🌐 Application Scenarios

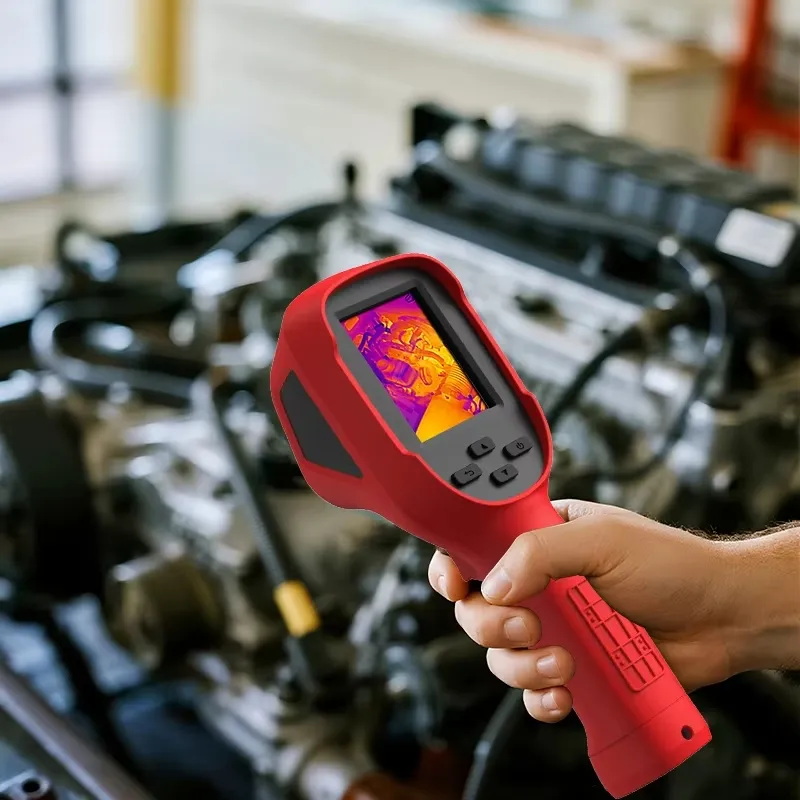

Application 1

This infrared thermal imager is designed for a wide range of professional inspection and search applications. It is commonly used in search and rescue operations, such as locating victims in earthquake debris, tunnel collapses, or smoke-filled environments. Firefighters and emergency teams can use it for smoke penetration and night search to quickly identify heat sources and human presence. In industrial settings, it helps with equipment inspection, electrical fault detection, and overheating monitoring.

Functional Characteristics

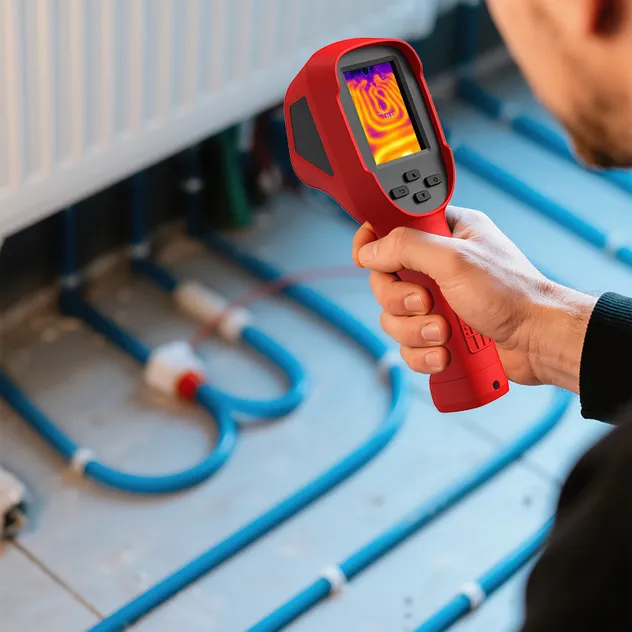

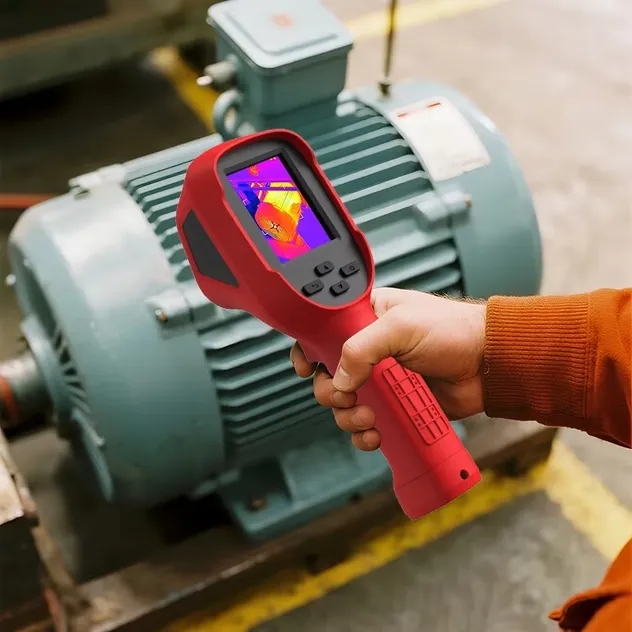

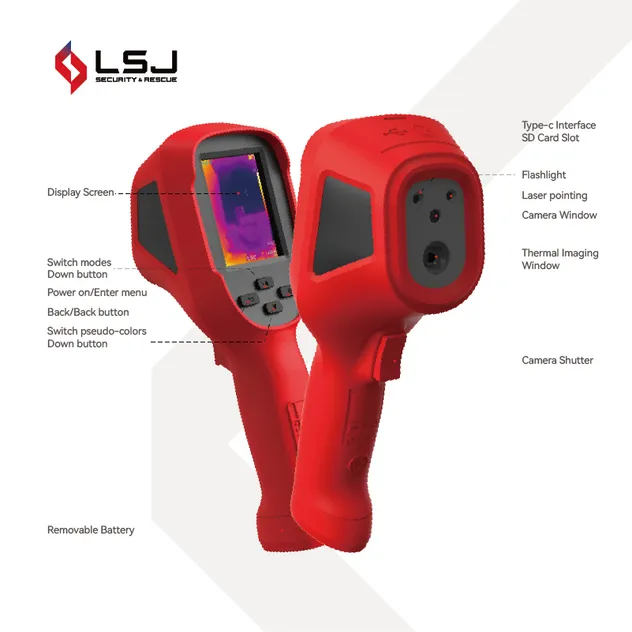

Feature 1 Feature 2 Feature 3
📱
HD Large Screen: Full-view display, clearly showing thermal imaging and temperature data.
🎯
Accurate Tracking: Supports hot/cold tracking, precise measurement within wide range.
👁️
Dual-Mode Quality: Infrared and visible light modes, clear and smooth imaging.
⚙️
Versatile Adjustments: Multi-language, palette and unit customization.

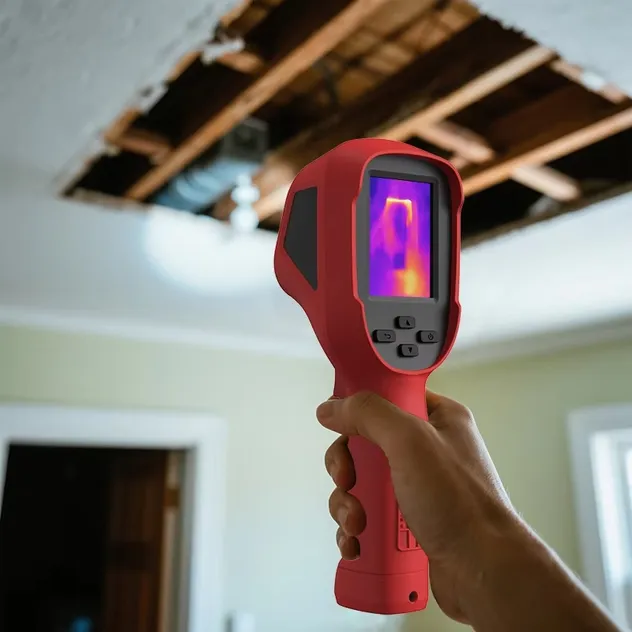

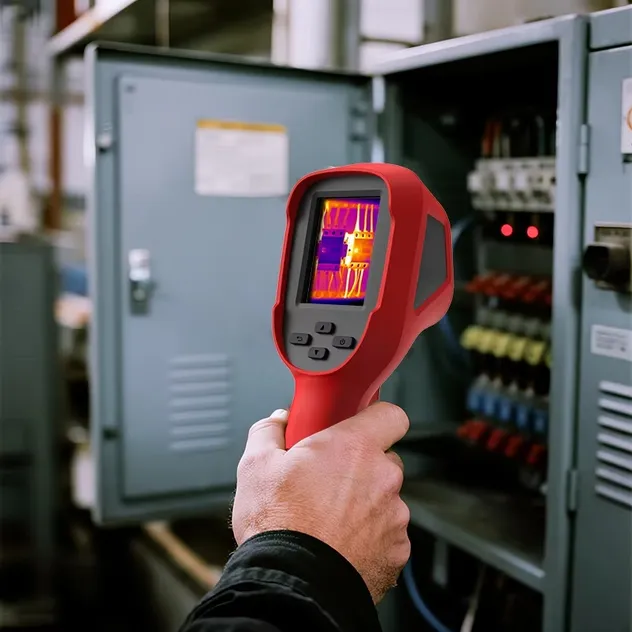

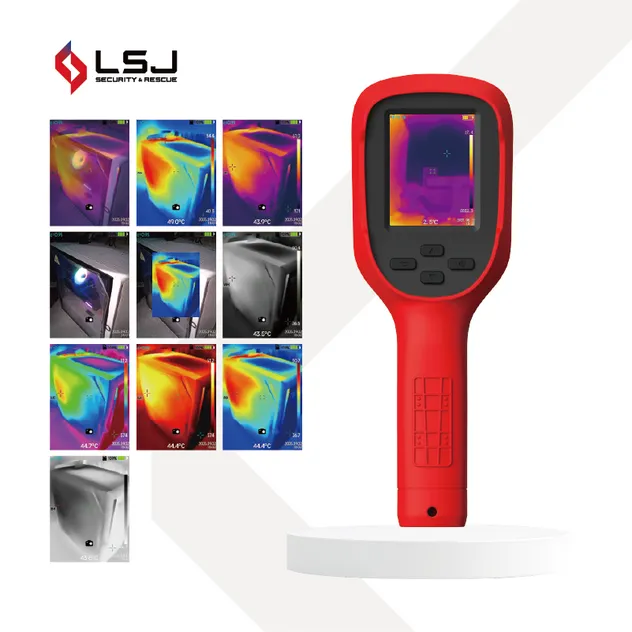

Feature 4 Feature 5 Feature 6
🛠️ Technical Specifications
Detector & Imaging
Detector Pixel256×192
Operating Wavelength8 - 14μm
NETD (Thermal Sensitivity)50mK
Sampling Frame Rate25Hz
Digital Zoom1X - 4X digital zoom
Visible Light2 million pixels
Measurement & Environment

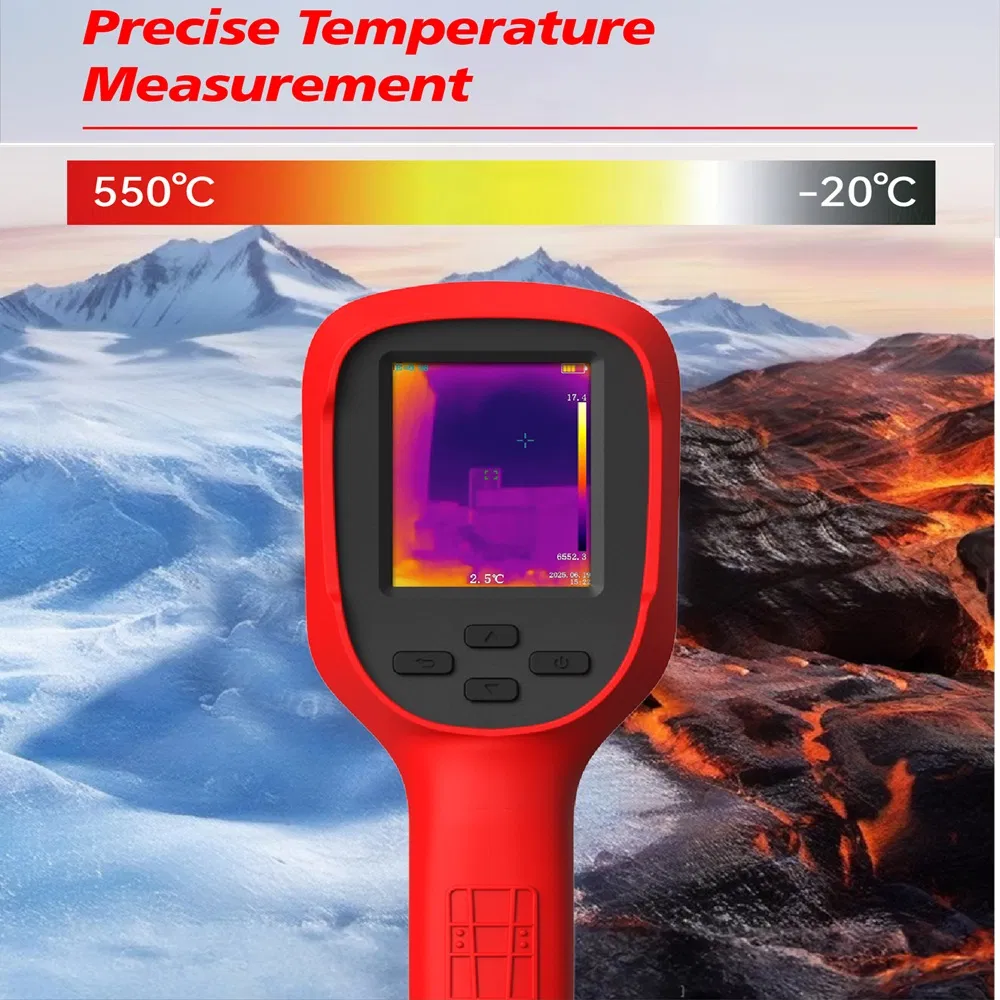

Dynamic Temperature Range-20°C - 550°C
Measurement Accuracy±2°C or ±2%
Display Screen2.8" TFT-LCD (640×480)
Operating Time>5 hours (Lithium-ion)
Protection LevelIP65/IP67
🤝 Service & Support
Support

We provide comprehensive after-sales service including on-site training, joint rescue drills, and customized training programs. Our technical specialists provide 24/7 online assistance for troubleshooting and operational guidance.

🏢 Company Profile
Company

Established in 2010, LSJ specializes in advanced detection instruments including Radar Life Detectors, Infrared Thermal Imagers, and Gas Detectors. We offer tailored OEM/ODM solutions and focus on driving technological innovation for emergency rescue industries worldwide.

🖼️ Exhibition & Factory

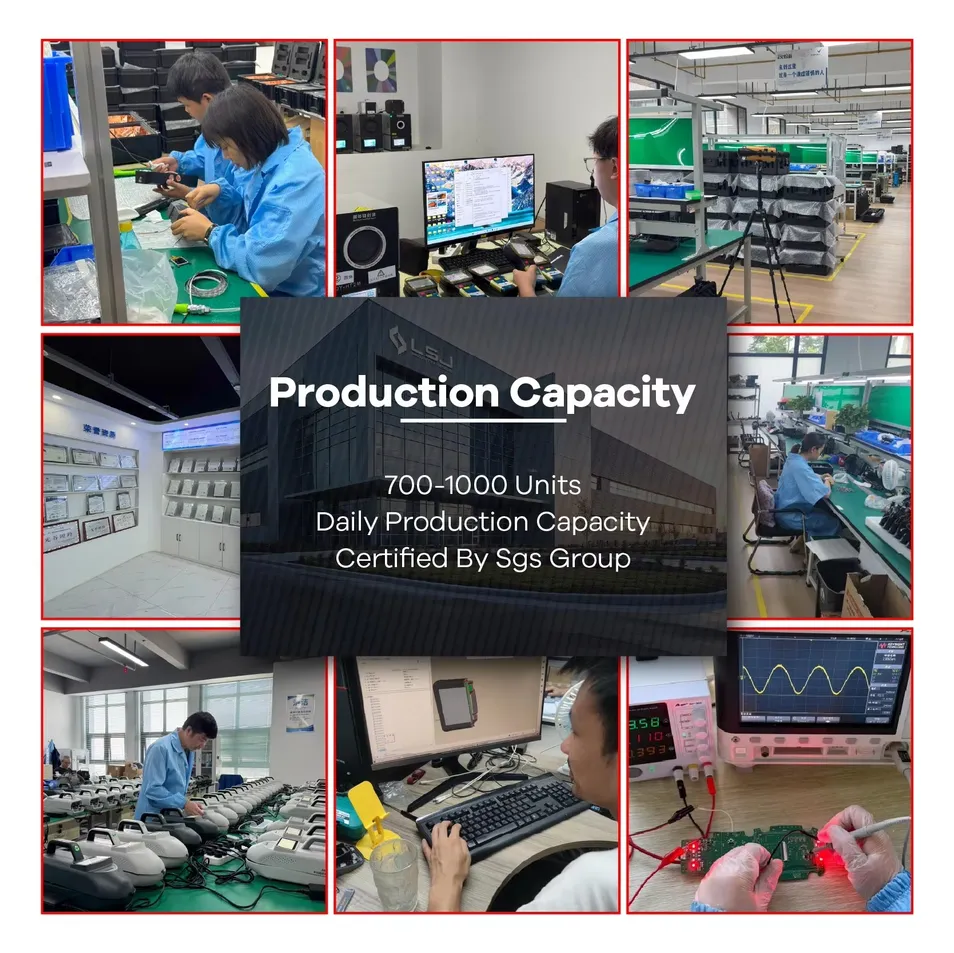

Factory Overview

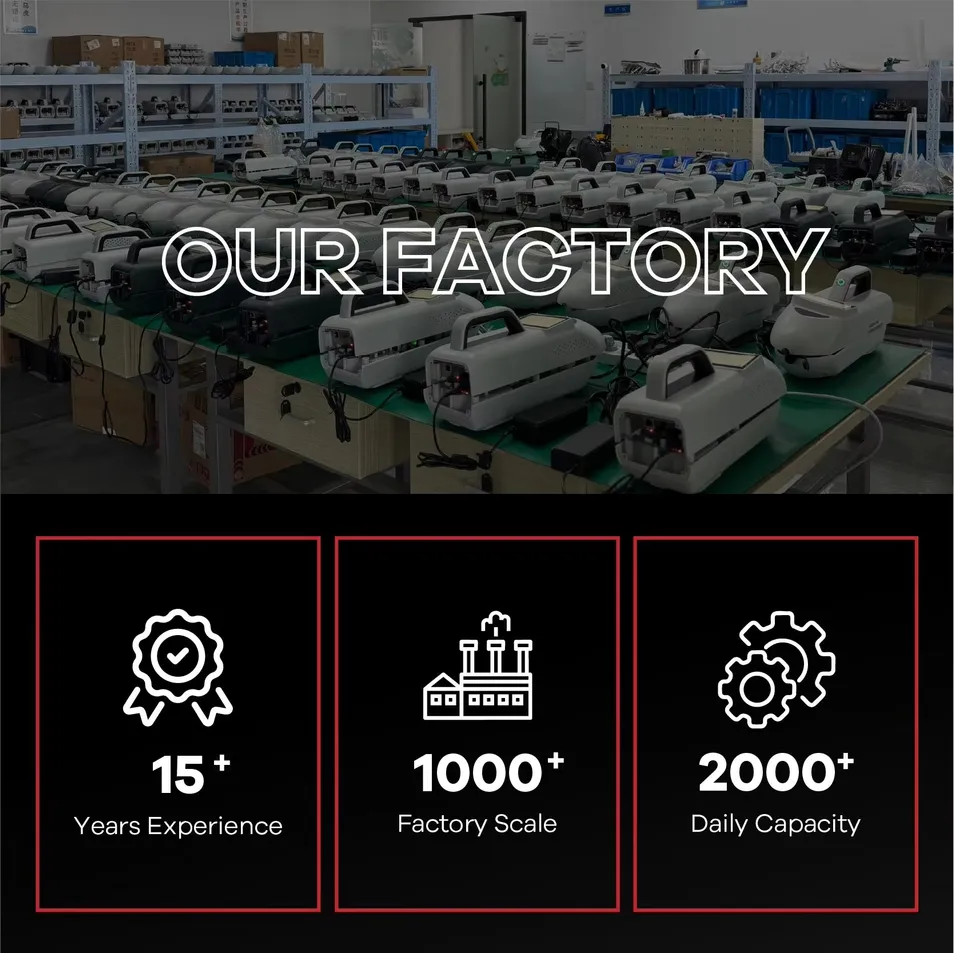

Exhibition 1 Exhibition 2

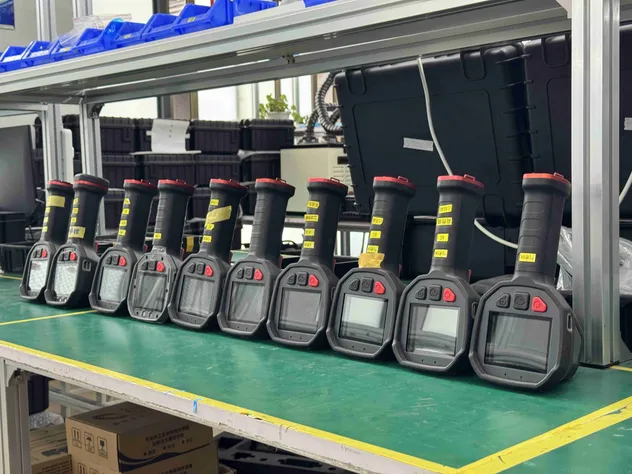

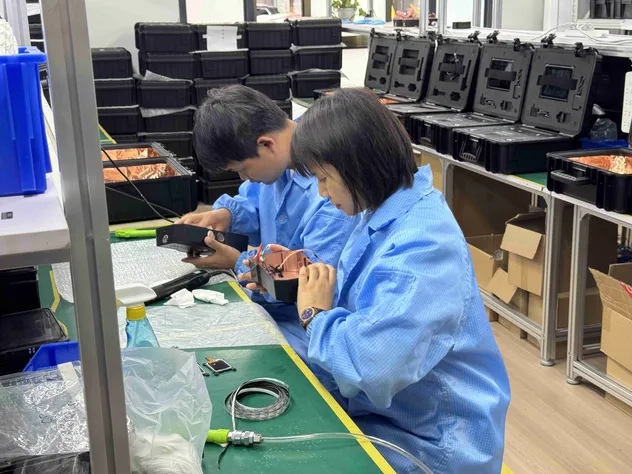

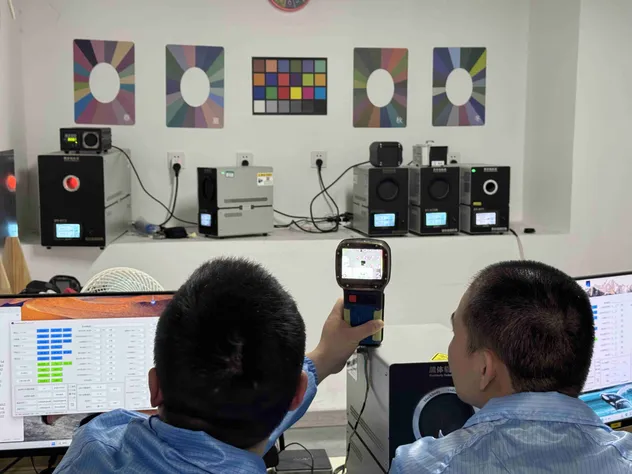

Drill 1 Drill 2 Drill 3
Exhibition Hall
Frequently Asked Questions
What is the resolution of the thermal detector?
The E310 Plus features a high-performance detector with 256×192 pixels, providing clear and detailed thermal images.
What is the temperature measurement range?
The device supports a wide dynamic measurement range from -20°C up to 550°C, suitable for both rescue and industrial monitoring.
Does it have an alarm for high temperatures?

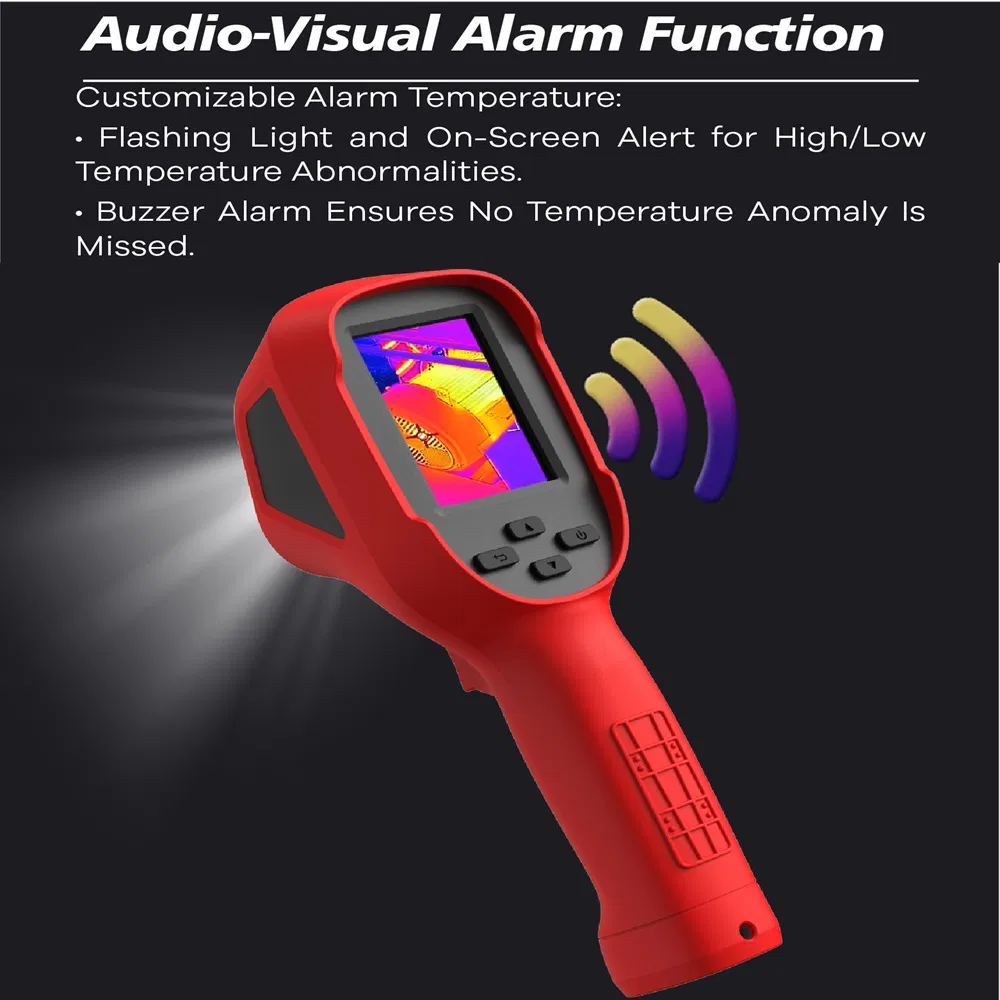

Yes, it is equipped with high and low temperature alarm functions featuring LED flashing and screen alerts.
Can I record and store the imaging data?

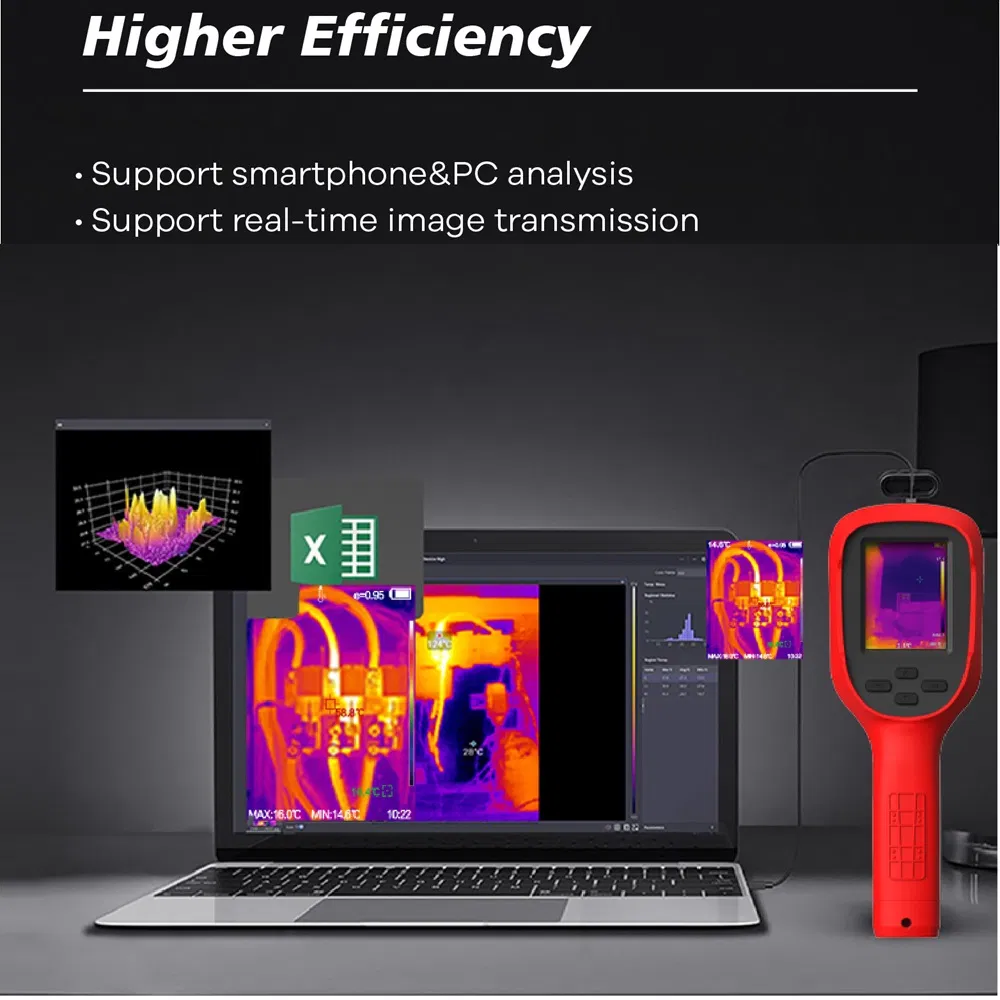

Yes, it supports SD card storage with various capacity options (up to 128G) and Type-C interface for data transmission.
Is the device durable for outdoor use?
Absolutely. It is designed with an IP65/IP67 protection level, making it resistant to dust and water in harsh environments.
What are the payment and shipping terms?
We accept TT and Western Union (30% deposit, 70% before delivery). Fast shipping via DHL/UPS/FedEx/EMS is available.
