Predictive Maintenance for Wind Turbines Inspection Crawler Camera

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information Overview
Type
CCTV Camera
Sensor
CCD
HDMI Format
1080P
Horizontal Resolution
650tvl
Certification
CE, ISO9001: 2000
Feature
Waterproof, High Definition, Auto BLC
Effective Distance
≧30m
Sensor Size
1/3 inch
Waterproof
IP68
Resolution
1080P
Screen Size
10 Inch
Working Temperature
-10-50℃
Rotation Feature
360° Endless Pan, 220° Tilt
Measurement
Laser Measurement
Zoom
10x Optical
Product Description

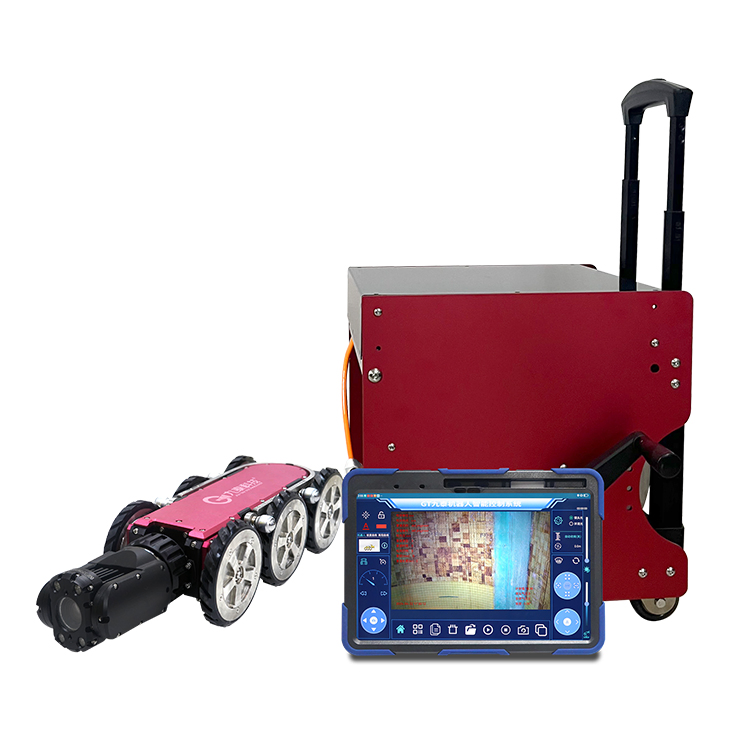

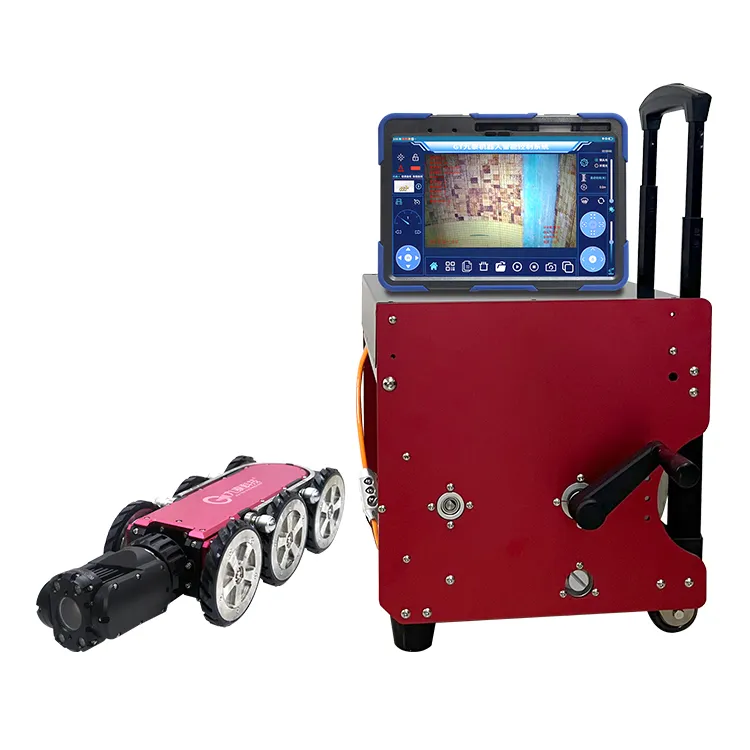

Predictive Maintenance for Wind Turbines - Inspection Crawler Camera

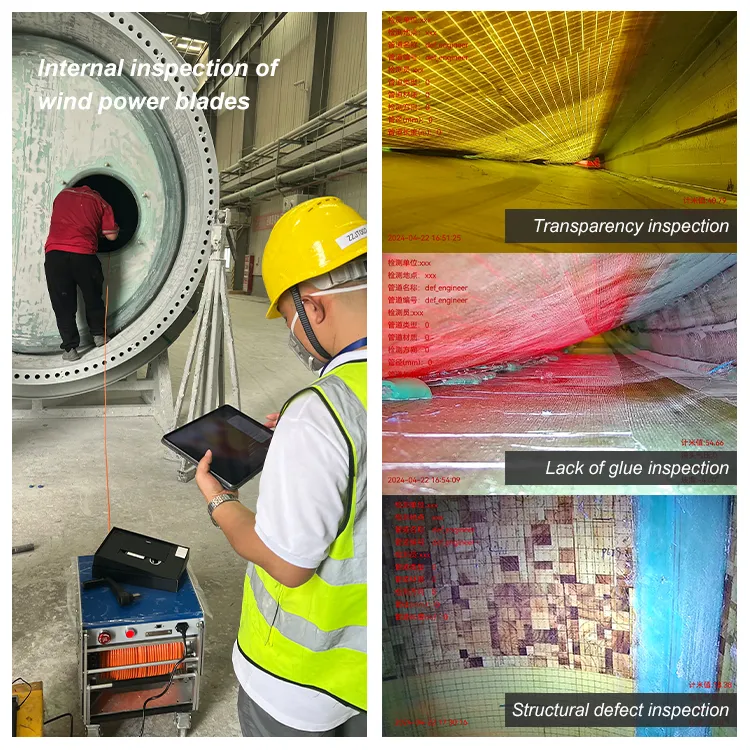

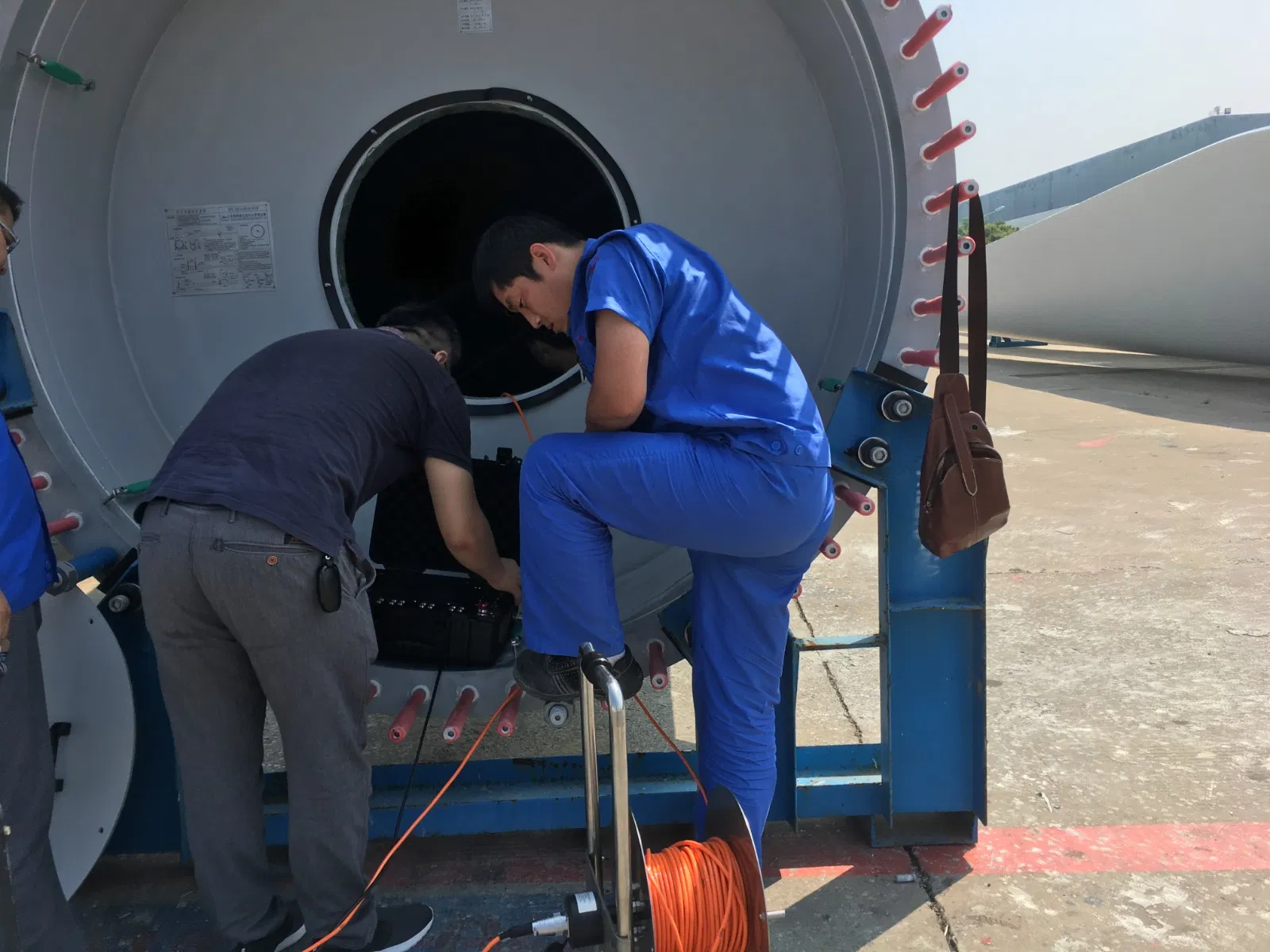

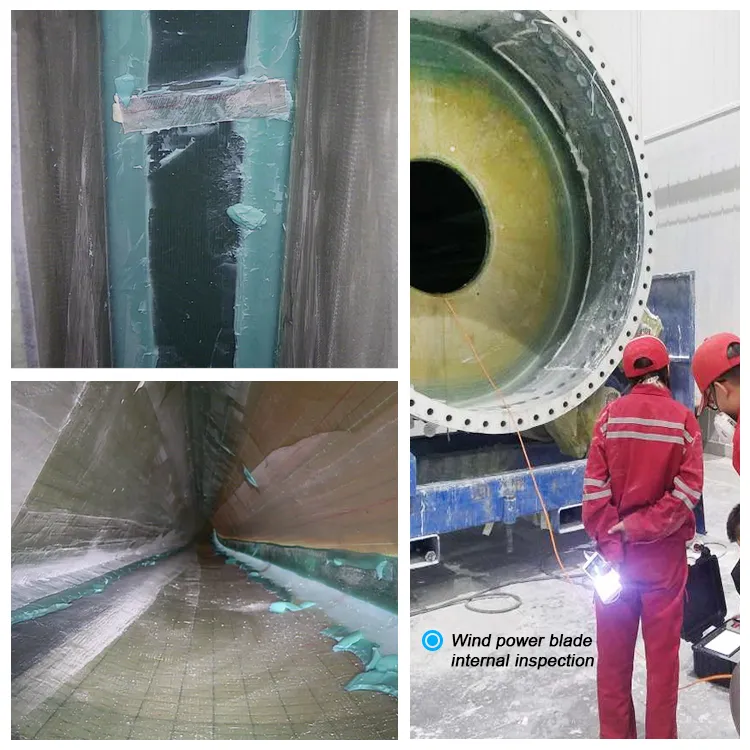

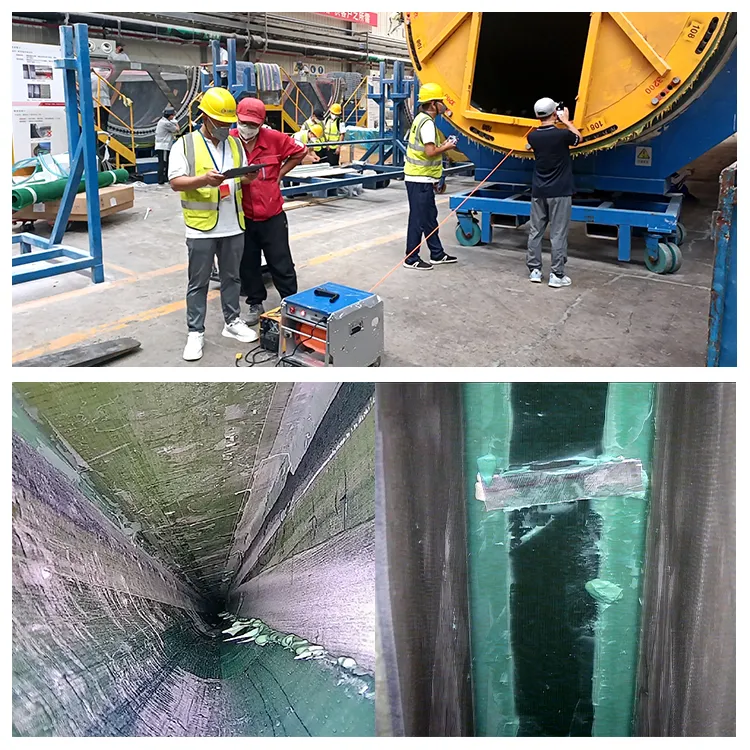

Introducing the Smart Wind Blade Inspection Equipment with a 1080P resolution camera. This advanced pipe inspection robot is perfect for industrial pipeline inspections, drain pipe inspections, and wind turbine blade inspections. With its high-resolution CCTV camera, it provides clear and detailed footage for accurate assessments. The crawler robot design allows for easy maneuverability in various environments.

The wind Turbine Blade Crawler Inspection is designed to meet the needs of various industries, including technical supervision, energy, electric power, petrochemical, shipbuilding, rail transit, aerospace, and research institutes.

Product Parameters
Suitable DiameterPipe diameter: 220-2500mm
Cable LengthStandard 100m (Customized 80-400m available)

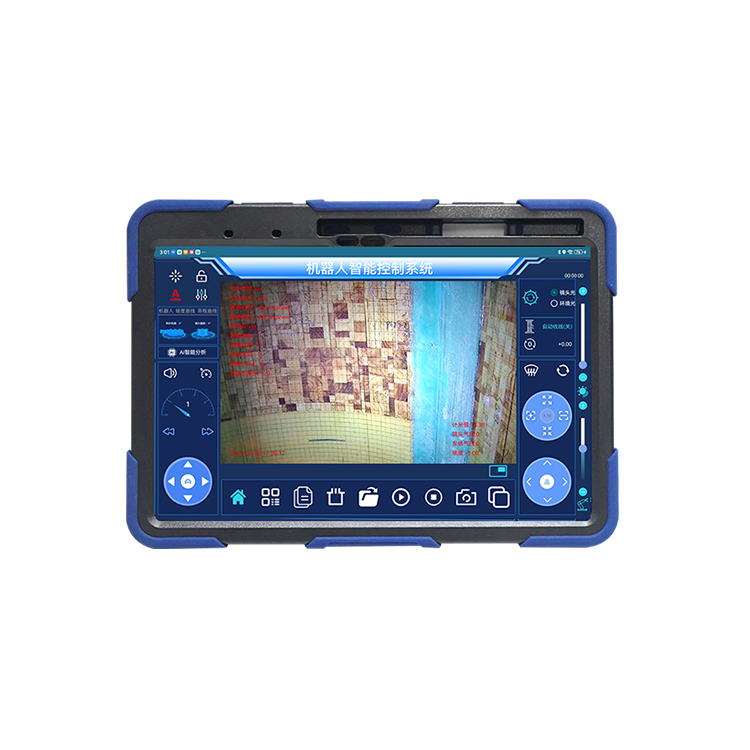

Screen Size10 inch
Resolution1920*1080P
Pixels4,000,000
BrightnessAdjustable
Wheel Size110mm
BarrowAutomatic electrical barrow
Smart Features & Detailed Photos

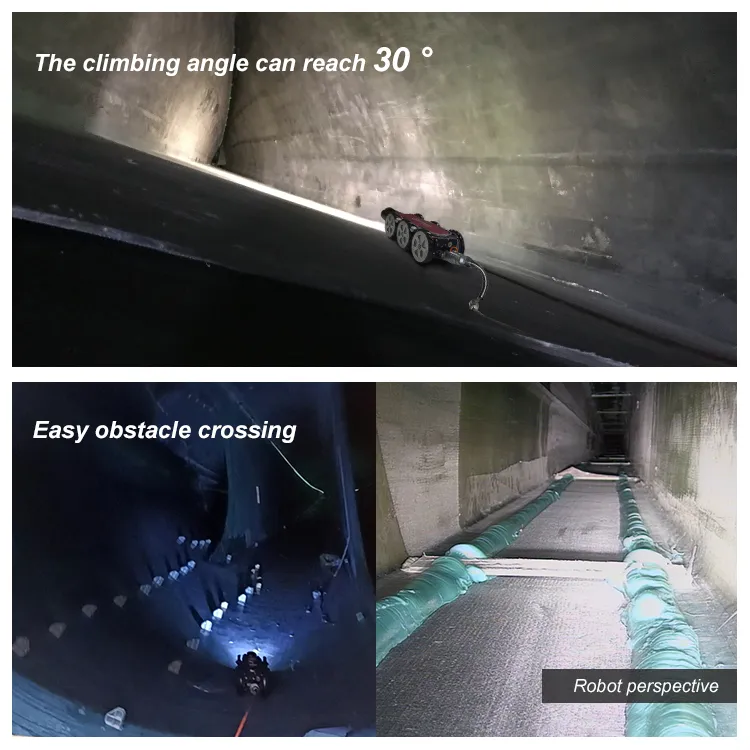

  • Unparalleled Mobility: Moves forward, backward, and turns freely. Variable speed control (1-25m/min) ensures efficient inspections.

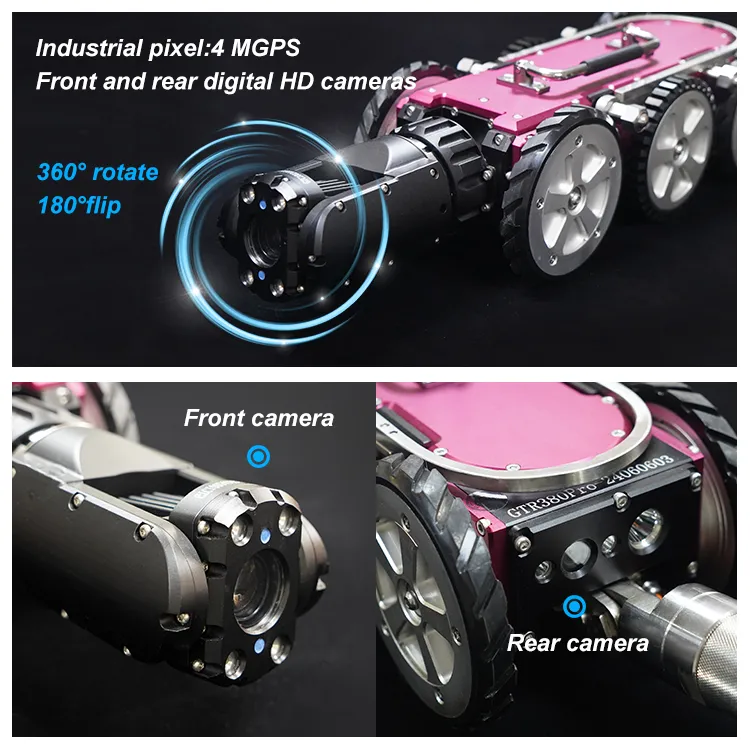

  • 360° Comprehensive View: Micro cradle color lens with 220° radial direction and 360° axial infinite rotation.
  • Advanced Optical Technology: Features electrical focusing, 10-time optical zoom, and electrical zoom for crystal-clear images.

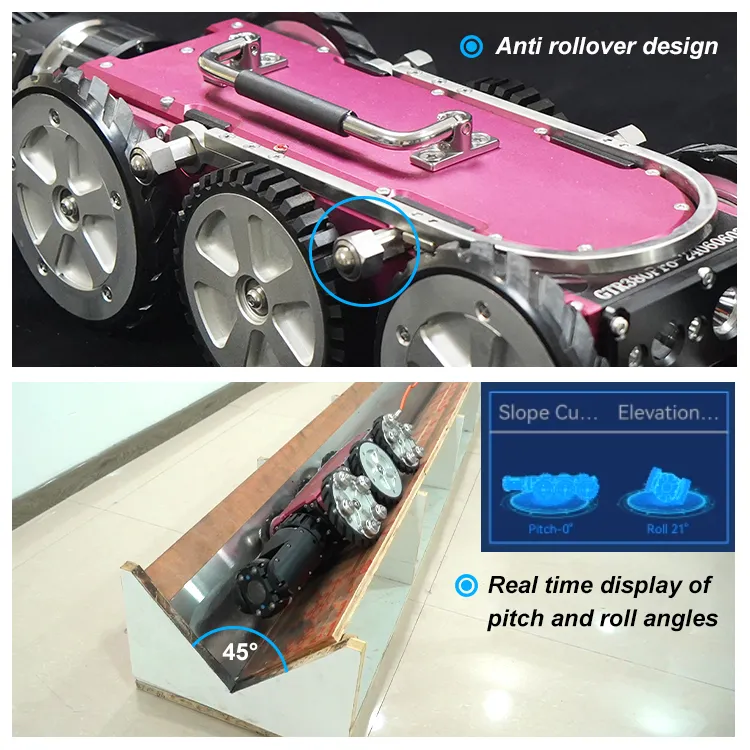

  • Industrial Grade Durability: Aluminum alloy coated cart with 4-wheel drive, built to withstand tough conditions with heat and anti-corrosion properties.

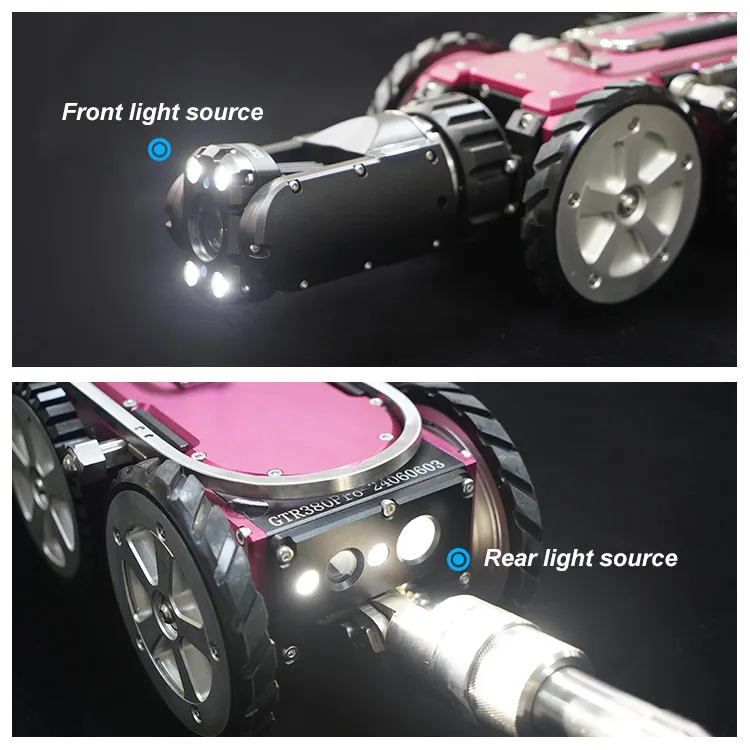

  • Enhanced Lighting: Double ambient light design providing illumination up to 40,000 LUX for low-light environments.
Product Name: Robotic NDT (Non-Destructive Testing) Wind Blade Crack Detection

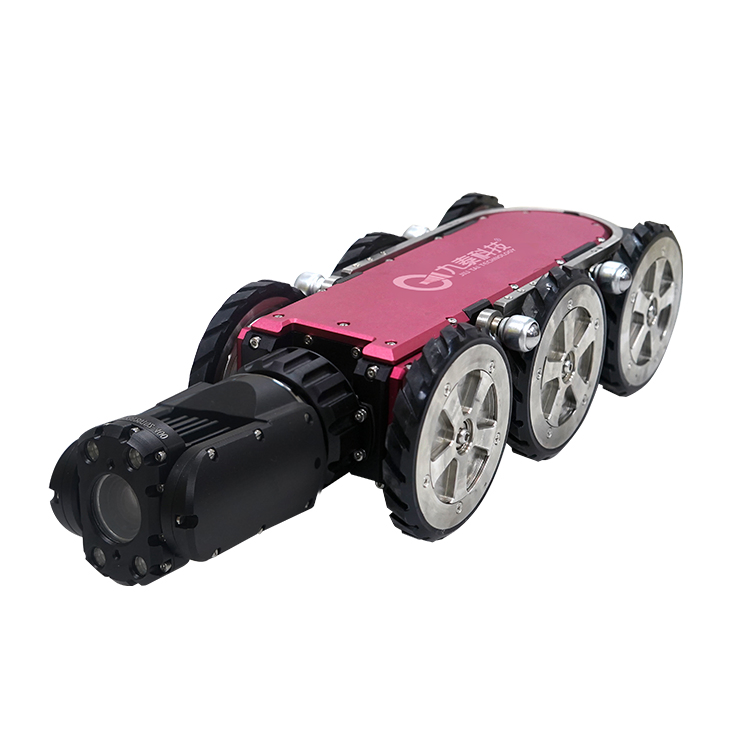

Description: This high-quality pipe inspection robot is equipped with a 1080P camera, 6-wheel independent drive, and center transition to increase barrier ability and crawling speed.
Certifications
Packaging & Delivery
Package Size
76.00cm * 56.00cm * 83.00cm
Gross Weight
72.000kg
Lead Time
5 days (1-1 Pieces); Negotiable (>1 Pieces)
Frequently Asked Questions (FAQ)
Q1: What is the maximum resolution of the crawler camera?
A: The system features a 1080P (1920*1080) high-definition camera with 4 million pixels for crystal clear inspection footage.
Q2: Can the camera be used in wet or underwater environments?
A: Yes, the camera and crawler unit are IP68 waterproof rated, making them suitable for drain pipes and other wet industrial environments.
Q3: How much area can the camera lens cover?
A: The micro cradle head provides a 360-degree endless axial rotation and a 220-degree radial tilt, ensuring no blind spots during inspection.
Q4: What pipe diameters is this crawler robot suitable for?
A: This crawler is designed for pipe diameters ranging from 220mm up to 2500mm.
Q5: Is there a zoom feature for detailed crack detection?
A: Yes, the equipment supports 10x optical zoom and additional electrical zoom to capture minute details like cracks in wind turbine blades.
Q6: What is the standard cable length provided?
A: The standard cable length is 100 meters, but it can be customized from 80 meters up to 400 meters depending on your project requirements.
