Industrial Infrared Thermal Camera for Equipment Diagnostics and Safety Inspection

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.E310 Plus
StandardCelsius/Fahrenheit
Accuracy≥2°C
UsageIndustrial, Household
DisplayDigital
Hygrometer TypeInfrared Detection
Detector Pixel256×192
Dynamic Temp Range-20°C - 550°C
Protection LevelIP65/IP67
Display Screen2.8" TFT
Main Unit Weight450g

Product Description

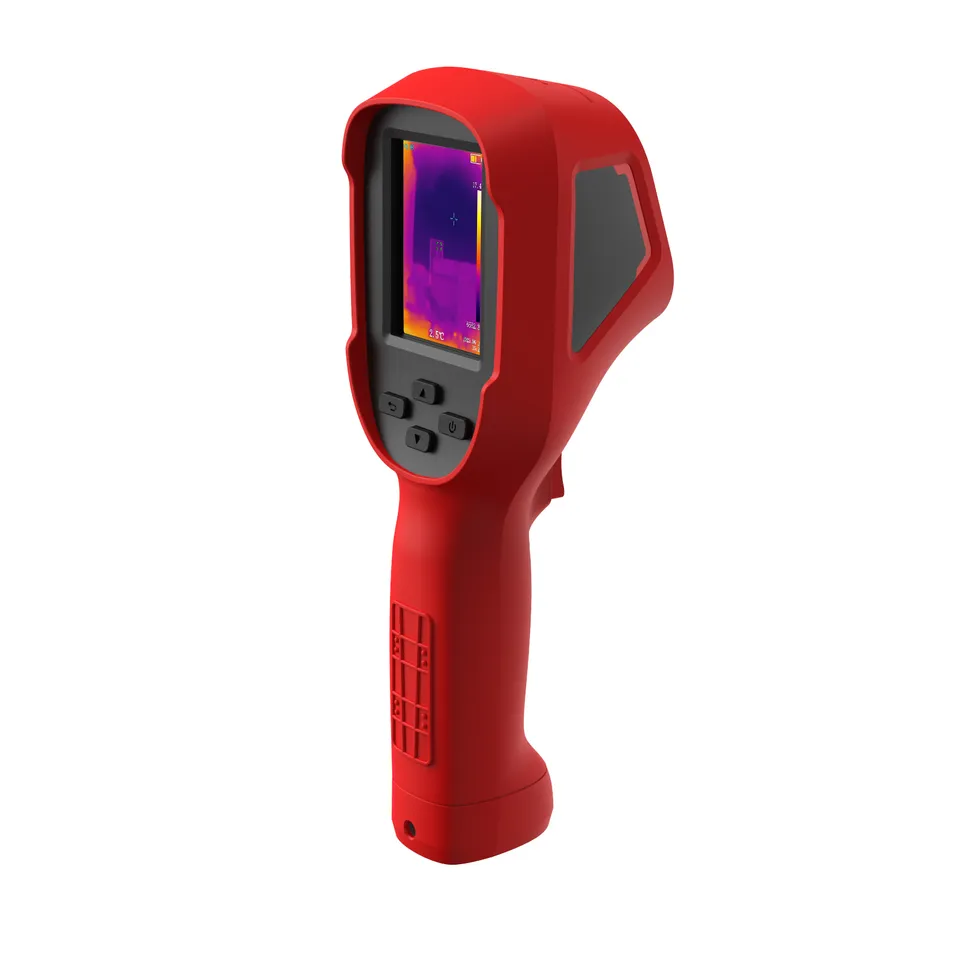

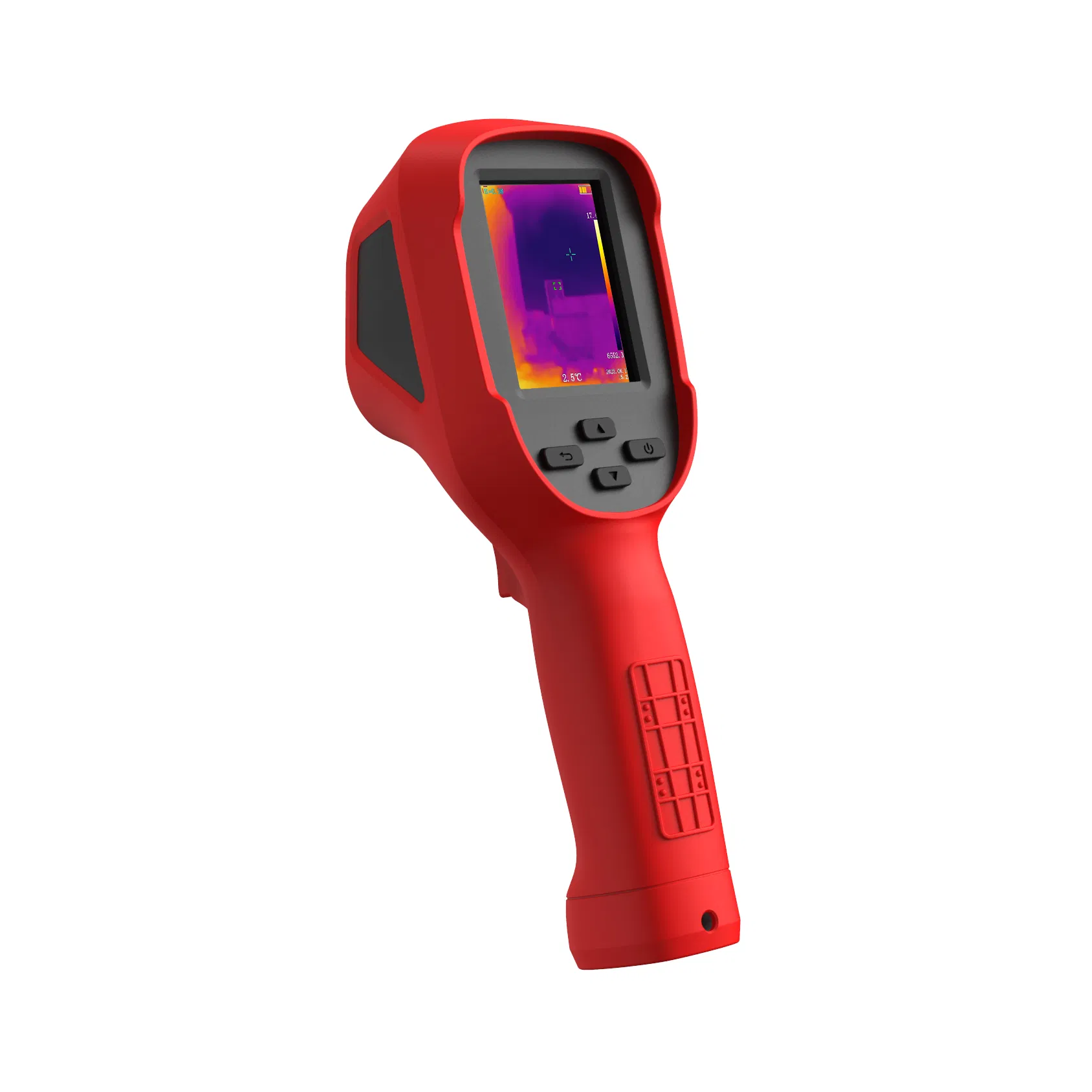

Industrial Infrared Thermal Camera

Product Introduction:
A compact, lightweight and portable infrared thermal imager, ready for instant use. It displays real-time temperature and thermal imaging, supports cold/hot spot tracking and multi-palette switching, with a wide temperature measurement range and high-precision performance. Featuring dual-mode HD imaging with high frame rate output, it delivers stable, reliable performance and high-definition imaging.

Application Scenarios

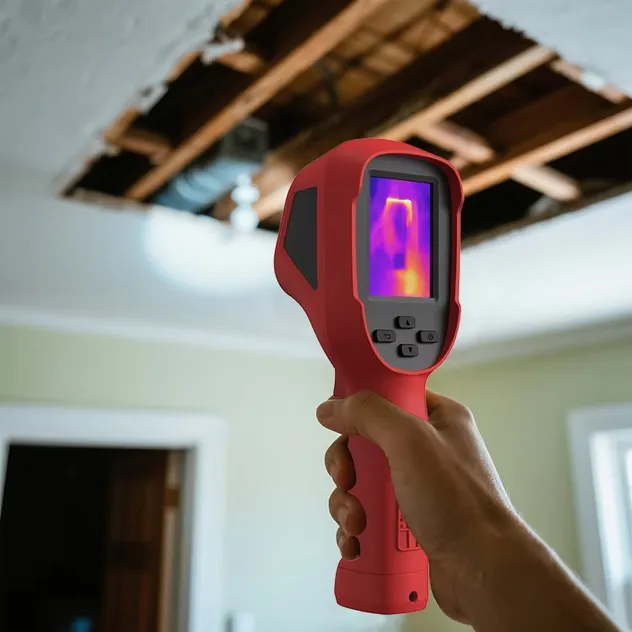

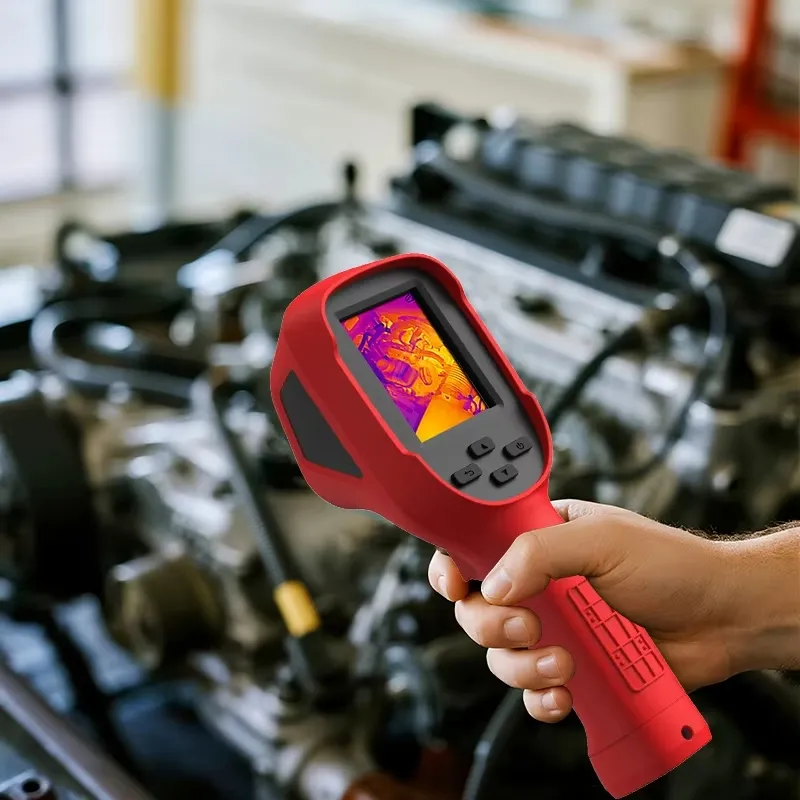

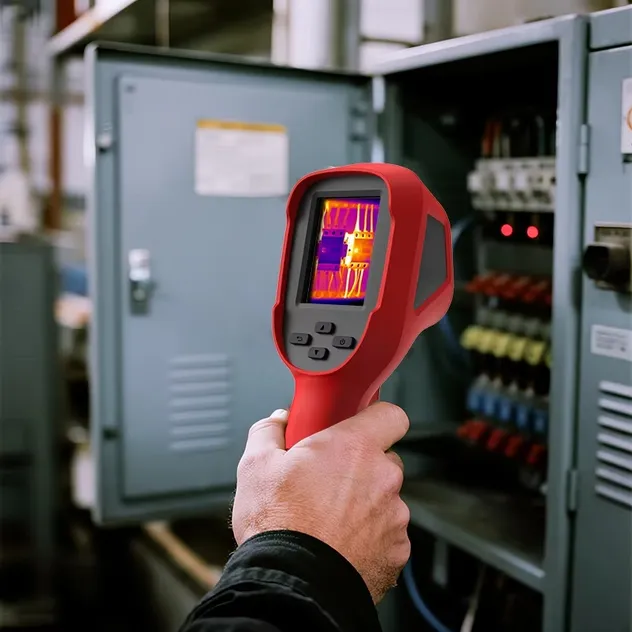

This infrared thermal imager is designed for a wide range of professional inspection and search applications. It is commonly used in search and rescue operations, such as locating victims in earthquake debris, tunnel collapses, or smoke-filled environments. In industrial settings, it helps with equipment inspection, electrical fault detection, and overheating monitoring. It is also suitable for warehouse inspection, building maintenance, pipeline checks, and outdoor night patrols.

Application Scenarios

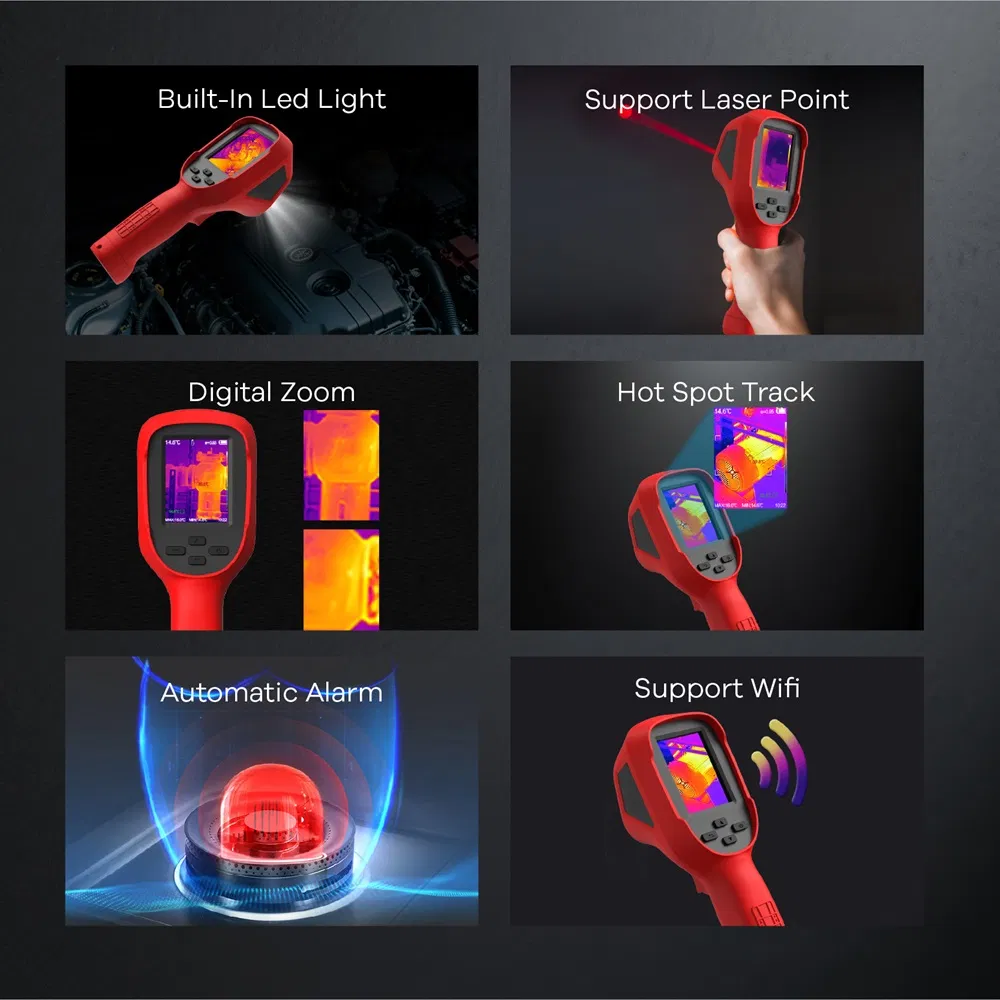

Functional Characteristics

Feature 1

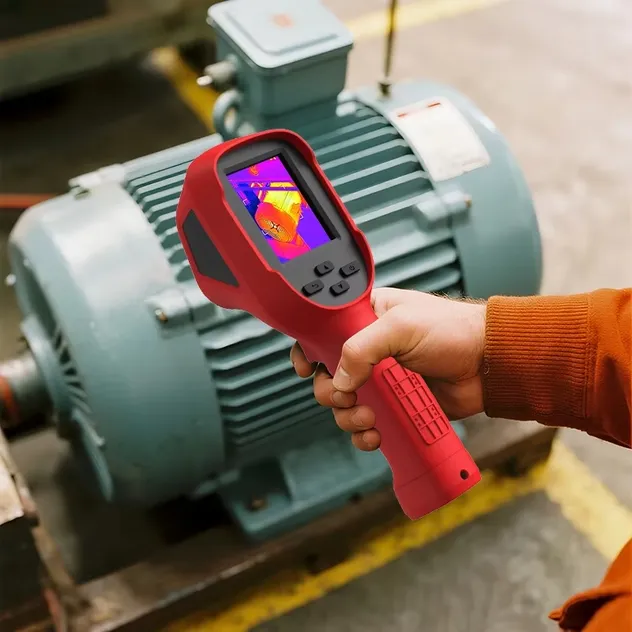

Feature 2

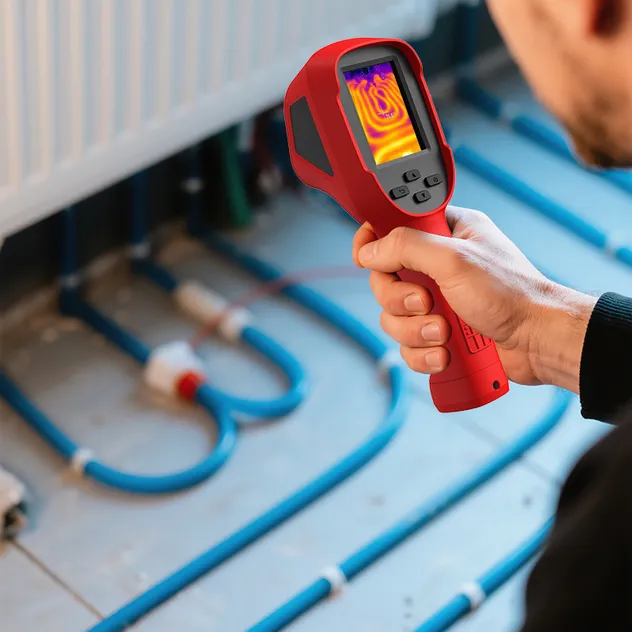

Feature 3
Feature 4
Feature 5
Feature 6

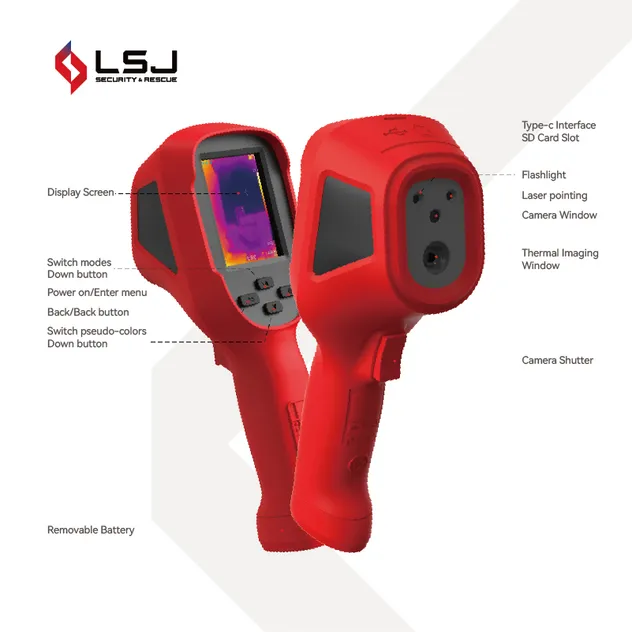

HD large screen:Full-view display, clearly showing thermal imaging and temperature data.
Accurate temperature tracking:Supports hot/cold tracking, precise measurement within wide range.

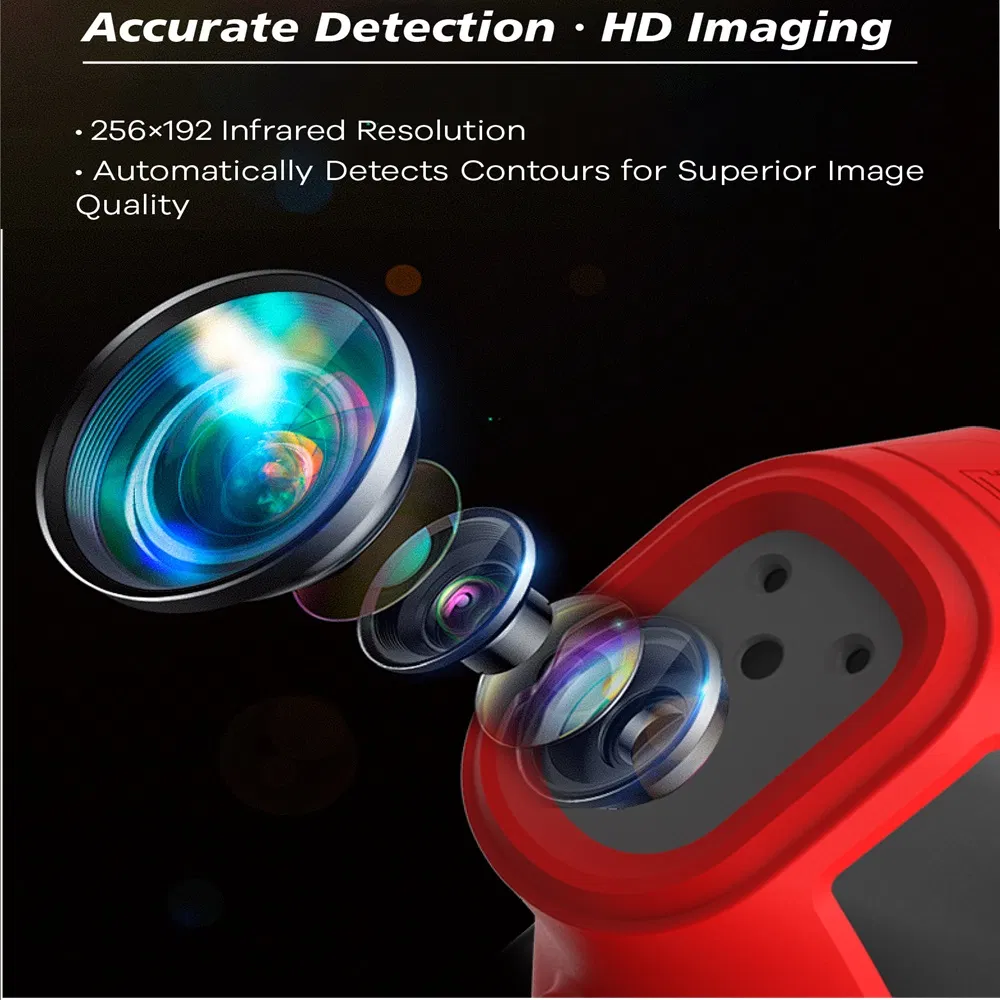

Dual-mode high quality:Infrared and visible light modes, clear and smooth imaging.

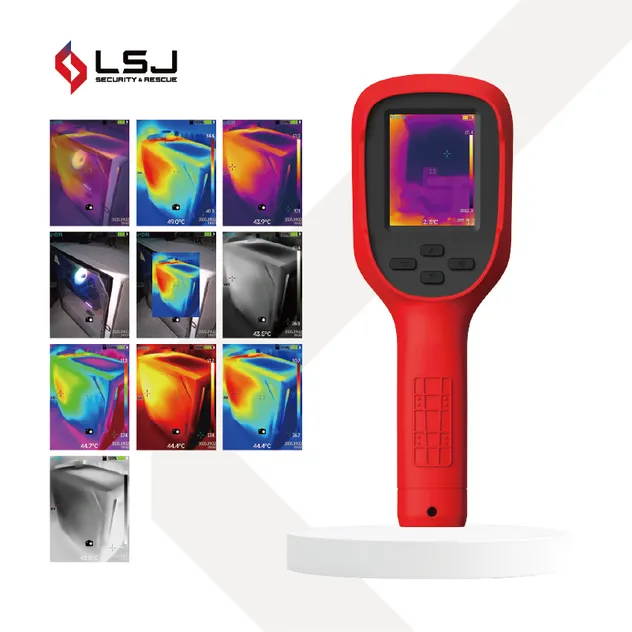

Versatile adjustments:Multi-language, palette and unit customization.

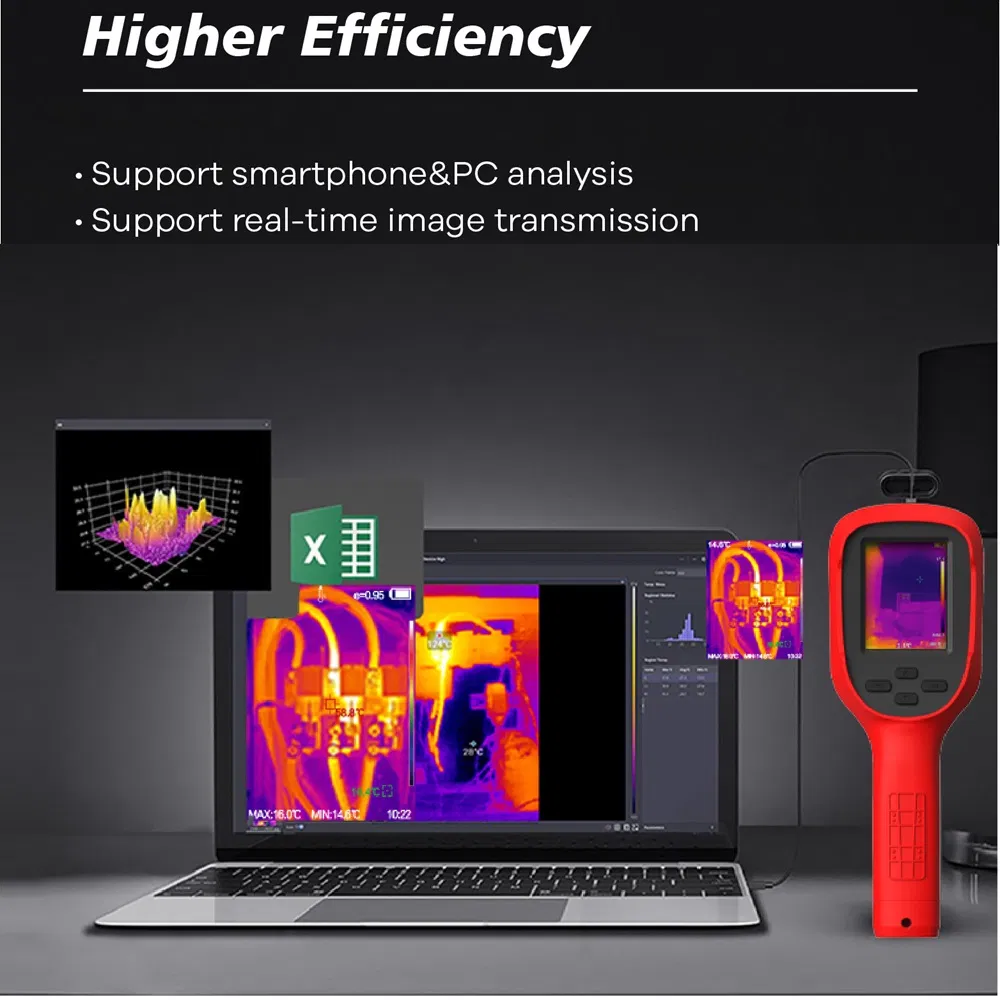

Easy storage:Large capacity, multi-format compatibility, integrated transmission and charging.
Lightweight design:Compact design, wide viewing angle for diverse scenarios.
📋

Technical Specifications

Detector
Detector Pixel256×192
Operating Wavelength8 - 14μm
NETD (Thermal Sensitivity)50mK
Image Processing
Sampling Frame Rate25Hz
Digital Zoom1X - 4X digital zoom
Visible Light2 million pixels
Temperature Measurement
Dynamic Range-20°C - 550°C, automatic switching
Accuracy±2°C (within 100°C) or ±2% (above 100°C)
Power & Environment
Battery TimeRechargeable Li-ion, >5h operating time
Protection LevelIP65/IP67

Support & Manufacturing

Support Services

We are committed to providing comprehensive and reliable after-sales service. We offer on-site training conducted by professional technical teams, enabling operators to master equipment setup and rescue applications. Our focus on technological excellence ensures reliable, high-performance solutions tailored to industry needs. As a global provider, we specialize in advanced instruments like Radar Life Detectors, Infrared Thermal Imagers, and Radiation Monitors.

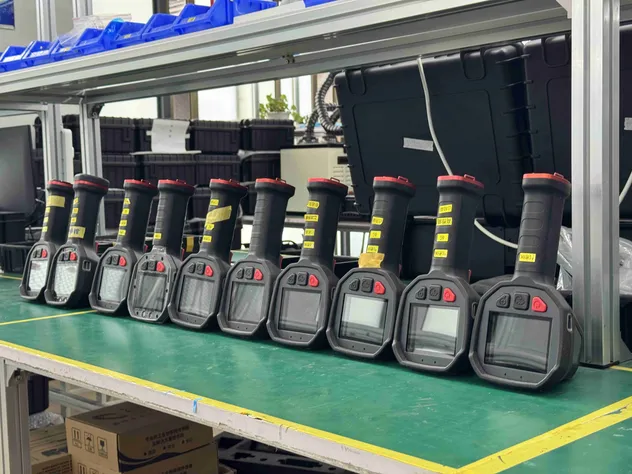

Production
Factory Overview
🌐

Global Exhibition

Exhibition 1
Exhibition 2
Exhibition 3
Exhibition 4
Exhibition 5
?

Frequently Asked Questions

What are the main applications of this thermal camera?
It is ideal for search and rescue (earthquake, smoke, night search), industrial equipment diagnostics, electrical fault detection, and warehouse safety inspections.
Does the E310 Plus support visible light imaging?
Yes, it features a dual-mode system with a 2-megapixel visible light camera alongside the infrared sensor for clearer target identification.
How accurate is the temperature measurement?
The accuracy is ±2°C for temperatures within 100°C, and ±2% for temperatures above 100°C, covering a wide range from -20°C to 550°C.
Is the device durable for outdoor use?
Yes, it is designed with an IP65/IP67 protection level, making it resistant to dust and water, suitable for harsh environments and rescue operations.
What storage options are available?
The device supports SD card storage with plug-and-play functionality. Internal memory options range from 4G up to 128G.
How long does the battery last on a full charge?
The rechargeable lithium-ion battery provides more than 5 hours of continuous operation and supports fast charging via a Type-C interface.
