📝 Product Description

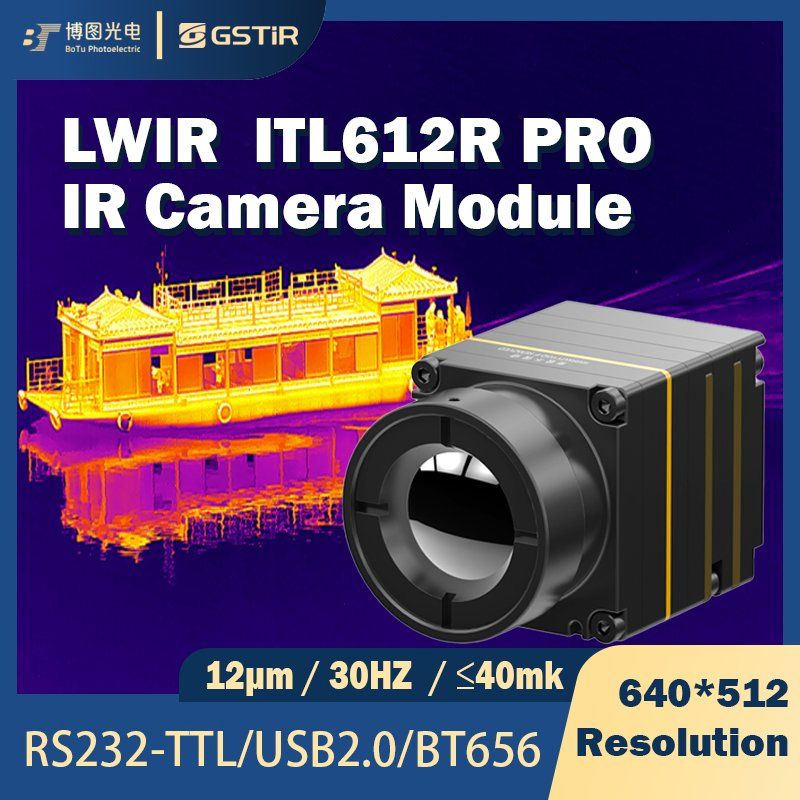

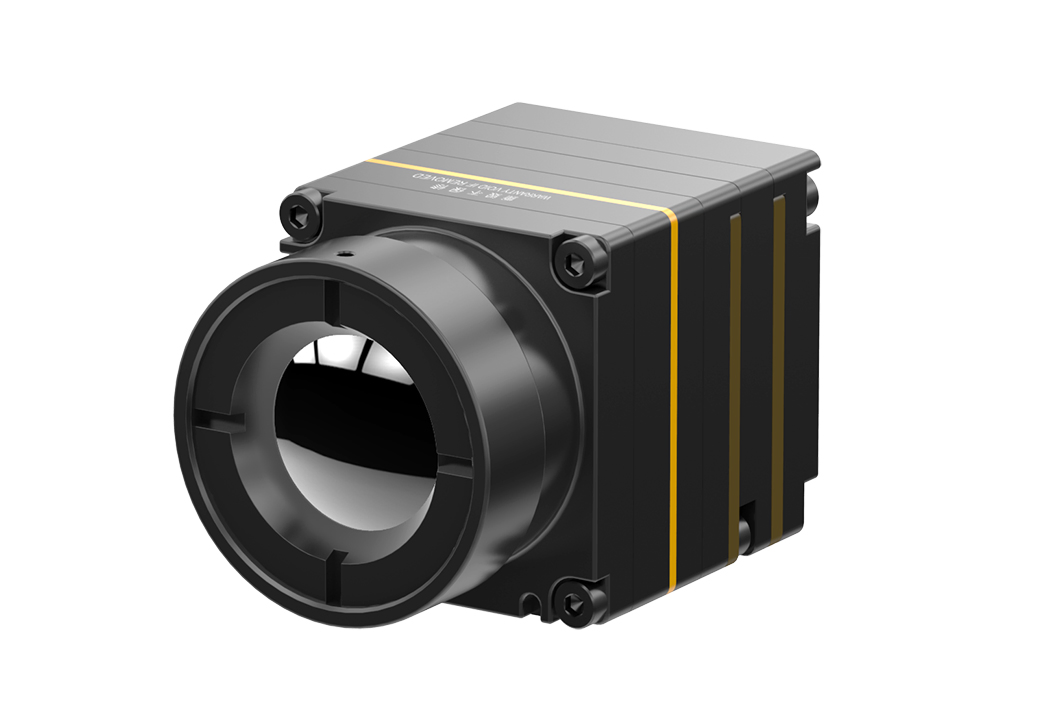

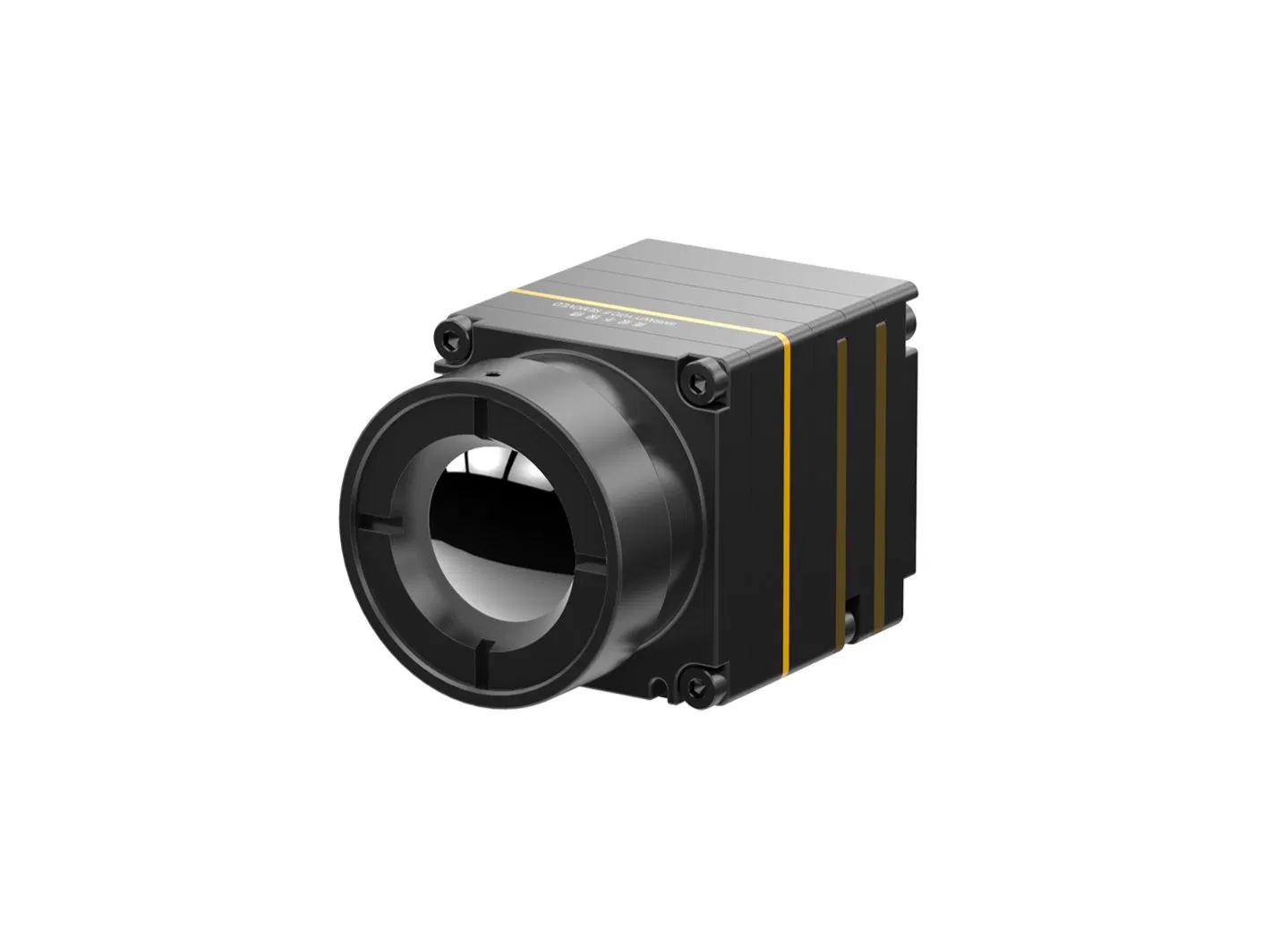

As a compact and high-performance infrared thermal imaging core specially designed for drones, the iTL612R Pro is a compact version fully optimized for SWaP-C (Size, Weight, Power, and Cost), standing at the forefront of the industry in terms of miniaturization and lightweight design. Equipped with a 640×512/12μm wafer-level infrared detector and IP67 lens protection, it offers both imaging and temperature measurement versions, along with various SDK solutions. With its ultra-small size, light weight and low power consumption, it effectively solves integration challenges for compact portable products, especially ideal for systems with strict size and weight requirements. It delivers clear thermal images and accurate temperature measurement, providing reliable support for various professional drone applications.
🚀 Key Features
🔹 Ultra-Compact & Lightweight
Measuring only 17mm×17mm×22mm (with 9.1mm lens) and weighing merely 13g, it is easy to integrate without increasing extra burden.
🔹 Low Power Consumption
Power consumption as low as 0.7W, significantly extending the battery life for longer working hours in field operations.
🔹 Clear Imaging & Accuracy
Adopts brand-new image processing algorithms (NUC/3DNR/DNS/DRC/EE) for clear images, supporting regional, point and isotherm temperature measurement.
🔹 Multi-SDK Support
Compatible with Windows, Linux and ARM SDK, facilitating secondary development and shortening the R&D cycle.
🔹 Versatile Interfaces
Equipped with DVP/LVDS/USB2.0 interfaces, supporting RAW/YUV image data output and serial port control.
🌐 Applications
The iTL612R Pro thermal camera core is widely applied in multiple professional fields that require drone-mounted thermal imaging, including Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Disaster Relief & Rescue, Forest Fire Prevention and Urban Safety. It excels in scenarios such as equipment fault detection, environmental monitoring, night patrol, and emergency search, leveraging its 24-hour all-weather imaging capability to break through the limitations of visible light detection.
❓ Frequently Asked Questions
Q1: What is the primary advantage of the iTL612R PRO for drone integration?
A: Its main advantage is its extreme SWaP-C optimization. It weighs only 13g and measures 17x17x22mm, making it one of the smallest and lightest 640x512 thermal cores available, which minimizes the impact on drone flight time and payload capacity.
Q2: Does this camera core support temperature measurement?

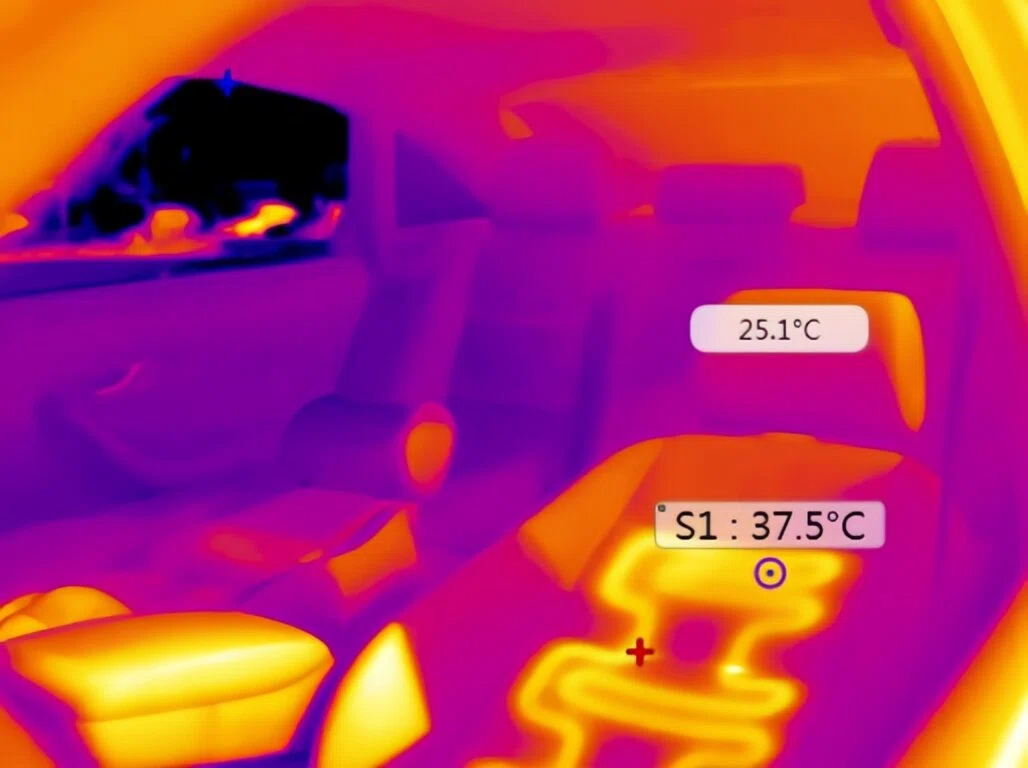

A: Yes, it is available in versions that support accurate temperature measurement, including point, regional, and isotherm measurement capabilities for professional data acquisition.
Q3: What are the power requirements for the iTL612R PRO?
A: The core is designed for high efficiency with power consumption as low as 0.7W, helping to maximize the operational battery life of portable drone systems.
Q4: Which development platforms are supported by the SDK?
A: The iTL612R PRO offers multi-platform SDK support, including Windows, Linux, and ARM, allowing for seamless secondary development across different operating systems.
Q5: What interfaces are used for video output and control?
A: The core is equipped with versatile DVP, LVDS, and USB 2.0 interfaces. It supports RAW and YUV image data output as well as serial port control for easy integration with various drone flight controllers.
Q6: Is the lens protected for outdoor use?
A: Yes, the system features IP67 lens protection, making it durable for challenging environments such as forest fire prevention and disaster relief rescue.
