Ultra-Compact Mini256 Thermal Camera Module 25Hz Frame Rate, Spi/Dvp Interface, Industrial Temp Measurement
Ultra-Compact Mini256 Thermal Camera Module 25Hz Frame Rate, Spi/Dvp Interface, Industrial Temp Measurement
Ultra-Compact Mini256 Thermal Camera Module 25Hz Frame Rate, Spi/Dvp Interface, Industrial Temp Measurement
Ultra-Compact Mini256 Thermal Camera Module 25Hz Frame Rate, Spi/Dvp Interface, Industrial Temp Measurement
Ultra-Compact Mini256 Thermal Camera Module 25Hz Frame Rate, Spi/Dvp Interface, Industrial Temp Measurement
1 / 5
Ultra-Compact Mini256 Thermal Camera Module 25Hz Frame Rate, Spi/Dvp Interface, Industrial Temp Measurement
Ultra-Compact Mini256 Thermal Camera Module 25Hz Frame Rate, Spi/Dvp Interface, Industrial Temp Measurement
Ultra-Compact Mini256 Thermal Camera Module 25Hz Frame Rate, Spi/Dvp Interface, Industrial Temp Measurement
Ultra-Compact Mini256 Thermal Camera Module 25Hz Frame Rate, Spi/Dvp Interface, Industrial Temp Measurement
Ultra-Compact Mini256 Thermal Camera Module 25Hz Frame Rate, Spi/Dvp Interface, Industrial Temp Measurement

Ultra-Compact Mini256 Thermal Camera Module 25Hz Frame Rate, Spi/Dvp Interface, Industrial Temp Measurement

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information
Model
MINI256
Type
CCTV Camera / Thermal Imaging
Sensor
Uncooled VOx Focal Plane Array
Resolution
256×192 (384*288 Effective)
Pixel Pitch
12μm
Spectral Response
8~14um
Frame Rate
25Hz / 50Hz
NETD
≤35mk (@F/1.0, 50Hz)
Focal Length
4mm and 9.1mm Options
Detection Distance
400m
Interface
SPI, DVP, UART, CVBS (PAL)
Certification
CE, FCC, CCC, RoHS, ISO9001
🔍 Product Overview

The Mini256 is a compact, high-performance long-wave infrared (LWIR) thermal imaging module designed for integration into space-constrained and power-sensitive applications. Built around a vanadium oxide (VOx) uncooled microbolometer, it delivers reliable thermal imaging with exceptional stability and sensitivity.

⭐ Key Features
📱
Ultra-Compact Design Measures just 21 × 21 × 10.5 mm, making it ideal for embedded systems and portable devices.
⚡
Dual Interface Options Equipped with both SPI and DVP interfaces for flexible system integration.
🌡️
Precision Measurement Capable of accurate industrial and biological temperature measurement with built-in calibration algorithms.
🔋
Low Power Consumption Optimized for battery-powered and IoT applications, ensuring extended operational life.
🚀 Typical Applications

Industrial monitoring, perimeter scanning, inspection robots, fire warning, fire helmets, electro-optical pods, thermal imaging night vision devices, assisted driving, smart home appliances, and more.

🖼️ Product Showcase

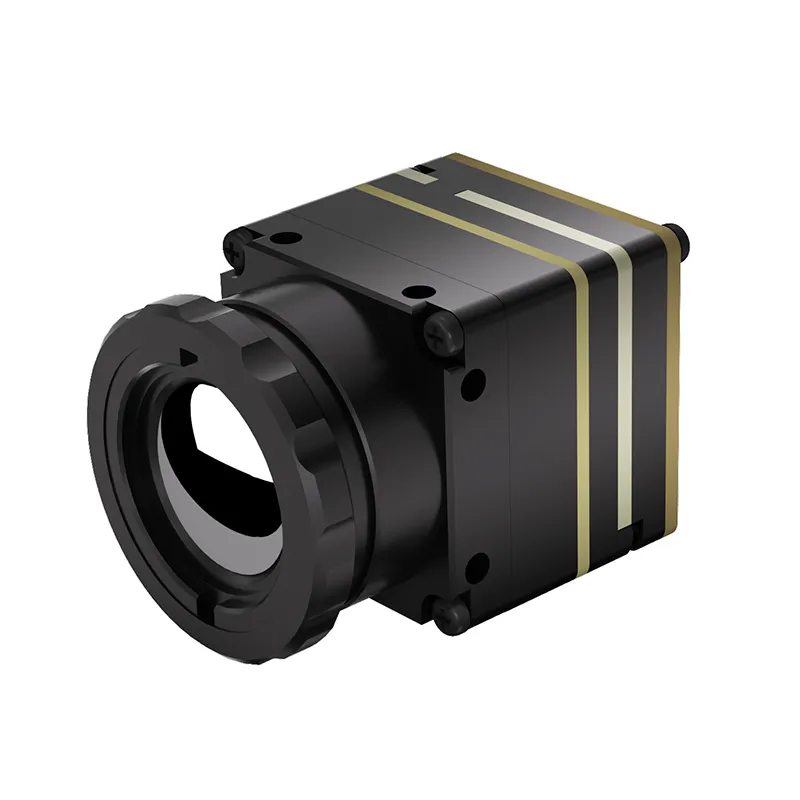

Mini256 Thermal Module View 1
Mini256 Thermal Module View 2

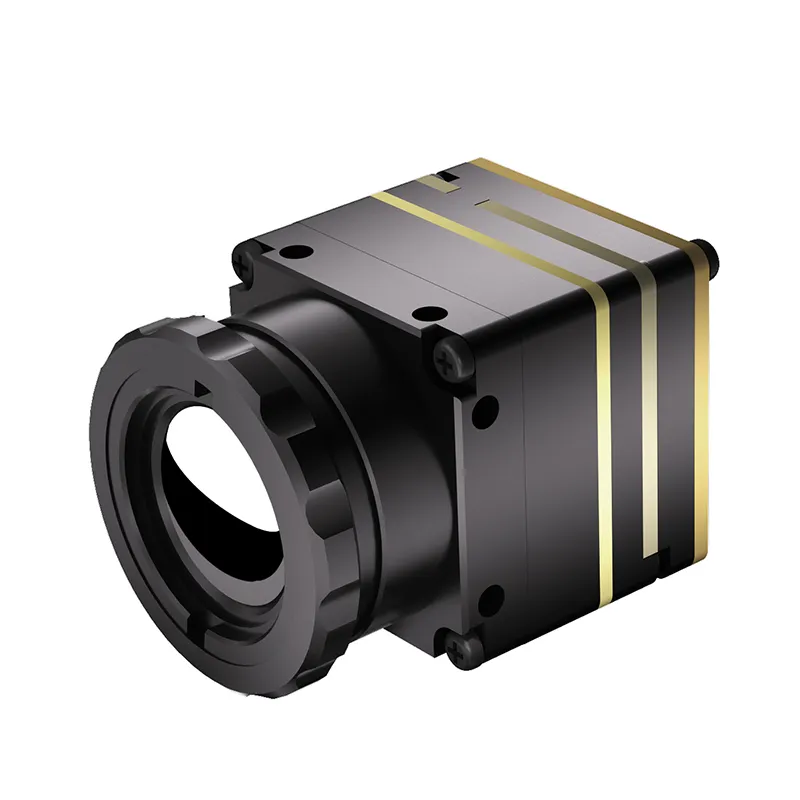

Mini256 Thermal Module View 3

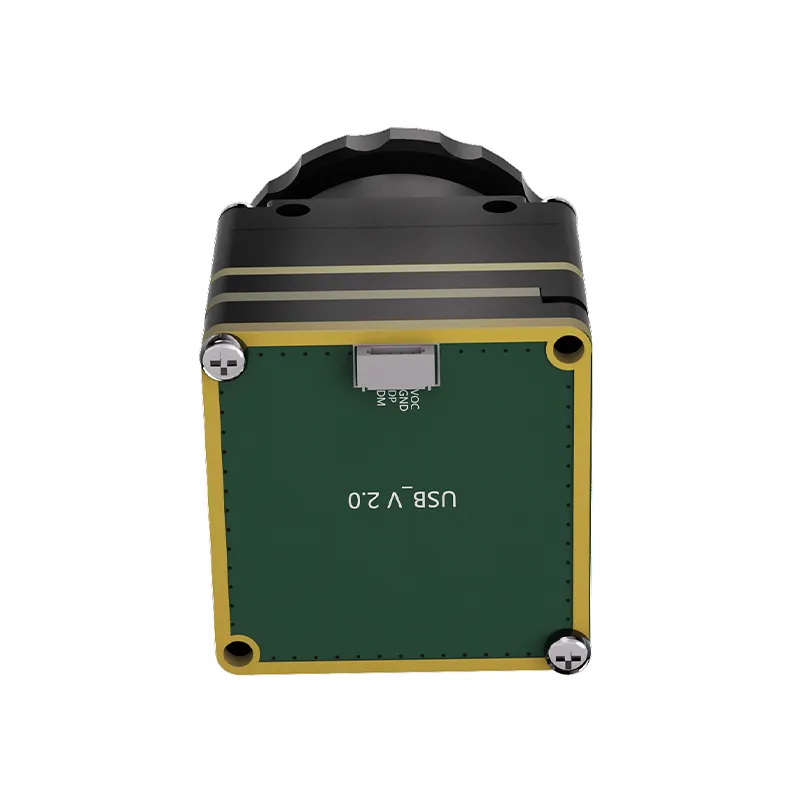

Mini256 Thermal Module View 4

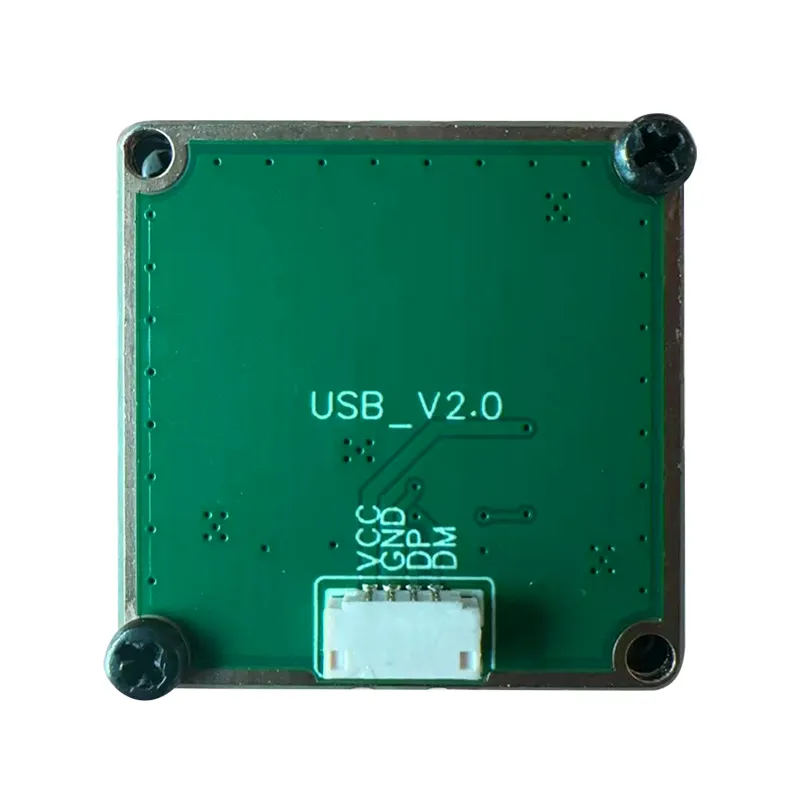

Mini256 Thermal Module View 5

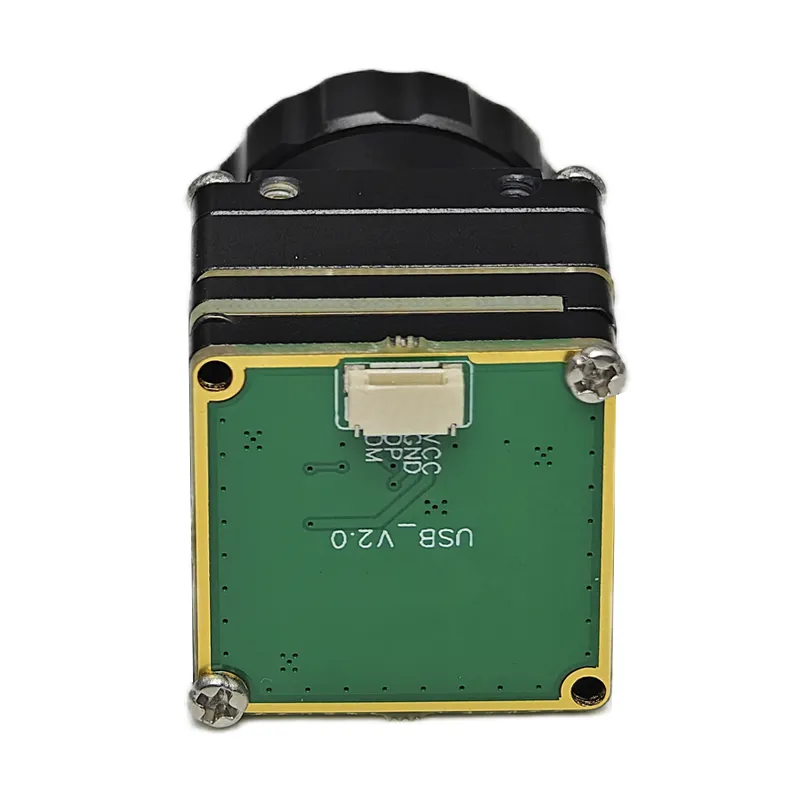

Mini256 Thermal Module View 6

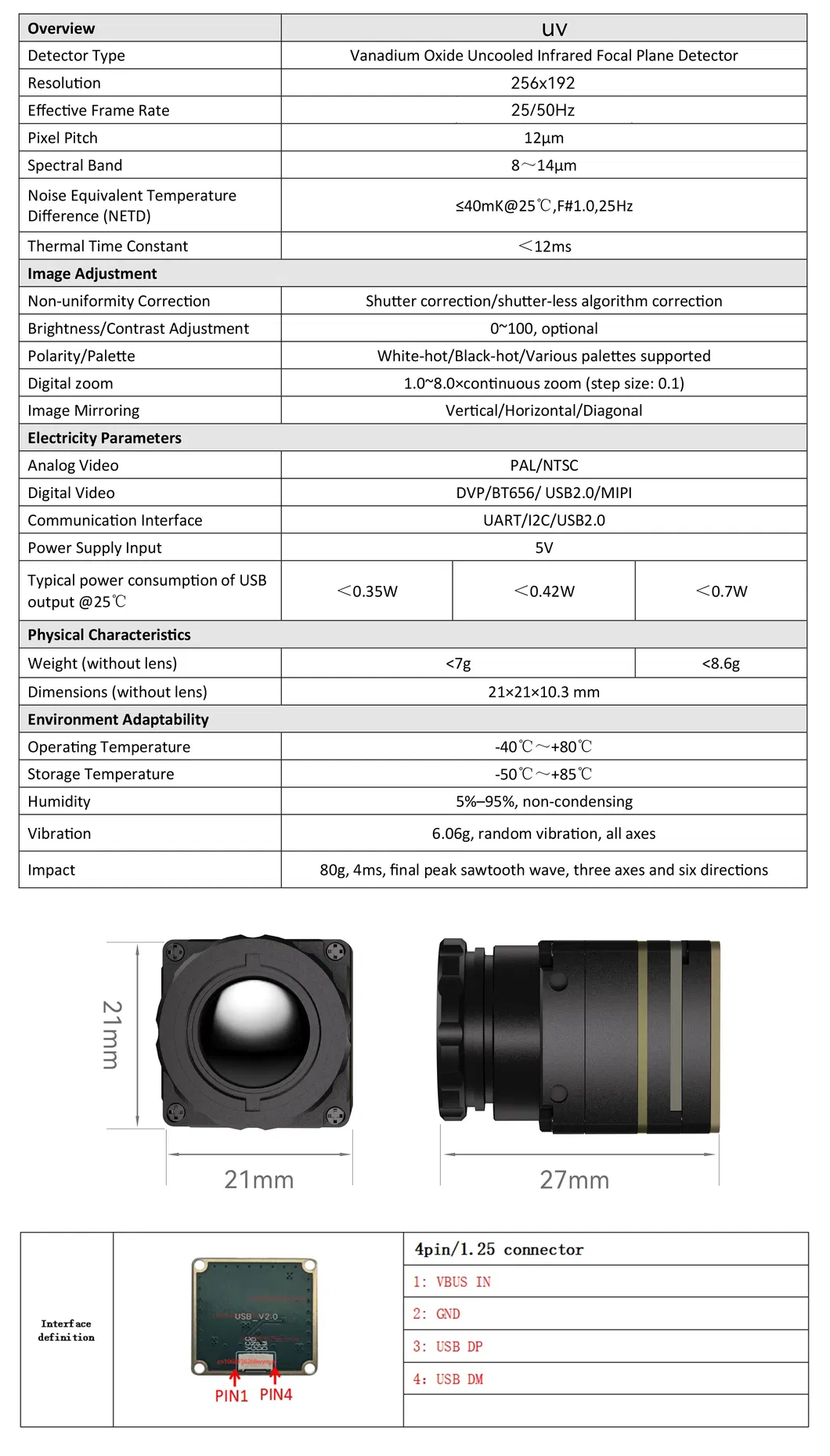

Mini256 Detailed Specs 1

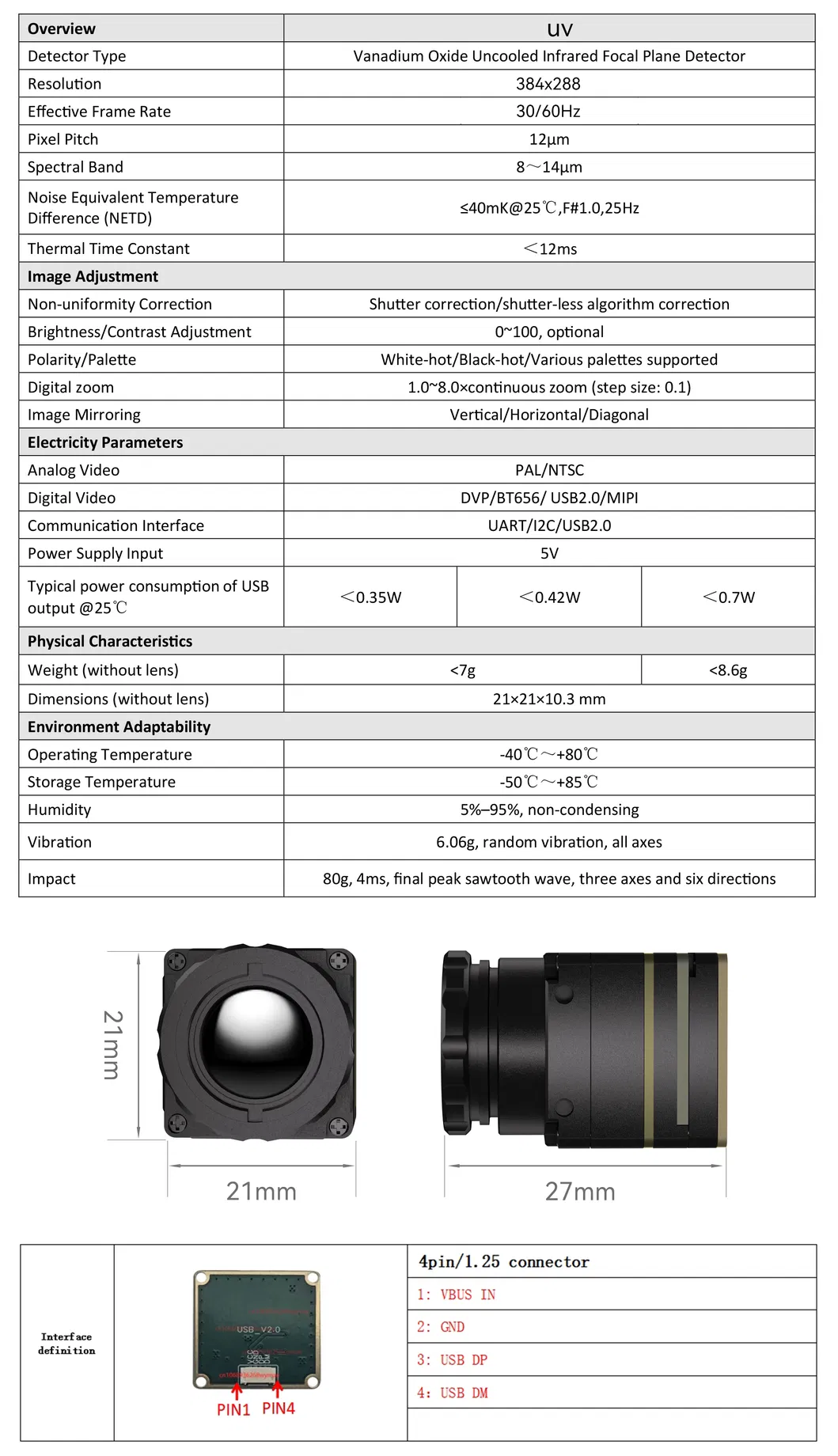

Mini256 Detailed Specs 2
🏭 Production Facility

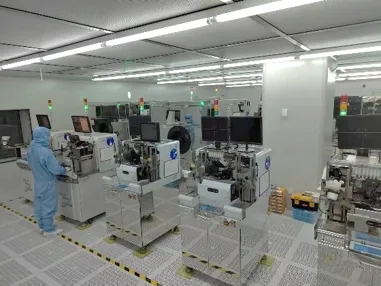

Factory Environment 1

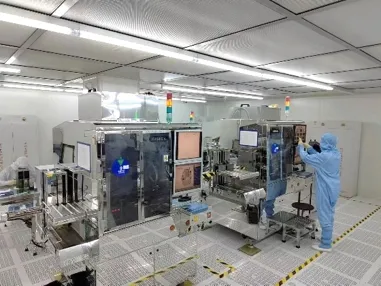

Factory Environment 2

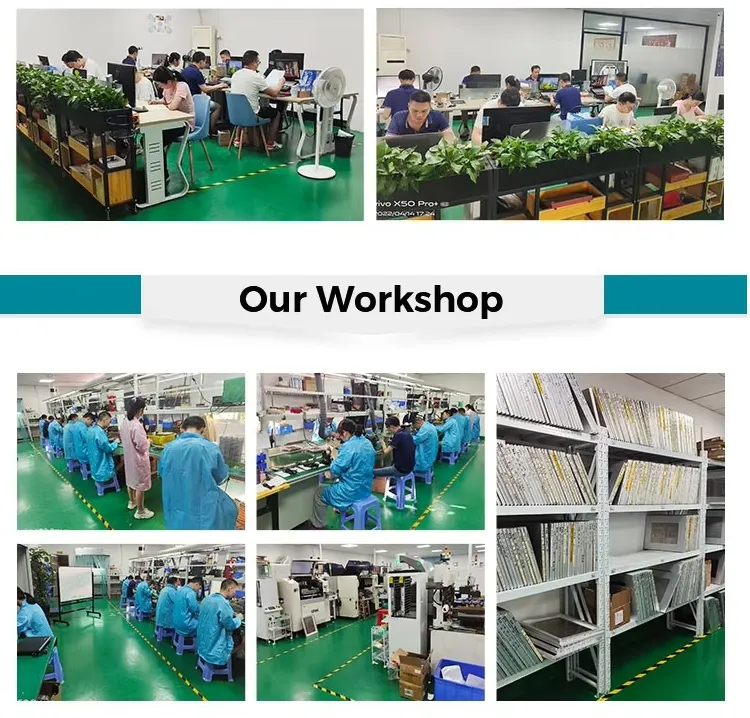

Quality Control

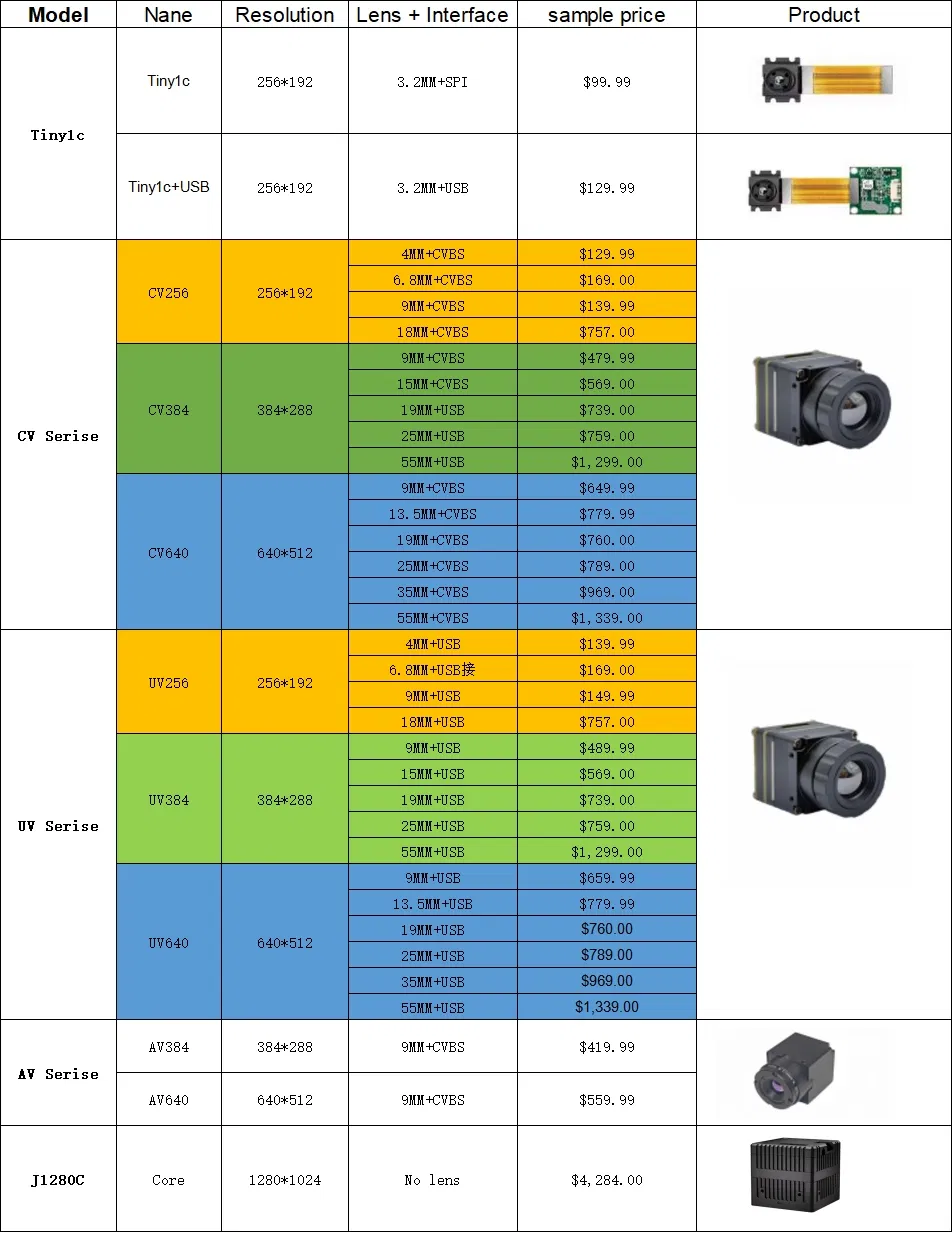

Technical Standards
❓ Frequently Asked Questions
What is the size and weight of the Mini256 module?
The module is ultra-compact, measuring approximately 21 × 21 × 10.3 mm and weighing less than 8.6g (without lens).
What types of interfaces are supported for integration?
It supports multiple interface options including SPI (for data and control), DVP (Digital Video Port), UART, and CVBS (Analog Video).
Can the Mini256 be used for temperature measurement?
Yes, it features precision industrial and biological temperature measurement capabilities with an NETD of <35mk to <50mk.
What is the effective detection range?
The module has a detection distance of up to 400m and a recognition distance of approximately 228m.
What is the operating temperature range?
The Mini256 is designed to function reliably in diverse environmental conditions, ranging from -20°C to +60°C.
Is the module suitable for battery-powered devices?
Absolutely. It is specifically optimized for low power consumption, making it ideal for IoT and handheld battery-operated devices.
