- Support multi image mode & Temperature display on screen
- Designed for detection devices, vehicles, and drones
- Versatile Video output: CVBS (monitor) or TYPE C (mobile phone)
- Ultra-compact size: 21mm×22.3mm×27.3mm (with 9.1mm lens)
- Ultra-lightweight: 20.8g±1.5g
- Low power consumption: as low as 0.7W

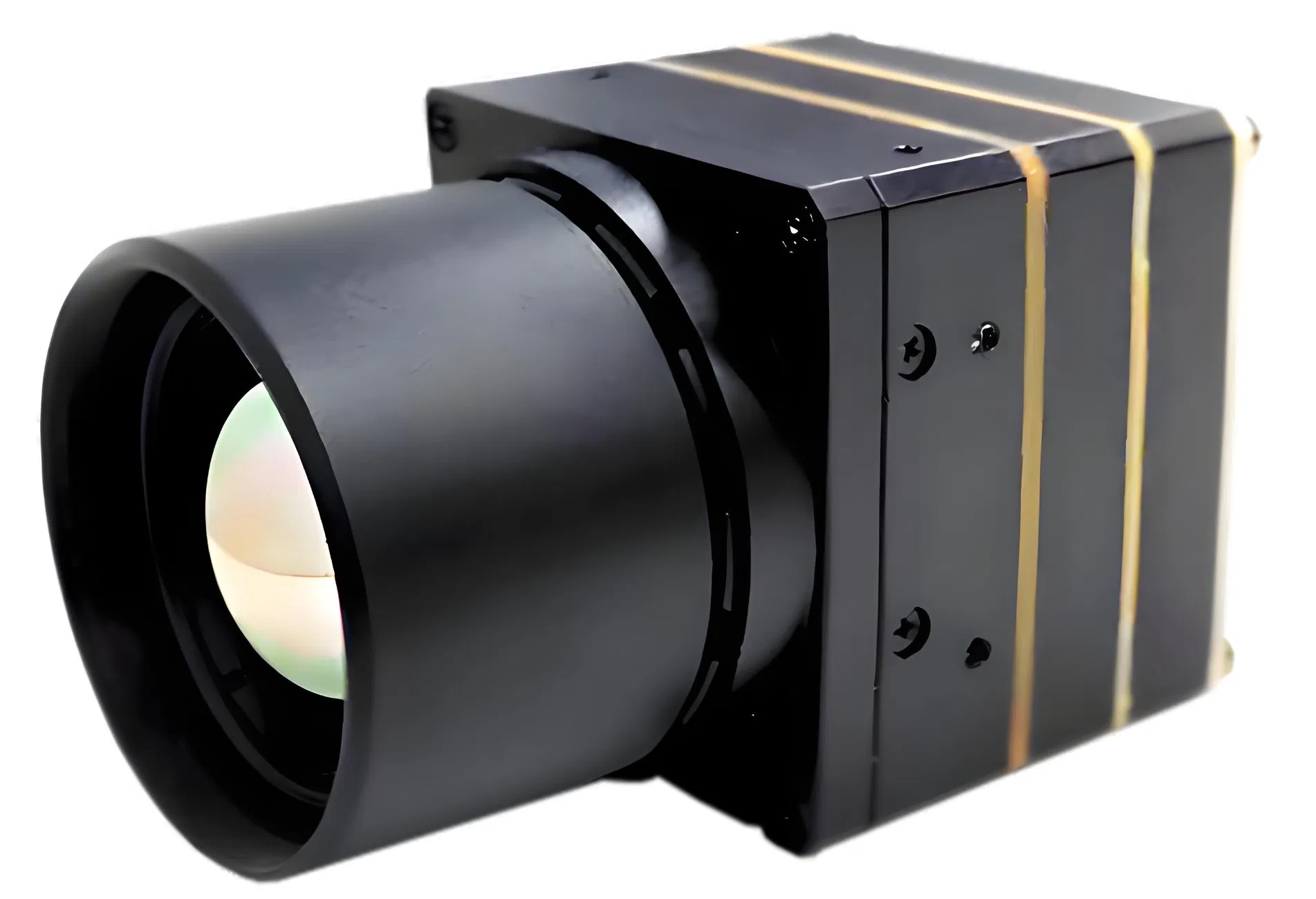

The camera core integrates a 640x512 / 12μm wafer level package (WLP) infrared thermal detector. It is an uncooled LWIR radiometric thermal imaging module for drones with a spectral range from 8 to 14μm.
Featuring sharp and crisp image presentation, compact size, and low cost. Oriented for fully optimized SWaP (Size, Weight, and Power), this uncooled thermal module provides a reliable solution for infrared system integration with limited space. It also features an optional thermographic function with a measurement range from -20ºC to 550 ºC for industrial temperature measurement.

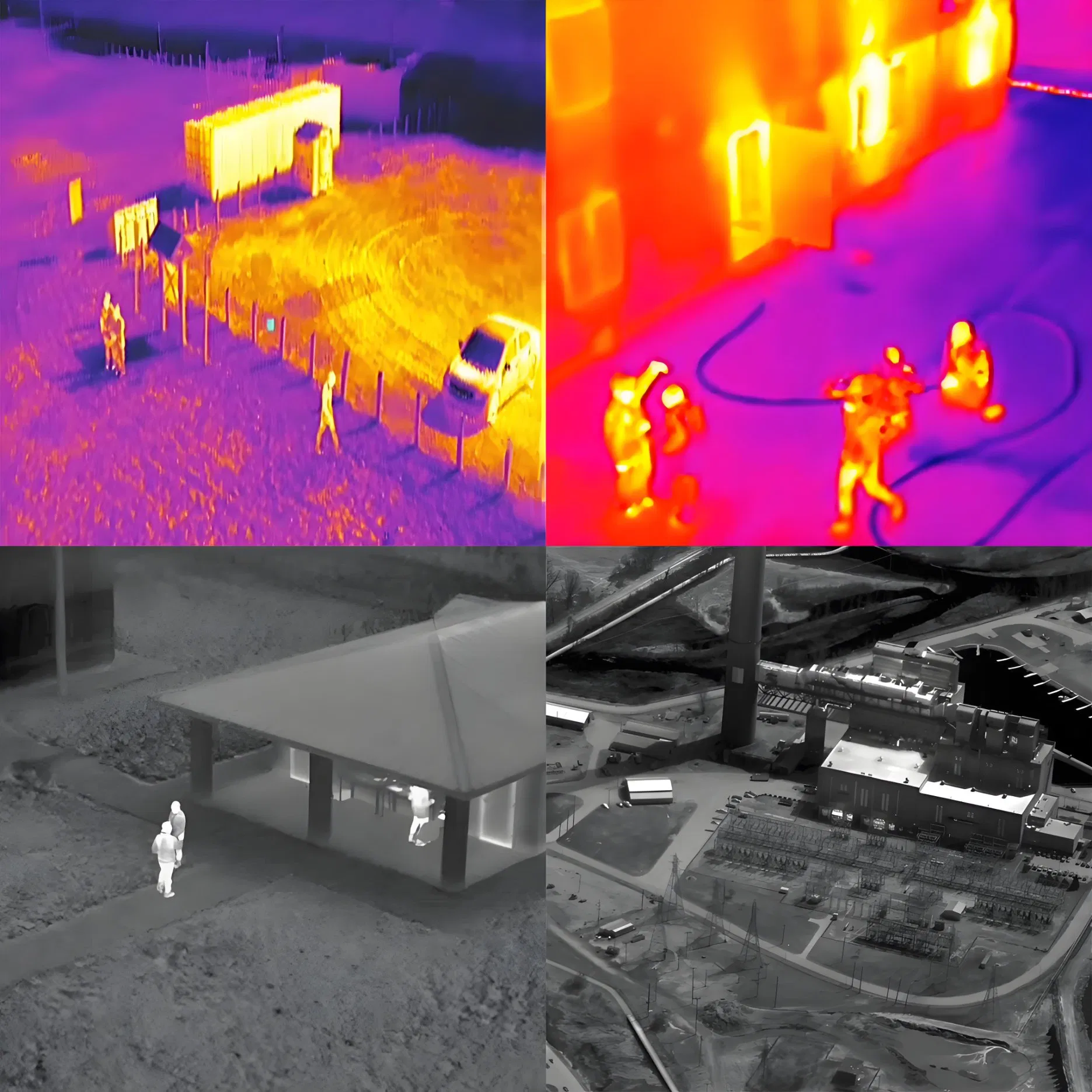

Specially developed for Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Relief & Rescue, Forest Fire Prevention, and Urban Safety.
❓ Frequently Asked Questions
What is the resolution of this thermal imaging module?
The module features a high-resolution 640x512 / 12μm wafer level package (WLP) infrared thermal detector.
Can this camera be used for industrial temperature measurement?
Yes, it includes an optional thermographic function with a measurement range of -20ºC to 550 ºC.
How can I connect the video output?
The module supports multiple connection types, including CVBS for monitors and Type-C for direct connection to mobile phones.
Is it suitable for drone integration?
Absolutely. It is specifically optimized for SWaP (Size, Weight, and Power) with a weight of only 20.8g, making it ideal for drone systems.
What are the primary applications for this module?
Key applications include photovoltaic inspection, forest fire prevention, aerial photography, scientific research, and predictive maintenance.
What is the power consumption?
The module is highly efficient, with power consumption as low as 0.7W and a maximum rating under 2W.
