Product Overview

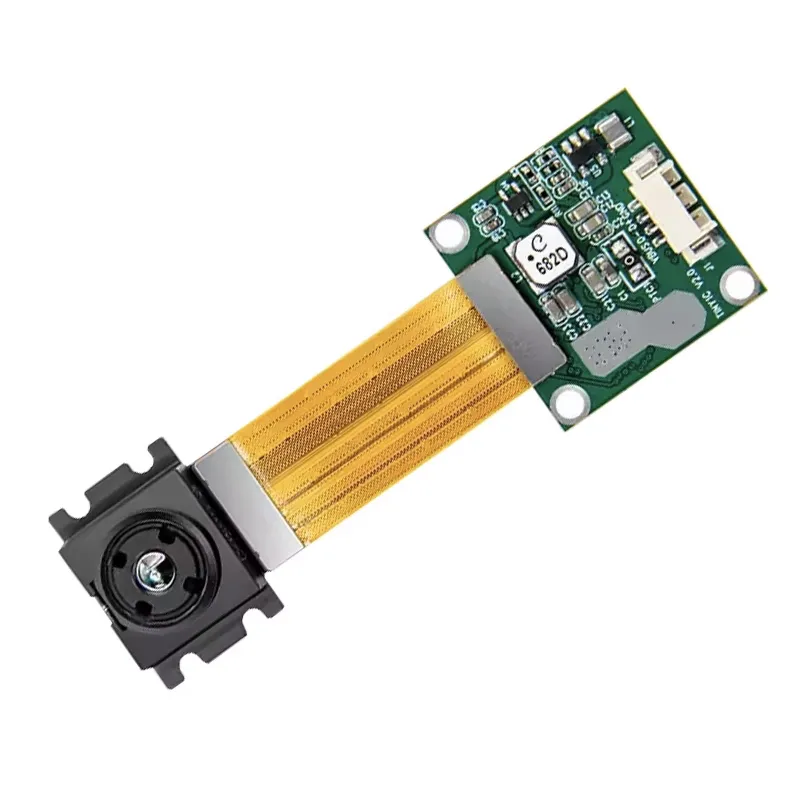

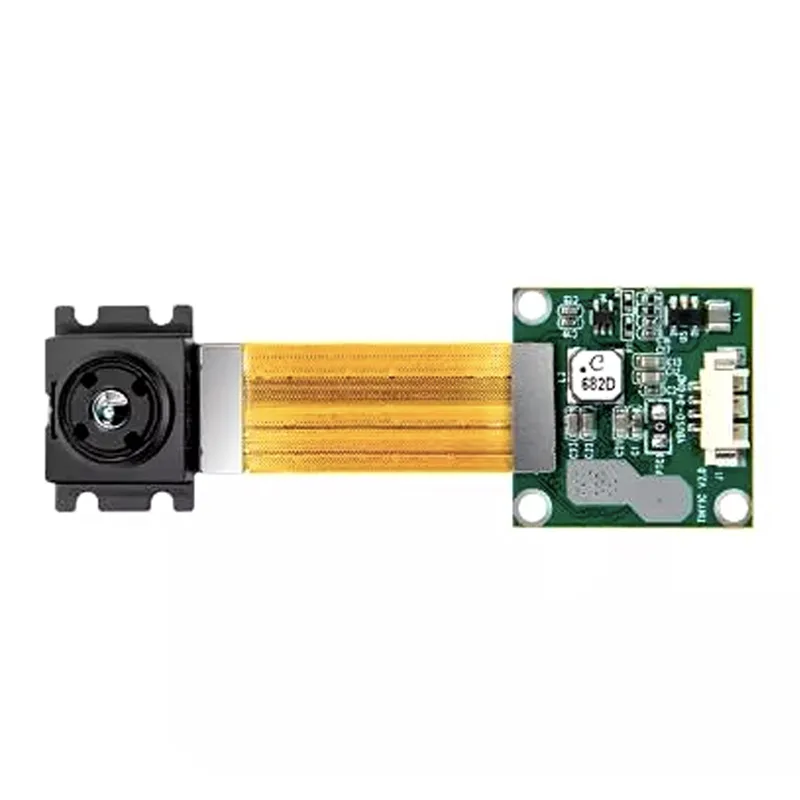

The Tiny1C-USB is a compact, high-performance uncooled thermal imaging core module designed for integration into a wide range of embedded and portable thermal vision applications. With its USB interface, miniature form factor, and advanced image processing capabilities, it offers developers and OEMs a versatile solution for rapid deployment in industrial, security, automotive, and consumer electronics systems.

Measuring just 19 mm × 17.6 mm × 8 mm and weighing only 6 grams, the Tiny1C-USB delivers exceptional thermal sensitivity and reliable temperature measurement in an ultra-lightweight package. Powered by a standard 5V USB supply with low power consumption (≤0.8W), it is ideal for battery-operated and space-constrained devices.

Key Features

• High-Sensitivity Thermal Sensor: 256 × 192 pixel VOx detector with 12 µm pixel pitch and NETD ≤ 50 mK.
• Broad Temperature Range: Dual modes covering -15°C to +150°C and +50°C to +550°C with ±2°C accuracy.
• Optimized Optics: 3.2 mm lens providing a 51.3° × 39.6° FOV; detection up to 320m.
• Plug-and-Play USB: 4-pin 1.25 mm pitch USB connector for power and data.
• Advanced Processing: Real-time non-uniformity correction (NUC), digital zoom (1x-8x), and multiple pseudo-color palettes.
• Robust Performance: Operates from -40°C to +80°C and withstands mechanical shock up to 80g.
• Developer-Friendly: Full SDKs for Windows, Linux, Android, and RTOS platforms.

Ideal Applications

Product Gallery
