Product Description

Technical Specifications

Model NO.
tiny 1
Resolution
256*192
Detector Type
Uncooled Focal Plane Array (VOx)
Pixel Pitch
12um
NETD
≤50mk(F/1.0 25Hz @25c°)
Spectral Response
8~14um
Focal Length
3.2mm
Field of View
51.3*39.6
Frame Rate
25Hz
Detection Distance
320m
Recognition Distance
80m
Interface
USB (DVP/SPI/IIC Support)
Dimensions
13x13x8 mm
Package Weight
0.180kg

Product Overview

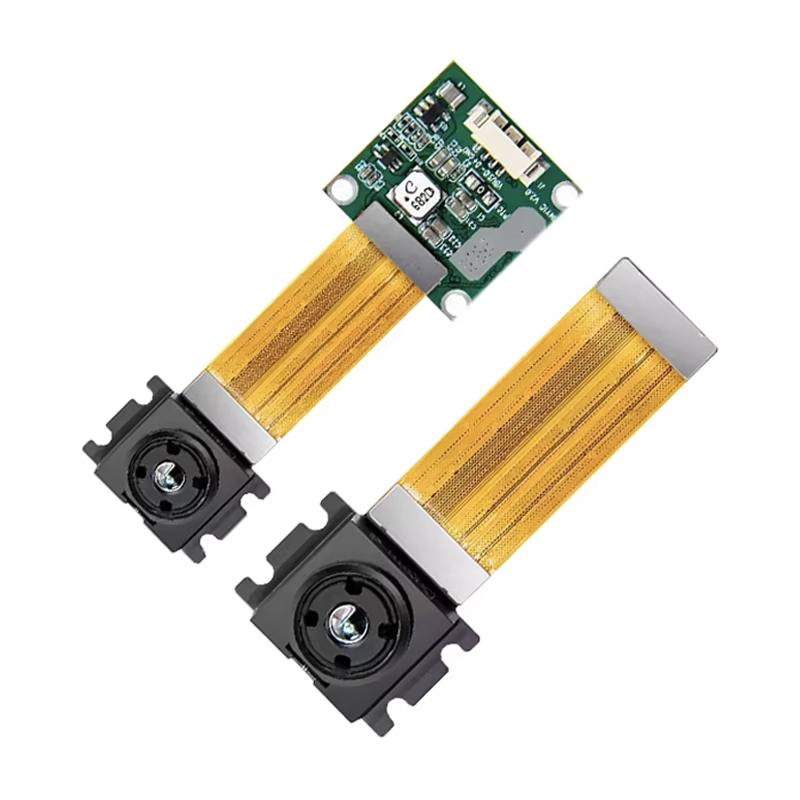

The Tiny1C-USB is a compact, high-performance uncooled thermal imaging core module designed for integration into a wide range of embedded and portable thermal vision applications. With its USB interface, miniature form factor, and advanced image processing capabilities, it offers developers and OEMs a versatile solution for rapid deployment in industrial, security, automotive, and consumer electronics systems.
Measuring just 19 mm × 17.6 mm × 8 mm and weighing only 6 grams, the Tiny1C-USB delivers exceptional thermal sensitivity and reliable temperature measurement in an ultra-lightweight package. Powered by a standard 5V USB supply with low power consumption (≤0.8W), it is ideal for battery-operated and space-constrained devices.
Resolution Image Data Interface Size
256X192 DVP/SPI 13x13x8 mm

Key Features

High-Sensitivity Sensor 256 × 192 pixel VOx uncooled detector with 12 µm pixel pitch and NETD ≤ 50 mK for crisp imaging.
Broad Temperature Range Dual modes: -15°C to +150°C for high quality, and +50°C to +550°C for industrial use with ±2°C accuracy.
USB Plug-and-Play 4-pin, 1.25 mm pitch USB connector for power and data, simplifying system integration.
Advanced Processing Real-time NUC calibration, digital zoom (1× to 8×), and multiple pseudo-color palettes.
Extreme Reliability Operates from -40°C to +80°C and withstands mechanical shock up to 80 g @ 4 ms.
Developer Ready SDKs available for Windows, Linux, Android, and RTOS platforms.

Ideal Applications

Handheld thermal cameras & Drone-based inspection.
Smart home & building diagnostics.
Industrial predictive maintenance.
Automotive night vision & ADAS.
Medical and biological temperature screening.

Product Display

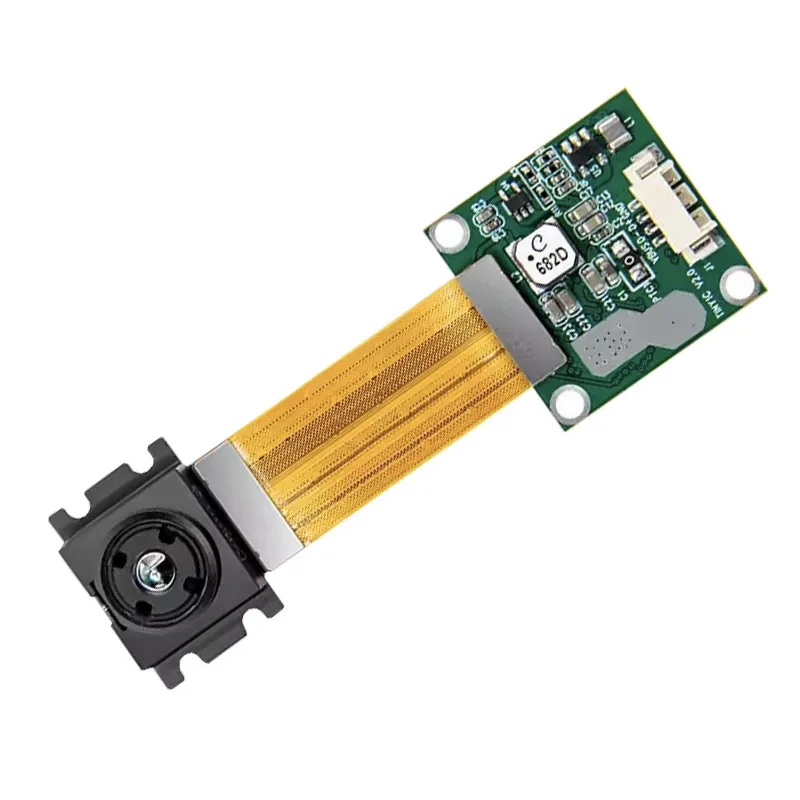

Thermal Camera View 1

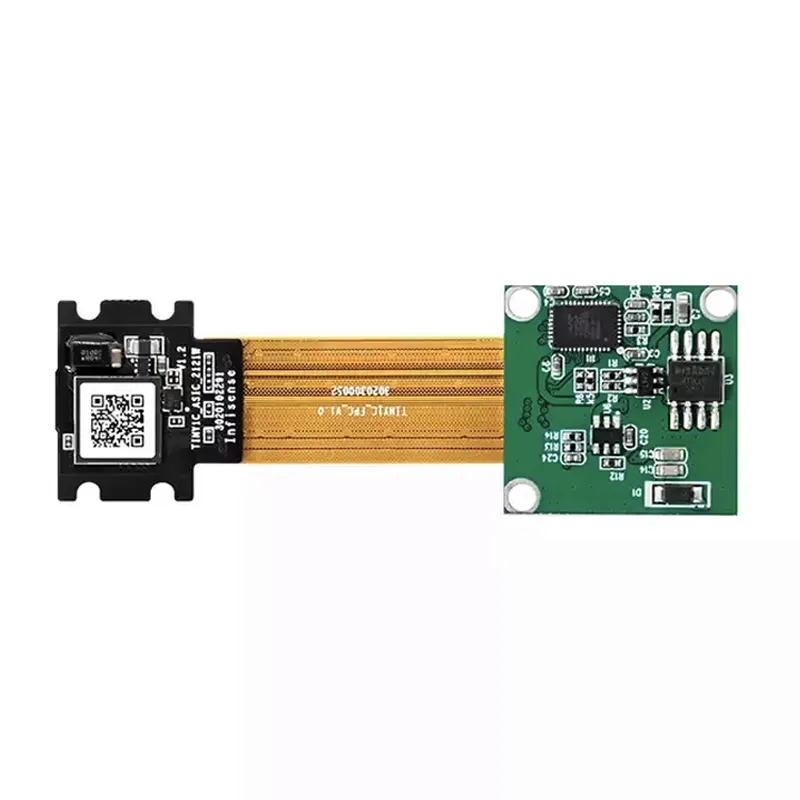

Thermal Camera View 2
Thermal Camera View 3

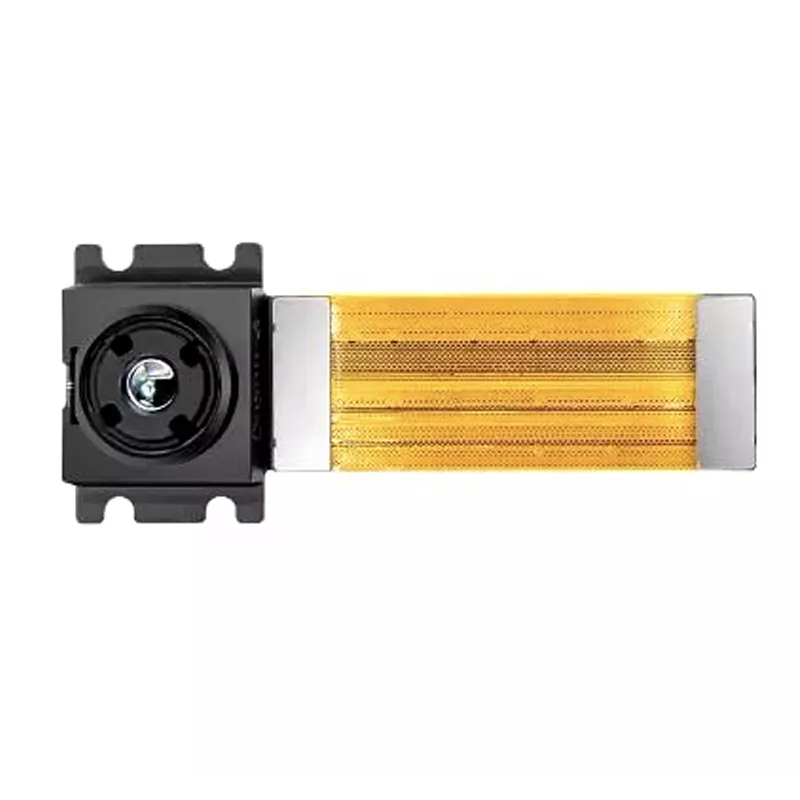

Thermal Camera View 4

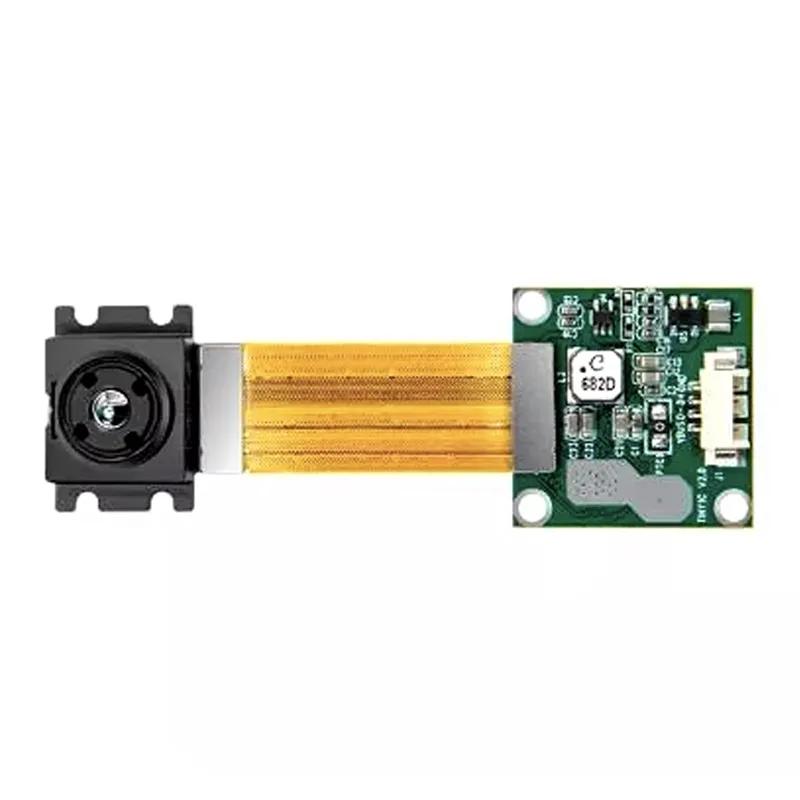

Thermal Camera View 5

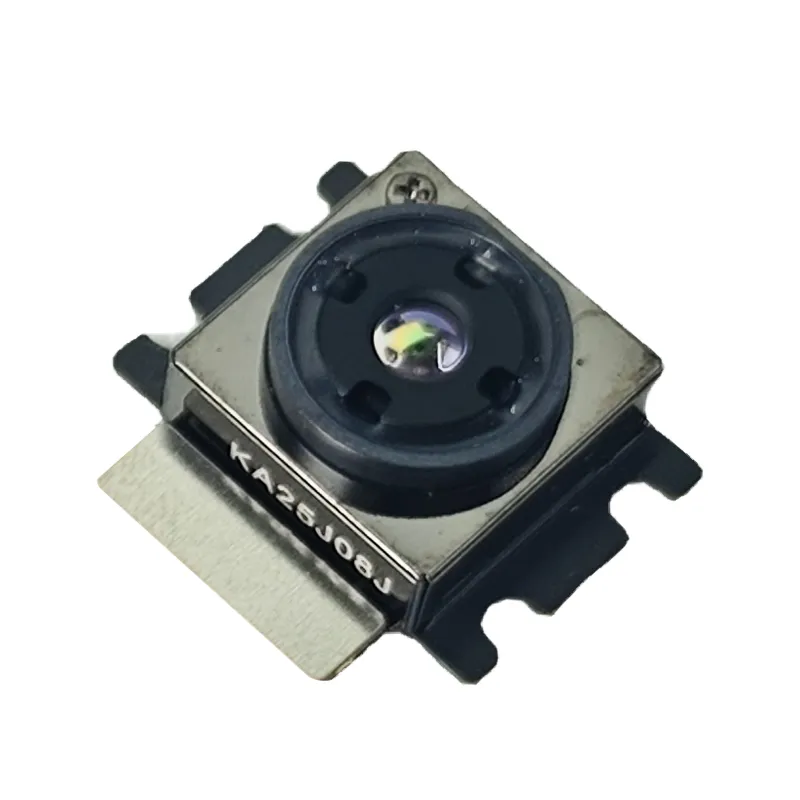

Thermal Camera View 6

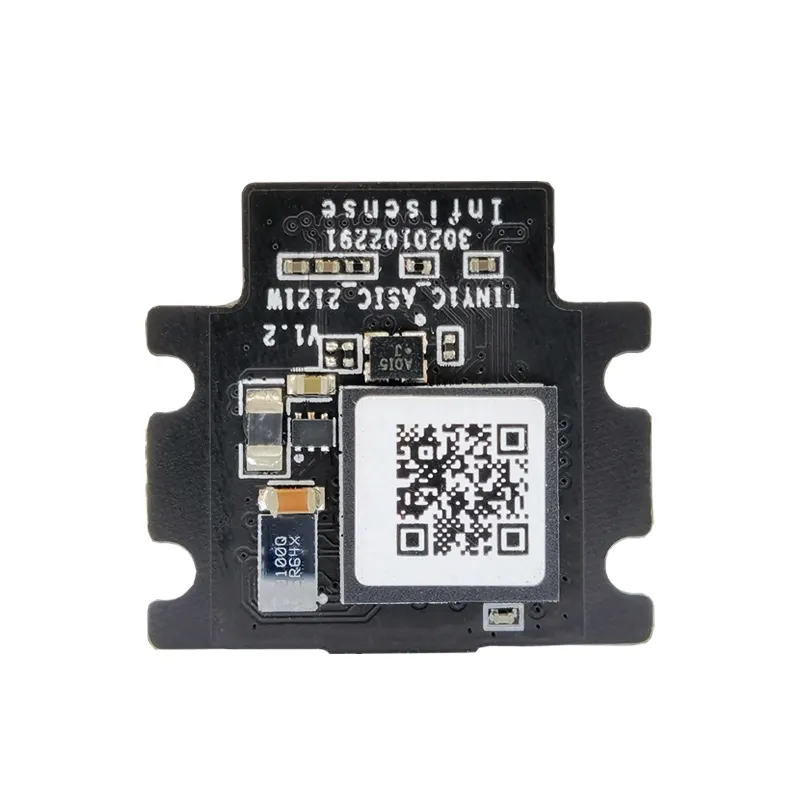

Thermal Camera View 7

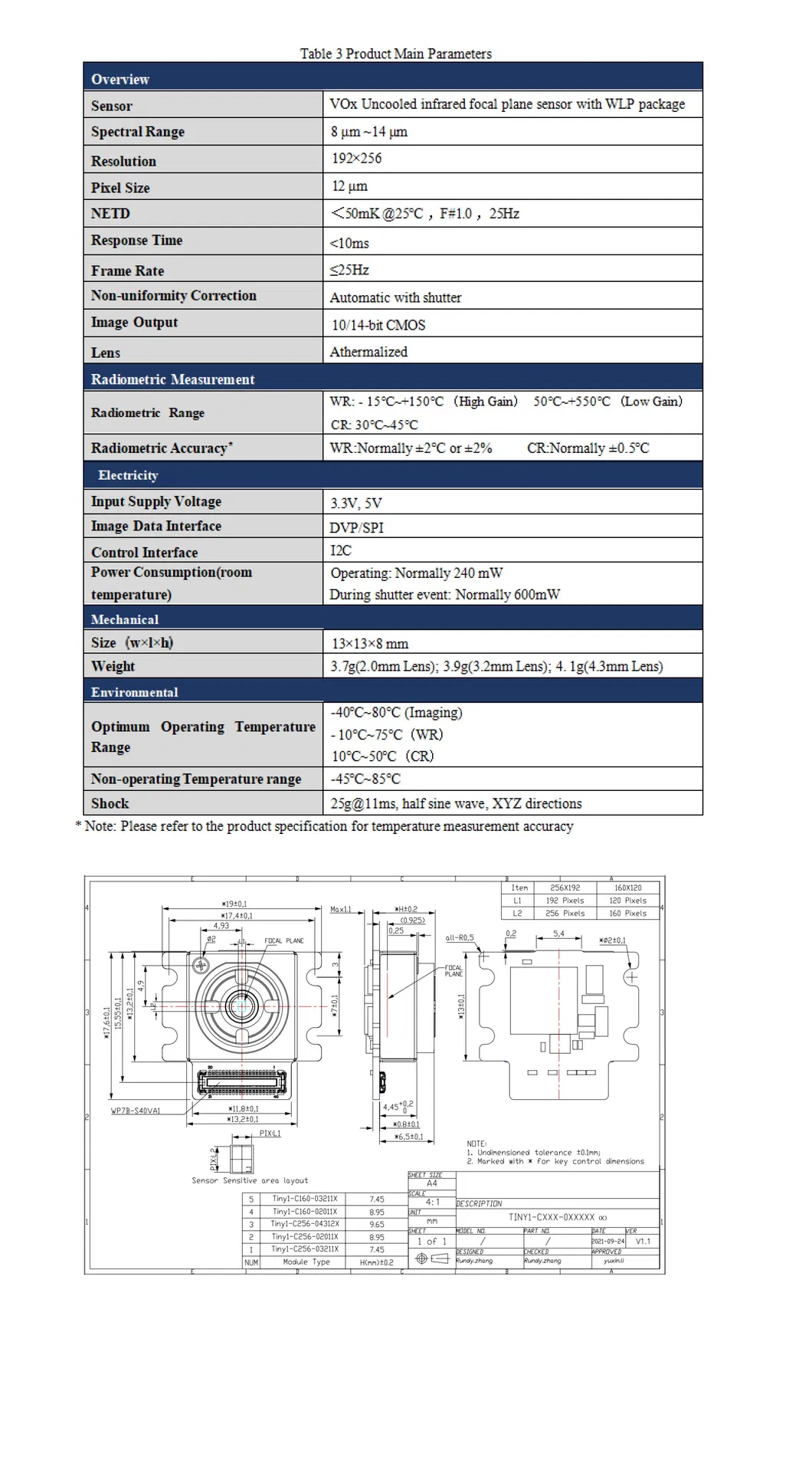

Thermal Camera View 8
Thermal Camera View 9
Thermal Camera View 10

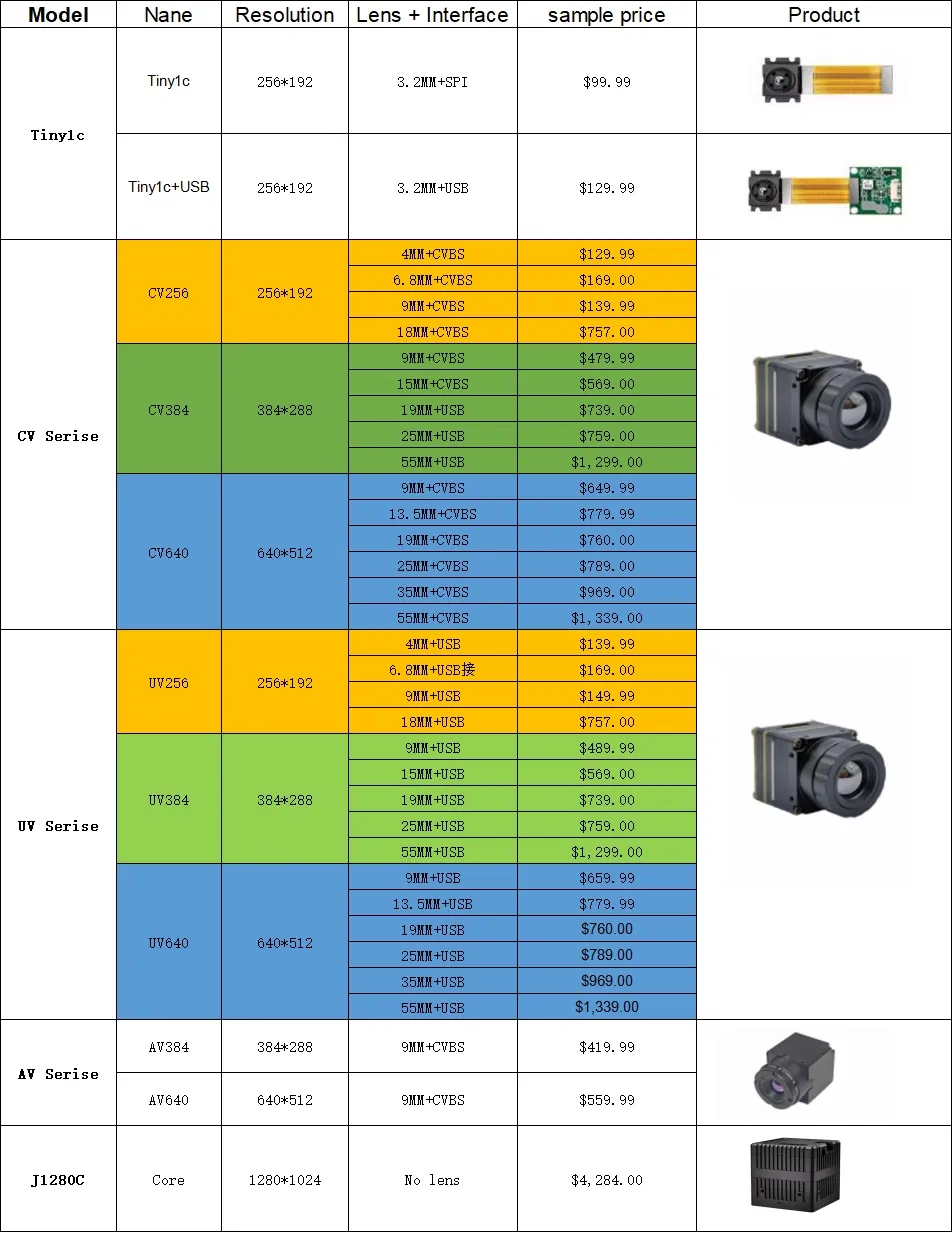

Thermal Camera View 11

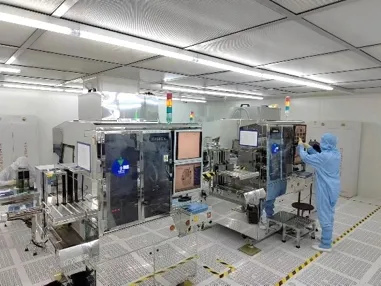

Thermal Camera View 12

Frequently Asked Questions

What is the image resolution and pixel pitch?
The module features a 256 x 192 pixel resolution with a 12 µm pixel pitch.
What is the temperature measurement range?
It supports dual modes: a low range from -15°C to +150°C and a high industrial range from +50°C to +550°C.
How is the Tiny1C-USB module powered?
It uses a standard 5V USB supply and has low power consumption (≤0.8W).
What are the dimensions and weight of the module?
The core module is ultra-compact, measuring approximately 19 mm × 17.6 mm × 8 mm and weighing only 6 grams.
Does it support secondary development?
Yes, comprehensive SDKs are available for Windows, Linux, Android, and RTOS platforms for easy integration.
What is the detection distance for the 3.2mm lens?
The detection distance reaches up to 320 meters, with recognition up to 80 meters and identification up to 40 meters.
