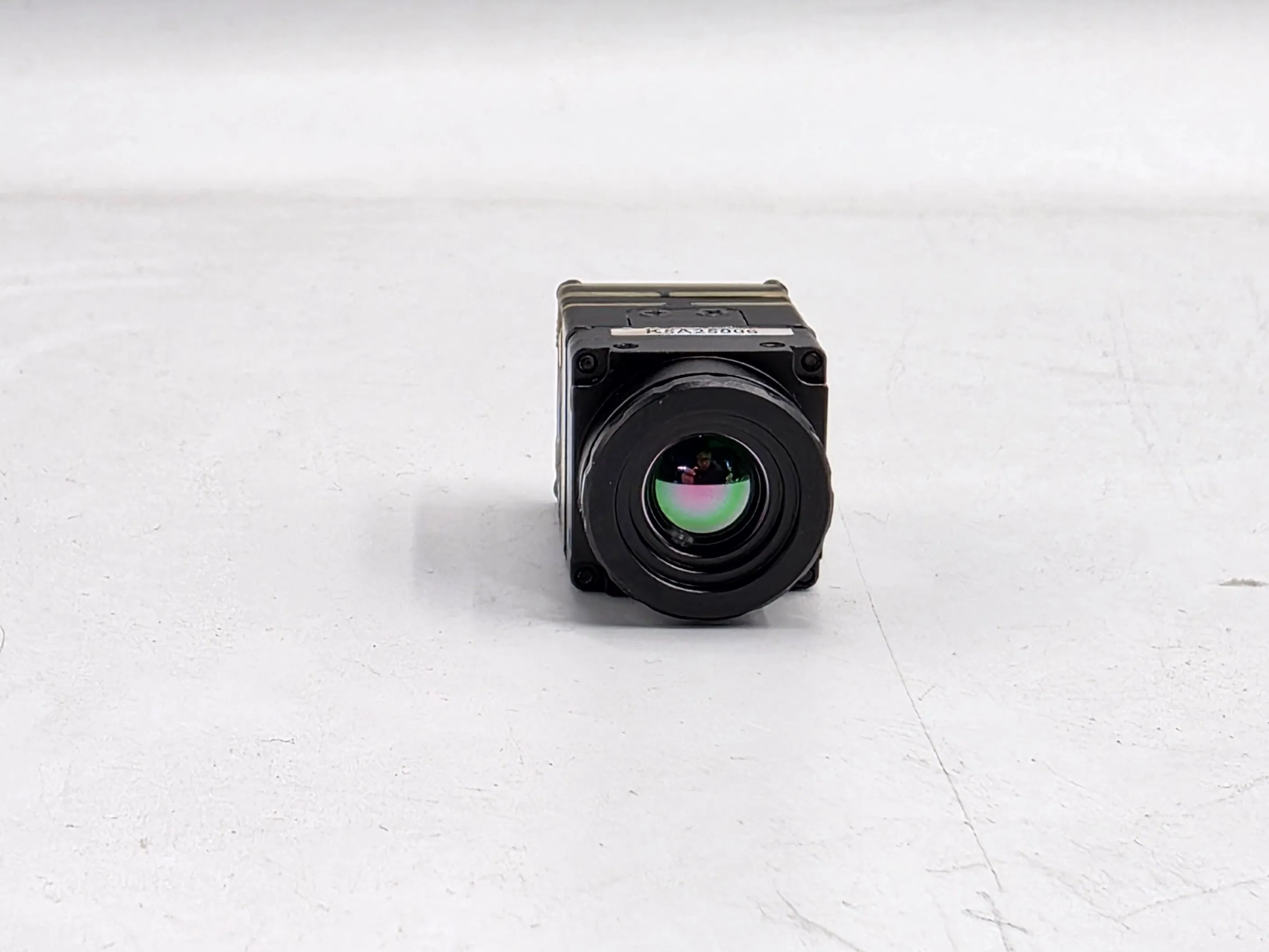

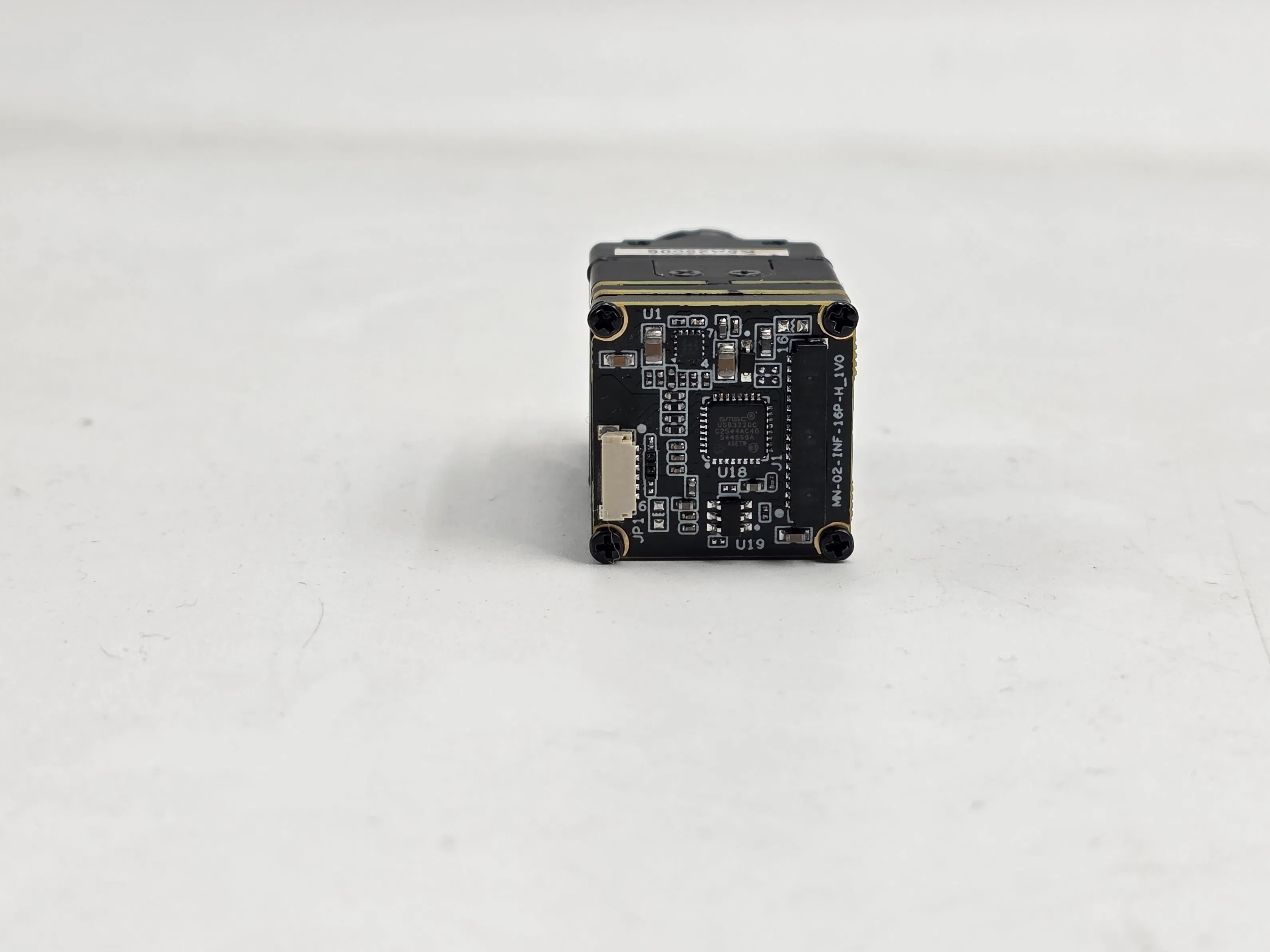

Tnv-30 60 60s Thermal Imaging Scope Core Components 17um 50Hz Infrared Thermal Imaging Camera Core 384/640/1280 Resolution
Tnv-30 60 60s Thermal Imaging Scope Core Components 17um 50Hz Infrared Thermal Imaging Camera Core 384/640/1280 Resolution
Tnv-30 60 60s Thermal Imaging Scope Core Components 17um 50Hz Infrared Thermal Imaging Camera Core 384/640/1280 Resolution
Tnv-30 60 60s Thermal Imaging Scope Core Components 17um 50Hz Infrared Thermal Imaging Camera Core 384/640/1280 Resolution
Tnv-30 60 60s Thermal Imaging Scope Core Components 17um 50Hz Infrared Thermal Imaging Camera Core 384/640/1280 Resolution
1 / 5
Tnv-30 60 60s Thermal Imaging Scope Core Components 17um 50Hz Infrared Thermal Imaging Camera Core 384/640/1280 Resolution
Tnv-30 60 60s Thermal Imaging Scope Core Components 17um 50Hz Infrared Thermal Imaging Camera Core 384/640/1280 Resolution
Tnv-30 60 60s Thermal Imaging Scope Core Components 17um 50Hz Infrared Thermal Imaging Camera Core 384/640/1280 Resolution
Tnv-30 60 60s Thermal Imaging Scope Core Components 17um 50Hz Infrared Thermal Imaging Camera Core 384/640/1280 Resolution
Tnv-30 60 60s Thermal Imaging Scope Core Components 17um 50Hz Infrared Thermal Imaging Camera Core 384/640/1280 Resolution

Tnv-30 60 60s Thermal Imaging Scope Core Components 17um 50Hz Infrared Thermal Imaging Camera Core 384/640/1280 Resolution

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Type
Thermal Camera Core
Sensor
Uncooled VOx FPA
Resolution
640*512 (Effective)
Pixel Pitch
12um
Spectral Response
8~14um
NETD
≤35mk (F/1.0 50Hz)
Frame Rate
50Hz
Focal Length
4mm / 9.1mm / 15mm / 19mm Optional
Detection Distance
400m
Interface
UART / CVBS / BT.656 / DVP / SPI
Power Consumption
< 0.8W
Dimensions
21*21*10.3mm
Functional Specifications
Parameter Detail Description
Startup Time< 5 s (shutter)
Image ControlAuto Gain Control (AGC), Digital Zoom, Pseudo Color, Brightness/Contrast Adjustment
Digital ZoomContinuous 1x - 4x optional
Color ModesWhitehot, Blackhot, Iron, Rainbow, Sepia, Fire
Operating Temp-40ºC to +60ºC
Storage Temp-45ºC to +70ºC
Voltage Range2.7V - 6.3V
WeightApprox. 13g (with lens) / <8.6g (without lens)
Key Features & Advantages
High-Resolution Thermal Sensor 640*512 pixel VOx uncooled focal plane array with a 12 µm pixel pitch for superior clarity.
Precision Temperature Measurement Built-in algorithms for accurate industrial and biological temperature sensing.
Ultra-Compact Design Measuring only 21 × 21 × 10.5 mm, ideal for embedded and space-constrained systems.
Advanced Imaging Technology Supports shutterless algorithms for real-time uninterrupted imaging and WDR for complex lighting.

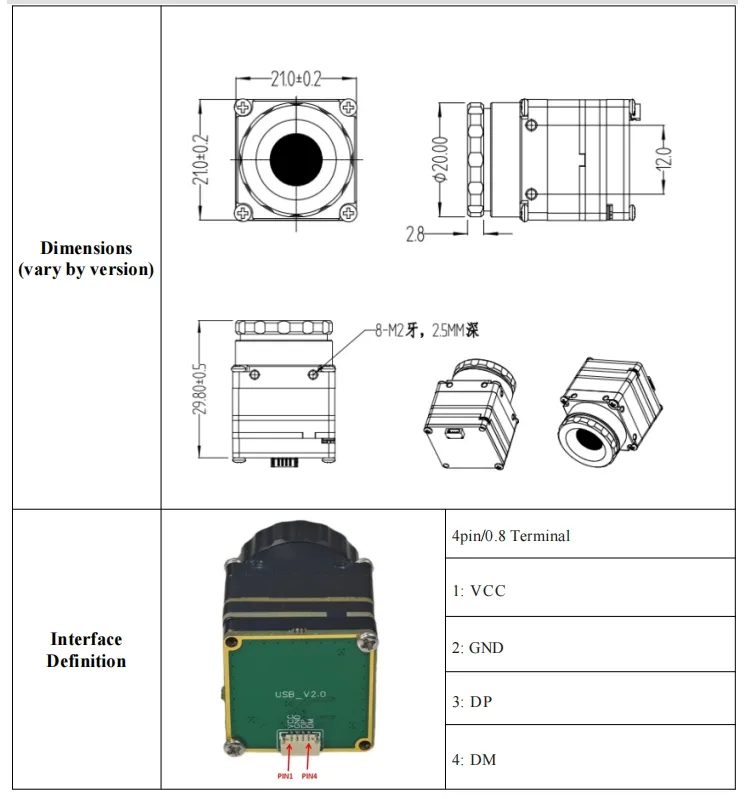

Product Dimensions & Interface

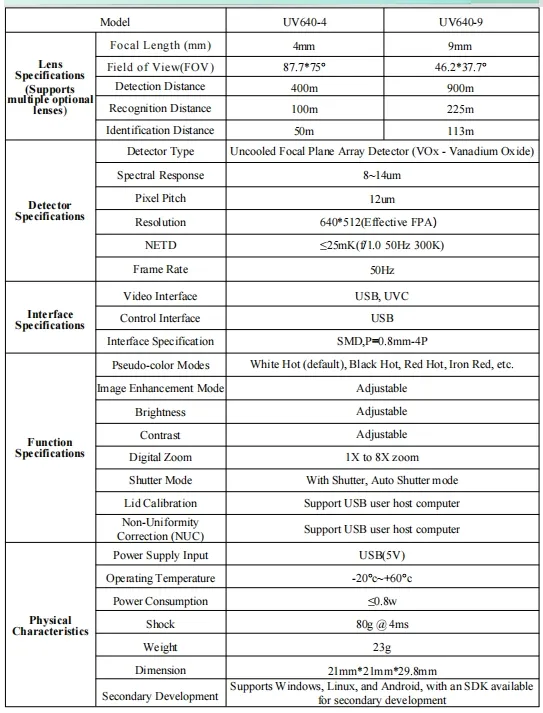

Thermal Core Components
Interface Specifications
Applications & Scenarios

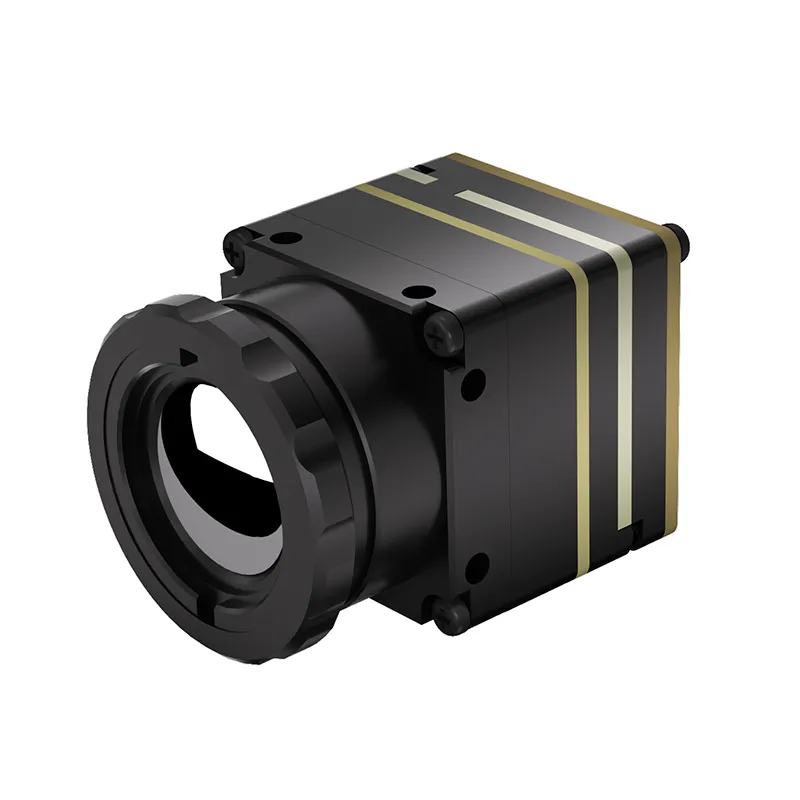

Application 1
Application 2

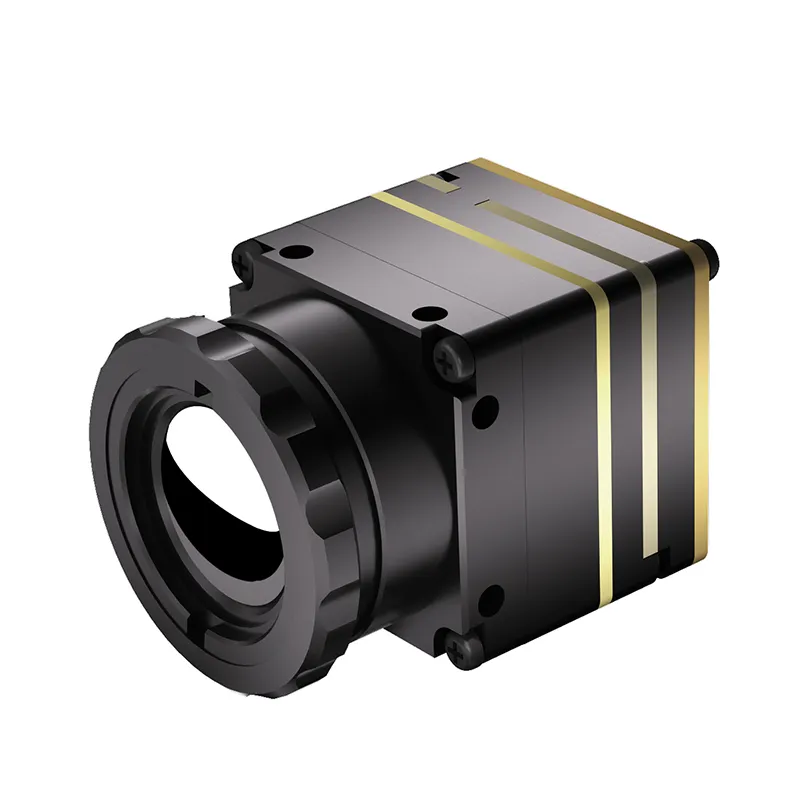

Application 3
Application 4
Application 5
Application 6
Manufacturer Profile

We are a professional manufacturer specializing in infrared vision technology with over 15 years of experience. We focus on the R&D, production, and global sales of cooled and uncooled thermal imaging components. Our one-stop portfolio includes thermal camera modules, monoculars, binoculars, and customized solutions for customers in over 50 countries. We support OEM, ODM, and OBM services with flexible customization and fast delivery.

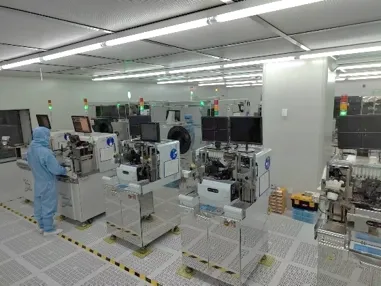

Factory Overview

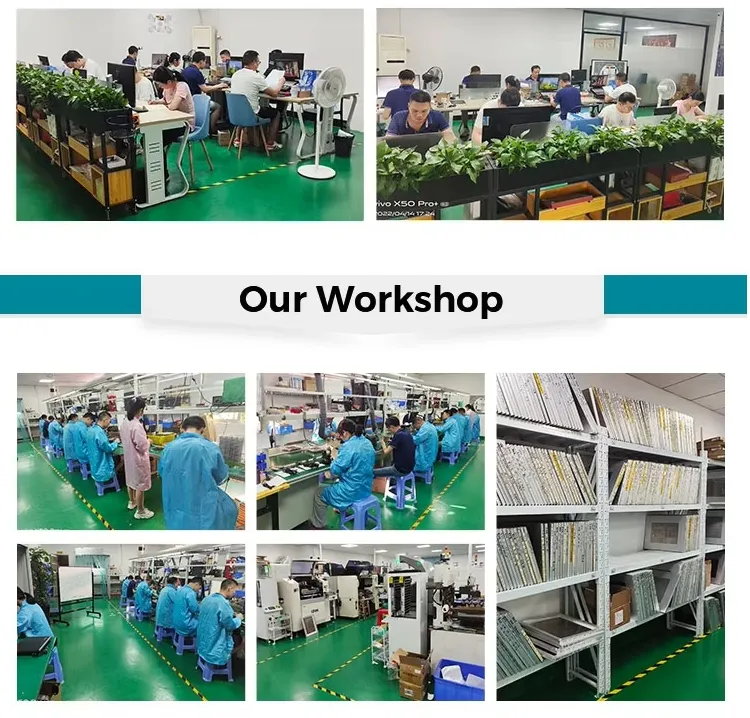

Production Line
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a leading global manufacturer of thermal imaging devices with an annual production capacity of up to 100,000 units. All products are developed and produced in-house.
How is product quality guaranteed?
We follow strict quality protocols, including pre-production samples before mass production and a 100% final inspection before shipment to ensure reliability.
What types of products can I purchase?
We provide a full range of solutions: thermal imaging camera cores, thermal scopes, clip-ons, monoculars, binoculars, and customized security systems.
Do you support OEM/ODM customization?
Yes. Our dedicated R&D team can customize functionality, outer casing, and system integration (SPI/DVP/USB/HDMI) according to your project requirements.
What are the typical applications for this module?
This module is widely used in industrial monitoring, fire warning, inspection robots, night vision devices, assisted driving, and smart home appliances.
What payment methods and trade terms are accepted?
We accept various trade terms including FOB, EXW, and CIF. Payment can be made via T/T, L/C, or PayPal in multiple currencies (USD, EUR, CNY, etc.).
