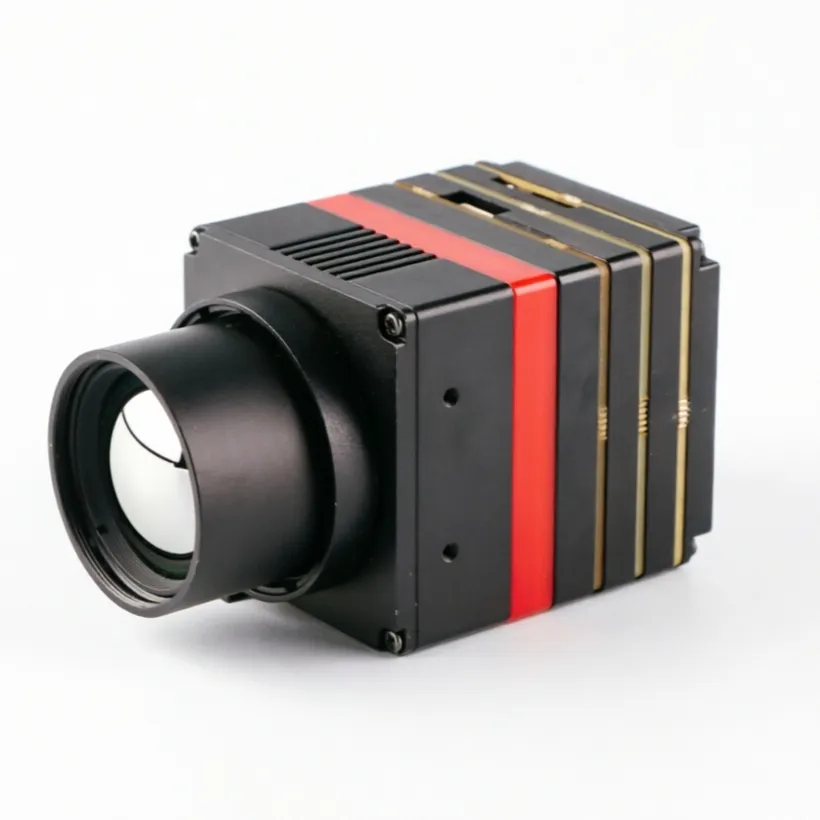

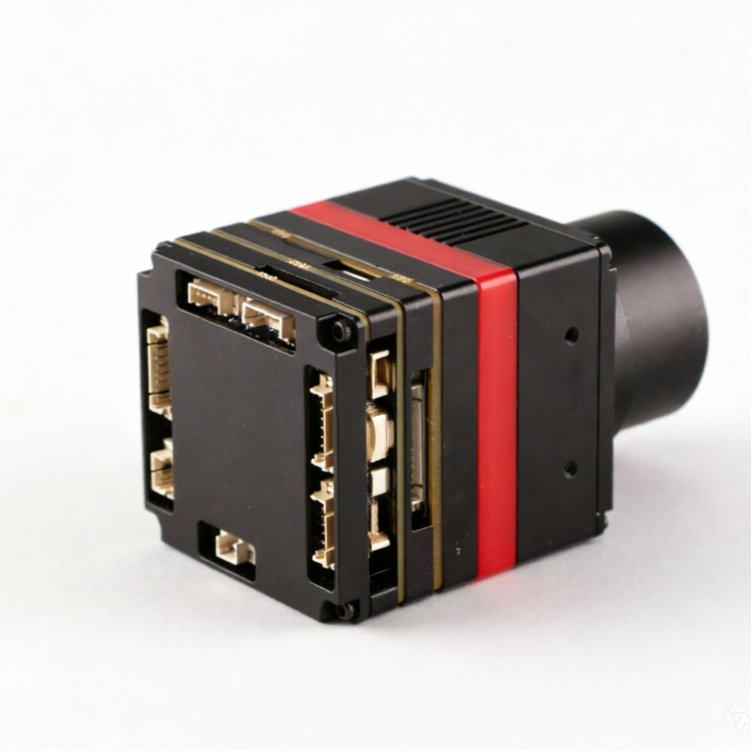

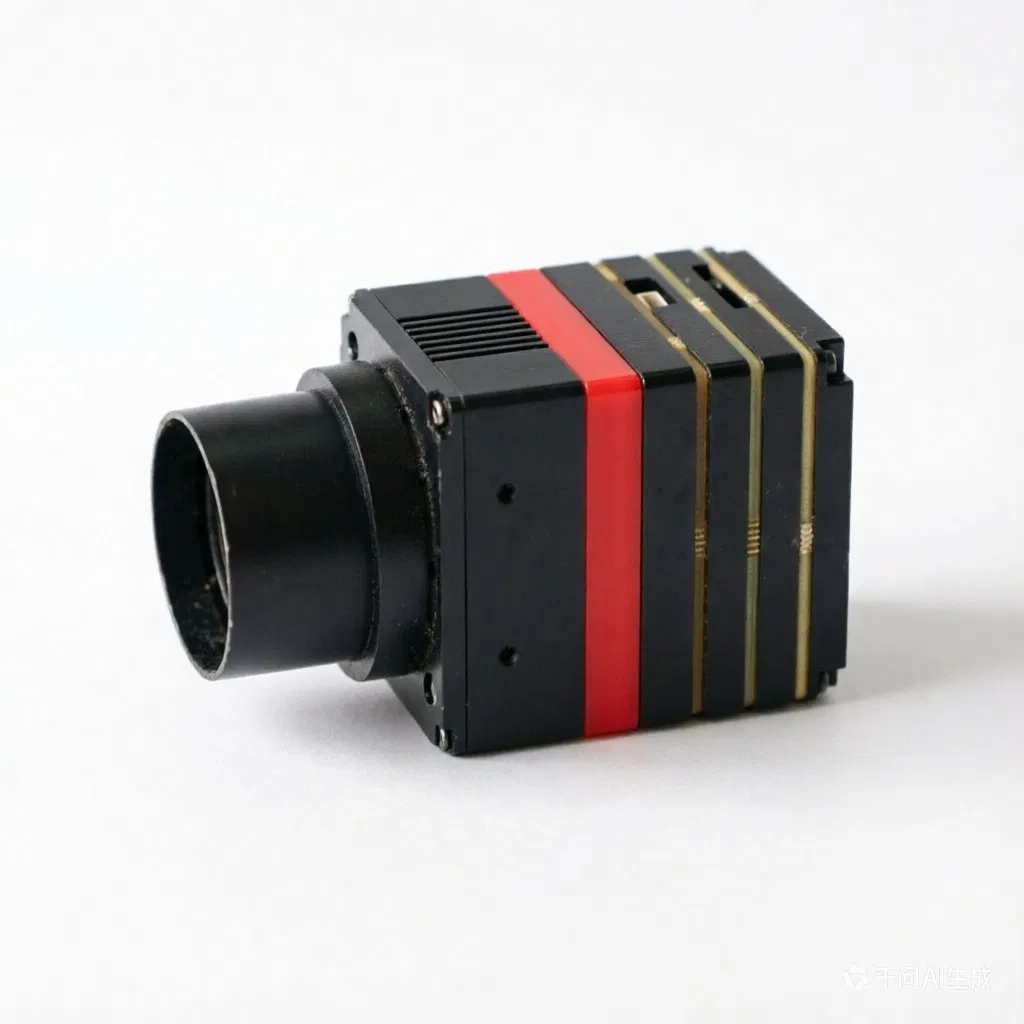

Ultra-Compact 640×512 Uncooled 25mm Athermalized Thermal Camera Module

1 / 5

Ultra-Compact 640×512 Uncooled 25mm Athermalized Thermal Camera Module

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

UV-TH61025W

Type

IP Camera

Sensor

Vox Uncooled Thermal Detector

HDMI Format

640X512

Kind

Autofocus Lens

Certification

Feature

Waterproof, High Definition, Mini Size

Distance

≧30m

Sensor Size

8-14μm

Effective Pixel

640X512

Netd

<=35 Mk @F1.0, 300K

Thermal Lens

25mm Athermalized Lens

📷 Product Overview

🛸

Drone IntegrationUltra-lightweight, network & serial control ready for UAV applications.

🛡️

Perimeter Protection24/7 thermal surveillance with intelligent alarm linkage.

🔥

Forest Fire PreventionEarly-stage hotspot detection with high-sensitivity thermal imaging.

🤖

AI-Powered DetectionReal-time recognition and tracking of people, vehicles, and vessels.

🌡️

Ultra-High SensitivityNETD ≤35mK detects subtle temperature differences through smoke and darkness.

⚙ Detailed Parameters

Detector Specifications
Detector Type	Vox Uncooled thermal Detector
Effective Pixels	640x512
Pixel Size / Spectral	12μm / 8-14μm
Sensitivity (NETD)	≤35 mK @F1.0, 300K
Lens Info
Lens Type	25mm Electronic Focusing Lens
F Value / FOV	F1.0 @ 25mm / 17.4° X 14.0°
Network & Intelligence
Compression	H.265 / H.264
Protocols	TCP/IP, HTTP, HTTPS, FTP, ONVIF, SDK
AI Detection	Electronic fence, cross-border detection, area intrusion
Interface & Environment
Storage	Micro SD/SDHC/SDXC card (up to 256G)
Operating Temp	-30ºC ~ 60ºC, Humidity < 90%
Power Supply	DC12V±10%, Consumption: 4.0W

Frequently Asked Questions

What is the thermal resolution of this camera module?

The module features a high-performance Vox Uncooled thermal detector with an effective resolution of 640x512 pixels and a 12μm pixel size.

How sensitive is the temperature detection?

It offers ultra-high sensitivity with an NETD ≤35mK (@F1.0, 300K), allowing it to detect early-stage fire hotspots and very subtle temperature differences.

Can it be used on drones or UAVs?

Yes, the module is ultra-lightweight and supports network and serial (TTL/RS485) control, making it ideal for drone integration and mobile surveillance.

What intelligent features are built into the system?

The camera supports AI-powered intelligent detection, including electronic fences, intrusion alerts, and real-time tracking of people, vehicles, and vessels.

Does it support local storage for data?

Yes, it features a Micro SD card slot supporting SD/SDHC/SDXC cards up to 256G for offline local recording and storage.

Is the camera suitable for extreme outdoor environments?

Absolutely. It operates in temperatures from -30ºC to 60ºC and features an IP67-rated front lens for protection against water and dust.
